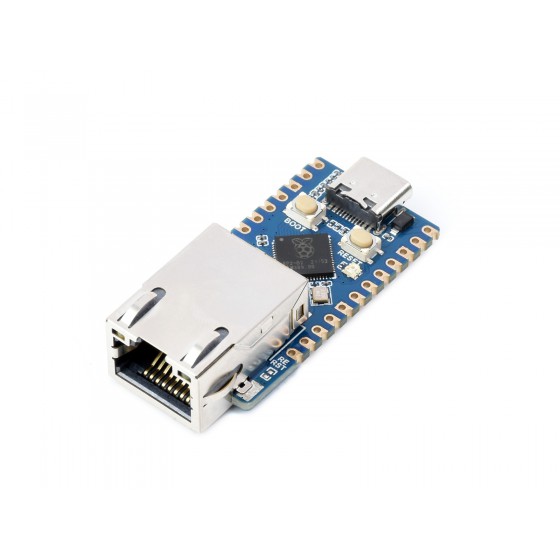

Waveshare RP2040-ETH Mini Development Board, RP2040 Ethernet Port Module, Raspberry Pi Microcontroller Development Board, Based on Official RP2040 Dual Core Processor
RP2040-ETH
Based On RP2040, Onboard ETH Port
![](/img/devkit/RP2040-ETH/RP2040-ETH-details-1.jpg)
![](/img/devkit/RP2040-ETH/RP2040-ETH-details-3.jpg)
Board specifications
- Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
- 264KB of SRAM, and 4MB of onboard Flash memory
- Onboard CH9120 with integrated TCP/IP protocol stack
- 14 × multi-function GPIO pins, compatible with some Pico HATs
- Castellated module allows soldering direct to carrier boards
- Drag-and-drop programming using mass storage over USB
- Temperature sensor
- 8 × Programmable I/O (PIO) state machines for custom peripheral support
Tiny Size and easy integration
Castellated holes with immersion gold design, highly integrated packaging
Supports multiple ways to be embedded into various product applications
![](/img/devkit/RP2040-ETH/RP2040-ETH-details-5.jpg)
This product is without pre-soldered header by default, please contact the Waveshare service team if you need mass customization.
Support multiple communication modes
Supports TCP Server / TCP Client / UDP Server / UDP
![](/img/devkit/RP2040-ETH/RP2040-ETH-details-7.jpg)
![](/img/devkit/RP2040-ETH/RP2040-ETH-details-9.jpg)
controllable via network
![](/img/devkit/RP2040-ETH/RP2040-ETH-details-11.jpg)
Support C/C++, MicroPython, Arduino
Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started
![](/img/devkit/RP2040-ETH/RP2040-ETH-details-13.jpg)
14 × multi-function GPIO pins
configurable pin function, allows flexible development and integration
![](/img/devkit/RP2040-ETH/RP2040-ETH-details-inter.jpg)
What's On Board
![](/img/devkit/RP2040-ETH/RP2040-ETH-details-intro.jpg)
- USB Type-C connector
Supports USB1.1 hosts and slave devices - BOOT button
Press it when resetting to enter download mode - RESET button
- RP2040
dual-core processor, up to 133MHz operating frequency
- RJ45 Ethernet port
- RT9013-33GB
500mA Low Dropout, Low Noise, Ultra-Fast LDO - W25Q32JVSSIQ
4MB NOR-Flash - CH9120
Ethernet serial port transmission IC
Product Show
![](/img/devkit/RP2040-ETH/RP2040-ETH-details-15.jpg)
![](/img/devkit/RP2040-ETH/RP2040-ETH-details-17.jpg)
outline dimensions
![](/img/devkit/RP2040-ETH/RP2040-ETH-details-size.jpg)
Pico Product Selection
PRODUCT | Voltage regulator chip | USB | Flash | Lithium battery header | Onboard LCD |
---|---|---|---|---|---|
RP2350 chip | |||||
![]() Raspberry Pi Pico 2 |
DC-DC, 800mA | Micro USB | 4MB | - | - |
![]() Raspberry Pi Pico 2 W |
DC-DC, 800mA | Micro USB | 4MB | - | with WIFI and Bluetooth |
![]() Type-A ver. |
LDO, 500mA | Type-A | 4MB | - | - |
![]() Type-C ver. |
LDO, 800mA | Type-C | 4MB | - | - |
![]() Tiny ver. |
LDO, 800mA | Separate Type-C port adapter | 4MB | - | Separate adapter board design, adapting USB Type-C port via FPC |
![]() ETH Port ver. |
LDO, 800mA | Type-C | 4MB | - | with Ethernet port |
![]() USB ver. |
LDO, 500mA | Type-A, Type-C | 2MB | - | with PIO-USB Type-A and USB Type-C port |
![]() 1.28inch Round LCD ver. |
LDO, 300mA | Type-C | 4MB | Support(allows recharging the battery and powering the board at the same time) | 1.28inch IPS LCD |
![]() 1.28inch Round Touch LCD ver. |
LDO, 300mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 1.28inch IPS touch LCD |
![]() 1.69inch Touch LCD ver. |
LDO, 500mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 1.69inch Touch LCD |
![]() 0.96 LCD ver. |
DC-DC, 2000mA | Type-C | 4MB | Support(allows recharging the battery and powering the board at the same time) | 0.96inch IPS LCD |
![]() Plus ver. |
DC-DC, 2000mA | Type-C | 4MB/16MB | Support(allows recharging the battery and powering the board at the same time) | - |
RP2040 chip | |||||
![]() Raspberry Pi Pico W |
DC-DC, 3000mA | Micro USB | 2MB | - | with WIFI |
![]() Raspberry Pi Pico WH |
DC-DC, 3000mA | Micro USB | 2MB | - | with WIFI |
![]() Raspberry Pi Pico |
DC-DC, 800mA | Micro USB | 2MB | - | - |
![]() Raspberry Pi Pico H |
DC-DC, 800mA | Micro USB | 2MB | - | - |
![]() Type-A ver. |
LDO, 500mA | Type-A | 4MB | - | - |
![]() Mini ver. |
LDO, 800mA | Type-C | 2MB | - | - |
![]() Tiny ver. |
LDO, 500mA | Separate Type-C port adapter | 2MB | - | Separate adapter board design, adapting USB Type-C port via FPC |
![]() RGB Matrix ver. |
LDO, 500mA | Type-C | 2MB | - | Onboard 5×5 RGB LED matrix |
![]() BLE ver. |
LDO, 300mA | Separate Type-C port adapter | 2MB | - | Supports Bluetooth 5.1, separate adapter board design, adapting USB Type-C port via FPC |
![]() ETH Port ver. |
LDO, 500mA | Type-C | 4MB | - | with Ethernet port |
![]() 0.99inch Round LCD with case ver. |
LDO, 500mA | Type-C | 2MB | - | 0.99inch IPS LCD, CNC metal case |
![]() 1.28inch Round LCD ver. |
LDO, 300mA | Type-C | 2MB | Support(allows recharging the battery and powering the board at the same time) | 1.28inch IPS LCD |
![]() 1.28inch Round LCD with case ver. |
LDO, 300mA | Type-C | 2MB | Support(allows recharging the battery and powering the board at the same time) | 1.28inch IPS LCD, CNC metal case |
![]() 1.28inch Round Touch LCD ver. |
LDO, 500mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 1.28inch Touch LCD |
![]() 1.28inch Round Touch LCD with case ver. |
LDO, 500mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 1.28inch Touch LCD, CNC metal case |
![]() 1.69inch Touch LCD ver. |
LDO, 500mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 1.69inch Touch LCD |
![]() 0.96 LCD ver. |
DC-DC, 1800mA | Type-C | 2MB | Support(allows recharging the battery and powering the board at the same time) | 0.96inch IPS LCD |
![]() Plus ver. |
DC-DC, 1800mA | Type-C | 4MB/16MB | Support(allows recharging the battery and powering the board at the same time) | - |
![]() DVI port ver. |
LDO, 300mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | Onboard DVI interface, TF card slot and PIO-USB port |
![]() Cam & LCD ver. |
- | Type-C | 16MB | - | Onboard grayscale camera and 1.14inch IPS LCD display |
Weight: 0.008 kg
