Details
The next big tiny thing
Built Using RP2350 Microcontroller Chip Designed By Raspberry Pi

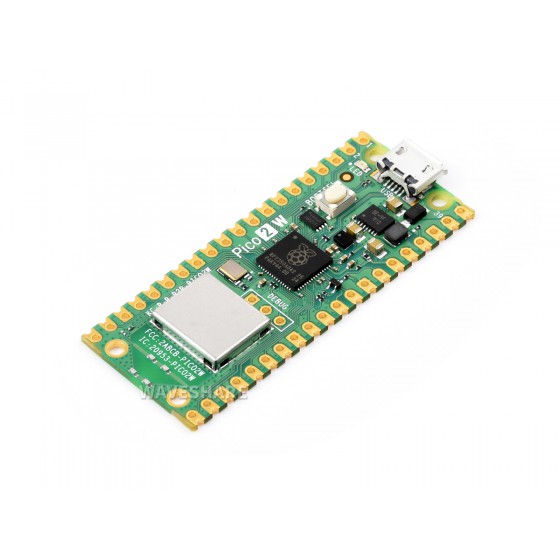

Raspberry Pi Pico 2 W is a low-cost, high-performance microcontroller board with flexible digital interfaces. Upgraded hardware from Pico 2 with wireless communication, onboard antenna, features 2.4GHz 802.11n WIFI and Bluetooth 5.2.
Key features include:
- RP2350 microcontroller chip designed by Raspberry Pi in the United Kingdom
- Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard3 RISC-V processor, flexible clock running up to 150 MHz
- Onboard Infineon CYW43439 wireless chip, supports WIFI 4 wireless and Bluetooth 5.2
- 520KB of SRAM, and 4MB of on-board Flash memory
- Castellated module allows soldering direct to carrier boards
- USB 1.1 with device and host support
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB
- 26 × multi-function GPIO pins
- 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
- Temperature sensor
- 12 × Programmable I/O (PIO) state machines for custom peripheral support
| Model | Pico 2 W | Pico 2 | Pico W | Pico |
|---|---|---|---|---|
| processor | Dual-core ARM Cortex-M33 or dual-core Hazard3 RISC-V @150MHz |
Dual-core ARM Cortex-M0+ @133MHz |
||
| SRAM | 520KB | 264KB | ||
| Flash | 4MB | 2MB | ||
| WIFI | 2.4GHz 802.11n WIFI 4 | - | 2.4GHz 802.11n WIFI 4 | - |
| Bluetooth | Bluetooth 5.2 | - | Bluetooth 5.2 | - |
| Security | Signed boot support, OTP storage for boot decryption key, and hardware SHA-256 accelerator, etc. | - | ||
| Peripherals | 2 × UART 2 × SPI 2 × I2C 3 × ADC 1 × USB 1.1 and PHY 16 × PWM |
|||
| 12 × PIO state machines | 8 × PIO state machines | |||
| 1 × HSTX | - | |||
| GPIO pins | 26 | |||
Raspberry Pi Pico 2 W Original
Raspberry-Pi-Pico-2-W-M
Pico 2 W Original with pre-soldered header (mono)
Raspberry-Pi-Pico-2-W-CC
Pico 2 W Original with pre-soldered header (color-coded)
Pico 2 W Starter Kit
This kit includes the Raspberry Pi Pico 2 W with pre-soldered header (mono), an experimental board, jumper wires, and a clear Acrylic protection case, which is more convenient to get started and begin your DIY creations.
Pico 2 W Basic Kit
On the basis of the starter kit, this kit includes LCD1602 RGB Module, PIR motion sensor, RGB LED, alarm, single-joint potentiometer, and 5mm LED, etc. With the official tutorial, you can quickly get started with MicroPython programming.
Pico 2 W Evaluation Kit
On the basis of the starter kit, this kit includes Pico-LCD-1.3, Pico-10DOF-IMU and Pico-Dual-Expander, etc. Simply connect the Pico 2 W and these two Pico HAT to the GPIO expander board, you can quickly set up a fully functional evaluation platform and start your innovation journey.
Pico 2 W Sensor Kit
On the basis of the starter kit, equipped with entry-level Raspberry Pi Pico 2 W Sensor Kit which is including 15 common modules such as LED, button, buzzer, etc. All-in-one design, all modules are connected to Pico 2 W via PCB castellated holes, no soldering or wiring is required. Each module can be easily separated for individual use, offering more flexibility for your experiments and projects. Standard Raspberry Pi Pico 2 W header, plug-and-play, also comes with clear Acrylic protection case, this kit is your ideal choice to quickly build prototypes or explore the functionality of various sensors
The Raspberry Pi Pico Sensor Kit includes
- Standard Raspberry Pi Pico 2 W header
- 1.5inch OLED Module
- 6-Axis Motion Sensor
- Potentiometer Module
- Photosensitive Resistor Module
- Sound Sensor Module
- RGB LED Module
- Buzzer Module
- VOC Sensor Module
- IR Receiver Module
- IR Transmitter Module
- Button Module
- LED Module
- Temperature/Humidity Sensor Module
- EEPROM Module
- Motor Drive Module
Comprehensive SDK, dev resources, tutorials to help you easily get started
The unique dual-core, dual-architecture capability of RP2350 allows users to choose between a pair of industry-standard Arm Cortex-M33 cores, and a pair of open-hardware Hazard3 cores, giving developers a chance to experiment with the RISC-V architecture in a stable, well-supported environment
Onboard Infineon CYW43439 wireless chip, supports WIFI 4 wireless and Bluetooth 5.2
configurable pin function, allows flexible development and integration
| PRODUCT | Voltage regulator chip | USB | Flash | Lithium battery header | Onboard LCD |
|---|---|---|---|---|---|
| RP2350 chip | |||||
 Raspberry Pi Pico 2 |
DC-DC, 800mA | Micro USB | 4MB | - | - |
 Raspberry Pi Pico 2 W |
DC-DC, 800mA | Micro USB | 4MB | - | with WIFI and Bluetooth |
 Type-A ver. |
LDO, 500mA | Type-A | 4MB | - | - |
 Type-C ver. |
LDO, 800mA | Type-C | 4MB | - | - |
 Tiny ver. |
LDO, 800mA | Separate Type-C port adapter | 4MB | - | Separate adapter board design, adapting USB Type-C port via FPC |
 ETH Port ver. |
LDO, 800mA | Type-C | 4MB | - | with Ethernet port |
 1.28inch Round LCD ver. |
LDO, 300mA | Type-C | 4MB | Support(allows recharging the battery and powering the board at the same time) | 1.28inch IPS LCD |
 1.28inch Round Touch LCD ver. |
LDO, 300mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 1.28inch IPS touch LCD |
 0.96 LCD ver. |
DC-DC, 2000mA | Type-C | 4MB | Support(allows recharging the battery and powering the board at the same time) | 0.96inch IPS LCD |
 Plus ver. |
DC-DC, 2000mA | Type-C | 4MB/16MB | Support(allows recharging the battery and powering the board at the same time) | - |
| RP2040 chip | |||||
 Raspberry Pi Pico W |
DC-DC, 3000mA | Micro USB | 2MB | - | with WIFI |
 Raspberry Pi Pico WH |
DC-DC, 3000mA | Micro USB | 2MB | - | with WIFI |
 Raspberry Pi Pico |
DC-DC, 800mA | Micro USB | 2MB | - | - |
 Raspberry Pi Pico H |
DC-DC, 800mA | Micro USB | 2MB | - | - |
 Type-A ver. |
LDO, 500mA | Type-A | 4MB | - | - |
 Mini ver. |
LDO, 800mA | Type-C | 2MB | - | - |
 Tiny ver. |
LDO, 500mA | Separate Type-C port adapter | 2MB | - | Separate adapter board design, adapting USB Type-C port via FPC |
 RGB Matrix ver. |
LDO, 500mA | Type-C | 2MB | - | Onboard 5×5 RGB LED matrix |
 BLE ver. |
LDO, 300mA | Separate Type-C port adapter | 2MB | - | Supports Bluetooth 5.1, separate adapter board design, adapting USB Type-C port via FPC |
 ETH Port ver. |
LDO, 500mA | Type-C | 4MB | - | with Ethernet port |
 0.99inch Round LCD with case ver. |
LDO, 500mA | Type-C | 2MB | - | 0.99inch IPS LCD, CNC metal case |
 1.28inch Round LCD ver. |
LDO, 300mA | Type-C | 2MB | Support(allows recharging the battery and powering the board at the same time) | 1.28inch IPS LCD |
 1.28inch Round LCD with case ver. |
LDO, 300mA | Type-C | 2MB | Support(allows recharging the battery and powering the board at the same time) | 1.28inch IPS LCD, CNC metal case |
 1.28inch Round Touch LCD ver. |
LDO, 500mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 1.28inch Touch LCD |
 1.28inch Round Touch LCD with case ver. |
LDO, 500mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 1.28inch Touch LCD, CNC metal case |
 1.69inch Touch LCD ver. |
LDO, 500mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 1.69inch Touch LCD |
 0.96 LCD ver. |
DC-DC, 1800mA | Type-C | 2MB | Support(allows recharging the battery and powering the board at the same time) | 0.96inch IPS LCD |
 Plus ver. |
DC-DC, 1800mA | Type-C | 4MB/16MB | Support(allows recharging the battery and powering the board at the same time) | - |
 DVI port ver. |
LDO, 300mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | Onboard DVI interface, TF card slot and PIO-USB port |
 Cam & LCD ver. |
- | Type-C | 16MB | - | Onboard grayscale camera and 1.14inch IPS LCD display |
Quick Overview
Raspberry Pi Pico 2 W Original
Raspberry Pi Pico 2 W x1
Raspberry-Pi-Pico-2-W-M
- Raspberry Pi Pico 2 W with pre-soldered header (mono) x1
- 1*3PIN yellow pin header x1
- USB-A to micro USB cable ~1.2m x1
Raspberry-Pi-Pico-2-W-CC
- Raspberry Pi Pico 2 W with pre-soldered header (color-coded) x1
- 1*3PIN yellow pin header x1
- USB-A to micro USB cable ~1.2m x1
Raspberry-Pi-Pico-2-W-Starter-Kit
- Raspberry Pi Pico 2 W with pre-soldered header (mono) x1
- Acrylic protective case (top and bottom) x1
- Experimental board + jumper wires x1
- USB-A to micro USB cable ~1.2m x1
Raspberry-Pi-Pico-2-W-Basic-Kit
- Raspberry Pi Pico 2 W with pre-soldered header (mono) x1
- Experimental board + jumper wires x1
- USB-A to micro USB cable ~1.2m x1
- PIR sensor 2PCS x1
- Single-joint potentiometer x1
- 8-Bit WS2812 RGB LED x1
- Round-shape button 3PCS x1
- Alarm x1
- 330R resistor 10PCS x1
- 5mm LED 6PCS x1
- LCD1602 RGB Module x1
- Jumper wire 2.54mm pitch male-male 10PIN ~200mm x1
- Jumper wire 2.54mm pitch female-female 10PIN ~200mm x1
- Jumper wire 2.54mm pitch male-female 10PIN ~200mm x1
- Plastic storage box x1
- Acrylic protective case (top and bottom) x1
Raspberry-Pi-Pico-2-W-Kit-B
- Raspberry Pi Pico 2 W with pre-soldered header (mono) x1
- Pico-LCD-1.3 x1
- Pico-10DOF-IMU x1
- Pico-Dual-Expander x1
- Acrylic protective case (top and bottom) x1
- USB-A to micro USB cable ~1.2m x1
- Black anti-slip rubber 4PCS x1
- Experimental board + jumper wires x1
- Jumper wire 2.54mm pitch male-female 10PIN ~200mm x1
- Jumper wire 2.54mm pitch female-female 10PIN ~200mm x1
- Jumper wire 2.54mm pitch male-male 10PIN ~200mm x1
Raspberry-Pi-Pico-2-W-Sensor-Kit
- Pico-Sensor-Kit-B x1
- Raspberry Pi Pico 2 W with pre-soldered header (mono) x1
- Acrylic protective case (top and bottom) x1
- PH2.0 4PIN cable ~300mm (5pcs) x1
- PH2.0 dual-plug 4PIN cable (15pcs) x1
- IR remote controller x1
- USB-A to micro USB cable ~1.2m x1
