Raspberry Pi Pico W Microcontroller Board, Built-in WiFi, Based on Official RP2040 Dual-core Processor

$6.99 - $39.99
Description

Details

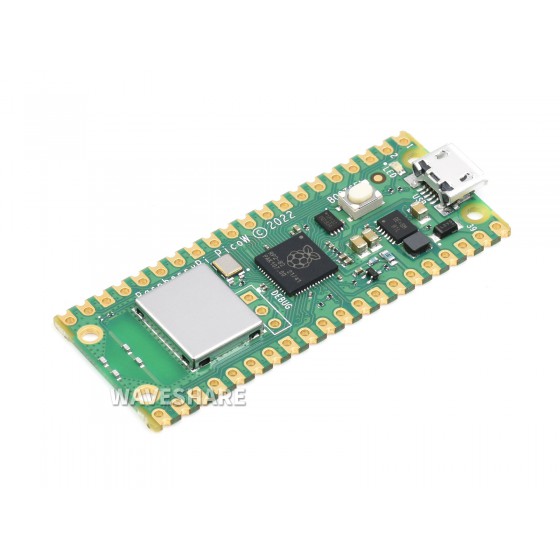

Raspberry Pi Pico W Microcontroller Board, Built-in WiFi, Based on Official RP2040 Dual-core Processor
Raspberry Pi Pico W

a tiny, fast, and versatile microcontroller board

Built Using RP2040 Microcontroller Chip Designed By Raspberry Pi

Versions Options
Kit Selection Guide

Pico W Relay Kit

This kit includes the Pico-Relay-B, which is an industrial 8-Channel relay module with build-in power supply isolation, photocoupler isolation, and rail-mount protection enclosure, suitable for realizing wireless control functions safely and stably.

Pico W Basic Kit

This kit includes LCD1602 RGB Module, PIR motion sensor, RGB LED, alarm, single-joint potentiometer, and 5mm LED, etc.

  • With the official tutorial, fast getting started with MicroPython programming
  • Wireless networks function allows remote control of various sensor modules
  • With this kit, you can DIY as you like

Pico W Evaluation Kit

This kit includes Pico-LCD-1.14, Pico-10DOF-IMU and Pico-Dual-Expander, working with Pico W to realize functions such as remote control and data upload.

Board specifications

Based on Raspberry Pi Pico, Raspberry Pi Pico W comes with a wireless communication module. The wireless module hardware uses Infineon's CYW43439 wireless chip, which supports Wi-Fi 4 wireless networks, making it the perfect solution for wireless network control and communication..

Key features include:

  • RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
  • Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
  • Onboard Infineon CYW43439 wireless chip, supports Wi-Fi 4 wireless networks
  • 264KB of SRAM, and 2MB of on-board Flash memory
  • Castellated module allows soldering direct to carrier boards
  • USB 1.1 with device and host support
  • Low-power sleep and dormant modes
  • Drag-and-drop programming using mass storage over USB
  • 26 × multi-function GPIO pins
  • 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
  • Accurate clock and timer on-chip
  • Temperature sensor
  • Accelerated floating-point libraries on-chip
  • 8 × Programmable I/O (PIO) state machines for custom peripheral support

* Note: the Pico WH is the official version with pre-soldered header, no castellated holes design, can only be connected to the carrier board via pin header.

C/C++, MicroPython support

Comprehensive SDK, dev resources, tutorials to help you easily get started

Dual-core Arm processor

Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz

Built-in Wi-Fi

Onboard Infineon CYW43439 wireless chip, supports Wi-Fi 4 wireless networks

26 × multi-function GPIO pins

configurable pin function, allows flexible development and integration

outline dimensions
Pico Product Selection
PRODUCTVoltage regulator chipUSBFlashLithium battery headerOnboard LCD
RP2350 chip

Raspberry Pi Pico 2
DC-DC, 800mA Micro USB 4MB - -
RP2040 chip

Raspberry Pi Pico W
DC-DC, 3000mA Micro USB 2MB - with WIFI

Raspberry Pi Pico WH
DC-DC, 3000mA Micro USB 2MB - with WIFI

Raspberry Pi Pico
DC-DC, 800mA Micro USB 2MB - -

Raspberry Pi Pico H
DC-DC, 800mA Micro USB 2MB - -

Type-A ver.
LDO, 500mA Type-A 4MB - -

Mini ver.
LDO, 800mA Type-C 2MB - -

Tiny ver.
LDO, 500mA Separate Type-C port adapter 2MB - Separate adapter board design, adapting USB Type-C port via FPC

RGB Matrix ver.
LDO, 500mA Type-C 2MB - Onboard 5×5 RGB LED matrix

BLE ver.
LDO, 300mA Separate Type-C port adapter 2MB - Supports Bluetooth 5.1, separate adapter board design, adapting USB Type-C port via FPC

ETH Port ver.
LDO, 500mA Type-C 4MB - with Ethernet port

0.99inch Round LCD with case ver.
LDO, 500mA Type-C 2MB - 0.99inch IPS LCD, CNC metal case

1.28inch Round LCD ver.
LDO, 300mA Type-C 2MB Support(allows recharging the battery and powering the board at the same time) 1.28inch IPS LCD

1.28inch Round LCD with case ver.
LDO, 300mA Type-C 2MB Support(allows recharging the battery and powering the board at the same time) 1.28inch IPS LCD, CNC metal case

1.28inch Round Touch LCD ver.
LDO, 500mA Type-C 16MB Support(allows recharging the battery and powering the board at the same time) 1.28inch Touch LCD

1.28inch Round Touch LCD with case ver.
LDO, 500mA Type-C 16MB Support(allows recharging the battery and powering the board at the same time) 1.28inch Touch LCD, CNC metal case

1.69inch Touch LCD ver.
LDO, 500mA Type-C 16MB Support(allows recharging the battery and powering the board at the same time) 1.69inch Touch LCD

0.96 LCD ver.
DC-DC, 1800mA Type-C 2MB Support(allows recharging the battery and powering the board at the same time) 0.96inch IPS LCD

Plus ver.
DC-DC, 1800mA Type-C 4MB/16MB Support(allows recharging the battery and powering the board at the same time) -

DVI port ver.
LDO, 300mA Type-C 16MB Support(allows recharging the battery and powering the board at the same time) Onboard DVI interface, TF card slot and PIO-USB port

Cam & LCD ver.
- Type-C 16MB - Onboard grayscale camera and 1.14inch IPS LCD display

Quick Overview

Raspberry Pi Pico W Original

Raspberry Pi Pico W x1

Raspberry Pi Pico WH Original

Raspberry Pi Pico WH x1

Raspberry-Pi-Pico-W-M

  1. Raspberry Pi Pico W with pre-soldered header x1
  2. 1*3PIN yellow pin header x1
  3. USB-A to micro-B cable x1

Pico-W-Relay-Kit

  1. ABS protective case (top and bottom) x1
  2. Pico-Relay-B x1
  3. Raspberry Pi Pico W with pre-soldered heade x1
  4. Screwdriver x1
  5. Screws pack x1

Raspberry-Pi-Pico-WH-Basic-Kit

  1. Raspberry Pi Pico W with pre-soldered header x1
  2. Experimental board x1
  3. 1*3PIN yellow pin header x1
  4. USB-A to micro-B cable x1
  5. PIR sensor 2PCS x1
  6. Wires x1
  7. Single-joint potentiometer x1
  8. 8-Bit WS2812 RGB LED x1
  9. Round-shape button 3PCS x1
  10. Alarm x1
  11. 330R resistor 10PCS x1
  12. 5mm LED 6PCS x1
  13. LCD1602 RGB Module x1
  14. Jumper wire male-male 10PIN x1
  15. Jumper wire female-female 10PIN x1
  16. Jumper wire male-female 10PIN x1
  17. Plastic storage box x1

Raspberry-Pi-Pico-WH-Kit-B

  1. Raspberry Pi Pico W with pre-soldered header x1
  2. Pico-LCD-1.14 x1
  3. Pico-10DOF-IMU x1
  4. Pico-Dual-Expander x1
  5. USB-A to micro-B cable x1
  6. Black anti-slip rubber 4PCS x1
  7. Experimental board x1
  8. Jumper wires x1
