Waveshare RP2350-Tiny Development Board, Raspberry Pi Microcontroller Development Board, Based On RP2350A Dual-core & Dual-architecture Microcontroller, Optional for USB Port Adapter Board
RP2350-Tiny Development Board
Based On RP2350A, Optional for USB Port Adapter Board
Castellated Module, Suitable For SMD Applications
Board specifications
- RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom
- Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz
- 520KB of SRAM, and 4MB of on-board Flash memory
- Onboard FPC 8PIN connector, adapting USB Type-C port via adapter board
- Castellated module allows soldering direct to carrier boards
- USB 1.1 with device and host support
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB
- 28 × multi-function GPIO pins (20× via edge pinout, others via solder points)
- 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
- Accurate clock and timer on-chip
- Temperature sensor
- Accelerated floating-point libraries on-chip
- 12 × Programmable I/O (PIO) state machines for custom peripheral support
Version Options
RP2350-Tiny
The development board only
RP2350-Tiny-Kit

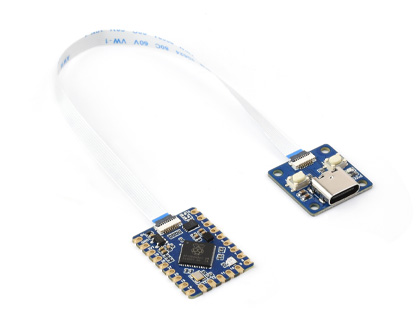

Development board + USB port adapter + FPC cable
Support C/C++, MicroPython
Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started
dual-core, dual-architecture
Adopts dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz
28 × multi-function GPIO pins
configurable pin function, allows flexible development and integration

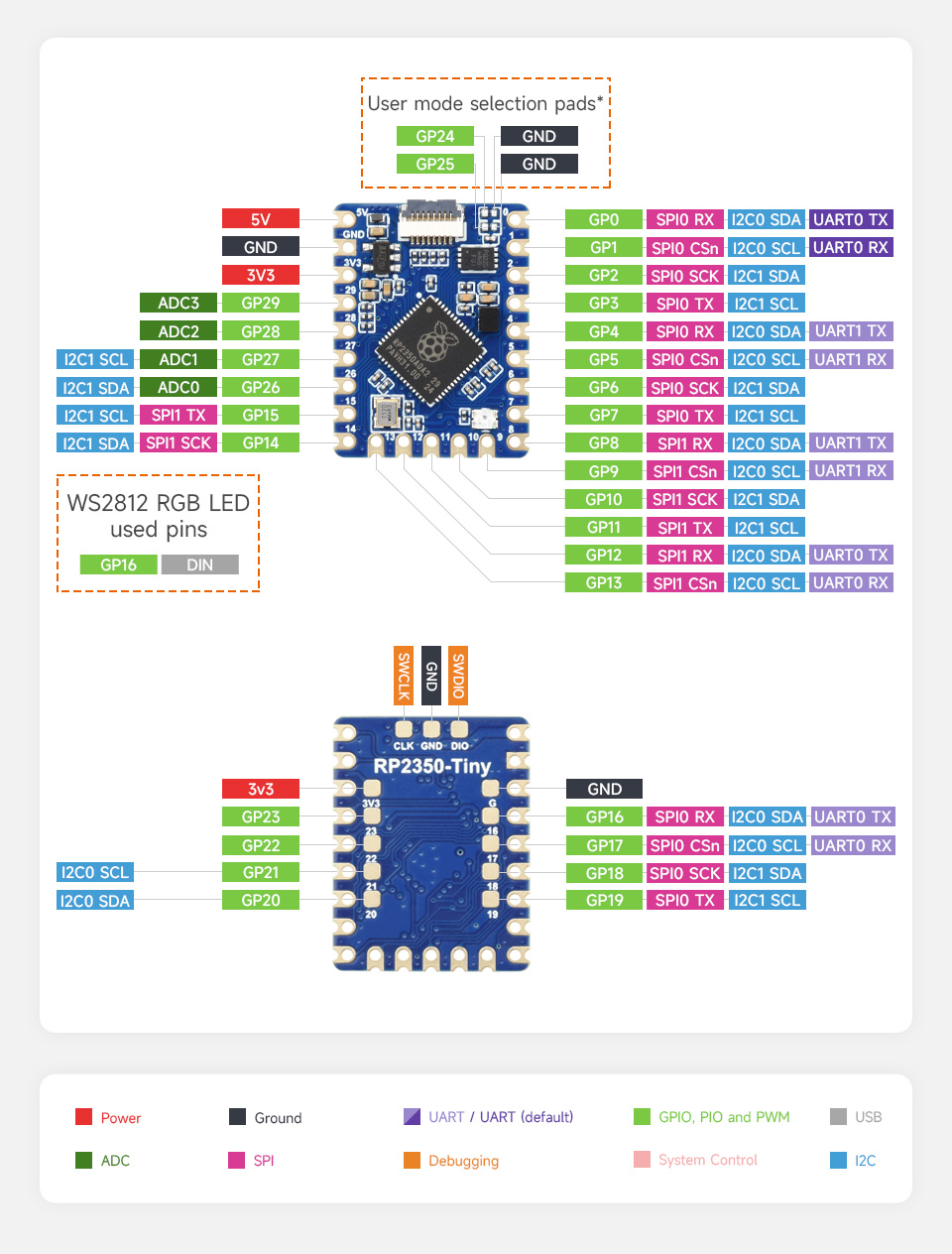

* Reserved two 0402 resistor pads for user mode selection, you need solder the corresponding resistors or short the pads and complete the corresponding programming.
What's On Board
- FPC connector
0.5mm pitch 8PIN - ME6217C33M5G
Low dropout regulator, 800mA output (Max.) - P25Q32SH-UXH-IR
4MB NOR-Flash
- RP2350A
Dual-core and dual-architecture design, up to 150 MHz operating frequency - WS2812
RGB LED Indicator
Product Show
outline dimensions
RP2350-Tiny
USB Port Adapter
Pico Product Selection
| PRODUCT | Voltage regulator chip | USB | Flash | Lithium battery header | Onboard LCD |
|---|---|---|---|---|---|
| RP2350 chip | |||||
 Raspberry Pi Pico 2 |
DC-DC, 800mA | Micro USB | 4MB | - | - |
 Raspberry Pi Pico 2 W |
DC-DC, 800mA | Micro USB | 4MB | - | with WIFI and Bluetooth |
 Type-A ver. |
LDO, 500mA | Type-A | 4MB | - | - |
 Type-C ver. |
LDO, 800mA | Type-C | 4MB | - | - |
 Tiny ver. |
LDO, 800mA | Separate Type-C port adapter | 4MB | - | Separate adapter board design, adapting USB Type-C port via FPC |
 ETH Port ver. |
LDO, 800mA | Type-C | 4MB | - | with Ethernet port |
 1.28inch Round LCD ver. |
LDO, 300mA | Type-C | 4MB | Support(allows recharging the battery and powering the board at the same time) | 1.28inch IPS LCD |
 1.28inch Round Touch LCD ver. |
LDO, 300mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 1.28inch IPS touch LCD |
 0.96 LCD ver. |
DC-DC, 2000mA | Type-C | 4MB | Support(allows recharging the battery and powering the board at the same time) | 0.96inch IPS LCD |
 Plus ver. |
DC-DC, 2000mA | Type-C | 4MB/16MB | Support(allows recharging the battery and powering the board at the same time) | - |
| RP2040 chip | |||||
 Raspberry Pi Pico W |
DC-DC, 3000mA | Micro USB | 2MB | - | with WIFI |
 Raspberry Pi Pico WH |
DC-DC, 3000mA | Micro USB | 2MB | - | with WIFI |
 Raspberry Pi Pico |
DC-DC, 800mA | Micro USB | 2MB | - | - |
 Raspberry Pi Pico H |
DC-DC, 800mA | Micro USB | 2MB | - | - |
 Type-A ver. |
LDO, 500mA | Type-A | 4MB | - | - |
 Mini ver. |
LDO, 800mA | Type-C | 2MB | - | - |
 Tiny ver. |
LDO, 500mA | Separate Type-C port adapter | 2MB | - | Separate adapter board design, adapting USB Type-C port via FPC |
 RGB Matrix ver. |
LDO, 500mA | Type-C | 2MB | - | Onboard 5×5 RGB LED matrix |
 BLE ver. |
LDO, 300mA | Separate Type-C port adapter | 2MB | - | Supports Bluetooth 5.1, separate adapter board design, adapting USB Type-C port via FPC |
 ETH Port ver. |
LDO, 500mA | Type-C | 4MB | - | with Ethernet port |
 0.99inch Round LCD with case ver. |
LDO, 500mA | Type-C | 2MB | - | 0.99inch IPS LCD, CNC metal case |
 1.28inch Round LCD ver. |
LDO, 300mA | Type-C | 2MB | Support(allows recharging the battery and powering the board at the same time) | 1.28inch IPS LCD |
 1.28inch Round LCD with case ver. |
LDO, 300mA | Type-C | 2MB | Support(allows recharging the battery and powering the board at the same time) | 1.28inch IPS LCD, CNC metal case |
 1.28inch Round Touch LCD ver. |
LDO, 500mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 1.28inch Touch LCD |
 1.28inch Round Touch LCD with case ver. |
LDO, 500mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 1.28inch Touch LCD, CNC metal case |
 1.69inch Touch LCD ver. |
LDO, 500mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 1.69inch Touch LCD |
 0.96 LCD ver. |
DC-DC, 1800mA | Type-C | 2MB | Support(allows recharging the battery and powering the board at the same time) | 0.96inch IPS LCD |
 Plus ver. |
DC-DC, 1800mA | Type-C | 4MB/16MB | Support(allows recharging the battery and powering the board at the same time) | - |
 DVI port ver. |
LDO, 300mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | Onboard DVI interface, TF card slot and PIO-USB port |
 Cam & LCD ver. |
- | Type-C | 16MB | - | Onboard grayscale camera and 1.14inch IPS LCD display |
