Based on Raspberry Pi RP2040, adopts CNC metal case
![](/img/devkit/RP2040-LCD-1.28-B/RP2040-LCD-1.28-B-details-1.jpg)

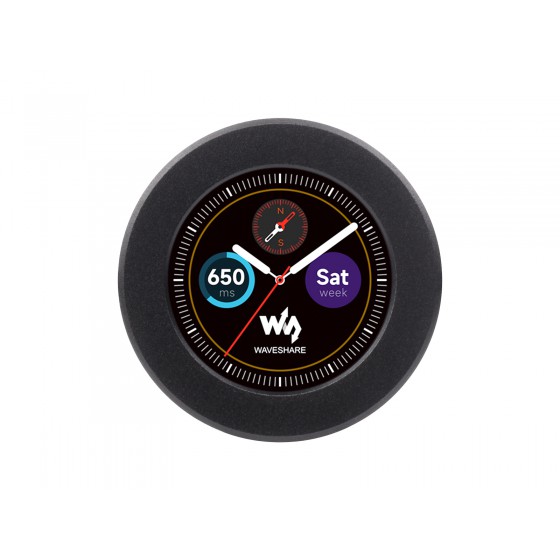

RP2040-LCD-1.28-B is a low-cost, high-performance MCU board designed by Waveshare. Tiny size with onboard 1.28inch LCD round display, Li-ion battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope) and so on, adapting all GPIO and Debug pins, which makes it easy for you to develop and integrate it into products quickly.
Key features include:
- RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
- Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
- 264KB of SRAM, and 2MB of on-board Flash memory
- Type-C connector, keeps it up to date, easier to use
- Onboard 1.28inch 240×240 pixels 65K colorful IPS LCD display for clear color pictures
- Lithium battery recharge/discharge header, suitable for mobile devices
- Adopts CNC metal case with Acrylic dull-polish bottom plate
- All GPIO pins are adapted through 1.27 pitch female headers (There are 30 pins in total, but some pins have been connected to the internal circuit, please refer to the wiki for details when multiplexing)
- USB 1.1 with device and host support
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB
- 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
- Accurate clock and timer on-chip
- Temperature sensor
- Accelerated floating-point libraries on-chip
- 8 × Programmable I/O (PIO) state machines for custom peripheral support
Comprehensive SDK, dev resources, tutorials to help you easily get started
![](/img/devkit/RP2040-LCD-1.28/RP2040-LCD-1.28-details-4.jpg)
Adopts CNC metal case with Acrylic dull-polish bottom plate
![](/img/devkit/RP2040-LCD-1.28-B/RP2040-LCD-1.28-B-details-3.jpg)
Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
![](/img/devkit/RP2040-LCD-1.28/RP2040-LCD-1.28-details-5.jpg)
configurable pin function, allows flexible development and integration
![](/img/devkit/RP2040-LCD-1.28/RP2040-LCD-1.28-details-3.jpg)
![](/img/devkit/RP2040-LCD-1.28/RP2040-LCD-1.28-details-intro.jpg)
- USB Type-C connector
USB 1.1 with device and host support - ETA6096
high efficiency Lithium battery recharge manager - Battery Header
MX1.25 header, for 3.7V Lithium battery, allows recharging the battery and powering the board at the same time - QMI8658C
IMU, includes a 3-axis gyroscope and a 3-axis accelerometer
- 1.27mm pitch headers
Adapting all GPIO and Debug pins - W25Q16JVUXIQ
2MB NOR-Flash - RP2040
Dual-core processor, up to 133MHz operating frequency - RESET Button
- BOOT Button
press it when resetting to enter download mode
![](/img/devkit/RP2040-LCD-1.28-B/RP2040-LCD-1.28-B-details-size.jpg)
PRODUCT | Voltage regulator chip | USB | Flash | Lithium battery header | Onboard LCD |
---|---|---|---|---|---|
![]() Raspberry Pi Pico W |
DC-DC, 3000mA | Micro USB | 2MB | - | with WIFI |
![]() Raspberry Pi Pico WH |
DC-DC, 3000mA | Micro USB | 2MB | - | with WIFI |
![]() Raspberry Pi Pico |
DC-DC, 800mA | Micro USB | 2MB | - | - |
![]() Raspberry Pi Pico H |
DC-DC, 800mA | Micro USB | 2MB | - | - |
![]() Type-A ver. |
LDO, 500mA | Type-A | 4MB | - | - |
![]() Mini ver. |
LDO, 800mA | Type-C | 2MB | - | - |
![]() Tiny ver. |
LDO, 500mA | Separate Type-C port adapter | 2MB | - | Separate adapter board design, adapting USB Type-C port via FPC |
![]() RGB Matrix ver. |
LDO, 500mA | Type-C | 2MB | - | Onboard 5×5 RGB LED matrix |
![]() BLE ver. |
LDO, 300mA | Separate Type-C port adapter | 2MB | - | Supports Bluetooth 5.1, separate adapter board design, adapting USB Type-C port via FPC |
![]() ETH Port ver. |
LDO, 500mA | Type-C | 4MB | - | with Ethernet port |
![]() 0.99inch Round LCD with case ver. |
LDO, 500mA | Type-C | 2MB | - | 0.99inch IPS LCD, CNC metal case |
![]() 1.28inch Round LCD ver. |
LDO, 300mA | Type-C | 2MB | Support(allows recharging the battery and powering the board at the same time) | 1.28inch IPS LCD |
![]() 1.28inch Round LCD with case ver. |
LDO, 300mA | Type-C | 2MB | Support(allows recharging the battery and powering the board at the same time) | 1.28inch IPS LCD, CNC metal case |
![]() 1.28inch Round Touch LCD ver. |
LDO, 500mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 1.28inch Touch LCD |
![]() 1.28inch Round Touch LCD with case ver. |
LDO, 500mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 1.28inch Touch LCD, CNC metal case |
![]() 1.69inch Touch LCD ver. |
LDO, 500mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 1.69inch Touch LCD |
![]() 0.96 LCD ver. |
DC-DC, 1800mA | Type-C | 2MB | Support(allows recharging the battery and powering the board at the same time) | 0.96inch IPS LCD |
![]() Plus ver. |
DC-DC, 1800mA | Type-C | 4MB/16MB | Support(allows recharging the battery and powering the board at the same time) | - |
![]() DVI port ver. |
LDO, 300mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | Onboard DVI interface, TF card slot and PIO-USB port |
![]() Cam & LCD ver. |
- | Type-C | 16MB | - | Onboard grayscale camera and 1.14inch IPS LCD display |
Weight: 0.027 kg
Quick Overview
RP2040-LCD-1.28-B x1
![](/img/devkit/RP2040-LCD-1.28-B/RP2040-LCD-1.28-B-details-pack.jpg)
