RP2040 MCU Board, With 0.99inch Round LCD, Accelerometer And Gyroscope Sensor, With CNC Metal Case

SKU:26372
Part No.:RP2040-LCD-0.99-B
Brand:Waveshare

$16.99
PriceQuantity
$16.592+
$16.393+
$16.314+
Related Products:
Description

Details

RP2040 MCU Board, With 0.99inch Round LCD, Accelerometer And Gyroscope Sensor, With CNC Metal Case
RP2040 MCU Board with 0.99inch LCD

Based on Raspberry Pi RP2040, adopts CNC metal case

Features

RP2040-LCD-0.99-B is a low-cost, high-performance MCU board designed by Waveshare. Tiny size with onboard 0.99inch LCD round display (with flat bottom), 6-axis sensor (3-axis accelerometer and 3-axis gyroscope) and so on, adapting 4 × GPIO pins through SH1.0 6PIN connector, which makes it easy for you to develop and integrate it into products quickly.

Key features include:

  • RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
  • Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
  • 264KB of SRAM, and 2MB of on-board Flash memory
  • Type-C connector, keeps it up to date, easier to use
  • Onboard 0.99inch 128×115 pixels 65K colorful IPS LCD display (with flat bottom) for clear color pictures
  • 4 × GPIO pins are adapted through SH1.0 6PIN connector
  • Adopts CNC metal case with Acrylic dull-polish bottom plate
  • USB 1.1 with device and host support
  • Low-power sleep and dormant modes
  • Drag-and-drop programming using mass storage over USB
  • 2 × I2C, 4 × 12-bit ADC
  • Accurate clock and timer on-chip
  • Temperature sensor
  • Accelerated floating-point libraries on-chip
  • 8 × Programmable I/O (PIO) state machines for custom peripheral support

Support C/C++, MicroPython, Arduino

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started


CNC metal case

Adopts CNC metal case with Acrylic dull-polish bottom plate

Dual-core Arm processor

Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz


What's On Board
  1. USB Type-C connector
    for programming, USB 1.1 with device and host support
  2. RT9013-33GB
    500mA low dropout, low noise, ultra-fast LDO
  3. QMI8658C
    IMU, includes a 3-axis gyroscope and a 3-axis accelerometer
  4. W25Q16JVUXIQ
    2MB NOR-Flash
  1. RP2040
    Dual-core processor, up to 133MHz operating frequency
  2. SH1.0 6PIN connector
    Adapting 4 × GPIO pins, the pin order is: GND, 3V3, GP26~GP29
  3. BOOT Button
    press it when powering on to enter download mode

outline dimensions

Resources & Services

Pico Product Selection
PRODUCT Voltage regulator chip USB Flash Lithium battery header Onboard LCD
RP2350 chip

Raspberry Pi Pico 2
DC-DC, 800mA Micro USB 4MB - -

Type-C ver.
LDO, 800mA Type-C 4MB - -

ETH Port ver.
LDO, 800mA Type-C 4MB - with Ethernet port

1.28inch Round LCD ver.
LDO, 300mA Type-C 4MB Support(allows recharging the battery and powering the board at the same time) 1.28inch IPS LCD

1.28inch Round Touch LCD ver.
LDO, 300mA Type-C 16MB Support(allows recharging the battery and powering the board at the same time) 1.28inch IPS touch LCD

Plus ver.
DC-DC, 2000mA Type-C 4MB Support(allows recharging the battery and powering the board at the same time) -
RP2040 chip

Raspberry Pi Pico W
DC-DC, 3000mA Micro USB 2MB - with WIFI

Raspberry Pi Pico WH
DC-DC, 3000mA Micro USB 2MB - with WIFI

Raspberry Pi Pico
DC-DC, 800mA Micro USB 2MB - -

Raspberry Pi Pico H
DC-DC, 800mA Micro USB 2MB - -

Type-A ver.
LDO, 500mA Type-A 4MB - -

Mini ver.
LDO, 800mA Type-C 2MB - -

Tiny ver.
LDO, 500mA Separate Type-C port adapter 2MB - Separate adapter board design, adapting USB Type-C port via FPC

RGB Matrix ver.
LDO, 500mA Type-C 2MB - Onboard 5×5 RGB LED matrix

BLE ver.
LDO, 300mA Separate Type-C port adapter 2MB - Supports Bluetooth 5.1, separate adapter board design, adapting USB Type-C port via FPC

ETH Port ver.
LDO, 500mA Type-C 4MB - with Ethernet port

0.99inch Round LCD with case ver.
LDO, 500mA Type-C 2MB - 0.99inch IPS LCD, CNC metal case

1.28inch Round LCD ver.
LDO, 300mA Type-C 2MB Support(allows recharging the battery and powering the board at the same time) 1.28inch IPS LCD

1.28inch Round LCD with case ver.
LDO, 300mA Type-C 2MB Support(allows recharging the battery and powering the board at the same time) 1.28inch IPS LCD, CNC metal case

1.28inch Round Touch LCD ver.
LDO, 500mA Type-C 16MB Support(allows recharging the battery and powering the board at the same time) 1.28inch Touch LCD

1.28inch Round Touch LCD with case ver.
LDO, 500mA Type-C 16MB Support(allows recharging the battery and powering the board at the same time) 1.28inch Touch LCD, CNC metal case

1.69inch Touch LCD ver.
LDO, 500mA Type-C 16MB Support(allows recharging the battery and powering the board at the same time) 1.69inch Touch LCD

0.96 LCD ver.
DC-DC, 1800mA Type-C 2MB Support(allows recharging the battery and powering the board at the same time) 0.96inch IPS LCD

Plus ver.
DC-DC, 1800mA Type-C 4MB/16MB Support(allows recharging the battery and powering the board at the same time) -

DVI port ver.
LDO, 300mA Type-C 16MB Support(allows recharging the battery and powering the board at the same time) Onboard DVI interface, TF card slot and PIO-USB port

Cam & LCD ver.
- Type-C 16MB - Onboard grayscale camera and 1.14inch IPS LCD display

Weight: 0.017 kg

Quick Overview

  1. RP2040-LCD-0.99-B x1

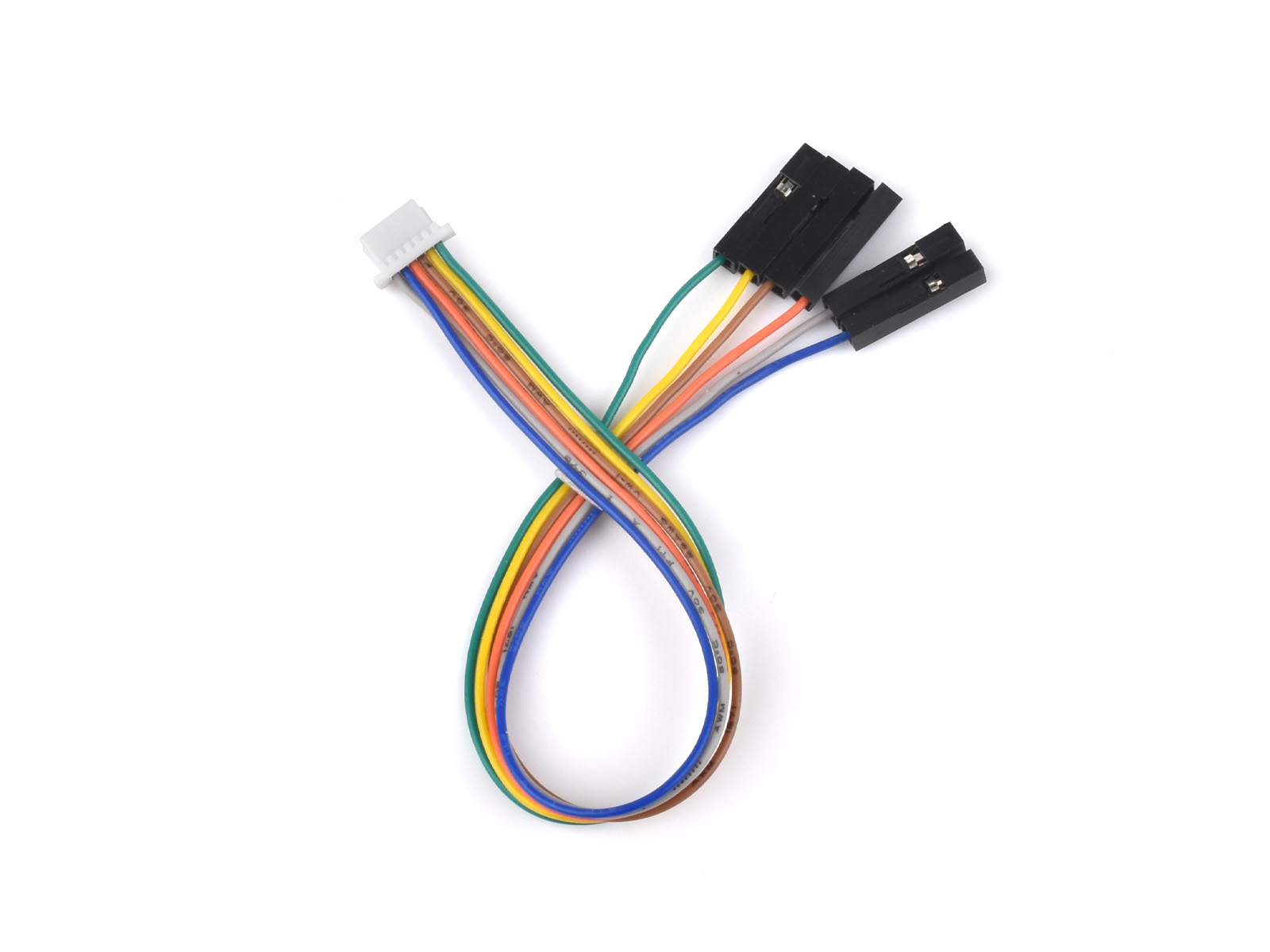

  2. SH1.0 6PIN cable x1
1
2
