- Description
- Package Content
Details
Options for FOV | Compatible with Raspberry Pi and Jetson Nano series boards
![](/img/devkit/accBoard/IMX219-Camera/IMX219-details-1.jpg)
The 8MP camera series is based on IMX219 sensor, options for FOV, night vision function support in specific versions (need to be used with infrared lighting). Compatible with Raspberry Pi series boards, Jetson Nano, and VisionFive2, etc. Suitable for AI projects such as Face recognition, Road mark detection and License plate recognition.
Model | PIXELS | Sensor | CMOS size | INFRARED | FOV | Aperture | Focal length (mm) | DISTORTION | dimension | others |
---|---|---|---|---|---|---|---|---|---|---|
![]() IMX219-77 Camera |
8MP | IMX219 | 1/4inch | × | 79.3° | 2.0 | 2.85 | <1% | 25×24 | 4 screw holes, used for attachment, provides 3.3V power output |
![]() IMX219-77IR Camera |
√ | 79.3° | 2.0 | 2.85 | <1% | 25×24 | 4 screw holes, used for attachment, provides 3.3V power output, comes with Infrared LEDs | |||
![]() IMX219-120 Camera |
× | 120° | 2.0 | 1.79 | <13.6% | 25×24 | 4 screw holes, used for attachment, provides 3.3V power output | |||
![]() IMX219-160 Camera |
× | 160° | 2.35 | 3.15 | <14.3% | 25×24 | 4 screw holes, used for attachment, provides 3.3V power output | |||
![]() IMX219-160IR Camera |
√ | 160° | 2.35 | 3.15 | <14.3% | 25×24 | 4 screw holes, used for attachment, provides 3.3V power output, comes with Infrared LEDs | |||

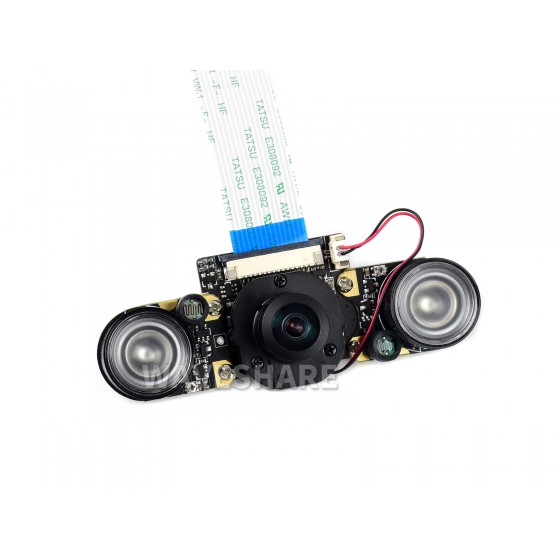

![]() IMX219-160 IR-CUT Camera |
√ | 162.4° | 2.7 | 1.75 | <-22.7% | 32.04×26.44 | 4 screw holes, used for attachment, provides 3.3V power output, built in IR-CUT, comes with Infrared LEDs | |||
![]() IMX219-170 Camera |
× | 170° | 2.4 | 2.2 | <22% | 32×32 | 4 screw holes, used for attachment | |||
![]() IMX219-200 Camera |
× | 200° | 2.0 | 0.87 | <11% | 25×24 | 4 screw holes, used for attachment, provides 3.3V power output |
* The IR cameras will take curious reddish pictures by daylight for lacking of IR filter in the CCD, yet that is the reason why the camera can see in the dark with IR LEDs
Compatible with all Raspberry Pi boards, Jetson Nano and VisionFive2, etc.
extra FPC cable is required for Raspberry Pi 5, CM3/3+/4 and Zero series
![](/img/devkit/accBoard/IMX219-Camera/IMX219-details-5-1.jpg)
IMX219-77 Camera
connecting with Raspberry Pi 4B
![](/img/devkit/accBoard/IMX219-Camera/IMX219-details-5-2.jpg)
IMX219-120 Camera
connecting with Raspberry Pi 5
![](/img/devkit/accBoard/IMX219-Camera/IMX219-details-5-3.jpg)
IMX219-170 Camera
connecting with CM4 IO Board
![](/img/devkit/accBoard/IMX219-Camera/IMX219-details-5-4.jpg)
IMX219-200 Camera
connecting with Zero 2 W
![](/img/devkit/accBoard/IMX219-Camera/IMX219-details-5-5.jpg)
IMX219-160 Camera
connecting with Jetson Nano Kit
![](/img/devkit/accBoard/IMX219-Camera/IMX219-details-5-6.jpg)
IMX219-160IR Camera
connecting with Jetson Orin Kit
![](/img/devkit/accBoard/IMX219-Camera/IMX219-details-7.jpg)
![](/img/devkit/accBoard/IMX219-Camera/IMX219-details-size-1.jpg)
![](/img/devkit/accBoard/IMX219-Camera/IMX219-details-size-2.jpg)
![](/img/devkit/LCD/common/res_banner.png)
Wiki: www.waveshare.com/wiki/IMX219-77IR_Camera
Wiki: www.waveshare.com/wiki/IMX219-120_Camera
Wiki: www.waveshare.com/wiki/IMX219-160_Camera
Wiki: www.waveshare.com/wiki/IMX219-160IR_Camera
Wiki: www.waveshare.com/wiki/IMX219-160_IR-CUT_Camera
Wiki: www.waveshare.com/wiki/IMX219-170_Camera
Wiki: www.waveshare.com/wiki/IMX219-200_Camera
Selection Guide
Product | Pixels | Sensor | Infrared | Camera | Angle of View (diagonal) (degree) | Aperture (F) | Focal Length (mm) | PCBA | Suit for |
---|---|---|---|---|---|---|---|---|---|
RPi Camera V2 | 8 Mega | IMX219 | × | 1 | 62.2 | 2.0 | 3.04 | √ | Raspberry Pi, CM3/3+/4, Jetson Nano, Jetson Xavier NX, VisionFive2 |
RPi NoIR Camera V2 | √ | 1 | 62.2 | 2.0 | 3.04 | √ | Raspberry Pi, CM3/3+/4, Jetson Nano, VisionFive2 |
||
IMX219-77 Camera | × | 1 | 79.3 | 2.0 | 2.85 | √ | Raspberry Pi, CM3/3+/4, Jetson series, VisionFive2 | ||
IMX219-77IR Camera | √ | 1 | 79.3 | 2.0 | 2.85 | √ | |||
IMX219-120 Camera | × | 1 | 120 | 2.0 | 1.79 | √ | |||
IMX219-160 Camera | × | 1 | 160 | 2.35 | 3.15 | √ | |||
IMX219-160IR Camera | √ | 1 | 160 | 2.35 | 3.15 | √ | |||
IMX219-160 IR-CUT Camera | √ | 1 | 162.4 | 2.7 | 1.75 | √ | |||
IMX219-170 Camera | × | 1 | 170 | 2.4 | 2.2 | √ | |||
IMX219-200 Camera | × | 1 | 200 | 2.0 | 0.87 | √ | |||
IMX219-83-Stereo-Camera | × | 2 | 83 | 2.4 | 2.6 | √ | Raspberry Pi, CM3/3+/4, Jetson series | ||
IMX219-D160 | × | 1 | 160 | 2.35 | 3.15 | × | Raspberry Pi, CM3/3+/4, Jetson series, VisionFive2 |
- The IR cameras will take curious reddish pictures by daylight for lacking of IR filter in the CCD, yet that is the reason why the camera can see in the dark with IR LEDs
- Jetson Nano —— supports both Jetson Nano Developer Kit (B01) and Jetson Nano 2GB Devekoper Kit
Jetson Nano (B01) —— supports Jetson Nano Developer Kit (B01) only
Jetson Xavier NX —— supports Jetson Xavier NX Developer Kit
Weight: 0.026 kg
Quick Overview
- The included FFC is 15cm, if you need a longer cable, please consider: RPi Camera Cable 60cm
- For use with Pi5, please consider: Pi5-Camera-Cable-200mm / 300mm / 500mm
IMX219-77 Camera
- IMX219-77 Camera x1
- 15-pin FFC (opposite sides contact) x1
IMX219-77IR Camera
- IMX219-77IR Camera x1
- Infrared LED Board (B) 2PCS x1
- 15-pin FFC (opposite sides contact) x1
IMX219-120 Camera
- IMX219-120 Camera x1
- 15-pin FFC (opposite sides contact) x1
IMX219-160 Camera
- IMX219-160 Camera x1
- 15-pin FFC (opposite sides contact) x1
IMX219-160IR Camera
- IMX219-160IR Camera x1
- Infrared LED Board (B) 2PCS x1
- 15-pin FFC (opposite sides contact) x1
IMX219-160 IR-CUT Camera
- IMX219-160 IR-CUT Camera x1
- Infrared LED Board (B) 2PCS x1
- 15-pin FFC (opposite sides contact) x1
IMX219-170 Camera
- IMX219-170 Camera x1
- 15-pin FFC (opposite sides contact) x1
IMX219-200 Camera
- IMX219-200 Camera x1
- 15-pin FFC (opposite sides contact) x1
