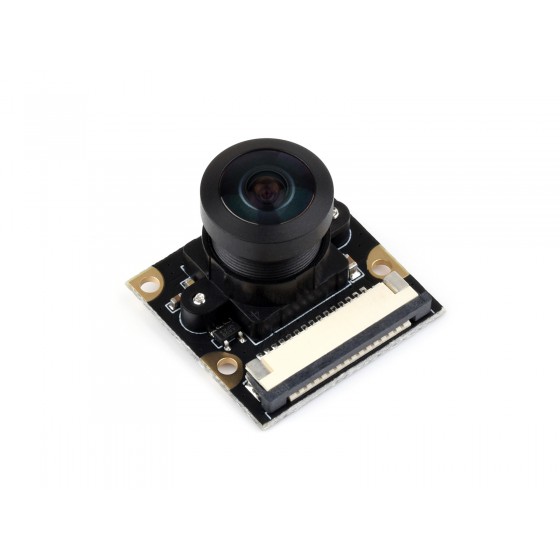

IMX219-160IR Camera, 160° FOV, Infrared, Applicable for Jetson Nano

SKU:16680
Part No.:IMX219-160IR Camera
Brand:Waveshare

$22.99
PriceQuantity
$22.392+
$22.093+
$21.974+
Description

Details

IMX219 Camera series, 8MP, Applicable for Jetson Nano and Raspberry Pi, Options for FOV and Night Vision function
IMX219 8MP Camera series

Options for FOV | Compatible with Raspberry Pi and Jetson Nano series boards

The 8MP camera series is based on IMX219 sensor, options for FOV, night vision function support in specific versions (need to be used with infrared lighting). Compatible with Raspberry Pi series boards, Jetson Nano, and VisionFive2, etc. Suitable for AI projects such as Face recognition, Road mark detection and License plate recognition.

Specifications
Model PIXELS Sensor CMOS size INFRARED FOV Aperture Focal length (mm) DISTORTION dimension others

IMX219-77 Camera		 8MP IMX219 1/4inch × 79.3° 2.0 2.85 <1% 25×24 4 screw holes, used for attachment, provides 3.3V power output

IMX219-77IR Camera		 √ 79.3° 2.0 2.85 <1% 25×24 4 screw holes, used for attachment, provides 3.3V power output, comes with Infrared LEDs

IMX219-120 Camera		 × 120° 2.0 1.79 <13.6% 25×24 4 screw holes, used for attachment, provides 3.3V power output

IMX219-160 Camera		 × 160° 2.35 3.15 <14.3% 25×24 4 screw holes, used for attachment, provides 3.3V power output

IMX219-160IR Camera		 √ 160° 2.35 3.15 <14.3% 25×24 4 screw holes, used for attachment, provides 3.3V power output, comes with Infrared LEDs

IMX219-160 IR-CUT Camera		 √ 162.4° 2.7 1.75 <-22.7% 32.04×26.44 4 screw holes, used for attachment, provides 3.3V power output, built in IR-CUT, comes with Infrared LEDs

IMX219-170 Camera		 × 170° 2.4 2.2 <22% 32×32 4 screw holes, used for attachment

IMX219-200 Camera		 × 200° 2.0 0.87 <11% 25×24 4 screw holes, used for attachment, provides 3.3V power output

* The IR cameras will take curious reddish pictures by daylight for lacking of IR filter in the CCD, yet that is the reason why the camera can see in the dark with IR LEDs


multiple motherboards Support

Compatible with all Raspberry Pi boards, Jetson Nano and VisionFive2, etc.
extra FPC cable is required for Raspberry Pi 5, CM3/3+/4 and Zero series

IMX219-77 Camera
connecting with Raspberry Pi 4B

IMX219-120 Camera
connecting with Raspberry Pi 5

IMX219-170 Camera
connecting with CM4 IO Board

IMX219-200 Camera
connecting with Zero 2 W

IMX219-160 Camera
connecting with Jetson Nano Kit

IMX219-160IR Camera
connecting with Jetson Orin Kit


* for reference only, Raspberry Pi 4B, Raspberry Pi 5, Compute Module 4 IO Board, Zero 2 W, Jetson Nano Kit, Jetson Orin Kit, black FPC and yellow FPC are NOT included.

Product Show

outline dimensions

Selection Guide

Product Pixels Sensor Infrared Camera Angle of View (diagonal) (degree) Aperture (F) Focal Length (mm) PCBA Suit for
RPi Camera V2 8 Mega IMX219 × 1 62.2 2.0 3.04 √ Raspberry Pi, CM3/3+/4,
Jetson Nano, Jetson Xavier NX, VisionFive2
RPi NoIR Camera V2 √ 1 62.2 2.0 3.04 √ Raspberry Pi, CM3/3+/4,
Jetson Nano, VisionFive2
IMX219-77 Camera × 1 79.3 2.0 2.85 √ Raspberry Pi, CM3/3+/4, Jetson series, VisionFive2
IMX219-77IR Camera √ 1 79.3 2.0 2.85 √
IMX219-120 Camera × 1 120 2.0 1.79 √
IMX219-160 Camera × 1 160 2.35 3.15 √
IMX219-160IR Camera √ 1 160 2.35 3.15 √
IMX219-160 IR-CUT Camera √ 1 162.4 2.7 1.75 √
IMX219-170 Camera × 1 170 2.4 2.2 √
IMX219-200 Camera × 1 200 2.0 0.87 √
IMX219-83-Stereo-Camera × 2 83 2.4 2.6 √ Raspberry Pi, CM3/3+/4, Jetson series
IMX219-D160 × 1 160 2.35 3.15 × Raspberry Pi, CM3/3+/4, Jetson series, VisionFive2
  1. The IR cameras will take curious reddish pictures by daylight for lacking of IR filter in the CCD, yet that is the reason why the camera can see in the dark with IR LEDs

  2. Jetson Nano —— supports both Jetson Nano Developer Kit (B01) and Jetson Nano 2GB Devekoper Kit
    Jetson Nano (B01) —— supports Jetson Nano Developer Kit (B01) only
    Jetson Xavier NX —— supports Jetson Xavier NX Developer Kit

Weight: 0.031 kg

Quick Overview

IMX219-77 Camera

  1. IMX219-77 Camera x1
  2. 15-pin FFC (opposite sides contact) x1
1
2

IMX219-77IR Camera

  1. IMX219-77IR Camera x1
  2. Infrared LED Board (B) 2PCS x1
  3. 15-pin FFC (opposite sides contact) x1
1
2
3

IMX219-120 Camera

  1. IMX219-120 Camera x1
  2. 15-pin FFC (opposite sides contact) x1
1
2

IMX219-160 Camera

  1. IMX219-160 Camera x1
  2. 15-pin FFC (opposite sides contact) x1
1
2

IMX219-160IR Camera

  1. IMX219-160IR Camera x1
  2. Infrared LED Board (B) 2PCS x1
  3. 15-pin FFC (opposite sides contact) x1
1
2
3

IMX219-160 IR-CUT Camera

  1. IMX219-160 IR-CUT Camera x1
  2. Infrared LED Board (B) 2PCS x1
  3. 15-pin FFC (opposite sides contact) x1
1
2
3

IMX219-170 Camera

  1. IMX219-170 Camera x1
  2. 15-pin FFC (opposite sides contact) x1
1
2

IMX219-200 Camera

  1. IMX219-200 Camera x1
  2. 15-pin FFC (opposite sides contact) x1
1
2
