IMX219 Camera Module for the official Raspberry Pi Camera Board V2, 77.6 degree FoV
Overview

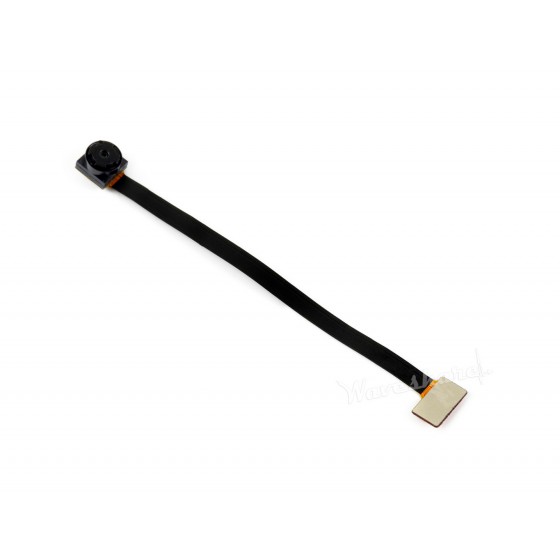

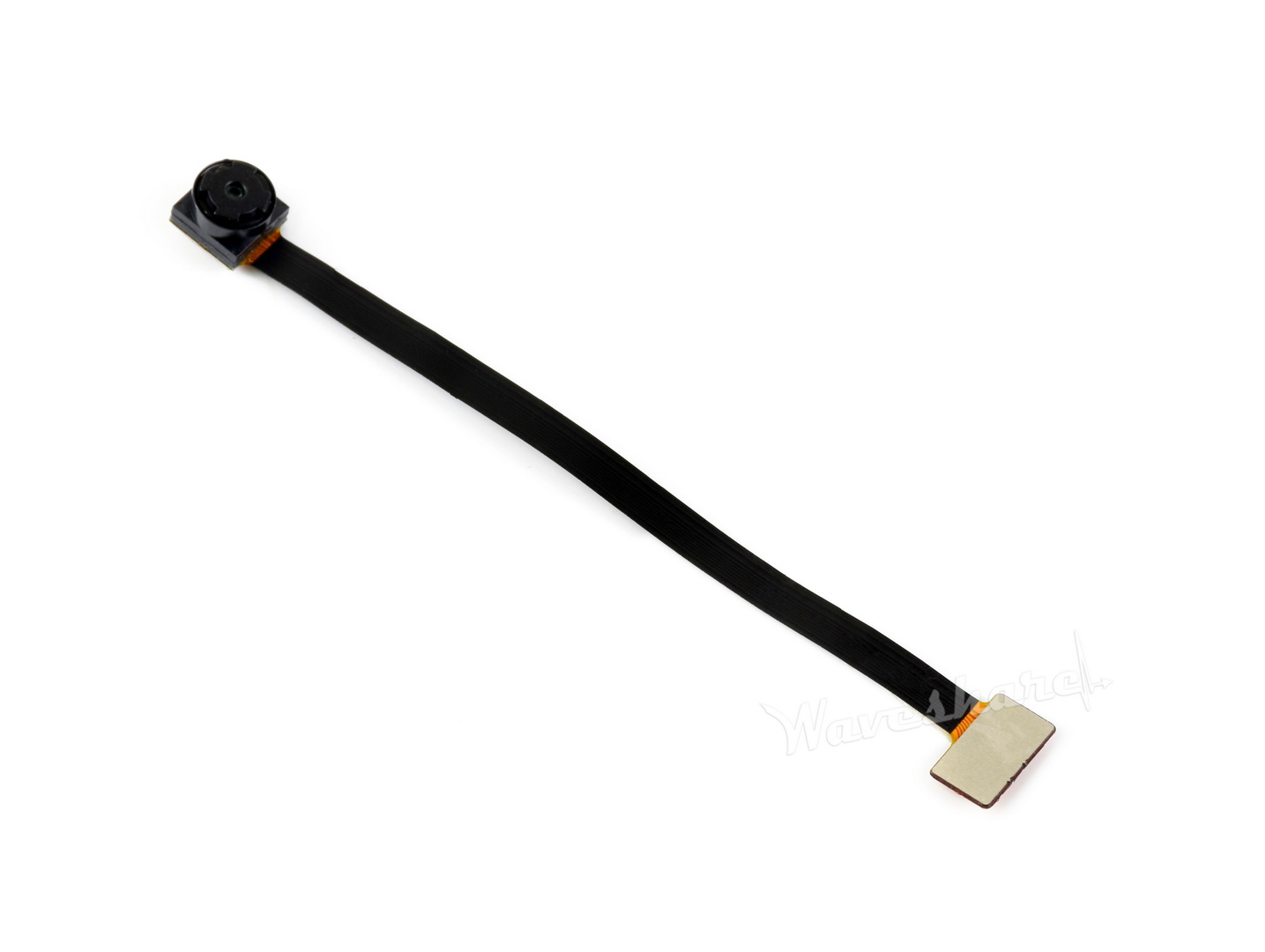

This is a camera module (without driver PCB) compatible with the official Raspberry Pi Camera Board V2, with 8-megapixel IMX219 sensor and features 77.6 degree field of view.
If you got a Raspberry Pi Camera Board V2 and just want to try something new, here it is.
Features
- IMX219 8-megapixel sensor
- Camera specifications
- CMOS size : 1/4inch
- Aperture (F) : 2.0
- Focal Length : 2.96mm
- Angle of View (diagonal) : 77.6 degree (while the original V2 camera is only 62.2 degree)
- Distortion: < 1%
- Focusing Range: 20cm ~ infinity
- 3280 x2464 still picture resolution
- Support 1080p30, 720p60 and 640x480p90 video record
Dimensions
Selection Guide
| Product | Pixels | Sensor | Infrared | Camera | Angle of View (diagonal) (degree) | Aperture (F) | Focal Length (mm) | PCBA | Suit for |
|---|---|---|---|---|---|---|---|---|---|
| RPi Camera V2 | 8 Mega | IMX219 | × | 1 | 62.2 | 2.0 | 3.04 | √ | Raspberry Pi, CM3/3+/4, Jetson Nano, Jetson Xavier NX, VisionFive2 |
| RPi NoIR Camera V2 | √ | 1 | 62.2 | 2.0 | 3.04 | √ | Raspberry Pi, CM3/3+/4, Jetson Nano, VisionFive2 |
||
| IMX219-77 Camera | × | 1 | 79.3 | 2.0 | 2.85 | √ | Raspberry Pi, CM3/3+/4, Jetson series, VisionFive2 | ||
| IMX219-77IR Camera | √ | 1 | 79.3 | 2.0 | 2.85 | √ | |||
| IMX219-120 Camera | × | 1 | 120 | 2.0 | 1.79 | √ | |||
| IMX219-160 Camera | × | 1 | 160 | 2.35 | 3.15 | √ | |||
| IMX219-160IR Camera | √ | 1 | 160 | 2.35 | 3.15 | √ | |||
| IMX219-160 IR-CUT Camera | √ | 1 | 162.4 | 2.7 | 1.75 | √ | |||
| IMX219-170 Camera | × | 1 | 170 | 2.4 | 2.2 | √ | |||
| IMX219-200 Camera | × | 1 | 200 | 2.0 | 0.87 | √ | |||
| IMX219-83-Stereo-Camera | × | 2 | 83 | 2.4 | 2.6 | √ | Raspberry Pi, CM3/3+/4, Jetson series | ||
| IMX219-D160 | × | 1 | 160 | 2.35 | 3.15 | × | Raspberry Pi, CM3/3+/4, Jetson series, VisionFive2 |
- The IR cameras will take curious reddish pictures by daylight for lacking of IR filter in the CCD, yet that is the reason why the camera can see in the dark with IR LEDs
- Jetson Nano —— supports both Jetson Nano Developer Kit (B01) and Jetson Nano 2GB Devekoper Kit
Jetson Nano (B01) —— supports Jetson Nano Developer Kit (B01) only
Jetson Xavier NX —— supports Jetson Xavier NX Developer Kit
Weight: 0.001 kg
Quick Overview
Note: this is a raw camera module without driver PCB, the Raspberry Pi and Raspberry Pi Camera Board V2 PCB in the photos are NOT included
- IMX219-D77 x1
