- Description
Details
Supports high-speed CAN FD and CAN2.0A/B data communication
USB-CAN-FD
Supports Windows system
USB-CAN-FD-B
Supports Windows and Linux systems
The USB-CAN-FD only supports Windows XP/7/8/10/11 and does not support Linux systems.
The USB-CAN-FD-B is an upgraded version of the USB-CAN-FD with Linux systems support, including Raspberry Pi OS (for Raspberry Pi), Ubuntu (for Jetson Nano), and Linux system on VMware virtual machines, etc.
This product is an industrial-grade high-performance USB to CAN FD adapter, CAN/CAN-FD bus communication interface card, and CAN/CAN-FD protocol data analyzer. Onboard dual independent CAN FD interfaces with electrical isolation and multiple protection circuits. Comes with drivers, CAN FD Tools related software, secondary development examples, and tutorials.
It can be connected to the PC or industrial control host via a USB port to realize transceiver control, data analysis, collection and monitoring of CAN/CAN FD bus network. It is compact in size and easy to use, which can be used for learning and debugging of CAN/CAN FD bus, as well as for secondary development and integration into various industrial, power communication, and intelligent control applications that require CAN/CAN FD bus communication.
| Product | Model | USB-CAN-FD | USB-CAN-FD-B |
|---|---|---|---|

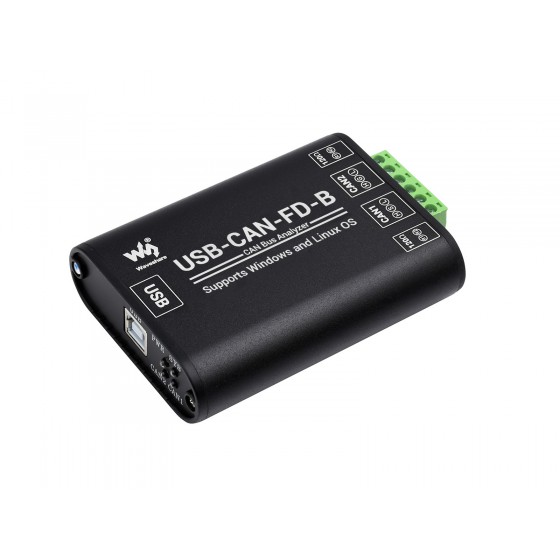

| Picture |  |
 |
|
| Type | Industrial grade: USB to CAN FD interface converter, CAN/CAN FD bus communication interface card, CAN/CAN FD protocol data analyzer | ||
| USB | Operating voltage | 5V (directly powered by USB port without external power supply) | |
| Connector | USB-B | ||
| CAN/CAN FD interface | CAN/CAN FD channel | Dual-channel: CAN1 and CAN2 (independent and full-isolated, isolated voltage: 3000V DC) | |
| Connector | CAN bus screw terminal (OPEN6 5.08mm pitch) | ||
| Terminal resistor | Each CAN/CAN FD channel has two built-in 120Ω terminal resistors, which can be enabled by switch | ||
| Baud Rate | 100Kbps~5Mbps (Configurable via software) | ||
| Protocol Support | CAN2.0A, CAN2.0B, and ISO 11898-1 CAN FD protocol V.1.0 | ||
| Transfer speed | The receiving and sending speed of each CAN/CAN FD channel can reach 20000 frames/s and 5000 frames/s | ||
| Transmit buffer | 1500 frames receiving buffer and 64 frames sending buffer per channel (automatically retransmit when the transmission fails) | ||
| Indicators | PWR | Power indicator | |
| SYS | System status indicator, normally off; keeps on when there is a bus error | ||
| CAN1 | CAN1 channel indicator (blinking when sending and receiving data) | ||
| CAN2 | CAN2 channel indicator (blinking when sending and receiving data) | ||
| System support | Windows | Windows XP/7/8/10/11 (32/64 bits) | |
| Linux | Not support | Raspberry Pi OS (for Raspberry Pi), Ubuntu (for Jetson Nano), Linux system on VMware virtual machines, etc. |
|
| Operating temperature | -40~85℃ | ||
| Case material | Aluminum alloy case + 3D flame-retardant insulating sheets on both sides (This design can provide better protection against metal tip discharge, also improves product safety, and extends service life) | ||
| Dimensions | 104 × 70 × 25 mm | ||
Between USB And CAN/CAN FD Bus
Onboard high-speed USB2.0 interface and 2-ch CAN/CAN FD Bus Interfaces, support bi-directional transmission, can work independently without interfering with each other
CAN baud rate is configurable in the range of 100Kbps~5Mbps
Supports baud rate calculation, auto-detection, and setting via the configuration tool
multiple CAN Protocols
Supports CAN 2.0A, CAN 2.0B, ISO11898-1, and CAN FD Protocol Specification V.1.0, Supports Standard and Extended Frames
Provides examples for secondary development projects on various mainstream development platforms: C#, VC, Delphi, Qt, LabVIEW, Python/Python-can
Adopts original controller and 32-bit MIPS M4K Core, up to 80MHz frequency, with high performance, stable and reliable
protection circuits
Adopts high-speed signal isolators, DC-DC dual power isolation, USB, CAN1 and CAN2 three-terminal full isolation, higher communication security and stability
Supports one PC to run multiple CAN FD analyzers at the same time without interfering with each other, up to 128 devices after testing. It is suitable for monitoring multiple CAN networks at the same time with one monitoring device, or for data comparison and verification and so on.
Weight: 0.243 kg
Quick Overview
USB-CAN-FD
- USB-CAN-FD x1
- USB type A plug to type B plug cable x1
- 4pin cable x1
- Screwdriver x1
USB-CAN-FD-B
- USB-CAN-FD-B x1
- USB type A plug to type B plug cable x1
- 4pin cable x1
- Screwdriver x1
