Industrial Grade SIM7600E-H 4G DTU, RS232/485/TTL to 4G LTE, GNSS, for China, Europe, the Middle East, Africa, South Korea
5G / 4G / Cat-1 / GSM / GPRS, GNSS / GPS

Industrial Grade SIM7600E-H 4G DTU, RS232/485/TTL to 4G LTE, GNSS, for China, Europe, the Middle East, Africa, South Korea

$75.99 DISCONTINUED
Power Plug
USEU
Related Products:
Share:

Details

Prohibited by the module manufacturer SIMCOM, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.
industrial grade SIM7600E-H 4G DTU, bidirectional transparent transmission between RS232/RS485/TTL serial port and 4G LTE network, mainly applicable for China, Europe, the Middle East, Africa, South Korea

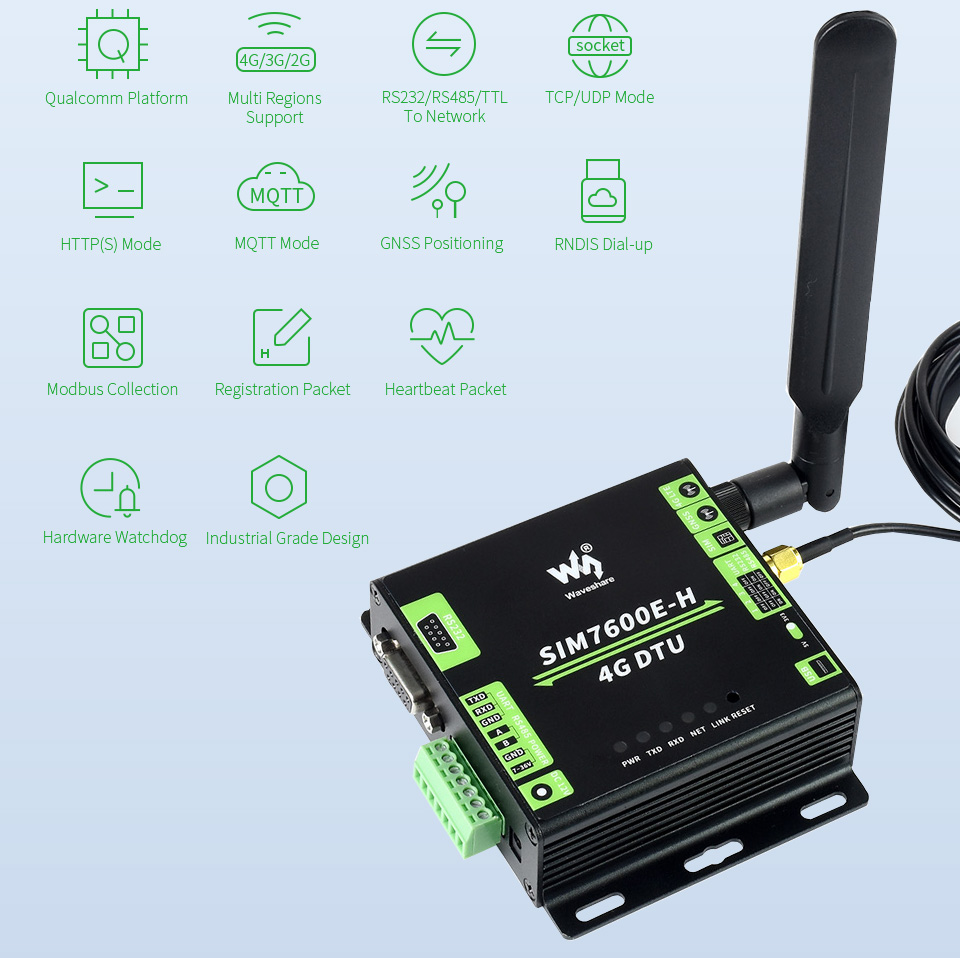

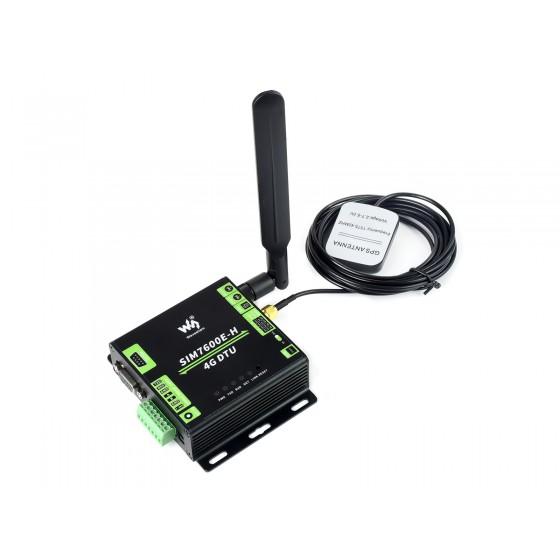

SIM7600E-H 4G DTU

4 modes support: TCP/UDP, Modbus, HTTP, and MQTT
RNDIS dial-up & GNSS positioning

This is an industrial grade 4G DTU which incorporates Qualcomm platform 4G communication module SIM7600E-H. It supports multi mode multi band, and suits multi countries or regions. After our secondary development for the module firmware, it takes only some simple configurations to achieve bidirectional data transparent transmission between RS232/RS485/TTL serial port and 4G LTE network.

With features like four modes support (TCP/UDP, Modbus, HTTP, and MQTT), RNDIS dial-up, and GNSS positioning, this industrial grade DTU is designed to be fully functional, easy to use, and stable operating. It would be an ideal choice for fields including industrial data collection, communication, remote control, and other IoT applications that need high throughput 4G data communication and have high requirements of data rate and latency.

Specifications
 SIM7600CE-CNSESIM7600E-H
Applicable regions China, Southeast Asia China, Europe, the Middle East, Africa, South Korea
Band
4G LTE-TDD: B38/B39/B40/B41
LTE-FDD: B1/B3/B8		 LTE-TDD: B1/B3/B5/B7/B8/B20
LTE-FDD: B38/B40/B41
3G UMTS/HSDPA/HSPA+: B1/B8 UMTS/HSDPA/HSPA+: B1/B5/B8
GNSS N/A GPS/Beidou/GLONASS
2G GSM/GPRS/EDGE: 900/1800MHz
Data rate
4G (LTE Cat-4) 150Mbps(DL) / 50Mbps(UL)
3G (HSPA+) 42Mbps(DL) / 5.76Mbps(UL)
2G (EDGE) 236.8Kbps(DL) / 236.8Kbps(UL)
2G (GPRS) 85.6Kbps(DL) / 85.6Kbps(UL)
Software features
Communication protocol TCP/UDP/RNDIS/Modbus TCP/UDP/RNDIS/Modbus/HTTP(S)/MQTT
TCP/UDP mode configurable 1~4 channels socket, user-defined heartbeat packet and registration packet
Modbus mode auto Modbus collection, supports up to 5 commands, user-defined command period and interval
HTTP(S) mode N/A supports HTTP/HTTPS POST (json format)
configurable server address and port
MQTT mode N/A supports multi topics subscription and publish
Software protection re-connecting when offline, configurable failure reboot time
Parameter configuration host computer / cloud
Hardware description
Serial port RS232:
connector: DB9 female
protection: TVS protection, anti-surge, ESD protection
RS485:
connector: screw terminals (A, B)
protection: 600W lightningproof, anti-surge, and 15KV ESD protection (reserved 120R balancing resistor solder pads)
TTL (UART):
operating voltage: 3.3V or 5V
connector: screw terminals (TXD, RXD, GND)
Serial port baudrate supports 300bps ~ 921600bps, 115200bps by default
USB port operating voltage: 5V
connector: Micro USB
protection: ESD protection diode
usage: parameter configuration, dial-up, firmware upgrade
Power input connector: 7~36V screw terminals or DC 12V jack
protection: Schottky diode protection, reverse-proof
Hardware protection embedded MCU, hardware watchdog to prevent system crash, industrial grade aluminum alloy case
Operating voltage 7~36V DC
Operating current idle: 10~30mA @12V
transmit: 80~450mA @12V (depending on the network condition)
Indicator PWR (power supply), RXD/TXD (UART RX/TX), NET (network), LINK (socket connection)
Button reset button
SIM card standard SIM card (1.8V / 3V)
Antenna connector LTE LTE, GNSS
Operating temperature -40℃~80℃
2G/3G/4G communication

with multi countries/regions multi band support

introducing operating modes

TCP/UDP transparent transmission mode

bidirectional data transparent transmission between serial devices and network server,
configurable 1-4 channel socket connections,
supports heartbeat packet and registration packet

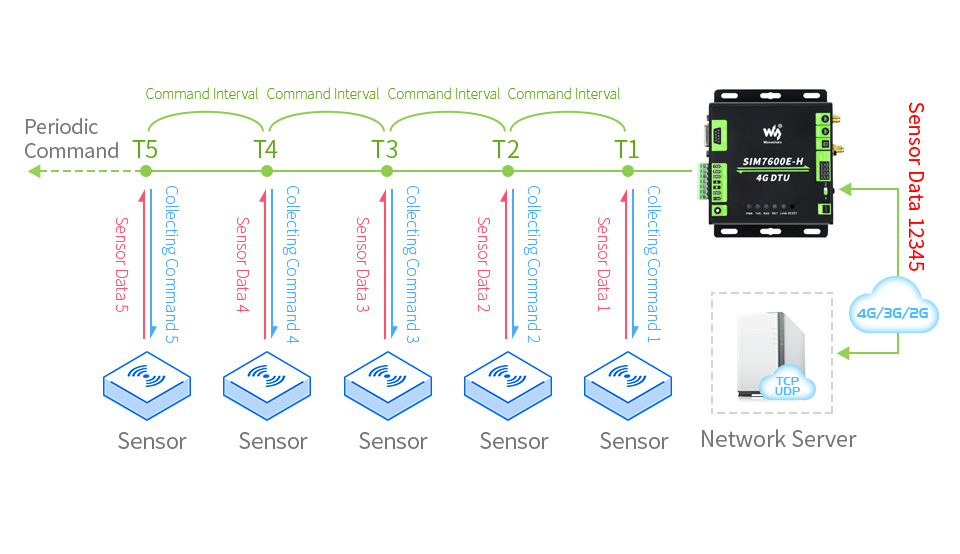

Modbus mode

the DTU will automatically and periodically collect sensor data and send it to the network server, supports up to 5 commands

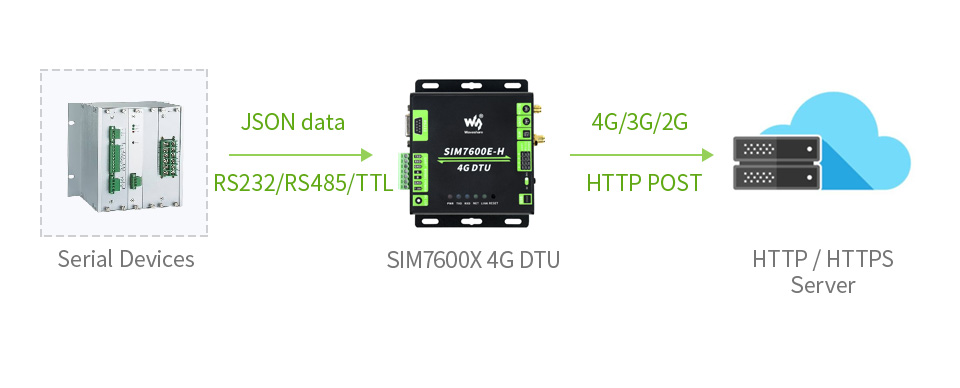

HTTP(S) mode

configurable HTTP/HTTPS server address and port for receiving data,
the DTU will POST serial data to corresponding server after proper configuration

MQTT mode

supports multi topics subscription and publish

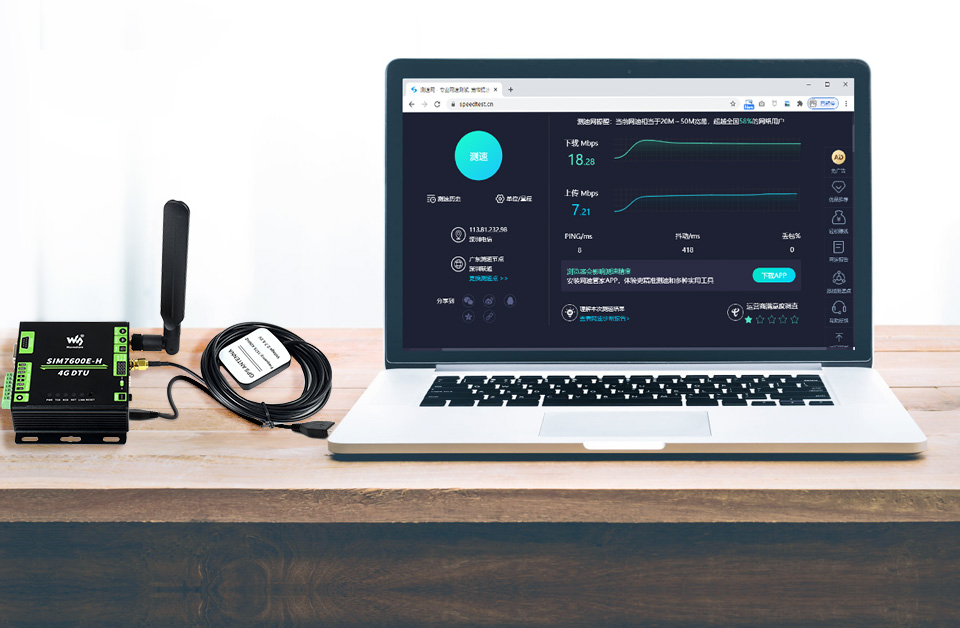

RNDIS dial-up

supports RNDIS dial-up via USB port on Windows/Linux
up to 150Mbps downlink speed and 50Mbps uplink speed*

* stands for idealized data rate, the actual data rate may fluctuate greatly, depending on factors like network coverage, traffic congestion, base station condition, etc.

GNSS positioning

supports GPS, BeiDou, Glonass, LBS base station

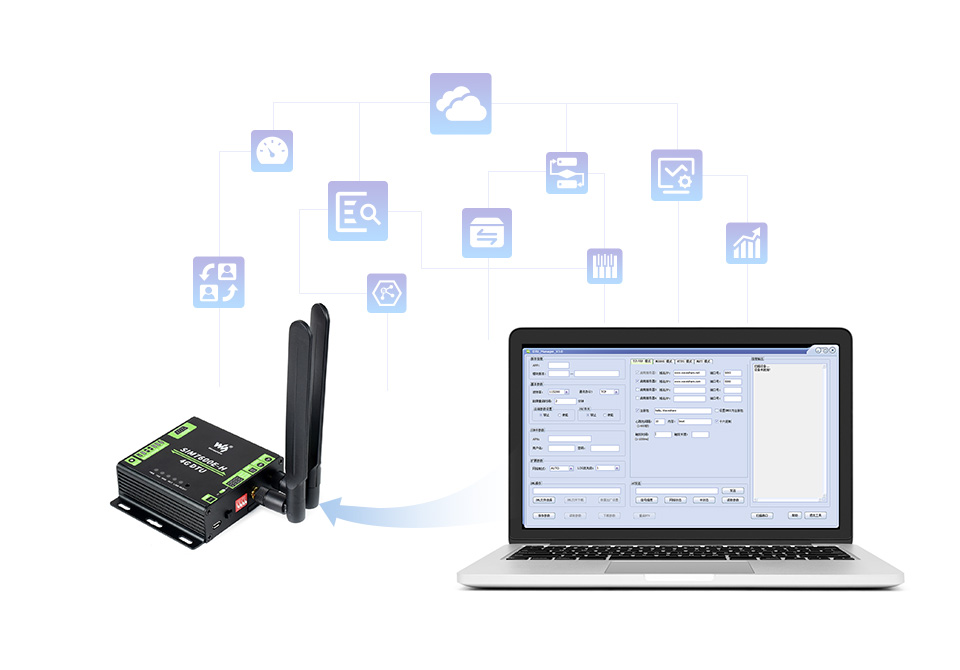

DTU parameter configuration

the DTU parameter is configurable via host computer software or cloud platform

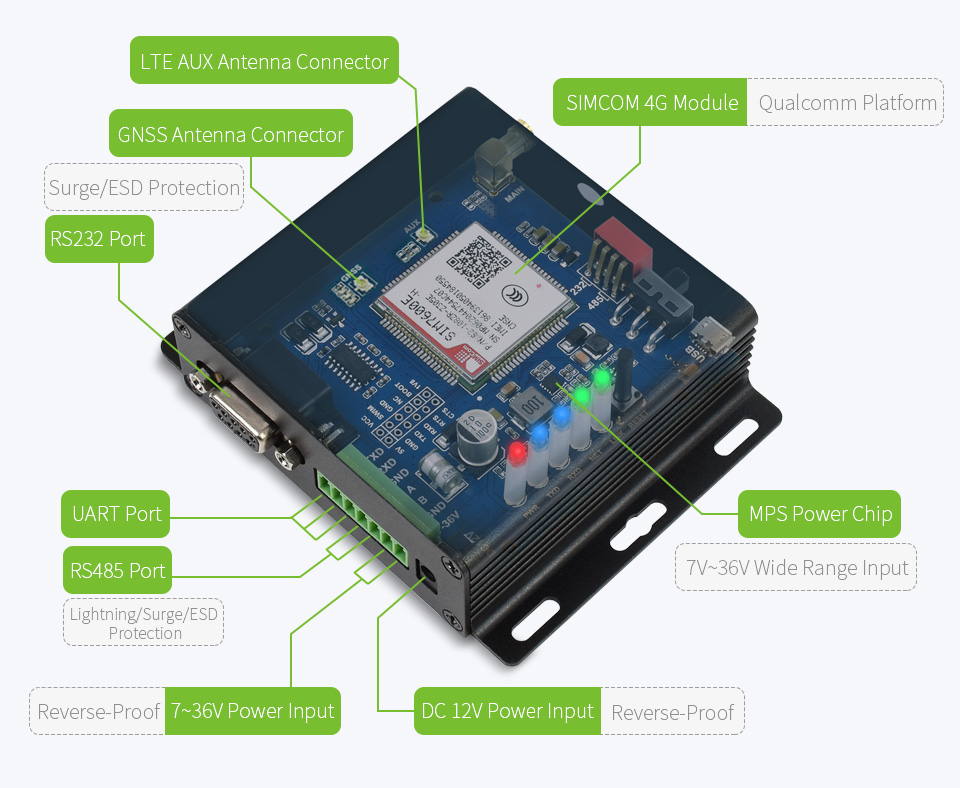

Industrial hardware design

three types of serial port, multiple software/hardware protection
industrial aluminum alloy case, more stable and safe operating

Indicators and button

monitoring the connection and signal status in real time

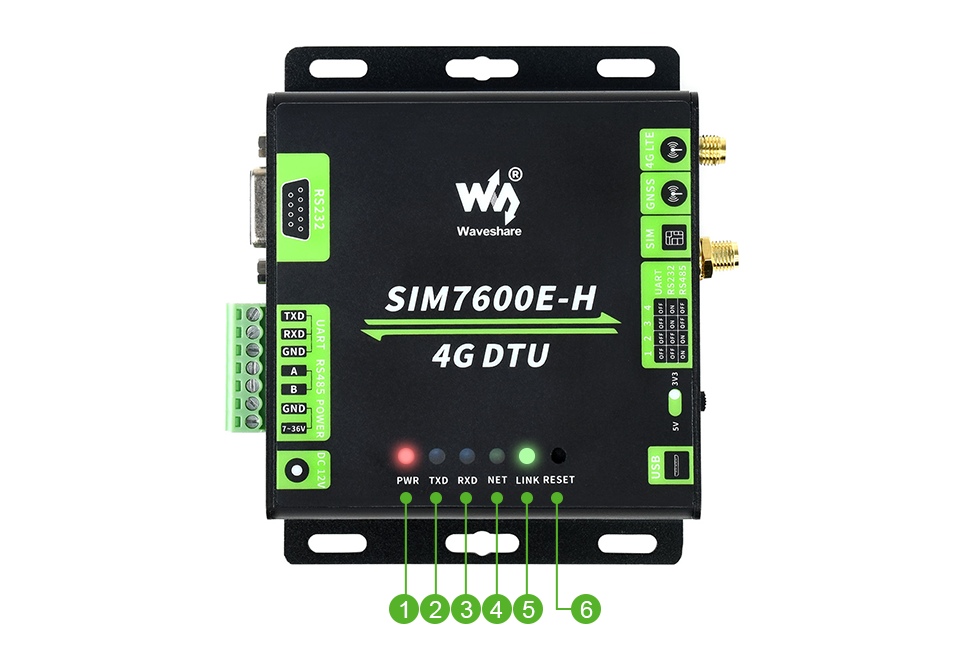

  1. PWR: lights up red when power-on
  2. TXD: blinking blue when transmitting data
  3. RXD: blinking blue when receiving data
  4. NET: blinking green when network connection is established
  5. LINK: lights up green when connects to a socket server
  6. RESET: reset button
Application diagram
extensive application fields

industrial hardware design, powerful software function,
suitable for sorts of industrial fields and IoT application scenarios

Outline Dimensions

* measured manually, for reference ONLY

Resources & Services
Wiki: SIM7600E-H_4G_DTU

Quick Overview

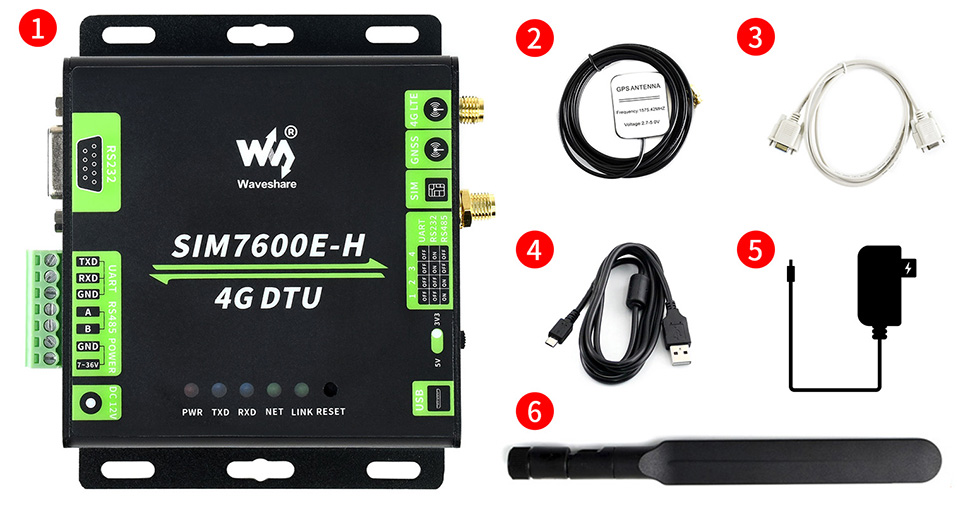

  1. SIM7600E-H 4G DTU x1
  2. GPS Antenna x1
  3. 1.5m male to female serial cable x1
  4. USB-A to micro-B cable x1
  5. OPTIONS 12V power adapter x1
  6. 4G Antenna x1
