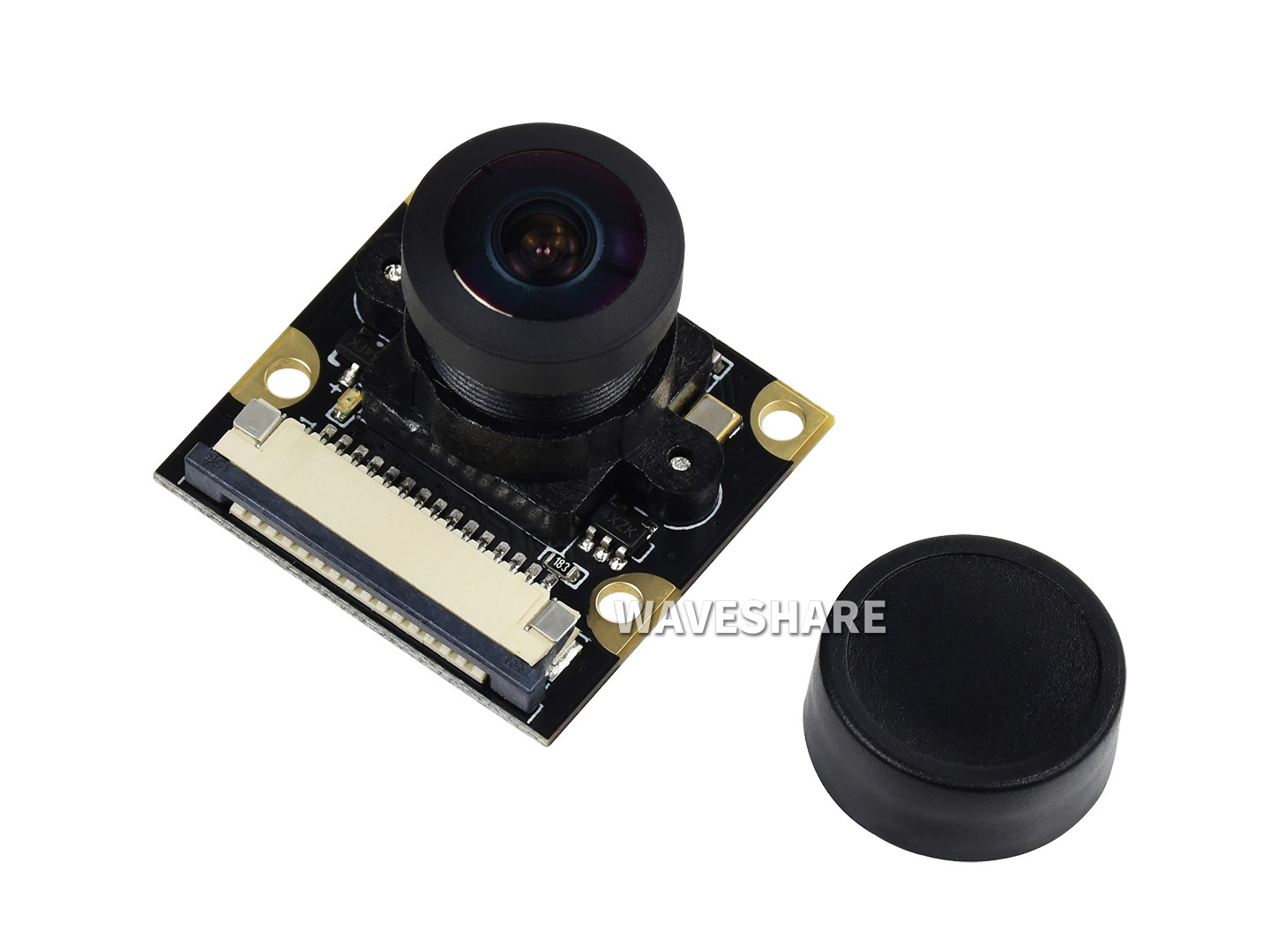

Raspberry Pi Camera Module, Fisheye Lens, Wider Field of View
Features
- Raspberry Pi Camera, supports all revisions of the Pi
- Fisheye Lens, offers wider field of view
- 5 megapixel OV5647 sensor
- Adjustable focus distance
- Camera specifications
- CCD size : 1/4inch
- Aperture (F) : 2.35
- Focal Length : 3.15mm
- Angle of View (diagonal) : 160 degree (while other normal cameras are typically 72 degree)
- Sensor best resolution : 1080p
- 4 screw holes
- Used for attachment
- Provides 3.3V power output
- Supports connecting fill flash LED
- Dimension: 25mm x 24mm
Note: to use the camera with Raspberry Pi Zero / Zero W / Zero WH, you need to buy a specific cable: Raspberry Pi Zero v1.3 Camera Cable
Downloads
Development resources:user manual, etc.
Download: www.waveshare.com/wiki/RPi_Camera_(G)
OV5647 5MP Camera Selection Guide
| Partnumber | IR filter | Aperture | Focal Length (mm) | Adjustable Focus Distance | Angle of View (diagonal) | Dimensions (mm) |
|---|---|---|---|---|---|---|
| RPi Camera (B) | integrated | 2 | 6 | √ | 60.6° | 32×32 |
| RPi Camera (E) | N/A | 2.8 | 3.21 | - | 69.8° | 25×24 |
| RPi Camera (F) | N/A | 2 | 3.6 | √ | 50° | 25×24 |
| RPi Camera (G) | integrated | 2.35 | 3.15 | √ | 160° | 25×24 |
| RPi Camera (H) | N/A | 2.35 | 3.15 | √ | 160° | 25×24 |
| RPi Camera (I) | integrated | 2 | 1.55 | √ | 185° | 32×32 |
| RPi Camera (M) | integrated | 2 | 0.87 | √ | 200° | 25×24 |
| RPi IR-CUT Camera | N/A | 2 | 3.6 | √ | 50° | 31×32 |
| RPi IR-CUT Camera (B) | N/A | 1.4 | 8 | √ | 40° | 31×32 |
| RPi Zero V1.3 Camera | integrated | 2.8 | 3.21 | - | 69.8° | 60×11.5 |
| RPi FPC Camera | integrated | 2.8 | 3.21 | - | 69.8° | 300×16 |
| RPi FPC Camera (B) | N/A | 2.4 | 3.89 | - | 72.9° | 35×16×5 |
- Unless otherwise specified, cameras on the table are compatible with Raspberry Pi, CM3/3+/4, please refer to the detail product page for more information.
- Normal IR cameras will take curious reddish pictures by daylight for lacking of IR filter in the CCD, and that is the reason why they can capture image in the night by using IR fill light.
If you're looking for cameras that can capture image in correct color in both day and night, please choose RPi IR-CUT Camera and RPi IR-CUT Camera (B).
Weight: 0.016 kg
Quick Overview
The included FFC is 16cm, if you need a longer cable, please consider: RPi Camera Cable 60cm
- RPi Camera (G) x1
- 15-pin FFC (opposite sides contact) x1
