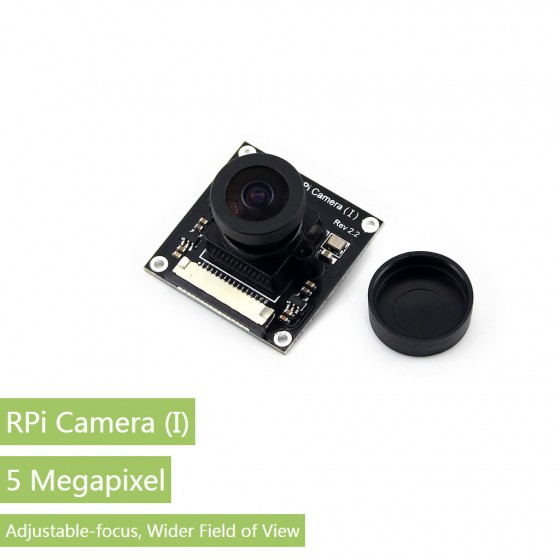

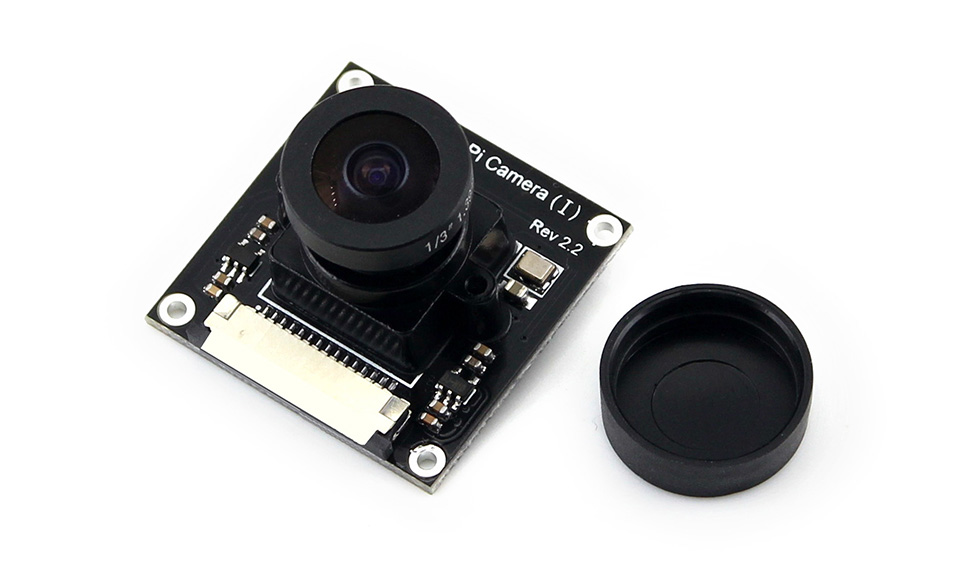

Raspberry Pi Camera Module, Fisheye Lens, Wider Field of View
Features

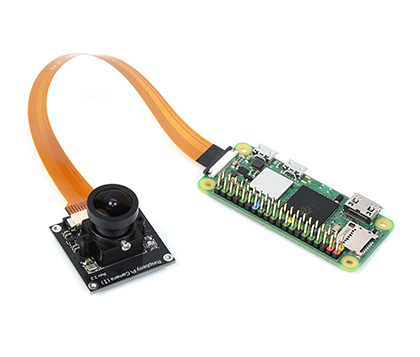

- Raspberry Pi Camera, supports all revisions of the Pi
- Fisheye Lens, offers wider field of view
- 5 megapixel OV5647 sensor
- Adjustable focus distance
- Camera specifications
- CCD size : 1/4inch
- Aperture (F) : 2
- Focal Length : 1.55mm
- Angle of View (diagonal) : 185 degree (while other normal cameras are typically 72 degree)
- Sensor best resolution : 1080p
- 2592 × 1944 still picture resolution
- Support 1080p30, 720p60 and 640x480p60/90 video record

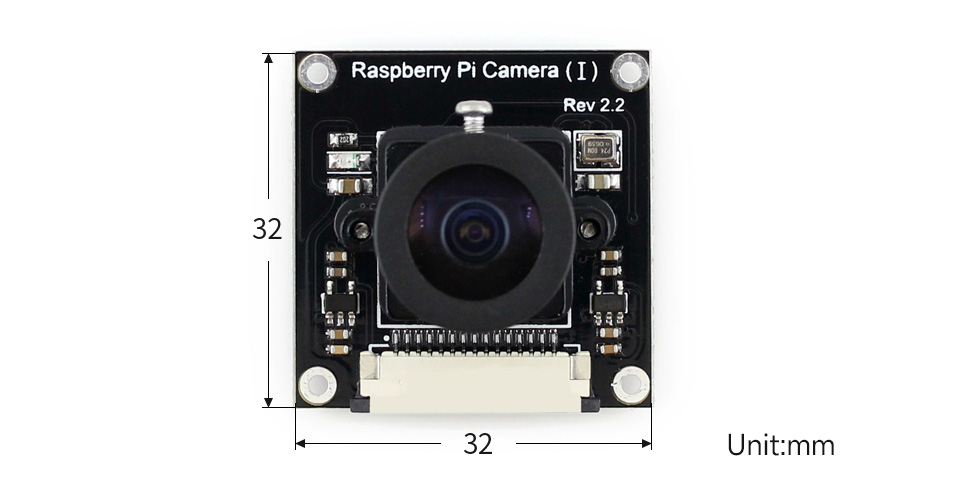

- Dimension: 32mm × 32mm
Development Resources
Wiki : www.waveshare.com/wiki/RPi_Camera_(I)
OV5647 5MP Camera Selection Guide
| Partnumber | IR filter | Aperture | Focal Length (mm) | Adjustable Focus Distance | Angle of View (diagonal) | Dimensions (mm) |
|---|---|---|---|---|---|---|
| RPi Camera (B) | integrated | 2 | 6 | √ | 60.6° | 32×32 |
| RPi Camera (E) | N/A | 2.8 | 3.21 | - | 69.8° | 25×24 |
| RPi Camera (F) | N/A | 2 | 3.6 | √ | 50° | 25×24 |
| RPi Camera (G) | integrated | 2.35 | 3.15 | √ | 160° | 25×24 |
| RPi Camera (H) | N/A | 2.35 | 3.15 | √ | 160° | 25×24 |
| RPi Camera (I) | integrated | 2 | 1.55 | √ | 185° | 32×32 |
| RPi Camera (M) | integrated | 2 | 0.87 | √ | 200° | 25×24 |
| RPi IR-CUT Camera | N/A | 2 | 3.6 | √ | 50° | 31×32 |
| RPi IR-CUT Camera (B) | N/A | 1.4 | 8 | √ | 40° | 31×32 |
| RPi Zero V1.3 Camera | integrated | 2.8 | 3.21 | - | 69.8° | 60×11.5 |
| RPi FPC Camera | integrated | 2.8 | 3.21 | - | 69.8° | 300×16 |
| RPi FPC Camera (B) | N/A | 2.4 | 3.89 | - | 72.9° | 35×16×5 |
- Unless otherwise specified, cameras on the table are compatible with Raspberry Pi, CM3/3+/4, please refer to the detail product page for more information.
- Normal IR cameras will take curious reddish pictures by daylight for lacking of IR filter in the CCD, and that is the reason why they can capture image in the night by using IR fill light.
If you're looking for cameras that can capture image in correct color in both day and night, please choose RPi IR-CUT Camera and RPi IR-CUT Camera (B).
Weight: 0.018 kg
Quick Overview
The included FFC is 15cm, if you need a longer cable, please consider: RPi Camera Cable 60cm
- RPi Camera (I) x1
- 15-pin FFC (opposite sides contact) x1
