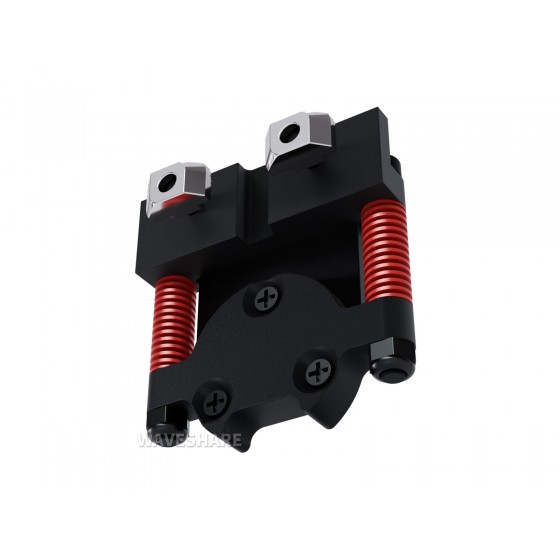

Suitable for DDSM210 and DDSM400 Hub Motors
Easy to install, reducing the design complexity of UGV and AGV chassis
Adopts Compact structure for saving chassis space
![UGV Suspension (B), front view](/img/devkit/accessories/UGV-Suspension-B/UGV-Suspension-B-details-1.jpg)
* Note: the images used on this webpage are for reference only, do not include any other components than the suspension. Please refer to the package content for the detailed part list.
Comes with 20 Series European Standard T-nuts for Users to Install the suspension on Aluminum Profile. Provides An Open-source Profile Chassis Model for Secondary Development
![UGV Suspension (B), suitable for Aluminum profile chassis](/img/devkit/accessories/UGV-Suspension-B/UGV-Suspension-B-details-3.jpg)
For advanced users, the suspension can be installed by cutting holes on the side of the chassis body, and we also provide an open source model of fully enclosed chassis
![UGV Suspension (B), suitable for fully enclosed chassis](/img/devkit/accessories/UGV-Suspension-B/UGV-Suspension-B-details-5.jpg)
![UGV Suspension (B), with 3KG Load Capacity](/img/devkit/accessories/UGV-Suspension-B/UGV-Suspension-B-details-7.jpg)
*Note: The 12KG is the static load capacity of chassis structure. You need to consider factors such as motor torque, slop, ground friction, alternating stress, etc. when using in specific projects.
Adopts 6061 Aluminum Alloy CNC Process, with high-durability 65Mn* Spring, Ensuring the Overall Strength while making the structure more compact, saving more chassis space
![UGV Suspension (B), with Compact and Reliable Structure design](/img/devkit/accessories/UGV-Suspension-B/UGV-Suspension-B-details-9.jpg)
* 65Mn is a type of spring steel, features high strength, long lifespan, and a certain degree of flexibility and plasticity after heat treatment and cold drawing hardening.
The suspension is designed with slot for making the wiring of the hub motor neater. When designing the chassis, the cutting holes on the car body can be aligned with the suspension slot to make the wiring easier
![UGV Suspension (B), reserved wiring slot](/img/devkit/accessories/UGV-Suspension-B/UGV-Suspension-B-details-11.jpg)
We provide open source models of all products in the following application scenarios
![UGV Suspension (B), application scenario of UGV chassis](/img/devkit/accessories/UGV-Suspension-B/UGV-Suspension-B-details-13.jpg)
![UGV Suspension (B), application scenario of AGV chassis](/img/devkit/accessories/UGV-Suspension-B/UGV-Suspension-B-details-15.jpg)
![](/img/devkit/accessories/UGV-Suspension-B/UGV-Suspension-B-details-size.jpg)
Model | UGV Suspension (A) | UGV Suspension (B) |
Load capacity | 7.5kg | 3kg |
Dimensions | 62×47×20mm | 40×40.88×9mm |
Applicable hub motors | DDSM115 | DDSM210, DDSM400 |
Open source models | fully enclosed chassis, profile chassis |
![](/img/devkit/LCD/common/res_banner.png)
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
Weight: 0.06 kg
Quick Overview
UGV Suspension (B) x1
