All-metal Compact UGV Suspension (B), High-strength Spring, 3KG Load Capacity, Suitable for DDSM210 and DDSM400 Hub Motors

SKU:28305
Part No.:UGV Suspension (B)
Brand:Waveshare

$21.99
PriceQuantity
$21.192+
$20.793+
$20.634+
Related Products:
Description

Details

All-metal Compact UGV Suspension (B), High-strength Spring, 3KG Load Capacity, Suitable for DDSM210 and DDSM400 Hub Motors
All-metal Compact UGV Suspension

Suitable for DDSM210 and DDSM400 Hub Motors

Easy to install, reducing the design complexity of UGV and AGV chassis
Adopts Compact structure for saving chassis space

UGV Suspension (B), front view

* Note: the images used on this webpage are for reference only, do not include any other components than the suspension. Please refer to the package content for the detailed part list.

Suitable for Aluminum profile chassis

Comes with 20 Series European Standard T-nuts for Users to Install the suspension on Aluminum Profile. Provides An Open-source Profile Chassis Model for Secondary Development

UGV Suspension (B), suitable for Aluminum profile chassis
Easy to build a fully enclosed chassis

For advanced users, the suspension can be installed by cutting holes on the side of the chassis body, and we also provide an open source model of fully enclosed chassis

UGV Suspension (B), suitable for fully enclosed chassis
12KG* Load Capacity for 4-wheel chassis
UGV Suspension (B), with 3KG Load Capacity

*Note: The 12KG is the static load capacity of chassis structure. You need to consider factors such as motor torque, slop, ground friction, alternating stress, etc. when using in specific projects.

Compact and Reliable Structure Design

Adopts 6061 Aluminum Alloy CNC Process, with high-durability 65Mn* Spring, Ensuring the Overall Strength while making the structure more compact, saving more chassis space

UGV Suspension (B), with Compact and Reliable Structure design

* 65Mn is a type of spring steel, features high strength, long lifespan, and a certain degree of flexibility and plasticity after heat treatment and cold drawing hardening.

Reserved Slot for Neat Wiring

The suspension is designed with slot for making the wiring of the hub motor neater. When designing the chassis, the cutting holes on the car body can be aligned with the suspension slot to make the wiring easier

UGV Suspension (B), reserved wiring slot
Application Scenarios

We provide open source models of all products in the following application scenarios

UGV Suspension (B), application scenario of UGV chassis UGV Suspension (B), application scenario of AGV chassis
Dimensions
Product Selection
Model UGV Suspension (A) UGV Suspension (B)
Load capacity 7.5kg 3kg
Dimensions 62×47×20mm 40×40.88×9mm
Applicable hub motors DDSM115 DDSM210, DDSM400
Open source models fully enclosed chassis, profile chassis

Resources & Services

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Weight: 0.06 kg

Quick Overview

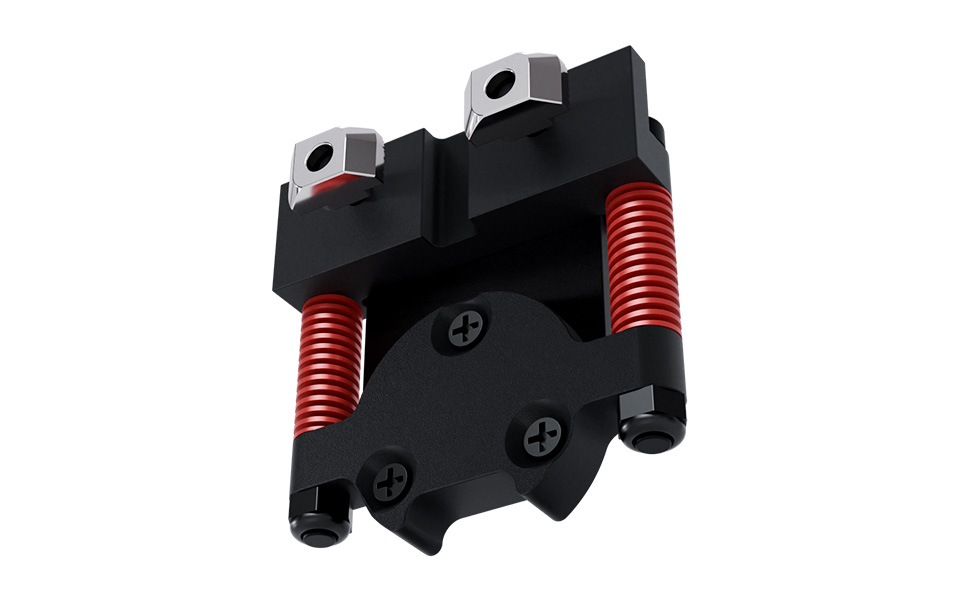

UGV Suspension (B) x1

UGV Suspension (B)
