Details
- Size7"
- Resolution1080×1920
- Display InterfaceHDMI
- Display PanelIPS
- Viewing Angle170°
- Touch TypeCapacitive
- Touch Points5-point
- Touch PortUSB
- Touch PanelToughened Glass
- Touch Panel TechOptical Bonding/AF
- SoundHi-Fi Speaker
- Audio Output3.5mm Jack
- EnclosureCNC Process Alloy

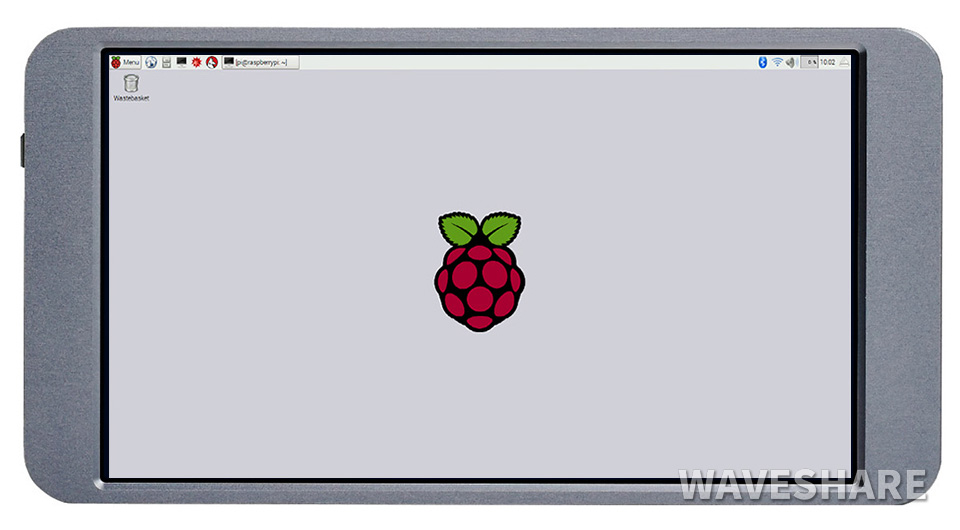

The display orientation is portrait by default, 1080×1920 resolution (H×V). Change the software config for landscape display.
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free
Supports all versions of Raspberry Pi
Working with Raspberry Pi 4
Working with Raspberry Pi 3B+
Working with Raspberry Pi Zero W
Working with AI Computer Jetson Nano
Working with mini PC
IPS Panel, up to 70% NTSC color gamut, up to 350nit brightness
1) up to 5-point touch, depending on the operating system. 2) up to 6H hardness toughened glass panel. 3) Optical Bonding screen, better display experience; AF coating process, anti-fouling, anti-fingerprint.
HDMI Certified
Support the following ways to customize the touch screen display in bulk order
Waveshare grows with display
* Waveshare has been focusing on display design for over 10 years.
Selection Guide
PartNumber | Display | Touch | Audio | Device Support | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Resolu-tion | Display Port | Display Panel | View Angle | Touch Type | Touch Port | Toughened Glass Panel | Optical Bonding | Spe- aker |
Signal Output | Pi | JETSON NANO | PC | |
SPI DISPLAYS PROS: low price. CONS: low refresh rate & resolution, supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO (the SPI bus), poor compatibility with Raspberry Pi system. |
|||||||||||||
2.8inch RPi LCD (A) | 320×240 | SPI | TFT | – | Resistive | SPI | × | × | × | × | √ | × | × |
3.2inch RPi LCD (B) | 320×240 | SPI | TFT | – | Resistive | SPI | × | × | × | × | √ | × | × |
3.5inch RPi LCD (A) | 480×320 | SPI | TFT | – | Resistive | SPI | × | × | × | × | √ | × | × |
3.5inch RPi LCD (B) | 480×320 | SPI | IPS | 160° | Resistive | SPI | × | × | × | × | √ | × | × |
3.5inch RPi LCD (C) | 480×320 | High-Speed SPI | TFT | – | Resistive | SPI | × | × | × | × | √ | × | × |
4inch RPi LCD (A) | 480×320 | SPI | TFT | – | Resistive | SPI | × | × | × | × | √ | × | × |
DPI DISPLAYS PROS: low price, high refresh rate, multiple resolution support, better compatibility with Raspberry Pi system. CONS: supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO. |
|||||||||||||
2.8inch DPI LCD | 480×640 | DPI | IPS | 160° | Capacitive | I2C | √ | √ | × | × | √ | × | × |
3.5inch DPI LCD | 640×480 | DPI | IPS | 170° | Capacitive | I2C | √ | × | × | × | √ | × | × |
4inch DPI LCD (C) | 720×720 | DPI | IPS | 170° | Capacitive | I2C | √ | √ | × | × | √ | × | × |
5inch DPI LCD | 800×480 | DPI | IPS | 160° | – | – | × | × | × | × | √ | × | × |
7inch DPI LCD | 1024×600 | DPI | IPS | 170° | – | – | × | × | × | × | √ | × | × |
DSI DISPLAYS PROS: moderate price, high refresh rate, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system. CONS: supports Raspberry Pi only. |
|||||||||||||
2.8inch DSI LCD | 480×640 | DSI | IPS | 160° | Capacitive | I2C | √ | √ | × | × | √ | × | × |
3.4inch DSI LCD (C) | 800×800 | DSI | IPS | 170° | Capacitive | I2C | √ | √ | × | × | √ | × | × |
4inch DSI LCD | 480×800 | DSI | IPS | 170° | Capacitive | I2C | √ | √ | × | × | √ | × | × |
4inch DSI LCD (C) | 720×720 | DSI | IPS | 170° | Capacitive | I2C | √ | √ | × | × | √ | × | × |
4.3inch DSI LCD | 800×480 | DSI | IPS | 160° | Capacitive | I2C | √ | × | × | × | √ | × | × |
4.3inch DSI LCD (with case) | 800×480 | DSI | IPS | 160° | Capacitive | I2C | √ | × | × | × | √ | × | × |
4.3inch DSI QLED | 800×480 | DSI | IPS(QLED) | 160° | Capacitive | I2C | √ | × | × | × | √ | × | × |
5inch DSI LCD | 800×480 | DSI | TFT | – | Capacitive | I2C | √ | × | × | × | √ | × | × |
5inch DSI LCD (B) | 800×480 | DSI | IPS | 160° | Capacitive | I2C | √ | × | × | × | √ | × | × |
5inch DSI LCD (C) | 1024×600 | DSI | IPS | 178° | Capacitive | I2C | √ | × | × | × | √ | × | × |
5inch DSI LCD (D) | 720×1280 | DSI | IPS | 178° | Capacitive | I2C | √ | √ | × | × | √ | × | × |
6.25inch DSI LCD | 720×1560 | DSI | IPS | 178° | Capacitive | I2C | √ | √ | × | × | √ | × | × |
7inch DSI LCD | 800×480 | DSI | TFT | – | Capacitive | I2C | √ | × | × | × | √ | × | × |
7inch DSI LCD (with case A) | 800×480 | DSI | TFT | – | Capacitive | I2C | √ | × | × | × | √ | × | × |
7inch DSI LCD (with cam) | 800×480 | DSI | TFT | – | Capacitive | I2C | √ | × | × | × | √ | × | × |
7inch DSI LCD (with cam and case) | 800×480 | DSI | TFT | – | Capacitive | I2C | √ | × | × | × | √ | × | × |
7inch DSI LCD (B) | 800×480 | DSI | IPS | 170° | Capacitive | I2C | √ | × | × | × | √ | × | × |
7inch DSI LCD (B) (with case A) | 800×480 | DSI | IPS | 170° | Capacitive | I2C | √ | × | × | × | √ | × | × |
7inch DSI LCD (C) | 1024×600 | DSI | IPS | 170° | Capacitive | I2C | √ | × | × | × | √ | × | × |
7inch DSI LCD (C) (with case A) | 1024×600 | DSI | IPS | 170° | Capacitive | I2C | √ | × | × | × | √ | × | × |
7inch DSI LCD (E) | 1280×800 | DSI | IPS | 178° | Capacitive | I2C | √ | √ | × | × | √ | × | × |
7.9inch DSI LCD | 400×1280 | DSI | IPS | 170° | Capacitive | I2C | √ | × | × | × | √ | × | × |
8inch DSI LCD | 800×480 | DSI | TFT | – | Capacitive | I2C | √ | × | × | × | √ | × | × |
8inch DSI LCD (with cam) | 800×480 | DSI | TFT | – | Capacitive | I2C | √ | × | × | × | √ | × | × |
8inch DSI LCD (C) | 1280×800 | DSI | IPS | 178° | Capacitive | I2C | √ | √ | × | × | √ | × | × |
8.8inch DSI LCD | 480×1920 | DSI | IPS | 178° | Capacitive | I2C | √ | √ | × | × | √ | × | × |
10.1inch DSI LCD (C) | 1280×800 | DSI | IPS | 178° | Capacitive | I2C | √ | √ | × | × | √ | × | × |
11.9inch DSI LCD | 320×1480 | DSI | IPS | 170° | Capacitive | I2C | √ | × | × | × | √ | × | × |
13.3inch DSI LCD | 1920×1080 | DSI | IPS | 178° | Capacitive | I2C | √ | × | × | × | √ | × | × |
HDMI / TYPE-C DISPLAYS PROS: high refresh rate, multiple resolution support, multiple devices support, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system. CONS: somewhat costly. |
|||||||||||||
2.8inch HDMI LCD (H) | 480×640 | HDMI | IPS | 160° | Capacitive | USB-C / I2C | √ | √ | × | × | √ | √ | √ |
3.2inch HDMI LCD (H) | 480×800 | HDMI | IPS | 160° | × | × | × | × | × | × | √ | √ | Display ONLY |
3.4inch 800x800 LCD | 800x800 | HDMI | IPS | 170° | Capacitive | Type-C | √ | √ | × | √ | √ | √ | √ |
3.5inch HDMI LCD | 480×320 | HDMI | IPS | 160° | Resistive | SPI | × | × | × | √ | √ | × | Display ONLY |
3.5inch 480x800 LCD | 480×800 | HDMI | IPS | 170° | Capacitive | USB-C | × | × | × | × | √ | √ | √ |
4inch 720x720 LCD | 720x720 | HDMI | IPS | 170° | Capacitive | Type-C | √ | √ | × | √ | √ | √ | √ |
4inch HDMI LCD | 480×800 | HDMI | IPS | 170° | Resistive | SPI | × | × | × | × | √ | × | Display ONLY |
4inch HDMI LCD (C) | 720×720 | HDMI | IPS | 170° | Capacitive | USB-C / I2C | √ | √ | × | √ | √ | √ | √ |
4inch HDMI LCD (H) | 480×800 | HDMI | IPS | 170° | Resistive | SPI | × | × | × | √ | √ | × | Display ONLY |
4.3inch HDMI LCD (B) | 800×480 | HDMI | IPS | 160° | Capacitive | USB | × | × | × | √ | √ | √ | √ |
5DP-CAPLCD-H | 1024×600 | HDMI | IPS | 178° | Capacitive | Type-C | √ | × | × | √ | √ | √ | √ |
5DP-CAPLCD-B | 1024×600 | HDMI | IPS | 178° | Capacitive | Type-C | √ | √ | × | √ | √ | √ | √ |
5DP-CAPLCD-G | 1024×600 | HDMI | IPS | 178° | Resistive | Type-C | √ | × | × | √ | √ | √ | √ |
5inch HDMI LCD | 800×480 | HDMI | TFT | – | Resistive | SPI | × | × | × | × | √ | × | × |
5inch HDMI LCD (with bicolor case) | 800×480 | HDMI | TFT | – | Resistive | SPI | × | × | × | × | √ | × | × |
5inch HDMI LCD (B) | 800×480 | HDMI | TFT | – | Resistive | USB | × | × | × | × | √ | × | √ |
5inch HDMI LCD (B) (with bicolor case) | 800×480 | HDMI | TFT | – | Resistive | USB | × | × | × | × | √ | × | √ |
5inch HDMI LCD (G) | 800×480 | HDMI/VGA | TFT | – | Resistive | USB | × | × | × | √ | √ | × | √ |
5inch HDMI LCD (H) | 800×480 | HDMI/VGA | TFT | – | Capacitive | USB | √ | × | × | √ | √ | √ | √ |
5inch HDMI LCD (H) V4 | 800×480 | HDMI | TFT | – | Capacitive | USB | √ | × | × | × | √ | × | √ |
5inch HDMI AMOLED | 960×544 | HDMI | AMOLED | 170° | Capacitive | USB | √ | √ | × | √ | √ | √ | √ |
5inch 1080x1080 LCD | 1080×1080 | HDMI | IPS | 160° | Capacitive | Type-C | √ | √ | √ | √ | √ | √ | √ |
5inch 720x1280 LCD | 720×1280 | HDMI | IPS | 178° | Capacitive | Type-C | √ | √ | √ | × | √ | √ | √ |
5.5inch HDMI AMOLED | 1080×1920 | HDMI | AMOLED | 170° | Capacitive | USB | √ | √ | × | √ | √ | √ | √ |
5.5inch HDMI AMOLED (with case A) | 1080×1920 | HDMI | AMOLED | 170° | Capacitive | USB | √ | √ | × | √ | √ | × | × |
5.5inch 1440x2560 LCD | 1440×2560 | HDMI | IPS | 170° | Capacitive | USB | √ | √ | × | √ | √ | × | √ |
5.5inch 1440x2560 LCD (with case A) | 1440×2560 | HDMI | IPS | 170° | Capacitive | USB | √ | √ | × | √ | √ | × | × |
6.25inch 720x1560 LCD | 720×1560 | HDMI | IPS | 178° | Capacitive | Type-C | √ | √ | √ | × | √ | √ | √ |
7EP-CAPLCD | 1280×800 | HDMI | IPS | 178° | Capacitive | USB | √ | √ | √ | √ | √ | √ | √ |
7EP-CAPLCD Monitor | 1280×800 | HDMI/Type-C | IPS | 178° | Capacitive | USB | √ | √ | √ | √ | √ | √ | √ |
7inch HDMI LCD | 1024×600 | HDMI | IPS | 170° | Resistive | SPI | × | × | × | × | √ | × | Display ONLY |
7inch HDMI LCD (B) | 800×480 | HDMI | TFT | – | Capacitive | USB | × | × | × | × | √ | × | √ |
7inch HDMI LCD (B) (with bicolor case) | 800×480 | HDMI | TFT | – | Capacitive | USB | × | × | × | × | √ | × | √ |
7inch HDMI LCD (C) | 1024×600 | HDMI | IPS | 170° | Capacitive | USB | × | × | × | × | √ | × | √ |
7inch HDMI LCD (C) (with bicolor case) | 1024×600 | HDMI | IPS | 170° | Capacitive | USB | × | × | × | × | √ | × | √ |
7inch HDMI LCD (H) | 1024×600 | HDMI/VGA | IPS | 170° | Capacitive | USB | × | × | × | √ | √ | √ | √ |
7inch HDMI LCD (H) (with case) | 1024×600 | HDMI/VGA | IPS | 170° | Capacitive | USB | √ | × | × | √ | √ | √ | √ |
7HP-CAPQLED | 1024×600 | HDMI | IPS (QLED) | 170° | Capacitive | USB | √ | × | × | √ | √ | √ | √ |
7.9inch HDMI LCD | 400×1280 | HDMI | IPS | 170° | Capacitive | USB | √ | × | × | √ | √ | √ | √ |
7.9inch Side Monitor | 400×1280 | HDMI | IPS | 170° | × | × | √ | × | √ | × | √ | √ | √ |
7.9inch Touch Monitor | 400×1280 | HDMI | IPS | 170° | Capacitive | USB | √ | × | √ | × | √ | √ | √ |
8DP-CAPLCD | 1280×800 | HDMI | IPS | 178° | Capacitive | USB | √ | √ | × | √ | √ | √ | √ |
8HP-CAPLCD Monitor | 1280×800 | HDMI/Type-C | IPS | 178° | Capacitive | USB | √ | √ | √ | √ | √ | √ | √ |
8inch 768x1024 LCD | 768×1024 | HDMI | IPS | 178° | Capacitive | Type-C | √ | × | √ | √ | √ | √ | √ |
8inch 1536x2048 LCD | 1536×2048 | HDMI | IPS | 178° | Capacitive | Type-C | √ | √ | √ | √ | √ | √ | √ |
8.8inch Side Monitor | 480×1920 | HDMI | IPS | 170° | × | × | × | × | √ | × | √ | √ | Display ONLY |
9HP-CAPQLED-B | 1280×720 | HDMI | IPS (QLED) | 178° | Capacitive | USB | √ | × | × | √ | √ | √ | √ |
9.3inch 1600x600 LCD | 1600×600 | HDMI | IPS | 178° | Capacitive | Type-C | √ | √ | √ | √ | √ | √ | √ |
9.7inch 768x1024 LCD | 768×1024 | HDMI | IPS | 178° | Capacitive | Type-C | √ | × | √ | √ | √ | √ | √ |
10.1inch HDMI LCD | 1024×600 | HDMI | IPS | 170° | Resistive | SPI | × | × | × | × | √ | × | Display ONLY |
10.1inch HDMI LCD (B) (with case) | 1280×800 | HDMI | IPS | 170° | Capacitive | USB | √ | × | × | × | √ | × | √ |
10.1inch HDMI LCD (E) | 1024×600 | HDMI | IPS | 170° | Capacitive | USB | √ | √ | × | √ | √ | √ | √ |
10.1inch HDMI LCD (G) (with case) | 1920×1200 | HDMI | IPS | 160° | Capacitive | USB | √ | √ | √ | √ | √ | √ | √ |
10.1inch HDMI LCD (H) (with case) | 1024×600 | HDMI/VGA | TFT | – | Capacitive | USB | × | × | × | × | √ | √ | √ |
10.1inch HDMI LCD (F) (with case) | 1024×600 | HDMI/VGA | IPS | 170° | Capacitive | USB | √ | × | √ | × | √ | √ | √ |
10.1EP-CAPLCD | 1920×1200 | HDMI | IPS | 178° | Capacitive | Type-C | √ | √ | √ | √ | √ | √ | √ |
10.1DP-CAPLCD | 1280×800 | HDMI | IPS | 178° | Capacitive | USB | √ | √ | × | √ | √ | √ | √ |
10.1HP-CAPQLED | 1280×720 | HDMI | IPS (QLED) | 170° | Capacitive | USB | √ | × | × | √ | √ | √ | √ |
10.1HP-CAPLCD Monitor | 1280×800 | HDMI/Type-C | IPS | 178° | Capacitive | USB | √ | √ | √ | √ | √ | √ | √ |
10.4HP-CAPQLED | 1600×720 | HDMI | IPS(QLED) | 178° | Capacitive | Type-C | √ | √ | √ | √ | √ | √ | √ |
10.5inch HDMI AMOLED | 2560×1600 | HDMI | AMOLED | 160° | Capacitive | USB | √ | √ | √ | √ | √ | √ | √ |
11.6inch 1768x828 LCD | 1768×828 | HDMI/Type-C | IPS | 178° | Capacitive | Type-C | In-Cell | × | × | √ | √ | √ | √ |
11.6inch HDMI LCD (H) | 1920×1080 | HDMI | IPS | 178° | Capacitive | USB | √ | √ | × | √ | √ | √ | √ |
11.6inch HDMI LCD (H) (with case) | 1920×1080 | HDMI/VGA | IPS | 178° | Capacitive | USB | √ | √ | √ | √ | √ | √ | √ |
11.9inch HDMI LCD | 320×1480 | HDMI | IPS | 170° | Capacitive | USB | √ | × | × | √ | √ | √ | √ |
11.9inch Side Monitor | 320×1480 | HDMI | IPS | 170° | × | × | √ | × | √ | × | √ | √ | √ |
11.9inch Touch Monitor | 320×1480 | HDMI | IPS | 170° | Capacitive | USB | √ | × | √ | × | √ | √ | √ |
12.3inch 1920x720 LCD | 1920×720 | HDMI/Type-C | IPS | 178° | Capacitive | Type-C | In-Cell | × | × | √ | √ | √ | √ |
12.3inch HDMI LCD | 1920×720 | HDMI | IPS | 178° | Capacitive | USB | √ | √ | √ | √ | √ | √ | √ |
13.3inch HDMI LCD (H) | 1920×1080 | HDMI | IPS | 178° | Capacitive | USB | √ | × | × | √ | √ | √ | √ |
13.3inch HDMI LCD (H) (with case) | 1920×1080 | HDMI/VGA | IPS | 178° | Capacitive | USB | √ | × | √ | √ | √ | √ | √ |
13.3inch HDMI LCD (H) (with case) V2 | 1920×1080 | HDMI/VGA | IPS | 178° | Capacitive | USB | √ | × | √ | √ | √ | √ | √ |
13.3inch QHD AMOLED | 2560×1440 | HDMI/Type-C | AMOLED | 178° | Capacitive | Type-C | √ | √ | √ | √ | √ | √ | √ |
14inch 2160x1440 LCD | 2160×1440 | HDMI/Type-C/DP | IPS | 178° | Capacitive | Type-C | √ | √ | × | √ | √ | √ | √ |
15.6inch FHD Monitor (C) | 1920×1080 | mini HDMI/Type-C | IPS | 178° | Capacitive | Type-C | √ | √ | √ | √ | √ | √ | √ |
14inch Dual Monitor | 1920×1080 | HDMI/Type-C | IPS | 178° | × | × | × | × | √ | √ | √ | √ | √ |
15.6inch Dual Monitor | 1920×1080 | HDMI/Type-C | IPS | 178° | × | × | × | × | √ | √ | √ | √ | √ |
15.6inch HDMI LCD | 1920×1080 | HDMI | IPS | 178° | Capacitive | USB | √ | × | × | √ | √ | √ | √ |
15.6inch HDMI LCD (H) (with case) | 1920×1080 | HDMI/VGA | IPS | 178° | Capacitive | USB | √ | × | √ | √ | √ | √ | √ |
15.6inch FHD Monitor | 1920×1080 | HDMI/Type-C | IPS | 178° | Capacitive | Type-C / USB | √ | × | √ | √ | √ | √ | √ |
15.6HP-CAPQLED | 1920×1080 | HDMI | IPS(QLED) | 178° | Capacitive | USB | √ | √ | × | √ | √ | √ | √ |
15.6inch QLED Monitor | 1920×1080 | HDMI | IPS(QLED) | 178° | Capacitive | Type-C | √ | √ | √ | √ | √ | √ | √ |
18.5inch Dual Monitor | 1920×1080 | HDMI/Type-C | IPS | 178° | × | × | × | × | √ | √ | √ | √ | √ |
18.5inch FHD LCD | 1080×1920 | HDMI/Type-C | IPS | 178° | Capacitive | Type-C | √ | √ | × | √ | √ | √ | √ |
21.5inch FHD LCD | 1080×1920 | HDMI | IPS | 170° | Capacitive | Type-C | √ | √ | × | √ | √ | √ | √ |
21.5inch FHD Monitor | 1080×1920 | HDMI | IPS | 170° | Capacitive | Type-C | √ | √ | √ | × | √ | √ | √ |
Have a look :
Weight: 0.552 kg
Quick Overview
- 7inch FHD Monitor
- HDMI to Micro HDMI cable
- HDMI cable
- USB-A to Micro-B cable
- Eject pin key
- Triangular stand
