6inch Flexible AMOLED, HDMI, 1080×2160, Rounded Corners

6inch Flexible AMOLED, HDMI, 1080×2160, Rounded Corners

SKU:21432
Part No.:6inch HDMI AMOLED
Brand:Waveshare

$139.99 DISCONTINUED
PriceQuantity
1~9
$137.9910~49
$136.9950~99
$136.59100+
Related Products:
Share:
Description

Details

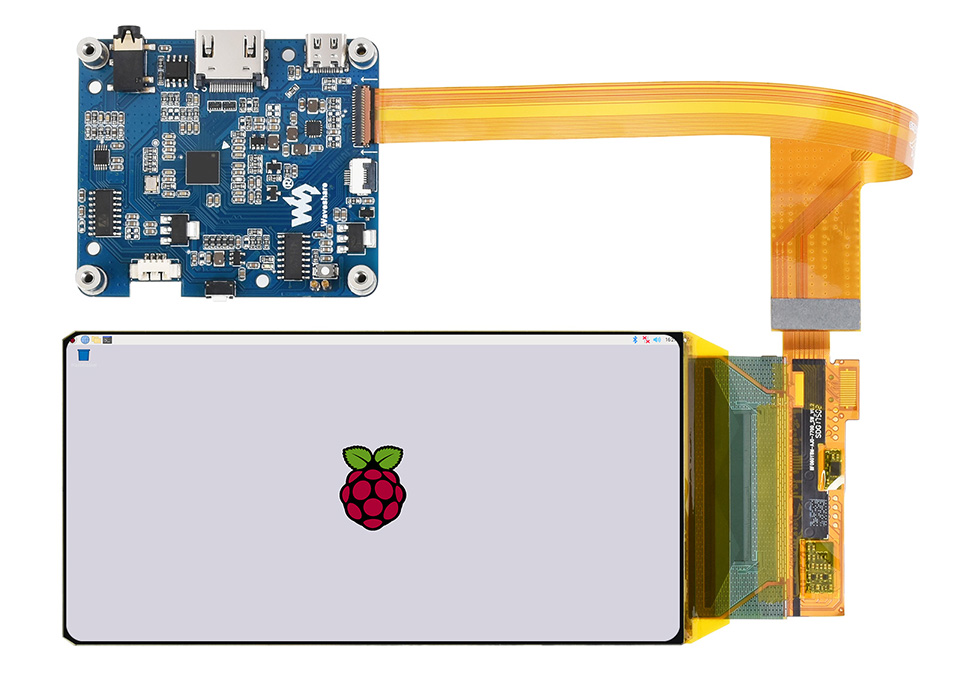

6inch Flexible AMOLED, HDMI Port, 1080×2160 Resolution, Rounded Corners
6″ Flexible AMOLED
  • Size6″
  • Resolution1080×2160
  • Display PanelAMOLED
  • Panel FeatureFlexible Panel
  • Viewing Angle160°
  • Display InterfaceHDMI
  • Audio Output 13.5mm Jack
  • Audio Output 24PIN Header
The display orientation is portrait by default, 1080×2160 resolution (H×V). Change the software config for landscape display.
Device & System Support

Raspberry Pi
Supports Raspberry Pi OS / Ubuntu / Kali / WIN10 IoT / Retropie, driver free

Supports all versions of Raspberry Pi



Jetson Nano
Supports Ubuntu
PC
Supports Windows 11 / 10 / 8.1 / 8 / 7
Connection Examples

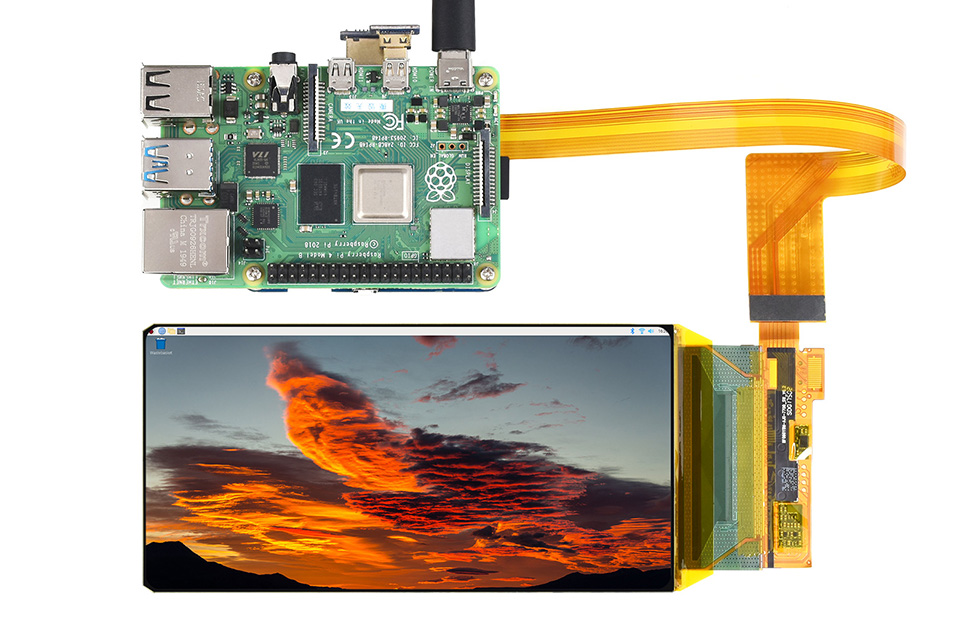

Working with Raspberry Pi 4

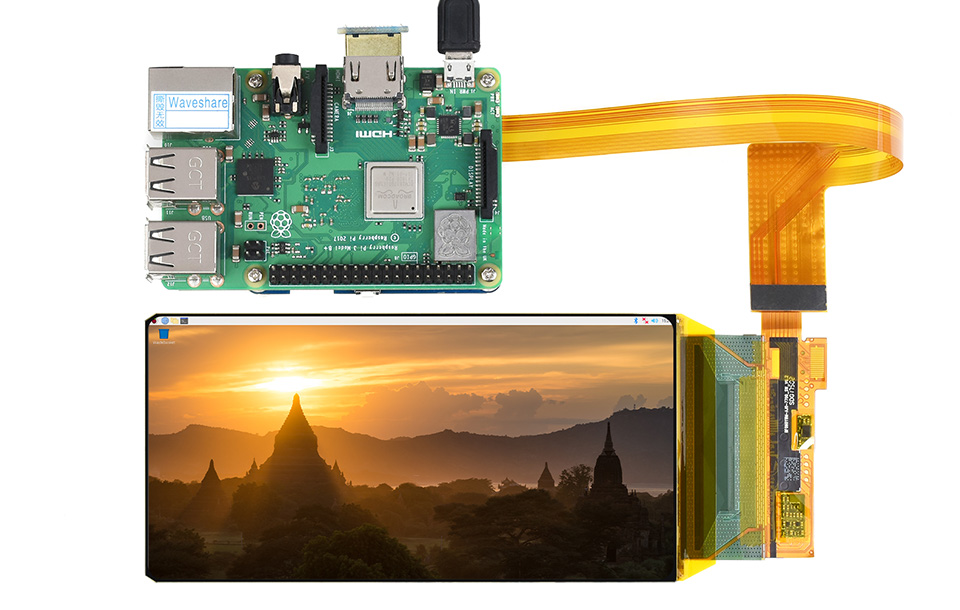

Working with Raspberry Pi 3B+

Working with AI Computer Jetson Nano

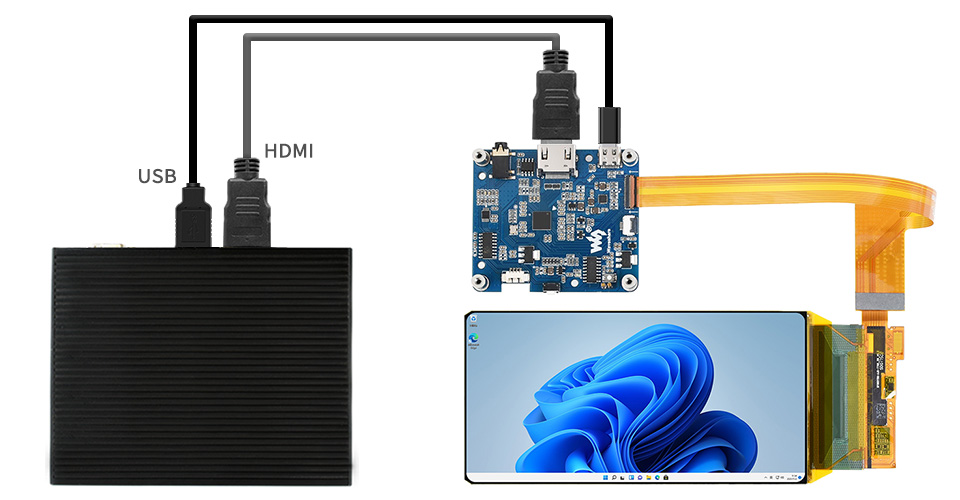

Working with mini PC

rendering the real sight

100% Adobe RGB, 100% DCI-P3 color gamut,
rendering more colors, bringing more immersive movie experience

AMOLED active light-emitting screen

The next-generation display technology, 2.33M active light-emitting pixels

Compared to those traditional LCD displays, the AMOLED screen features precise light-control capability, representing more delicate colors, more picture details, and more vivid video image

high contrast, no detail would be lost

striking one-hundred-thousand grade contrast radio

Compared to normal LCD displays, the AMOLED screen features ultra high contrast radio, which means hundredfold light/dark performance. Even when representing gradations and details like the deep starry sky, it is able to bring you immersive experience easily.

virtually 0nit true black

brighter highlight, darker shadow

The regular LCD requires backlight and color film to work, i.e. it represents colors by controlling the white light from backlight layer to pass through the color film, and generally there's so called light-leak issue.

Unlike LCD, the AMOLED features active emissive technology, each pixel on the AMOLED will light up by itself like a firefly, or turn off completely, to create brighter highlight or true black shadow, while retaining rich details.

as thin as a cicada's wings

thinner than 1mm display, slim like a paper

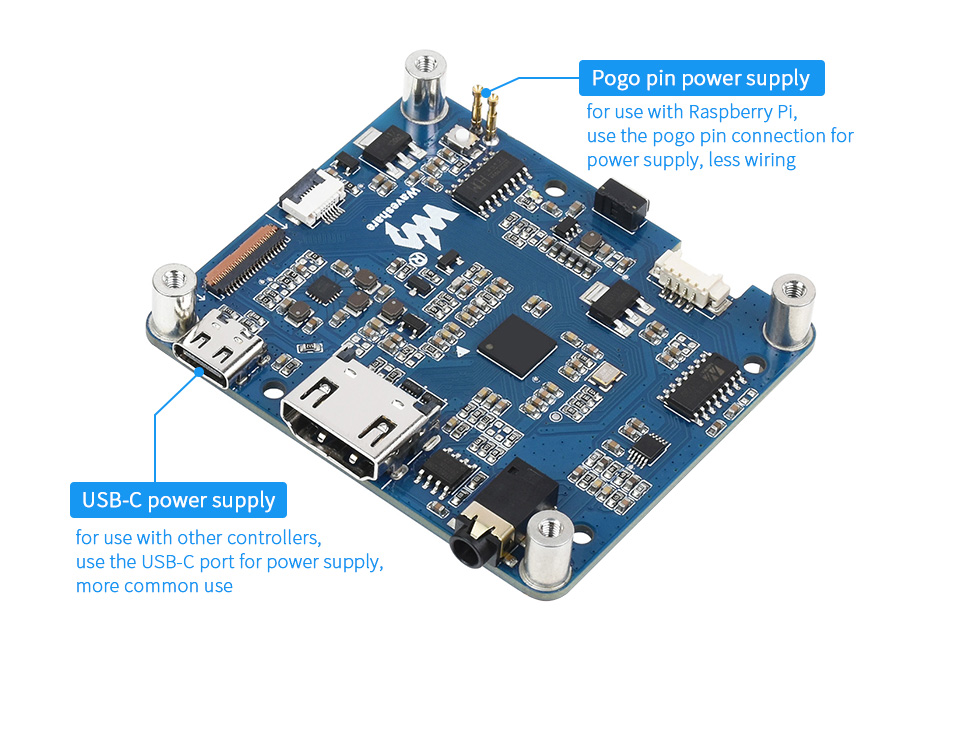

Design features
Appearance and Dimensions
Resources & Services
Wiki: www.waveshare.com/wiki/6inch_HDMI_AMOLED
Product Certification

HDMI Certified


Support touch screen customization

Support the following ways to customize the touch screen display in bulk order

Over a decade
Waveshare grows with display

* Waveshare has been focusing on display design for over 10 years.

Selection Guide

PartNumber Display Touch Audio Device Support
Resolu-tion Display Port Display Panel View Angle Touch Type Touch Port Toughened Glass Panel Optical Bonding Spe-
aker		 Signal Output Pi JETSON NANO PC
SPI DISPLAYS
PROS: low price.
CONS: low refresh rate & resolution, supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO (the SPI bus), poor compatibility with Raspberry Pi system.
2.8inch RPi LCD (A) 320×240 SPI TFT – Resistive SPI × × × × √ × ×
3.2inch RPi LCD (B) 320×240 SPI TFT – Resistive SPI × × × × √ × ×
3.5inch RPi LCD (A) 480×320 SPI TFT – Resistive SPI × × × × √ × ×
3.5inch RPi LCD (B) 480×320 SPI IPS 160° Resistive SPI × × × × √ × ×
3.5inch RPi LCD (C) 480×320 High-Speed SPI TFT – Resistive SPI × × × × √ × ×
4inch RPi LCD (A) 480×320 SPI TFT – Resistive SPI × × × × √ × ×
DPI DISPLAYS
PROS: low price, high refresh rate, multiple resolution support, better compatibility with Raspberry Pi system.
CONS: supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO.
2.8inch DPI LCD 480×640 DPI IPS 160° Capacitive I2C √ √ × × √ × ×
3.5inch DPI LCD 640×480 DPI IPS 170° Capacitive I2C √ × × × √ × ×
4inch DPI LCD (C) 720×720 DPI IPS 170° Capacitive I2C √ √ × × √ × ×
5inch DPI LCD 800×480 DPI IPS 160° – – × × × × √ × ×
7inch DPI LCD 1024×600 DPI IPS 170° – – × × × × √ × ×
DSI DISPLAYS
PROS: moderate price, high refresh rate, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system.
CONS: supports Raspberry Pi only.
2.8inch DSI LCD 480×640 DSI IPS 160° Capacitive I2C √ √ × × √ × ×
3.4inch DSI LCD (C) 800×800 DSI IPS 170° Capacitive I2C √ √ × × √ × ×
4inch DSI LCD 480×800 DSI IPS 170° Capacitive I2C √ √ × × √ × ×
4inch DSI LCD (C) 720×720 DSI IPS 170° Capacitive I2C √ √ × × √ × ×
4.3inch DSI LCD 800×480 DSI IPS 160° Capacitive I2C √ × × × √ × ×
4.3inch DSI LCD (with case) 800×480 DSI IPS 160° Capacitive I2C √ × × × √ × ×
4.3inch DSI QLED 800×480 DSI IPS(QLED) 160° Capacitive I2C √ × × × √ × ×
5inch DSI LCD 800×480 DSI TFT – Capacitive I2C √ × × × √ × ×
5inch DSI LCD (B) 800×480 DSI IPS 160° Capacitive I2C √ × × × √ × ×
5inch DSI LCD (C) 1024×600 DSI IPS 178° Capacitive I2C √ × × × √ × ×
5inch DSI LCD (D) 720×1280 DSI IPS 178° Capacitive I2C √ √ × × √ × ×
6.25inch DSI LCD 720×1560 DSI IPS 178° Capacitive I2C √ √ × × √ × ×
7inch DSI LCD 800×480 DSI TFT – Capacitive I2C √ × × × √ × ×
7inch DSI LCD (with case A) 800×480 DSI TFT – Capacitive I2C √ × × × √ × ×
7inch DSI LCD (with cam) 800×480 DSI TFT – Capacitive I2C √ × × × √ × ×
7inch DSI LCD (with cam and case) 800×480 DSI TFT – Capacitive I2C √ × × × √ × ×
7inch DSI LCD (B) 800×480 DSI IPS 170° Capacitive I2C √ × × × √ × ×
7inch DSI LCD (B) (with case A) 800×480 DSI IPS 170° Capacitive I2C √ × × × √ × ×
7inch DSI LCD (C) 1024×600 DSI IPS 170° Capacitive I2C √ × × × √ × ×
7inch DSI LCD (C) (with case A) 1024×600 DSI IPS 170° Capacitive I2C √ × × × √ × ×
7inch DSI LCD (E) 1280×800 DSI IPS 178° Capacitive I2C √ √ × × √ × ×
7.9inch DSI LCD 400×1280 DSI IPS 170° Capacitive I2C √ × × × √ × ×
8inch DSI LCD 800×480 DSI TFT – Capacitive I2C √ × × × √ × ×
8inch DSI LCD (with cam) 800×480 DSI TFT – Capacitive I2C √ × × × √ × ×
8inch DSI LCD (C) 1280×800 DSI IPS 178° Capacitive I2C √ √ × × √ × ×
8.8inch DSI LCD 480×1920 DSI IPS 178° Capacitive I2C √ √ × × √ × ×
10.1inch DSI LCD (C) 1280×800 DSI IPS 178° Capacitive I2C √ √ × × √ × ×
11.9inch DSI LCD 320×1480 DSI IPS 170° Capacitive I2C √ × × × √ × ×
13.3inch DSI LCD 1920×1080 DSI IPS 178° Capacitive I2C √ × × × √ × ×
HDMI / TYPE-C DISPLAYS
PROS: high refresh rate, multiple resolution support, multiple devices support, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system.
CONS: somewhat costly.
2.8inch HDMI LCD (H) 480×640 HDMI IPS 160° Capacitive USB-C / I2C √ √ × × √ √ √
3.2inch HDMI LCD (H) 480×800 HDMI IPS 160° × × × × × × √ √ Display ONLY
3.4inch 800x800 LCD 800x800 HDMI IPS 170° Capacitive Type-C √ √ × √ √ √ √
3.5inch HDMI LCD 480×320 HDMI IPS 160° Resistive SPI × × × √ √ × Display ONLY
3.5inch 480x800 LCD 480×800 HDMI IPS 170° Capacitive USB-C × × × × √ √ √
4inch 720x720 LCD 720x720 HDMI IPS 170° Capacitive Type-C √ √ × √ √ √ √
4inch HDMI LCD 480×800 HDMI IPS 170° Resistive SPI × × × × √ × Display ONLY
4inch HDMI LCD (C) 720×720 HDMI IPS 170° Capacitive USB-C / I2C √ √ × √ √ √ √
4inch HDMI LCD (H) 480×800 HDMI IPS 170° Resistive SPI × × × √ √ × Display ONLY
4.3inch HDMI LCD (B) 800×480 HDMI IPS 160° Capacitive USB × × × √ √ √ √
5DP-CAPLCD-H 1024×600 HDMI IPS 178° Capacitive Type-C √ × × √ √ √ √
5DP-CAPLCD-B 1024×600 HDMI IPS 178° Capacitive Type-C √ √ × √ √ √ √
5DP-CAPLCD-G 1024×600 HDMI IPS 178° Resistive Type-C √ × × √ √ √ √
5inch HDMI LCD 800×480 HDMI TFT – Resistive SPI × × × × √ × ×
5inch HDMI LCD (with bicolor case) 800×480 HDMI TFT – Resistive SPI × × × × √ × ×
5inch HDMI LCD (B) 800×480 HDMI TFT – Resistive USB × × × × √ × √
5inch HDMI LCD (B) (with bicolor case) 800×480 HDMI TFT – Resistive USB × × × × √ × √
5inch HDMI LCD (G) 800×480 HDMI/VGA TFT – Resistive USB × × × √ √ × √
5inch HDMI LCD (H) 800×480 HDMI/VGA TFT – Capacitive USB √ × × √ √ √ √
5inch HDMI LCD (H) V4 800×480 HDMI TFT – Capacitive USB √ × × × √ × √
5inch HDMI AMOLED 960×544 HDMI AMOLED 170° Capacitive USB √ √ × √ √ √ √
5inch 1080x1080 LCD 1080×1080 HDMI IPS 160° Capacitive Type-C √ √ √ √ √ √ √
5inch 720x1280 LCD 720×1280 HDMI IPS 178° Capacitive Type-C √ √ √ × √ √ √
5.5inch HDMI AMOLED 1080×1920 HDMI AMOLED 170° Capacitive USB √ √ × √ √ √ √
5.5inch HDMI AMOLED (with case A) 1080×1920 HDMI AMOLED 170° Capacitive USB √ √ × √ √ × ×
5.5inch 1440x2560 LCD 1440×2560 HDMI IPS 170° Capacitive USB √ √ × √ √ × √
5.5inch 1440x2560 LCD (with case A) 1440×2560 HDMI IPS 170° Capacitive USB √ √ × √ √ × ×
6.25inch 720x1560 LCD 720×1560 HDMI IPS 178° Capacitive Type-C √ √ √ × √ √ √
7EP-CAPLCD 1280×800 HDMI IPS 178° Capacitive USB √ √ √ √ √ √ √
7EP-CAPLCD Monitor 1280×800 HDMI/Type-C IPS 178° Capacitive USB √ √ √ √ √ √ √
7inch HDMI LCD 1024×600 HDMI IPS 170° Resistive SPI × × × × √ × Display ONLY
7inch HDMI LCD (B) 800×480 HDMI TFT – Capacitive USB × × × × √ × √
7inch HDMI LCD (B) (with bicolor case) 800×480 HDMI TFT – Capacitive USB × × × × √ × √
7inch HDMI LCD (C) 1024×600 HDMI IPS 170° Capacitive USB × × × × √ × √
7inch HDMI LCD (C) (with bicolor case) 1024×600 HDMI IPS 170° Capacitive USB × × × × √ × √
7inch HDMI LCD (H) 1024×600 HDMI/VGA IPS 170° Capacitive USB × × × √ √ √ √
7inch HDMI LCD (H) (with case) 1024×600 HDMI/VGA IPS 170° Capacitive USB √ × × √ √ √ √
7HP-CAPQLED 1024×600 HDMI IPS (QLED) 170° Capacitive USB √ × × √ √ √ √
7.9inch HDMI LCD 400×1280 HDMI IPS 170° Capacitive USB √ × × √ √ √ √
7.9inch Side Monitor 400×1280 HDMI IPS 170° × × √ × √ × √ √ √
7.9inch Touch Monitor 400×1280 HDMI IPS 170° Capacitive USB √ × √ × √ √ √
8DP-CAPLCD 1280×800 HDMI IPS 178° Capacitive USB √ √ × √ √ √ √
8HP-CAPLCD Monitor 1280×800 HDMI/Type-C IPS 178° Capacitive USB √ √ √ √ √ √ √
8inch 768x1024 LCD 768×1024 HDMI IPS 178° Capacitive Type-C √ × √ √ √ √ √
8inch 1536x2048 LCD 1536×2048 HDMI IPS 178° Capacitive Type-C √ √ √ √ √ √ √
8.8inch Side Monitor 480×1920 HDMI IPS 170° × × × × √ × √ √ Display ONLY
9HP-CAPQLED-B 1280×720 HDMI IPS (QLED) 178° Capacitive USB √ × × √ √ √ √
9.3inch 1600x600 LCD 1600×600 HDMI IPS 178° Capacitive Type-C √ √ √ √ √ √ √
9.7inch 768x1024 LCD 768×1024 HDMI IPS 178° Capacitive Type-C √ × √ √ √ √ √
10.1inch HDMI LCD 1024×600 HDMI IPS 170° Resistive SPI × × × × √ × Display ONLY
10.1inch HDMI LCD (B) (with case) 1280×800 HDMI IPS 170° Capacitive USB √ × × × √ × √
10.1inch HDMI LCD (E) 1024×600 HDMI IPS 170° Capacitive USB √ √ × √ √ √ √
10.1inch HDMI LCD (G) (with case) 1920×1200 HDMI IPS 160° Capacitive USB √ √ √ √ √ √ √
10.1inch HDMI LCD (H) (with case) 1024×600 HDMI/VGA TFT – Capacitive USB × × × × √ √ √
10.1inch HDMI LCD (F) (with case) 1024×600 HDMI/VGA IPS 170° Capacitive USB √ × √ × √ √ √
10.1EP-CAPLCD 1920×1200 HDMI IPS 178° Capacitive Type-C √ √ √ √ √ √ √
10.1DP-CAPLCD 1280×800 HDMI IPS 178° Capacitive USB √ √ × √ √ √ √
10.1HP-CAPQLED 1280×720 HDMI IPS (QLED) 170° Capacitive USB √ × × √ √ √ √
10.1HP-CAPLCD Monitor 1280×800 HDMI/Type-C IPS 178° Capacitive USB √ √ √ √ √ √ √
10.4HP-CAPQLED 1600×720 HDMI IPS(QLED) 178° Capacitive Type-C √ √ √ √ √ √ √
10.5inch HDMI AMOLED 2560×1600 HDMI AMOLED 160° Capacitive USB √ √ √ √ √ √ √
11.6inch 1768x828 LCD 1768×828 HDMI/Type-C IPS 178° Capacitive Type-C In-Cell × × √ √ √ √
11.6inch HDMI LCD (H) 1920×1080 HDMI IPS 178° Capacitive USB √ √ × √ √ √ √
11.6inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB √ √ √ √ √ √ √
11.9inch HDMI LCD 320×1480 HDMI IPS 170° Capacitive USB √ × × √ √ √ √
11.9inch Side Monitor 320×1480 HDMI IPS 170° × × √ × √ × √ √ √
11.9inch Touch Monitor 320×1480 HDMI IPS 170° Capacitive USB √ × √ × √ √ √
12.3inch 1920x720 LCD 1920×720 HDMI/Type-C IPS 178° Capacitive Type-C In-Cell × × √ √ √ √
12.3inch HDMI LCD 1920×720 HDMI IPS 178° Capacitive USB √ √ √ √ √ √ √
13.3inch HDMI LCD (H) 1920×1080 HDMI IPS 178° Capacitive USB √ × × √ √ √ √
13.3inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB √ × √ √ √ √ √
13.3inch HDMI LCD (H) (with case) V2 1920×1080 HDMI/VGA IPS 178° Capacitive USB √ × √ √ √ √ √
13.3inch QHD AMOLED 2560×1440 HDMI/Type-C AMOLED 178° Capacitive Type-C √ √ √ √ √ √ √
14inch 2160x1440 LCD 2160×1440 HDMI/Type-C/DP IPS 178° Capacitive Type-C √ √ × √ √ √ √
15.6inch FHD Monitor (C) 1920×1080 mini HDMI/Type-C IPS 178° Capacitive Type-C √ √ √ √ √ √ √
14inch Dual Monitor 1920×1080 HDMI/Type-C IPS 178° × × × × √ √ √ √ √
15.6inch Dual Monitor 1920×1080 HDMI/Type-C IPS 178° × × × × √ √ √ √ √
15.6inch HDMI LCD 1920×1080 HDMI IPS 178° Capacitive USB √ × × √ √ √ √
15.6inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB √ × √ √ √ √ √
15.6inch FHD Monitor 1920×1080 HDMI/Type-C IPS 178° Capacitive Type-C / USB √ × √ √ √ √ √
15.6HP-CAPQLED 1920×1080 HDMI IPS(QLED) 178° Capacitive USB √ √ × √ √ √ √
15.6inch QLED Monitor 1920×1080 HDMI IPS(QLED) 178° Capacitive Type-C √ √ √ √ √ √ √
18.5inch Dual Monitor 1920×1080 HDMI/Type-C IPS 178° × × × × √ √ √ √ √
18.5inch FHD LCD 1080×1920 HDMI/Type-C IPS 178° Capacitive Type-C √ √ × √ √ √ √
21.5inch FHD LCD 1080×1920 HDMI IPS 170° Capacitive Type-C √ √ × √ √ √ √
21.5inch FHD Monitor 1080×1920 HDMI IPS 170° Capacitive Type-C √ √ √ × √ √ √

Have a look :
RPi LCD Comparing

Weight: 0.159 kg

Quick Overview

  1. 6inch HDMI AMOLED x1
  2. Speaker x1
  3. HDMI flat cable ~1m x1
  4. USB-A to USB-C cable ~1m x1
  5. HDMI Adapter (C) x1
  6. HDMI Adapter (B) x1
  7. Screws pack x1
1
2
3
4
5
6
7
