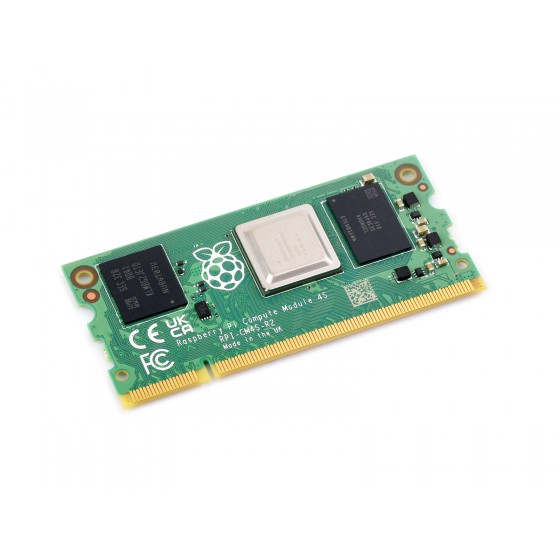

Raspberry Pi Compute Module 4S, Powerful Performance, High-Speed EMMC Flash, Compatible With CM3 Expansion Boards, Options For RAM / EMMC
Compute Module 4S
High speed eMMC, low power consumption
Based on the Raspberry Pi 4 Model B architecture, Compute Module 4S is intended for customers migrating or upgrading from Compute Module 3 / 3+
![Raspberry Pi Compute Module 4S, front view and features](/img/devkit/CM4S08032/CM4S08032-details-1.jpg)
Completely upgraded, more powerful
Upgraded processor BCM2711, quad-core Cortex-A72 64-bit Processor, more powerful performance. Onboard High-Speed eMMC Flash Memory Up to 100 MB/s, 4 times faster than CM3+
![Raspberry Pi Compute Module 4S, front view](/img/devkit/CM4S08032/CM4S08032-details-3.jpg)
Processor | Broadcom BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz |
---|---|
Memory | 1GB, 2GB, 4GB or 8GB LPDDR4 (depending on variant) |
Storage | 0GB (Lite), 8GB, 16GB or 32GB eMMC Flash (depending on variant) |
Connectivity | 1 × USB 2.0 interface |
46 GPIO signals | |
SD card interface for SD card (for use only with Compute Module 4S variants without eMMC) | |
Video | 1 × HDMI interface (up to 4Kp60 supported) |
2-lane MIPI DSI display interface | |
2-lane MIPI CSI camera interface | |
4-lane MIPI DSI display interface | |
4-lane MIPI CSI camera interface | |
Multimedia | H.265 (4Kp60 decode); H.264 (1080p60 decode, 1080p30 encode); OpenGL ES 3.0 graphics |
Input power | 2.5~5V / 3.3V DC |
Operating voltage | -20°C ~ 85°C ambient |
Dimensions | 67.6 × 31 mm |
Available options
![Raspberry Pi Compute Module 4S, available options](/img/devkit/CM4S08032/CM4S08032-details-5.jpg)
Upgraded processor, powerful performance
BCM2711 processor, quad-core Cortex-A72 64-bit SoC, more powerful performance
![Raspberry Pi Compute Module 4S, onboard BCM2711 processor](/img/devkit/CM4S08032/CM4S08032-details-7.jpg)
compatible with CM3 IO Expansion Boards
Accessing to Compute Module PoE Board
![Raspberry Pi Compute Module 4S accessing to Compute Module PoE Board](/img/devkit/CM4S08032/CM4S08032-details-9-1.jpg)
![Raspberry Pi Compute Module 4S accessing to Compute Module PoE 4G Board](/img/devkit/CM4S08032/CM4S08032-details-9-2.jpg)
Accessing to Compute Module PoE 4G Board
![Raspberry Pi Compute Module 4S accessing to Compute Module IO Board Plus](/img/devkit/CM4S08032/CM4S08032-details-9-3.jpg)
Accessing to Compute Module IO Board Plus
Ordering Codes
Model | Wireless | RAM | eMMC Flash |
---|---|---|---|
CM4S | 1 = Yes 0 = No |
1 = 1GB 2 = 2GB 4 = 4GB 8 = 8GB |
000 = 0GB (Lite) 008 = 8GB 016 = 16GB 032 = 32GB |
Example: CM4S 0 8 032, Compute Module 4S without onboard wireless, with 8GB RAM and 32GB eMMC Flash |
Wireless | RAM | eMMC Flash | Part Number |
---|---|---|---|
× | 1GB | 0GB (Lite) | CM4S01000 |
× | 8GB | 32GB | CM4S08032 |
Resources & Services
Quick Overview
CM4S08032
CM4S08032 x1
![Raspberry Pi Compute Module 4S](/img/devkit/CM4S08032/CM4S0-xGB-xeMMC-details-pack.jpg)
CM4S01000
CM4S01000 x1
![Raspberry Pi Compute Module 4S](/img/devkit/CM4S08032/CM4S0-xGB-Lite-details-pack.jpg)
