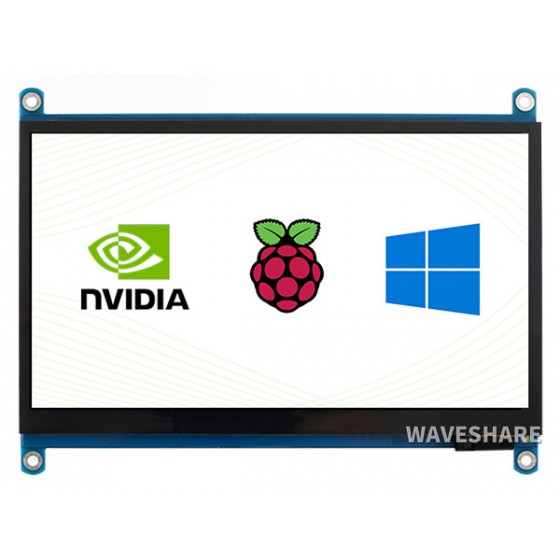

7inch Capacitive Touch Screen LCD (H), 1024×600, HDMI, IPS, Various Systems Support

SKU:14628
Part No.:7inch HDMI LCD (H)

$47.99 Qty:

PriceQuantity
$46.9910+
$46.4950+
$46.29100+

Related Products:

7inch Resistive Touch Screen LCD, 1024×600, HDMI, IPS, Various Systems Support

7inch Capacitive Touch Screen LCD (B), 800×480, HDMI, Low Power

7inch Capacitive Touch Screen LCD (C), 1024×600, HDMI, IPS, Low Power

Description
Package Content

Details

7inch Capacitive Touch Screen LCD (H), 1024×600, HDMI, IPS, Various Devices & Systems Support

7" HDMI Touch Display

Size7"
Resolution1024×600
Display InterfaceHDMI / VGA
Display PanelIPS
Viewing Angle170°
Touch TypeCapacitive
Touch Points5-point
Touch PortUSB
OSD MenuBrightness/Contrast
Audio Output13.5mm Jack
Audio Output24PIN Header
GamingXbox360/PS4/Switch

Device & System Support

Raspberry Pi

Supports Raspberry Pi OS, 5-point touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free

Supports all versions of Raspberry Pi

Jetson Nano

Supports Ubuntu, single point touch, driver free

Supports Windows 11 / 10 / 8.1 / 8 / 7, 5-point touch, driver free

Game Console

Xbox360, PS4, Switch...

Connection Examples

Working with Raspberry Pi 4

Working with Raspberry Pi 3B+

Working with Raspberry Pi Zero W

Working with AI Computer Jetson Nano

Working with mini PC

Display

IPS Panel

Touch Control

1) up to 5-point touch, depending on the operating system.

Enjoy Gaming

* audio output via earphone/speaker port.

Demystifying Design Details

LCD FFC cable anti-interference design, more stable for industrial application
VCOM voltage adjustment for optimizing display effect
USB protocol translator, converting the touch signal into standard multi-points touch protocol to achieve smooth multi-points touch control
4~5.5V wide range USB power input, to avoid display flickering or touch failure that caused by low USB voltage
One-way isolation circuit. When powered from Touch port, the 5V voltage from Touch port will provide power supply for both touch function and display circuit. When powered from Power Only port, the Touch port will provide power supply for just touch function, and the other circuit will be powered via Power Only port. The two power inputs are totally isolated to prevent any breakdown
Two audio outputs for earphone and speaker, each track of speaker supports 2.6W PA circuit
OSD menu config buttons for adjusting backlight and display color
DC-DC LCD driver circuit, low heating on long term operation
VGA port to support VGA devices

Appearance and Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/7inch_HDMI_LCD_(H)

Product Certification

HDMI Certified

Support touch screen customization

Support the following ways to customize the touch screen display in bulk order

Over a decade
Waveshare grows with display

* Waveshare has been focusing on display design for over 10 years.

Selection Guide

PartNumber	Display				Touch				Audio		Device Support
PartNumber	Resolu-tion	Display Port	Display Panel	View Angle	Touch Type	Touch Port	Toughened Glass Panel	Optical Bonding	Spe- aker	Signal Output	Pi	JETSON NANO	PC
SPI DISPLAYS PROS: low price. CONS: low refresh rate & resolution, supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO (the SPI bus), poor compatibility with Raspberry Pi system.
2.8inch RPi LCD (A)	320×240	SPI	TFT	–	Resistive	SPI	×	×	×	×	√	×	×
3.2inch RPi LCD (B)	320×240	SPI	TFT	–	Resistive	SPI	×	×	×	×	√	×	×
3.5inch RPi LCD (A)	480×320	SPI	TFT	–	Resistive	SPI	×	×	×	×	√	×	×
3.5inch RPi LCD (B)	480×320	SPI	IPS	160°	Resistive	SPI	×	×	×	×	√	×	×
3.5inch RPi LCD (C)	480×320	High-Speed SPI	TFT	–	Resistive	SPI	×	×	×	×	√	×	×
4inch RPi LCD (A)	480×320	SPI	TFT	–	Resistive	SPI	×	×	×	×	√	×	×
DPI DISPLAYS PROS: low price, high refresh rate, multiple resolution support, better compatibility with Raspberry Pi system. CONS: supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO.
2.8inch DPI LCD	480×640	DPI	IPS	160°	Capacitive	I2C	√	√	×	×	√	×	×
3.5inch DPI LCD	640×480	DPI	IPS	170°	Capacitive	I2C	√	×	×	×	√	×	×
4inch DPI LCD (C)	720×720	DPI	IPS	170°	Capacitive	I2C	√	√	×	×	√	×	×
5inch DPI LCD	800×480	DPI	IPS	160°	–	–	×	×	×	×	√	×	×
7inch DPI LCD	1024×600	DPI	IPS	170°	–	–	×	×	×	×	√	×	×
DSI DISPLAYS PROS: moderate price, high refresh rate, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system. CONS: supports Raspberry Pi only.
2.8inch DSI LCD	480×640	DSI	IPS	160°	Capacitive	I2C	√	√	×	×	√	×	×
3.4inch DSI LCD (C)	800×800	DSI	IPS	170°	Capacitive	I2C	√	√	×	×	√	×	×
4inch DSI LCD	480×800	DSI	IPS	170°	Capacitive	I2C	√	√	×	×	√	×	×
4inch DSI LCD (C)	720×720	DSI	IPS	170°	Capacitive	I2C	√	√	×	×	√	×	×
4.3inch DSI LCD	800×480	DSI	IPS	160°	Capacitive	I2C	√	×	×	×	√	×	×
4.3inch DSI LCD (with case)	800×480	DSI	IPS	160°	Capacitive	I2C	√	×	×	×	√	×	×
4.3inch DSI QLED	800×480	DSI	IPS(QLED)	160°	Capacitive	I2C	√	×	×	×	√	×	×
5inch DSI LCD	800×480	DSI	TFT	–	Capacitive	I2C	√	×	×	×	√	×	×
5inch DSI LCD (B)	800×480	DSI	IPS	160°	Capacitive	I2C	√	×	×	×	√	×	×
5inch DSI LCD (C)	1024×600	DSI	IPS	178°	Capacitive	I2C	√	×	×	×	√	×	×
5inch DSI LCD (D)	720×1280	DSI	IPS	178°	Capacitive	I2C	√	√	×	×	√	×	×
6.25inch DSI LCD	720×1560	DSI	IPS	178°	Capacitive	I2C	√	√	×	×	√	×	×
7inch DSI LCD	800×480	DSI	TFT	–	Capacitive	I2C	√	×	×	×	√	×	×
7inch DSI LCD (with case A)	800×480	DSI	TFT	–	Capacitive	I2C	√	×	×	×	√	×	×
7inch DSI LCD (with cam)	800×480	DSI	TFT	–	Capacitive	I2C	√	×	×	×	√	×	×
7inch DSI LCD (with cam and case)	800×480	DSI	TFT	–	Capacitive	I2C	√	×	×	×	√	×	×
7inch DSI LCD (B)	800×480	DSI	IPS	170°	Capacitive	I2C	√	×	×	×	√	×	×
7inch DSI LCD (B) (with case A)	800×480	DSI	IPS	170°	Capacitive	I2C	√	×	×	×	√	×	×
7inch DSI LCD (C)	1024×600	DSI	IPS	170°	Capacitive	I2C	√	×	×	×	√	×	×
7inch DSI LCD (C) (with case A)	1024×600	DSI	IPS	170°	Capacitive	I2C	√	×	×	×	√	×	×
7inch DSI LCD (E)	1280×800	DSI	IPS	178°	Capacitive	I2C	√	√	×	×	√	×	×
7.9inch DSI LCD	400×1280	DSI	IPS	170°	Capacitive	I2C	√	×	×	×	√	×	×
8inch DSI LCD	800×480	DSI	TFT	–	Capacitive	I2C	√	×	×	×	√	×	×
8inch DSI LCD (with cam)	800×480	DSI	TFT	–	Capacitive	I2C	√	×	×	×	√	×	×
8inch DSI LCD (C)	1280×800	DSI	IPS	178°	Capacitive	I2C	√	√	×	×	√	×	×
8.8inch DSI LCD	480×1920	DSI	IPS	178°	Capacitive	I2C	√	√	×	×	√	×	×
10.1inch DSI LCD (C)	1280×800	DSI	IPS	178°	Capacitive	I2C	√	√	×	×	√	×	×
11.9inch DSI LCD	320×1480	DSI	IPS	170°	Capacitive	I2C	√	×	×	×	√	×	×
13.3inch DSI LCD	1920×1080	DSI	IPS	178°	Capacitive	I2C	√	×	×	×	√	×	×
HDMI / TYPE-C DISPLAYS PROS: high refresh rate, multiple resolution support, multiple devices support, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system. CONS: somewhat costly.
2.8inch HDMI LCD (H)	480×640	HDMI	IPS	160°	Capacitive	USB-C / I2C	√	√	×	×	√	√	√
3.2inch HDMI LCD (H)	480×800	HDMI	IPS	160°	×	×	×	×	×	×	√	√	Display ONLY
3.4inch 800x800 LCD	800x800	HDMI	IPS	170°	Capacitive	Type-C	√	√	×	√	√	√	√
3.5inch HDMI LCD	480×320	HDMI	IPS	160°	Resistive	SPI	×	×	×	√	√	×	Display ONLY
3.5inch 480x800 LCD	480×800	HDMI	IPS	170°	Capacitive	USB-C	×	×	×	×	√	√	√
4inch 720x720 LCD	720x720	HDMI	IPS	170°	Capacitive	Type-C	√	√	×	√	√	√	√
4inch HDMI LCD	480×800	HDMI	IPS	170°	Resistive	SPI	×	×	×	×	√	×	Display ONLY
4inch HDMI LCD (C)	720×720	HDMI	IPS	170°	Capacitive	USB-C / I2C	√	√	×	√	√	√	√
4inch HDMI LCD (H)	480×800	HDMI	IPS	170°	Resistive	SPI	×	×	×	√	√	×	Display ONLY
4.3inch HDMI LCD (B)	800×480	HDMI	IPS	160°	Capacitive	USB	×	×	×	√	√	√	√
5DP-CAPLCD-H	1024×600	HDMI	IPS	178°	Capacitive	Type-C	√	×	×	√	√	√	√
5DP-CAPLCD-B	1024×600	HDMI	IPS	178°	Capacitive	Type-C	√	√	×	√	√	√	√
5DP-CAPLCD-G	1024×600	HDMI	IPS	178°	Resistive	Type-C	√	×	×	√	√	√	√
5inch HDMI LCD	800×480	HDMI	TFT	–	Resistive	SPI	×	×	×	×	√	×	×
5inch HDMI LCD (with bicolor case)	800×480	HDMI	TFT	–	Resistive	SPI	×	×	×	×	√	×	×
5inch HDMI LCD (B)	800×480	HDMI	TFT	–	Resistive	USB	×	×	×	×	√	×	√
5inch HDMI LCD (B) (with bicolor case)	800×480	HDMI	TFT	–	Resistive	USB	×	×	×	×	√	×	√
5inch HDMI LCD (G)	800×480	HDMI/VGA	TFT	–	Resistive	USB	×	×	×	√	√	×	√
5inch HDMI LCD (H)	800×480	HDMI/VGA	TFT	–	Capacitive	USB	√	×	×	√	√	√	√
5inch HDMI LCD (H) V4	800×480	HDMI	TFT	–	Capacitive	USB	√	×	×	×	√	×	√
5inch HDMI AMOLED	960×544	HDMI	AMOLED	170°	Capacitive	USB	√	√	×	√	√	√	√
5inch 1080x1080 LCD	1080×1080	HDMI	IPS	160°	Capacitive	Type-C	√	√	√	√	√	√	√
5inch 720x1280 LCD	720×1280	HDMI	IPS	178°	Capacitive	Type-C	√	√	√	×	√	√	√
5.5inch HDMI AMOLED	1080×1920	HDMI	AMOLED	170°	Capacitive	USB	√	√	×	√	√	√	√
5.5inch HDMI AMOLED (with case A)	1080×1920	HDMI	AMOLED	170°	Capacitive	USB	√	√	×	√	√	×	×
5.5inch 1440x2560 LCD	1440×2560	HDMI	IPS	170°	Capacitive	USB	√	√	×	√	√	×	√
5.5inch 1440x2560 LCD (with case A)	1440×2560	HDMI	IPS	170°	Capacitive	USB	√	√	×	√	√	×	×
6.25inch 720x1560 LCD	720×1560	HDMI	IPS	178°	Capacitive	Type-C	√	√	√	×	√	√	√
7EP-CAPLCD	1280×800	HDMI	IPS	178°	Capacitive	USB	√	√	√	√	√	√	√
7EP-CAPLCD Monitor	1280×800	HDMI/Type-C	IPS	178°	Capacitive	USB	√	√	√	√	√	√	√
7inch HDMI LCD	1024×600	HDMI	IPS	170°	Resistive	SPI	×	×	×	×	√	×	Display ONLY
7inch HDMI LCD (B)	800×480	HDMI	TFT	–	Capacitive	USB	×	×	×	×	√	×	√
7inch HDMI LCD (B) (with bicolor case)	800×480	HDMI	TFT	–	Capacitive	USB	×	×	×	×	√	×	√
7inch HDMI LCD (C)	1024×600	HDMI	IPS	170°	Capacitive	USB	×	×	×	×	√	×	√
7inch HDMI LCD (C) (with bicolor case)	1024×600	HDMI	IPS	170°	Capacitive	USB	×	×	×	×	√	×	√
7inch HDMI LCD (H)	1024×600	HDMI/VGA	IPS	170°	Capacitive	USB	×	×	×	√	√	√	√
7inch HDMI LCD (H) (with case)	1024×600	HDMI/VGA	IPS	170°	Capacitive	USB	√	×	×	√	√	√	√
7HP-CAPQLED	1024×600	HDMI	IPS (QLED)	170°	Capacitive	USB	√	×	×	√	√	√	√
7.9inch HDMI LCD	400×1280	HDMI	IPS	170°	Capacitive	USB	√	×	×	√	√	√	√
7.9inch Side Monitor	400×1280	HDMI	IPS	170°	×	×	√	×	√	×	√	√	√
7.9inch Touch Monitor	400×1280	HDMI	IPS	170°	Capacitive	USB	√	×	√	×	√	√	√
8DP-CAPLCD	1280×800	HDMI	IPS	178°	Capacitive	USB	√	√	×	√	√	√	√
8HP-CAPLCD Monitor	1280×800	HDMI/Type-C	IPS	178°	Capacitive	USB	√	√	√	√	√	√	√
8inch 768x1024 LCD	768×1024	HDMI	IPS	178°	Capacitive	Type-C	√	×	√	√	√	√	√
8inch 1536x2048 LCD	1536×2048	HDMI	IPS	178°	Capacitive	Type-C	√	√	√	√	√	√	√
8.8inch Side Monitor	480×1920	HDMI	IPS	170°	×	×	×	×	√	×	√	√	Display ONLY
9HP-CAPQLED-B	1280×720	HDMI	IPS (QLED)	178°	Capacitive	USB	√	×	×	√	√	√	√
9.3inch 1600x600 LCD	1600×600	HDMI	IPS	178°	Capacitive	Type-C	√	√	√	√	√	√	√
9.7inch 768x1024 LCD	768×1024	HDMI	IPS	178°	Capacitive	Type-C	√	×	√	√	√	√	√
10.1inch HDMI LCD	1024×600	HDMI	IPS	170°	Resistive	SPI	×	×	×	×	√	×	Display ONLY
10.1inch HDMI LCD (B) (with case)	1280×800	HDMI	IPS	170°	Capacitive	USB	√	×	×	×	√	×	√
10.1inch HDMI LCD (E)	1024×600	HDMI	IPS	170°	Capacitive	USB	√	√	×	√	√	√	√
10.1inch HDMI LCD (G) (with case)	1920×1200	HDMI	IPS	160°	Capacitive	USB	√	√	√	√	√	√	√
10.1inch HDMI LCD (H) (with case)	1024×600	HDMI/VGA	TFT	–	Capacitive	USB	×	×	×	×	√	√	√
10.1inch HDMI LCD (F) (with case)	1024×600	HDMI/VGA	IPS	170°	Capacitive	USB	√	×	√	×	√	√	√
10.1EP-CAPLCD	1920×1200	HDMI	IPS	178°	Capacitive	Type-C	√	√	√	√	√	√	√
10.1DP-CAPLCD	1280×800	HDMI	IPS	178°	Capacitive	USB	√	√	×	√	√	√	√
10.1HP-CAPQLED	1280×720	HDMI	IPS (QLED)	170°	Capacitive	USB	√	×	×	√	√	√	√
10.1HP-CAPLCD Monitor	1280×800	HDMI/Type-C	IPS	178°	Capacitive	USB	√	√	√	√	√	√	√
10.4HP-CAPQLED	1600×720	HDMI	IPS(QLED)	178°	Capacitive	Type-C	√	√	√	√	√	√	√
10.5inch HDMI AMOLED	2560×1600	HDMI	AMOLED	160°	Capacitive	USB	√	√	√	√	√	√	√
11.6inch 1768x828 LCD	1768×828	HDMI/Type-C	IPS	178°	Capacitive	Type-C	In-Cell	×	×	√	√	√	√
11.6inch HDMI LCD (H)	1920×1080	HDMI	IPS	178°	Capacitive	USB	√	√	×	√	√	√	√
11.6inch HDMI LCD (H) (with case)	1920×1080	HDMI/VGA	IPS	178°	Capacitive	USB	√	√	√	√	√	√	√
11.9inch HDMI LCD	320×1480	HDMI	IPS	170°	Capacitive	USB	√	×	×	√	√	√	√
11.9inch Side Monitor	320×1480	HDMI	IPS	170°	×	×	√	×	√	×	√	√	√
11.9inch Touch Monitor	320×1480	HDMI	IPS	170°	Capacitive	USB	√	×	√	×	√	√	√
12.3inch 1920x720 LCD	1920×720	HDMI/Type-C	IPS	178°	Capacitive	Type-C	In-Cell	×	×	√	√	√	√
12.3inch HDMI LCD	1920×720	HDMI	IPS	178°	Capacitive	USB	√	√	√	√	√	√	√
13.3inch HDMI LCD (H)	1920×1080	HDMI	IPS	178°	Capacitive	USB	√	×	×	√	√	√	√
13.3inch HDMI LCD (H) (with case)	1920×1080	HDMI/VGA	IPS	178°	Capacitive	USB	√	×	√	√	√	√	√
13.3inch HDMI LCD (H) (with case) V2	1920×1080	HDMI/VGA	IPS	178°	Capacitive	USB	√	×	√	√	√	√	√
13.3inch QHD AMOLED	2560×1440	HDMI/Type-C	AMOLED	178°	Capacitive	Type-C	√	√	√	√	√	√	√
14inch 2160x1440 LCD	2160×1440	HDMI/Type-C/DP	IPS	178°	Capacitive	Type-C	√	√	×	√	√	√	√
15.6inch FHD Monitor (C)	1920×1080	mini HDMI/Type-C	IPS	178°	Capacitive	Type-C	√	√	√	√	√	√	√
15.6inch Dual Monitor	1920×1080	HDMI/Type-C	IPS	178°	×	×	×	×	√	√	√	√	√
15.6inch HDMI LCD	1920×1080	HDMI	IPS	178°	Capacitive	USB	√	×	×	√	√	√	√
15.6inch HDMI LCD (H) (with case)	1920×1080	HDMI/VGA	IPS	178°	Capacitive	USB	√	×	√	√	√	√	√
15.6inch FHD Monitor	1920×1080	HDMI/Type-C	IPS	178°	Capacitive	Type-C / USB	√	×	√	√	√	√	√
15.6HP-CAPQLED	1920×1080	HDMI	IPS(QLED)	178°	Capacitive	USB	√	√	×	√	√	√	√
15.6inch QLED Monitor	1920×1080	HDMI	IPS(QLED)	178°	Capacitive	Type-C	√	√	√	√	√	√	√
18.5inch FHD LCD	1080×1920	HDMI/Type-C	IPS	178°	Capacitive	Type-C	√	√	×	√	√	√	√
21.5inch FHD LCD	1080×1920	HDMI	IPS	170°	Capacitive	Type-C	√	√	×	√	√	√	√
21.5inch FHD Monitor	1080×1920	HDMI	IPS	170°	Capacitive	Type-C	√	√	√	×	√	√	√

Have a look :
RPi LCD Comparing

Weight: 0.397 kg

Quick Overview

7inch HDMI LCD (H) x1
HDMI cable x1
HDMI to Micro HDMI Adapter x1
USB type A plug to micro B plug cable x1
RPi screws pack (4pcs) x 1

Waveshare

7inch Capacitive Touch Screen LCD (H), 1024×600, HDMI, IPS, Various Systems Support

Details

Selection Guide

Quick Overview

INFO & SERVICES

HELP

LINKS

BE THE FIRST TO KNOW
