- Description
Details

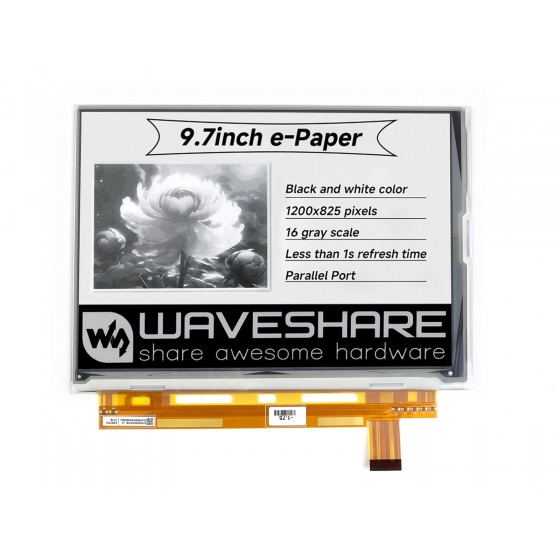

1200x825, 9.7inch E-Ink raw display, parallel port, without PCB
Overview
This is an E-Ink raw display, 9.7inch, 1200x825 resolution, communicating via parallel port, supports partial refresh.
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
Features
- No backlight, keeps displaying last content for a long time even when power down
- Low power consumption, basically power is only required for refreshing
- Comes with development resources and manual (driver board schematic, examples for Raspberry Pi/Jetson Nano/STM32)
Specifications
- Operating voltage: 5V
- Interface: parallel port
- Outline dimension: 218.8mm × 156.425mm × 1.15mm
- Display size: 202.8mm × 139.425mm
- Dot pitch: 0.169 × 0.169
- Resolution: 1200 × 825
- Display color: black, white
- Gray scale: 2-16 (1-4 bit)
- Full refresh time: <1s
- Viewing angle: >170°
Development Resources
Wiki : www.waveshare.com/wiki/9.7inch_e-Paper_HAT
Selection Guide
| Part Number | Colors | Grey Scale | Resolution | Display size (mm) | Outline Dimension (mm) | Full Refresh Time (s) | Partial Refresh | Flexible | Interface |
|---|---|---|---|---|---|---|---|---|---|
| 1.02inch e-Paper | black, white | 2 | 128×80 | 21.76 × 14.00 | 32.57 × 18.60 × 0.98 | 2 | √ | SPI | |
| 1.54inch e-Paper | black, white | 2 | 200×200 | 27.60 × 27.60 | 37.32 × 31.80 × 1.05 | 2 | √ | SPI | |
| 1.54inch e-Paper (B) | red, black, white | 2 | 200×200 | 27.60 × 27.60 | 37.32 × 31.80 × 1.05 | 14 | SPI | ||
| 1.54inch e-Paper (C) | yellow, black, white | 2 | 152×152 | 27.51 × 27.51 | 37.30 × 31.80 × 0.98 | 27 | SPI | ||
| 1.64inch e-Paper (G) | red, yellow, black, white | 2 | 168×168 | 29.568 × 29.568 | 45.5 × 36.4 × 0.91 | 12 | SPI | ||
| 2.13inch e-Paper | black, white | 2 | 250×122 | 48.55 × 23.71 | 59.20 × 29.20 × 1.05 | 2 | √ | SPI | |
| 2.13inch e-Paper (B) | red, black, white | 2 | 250×122 | 48.55 × 23.70 | 59.20 × 29.20 × 0.98 | 15 | SPI | ||
| 2.13inch e-Paper (C) | yellow, black, white | 2 | 212×104 | 48.55 × 23.70 | 59.20 × 29.20 × 0.98 | 15 | SPI | ||
| 2.13inch e-Paper (D) | black, white | 2 | 212×104 | 48.55 × 23.70 | 59.20 × 29.20 × 0.30 | 2 | √ | √ | SPI |
| 2.13inch e-Paper (G) | red, yellow, black, white | 2 | 250×122 | 48.55 × 23.70 | 59.20 × 29.20 × 1.00 | 25 | SPI | ||
| 2.15inch e-Paper (B) | red, black, white | 2 | 296×160 | 48.10 × 26.00 | 60.8 × 31.8 × 1.00 | 23 | SPI | ||
| 2.15inch e-Paper (G) | red, yellow, black, white | 2 | 296×160 | 48.10 × 26.00 | 60.8 × 31.8 × 1.00 | 20 | SPI | ||
| 2.36inch e-Paper (G) | red, yellow, black, white | 2 | 296×168 | 52.096 × 29.568 | 68.1 × 37.9 × 0.85 | 12 | SPI | ||
| 2.66inch e-Paper | black, white | 2 | 296×152 | 30.704 × 60.088 | 36.304 × 71.820 × 1.00 | 6 | √ | SPI | |
| 2.66inch e-Paper (B) | red, black, white | 2 | 296×152 | 30.704 × 60.088 | 36.304 × 71.820 × 1.00 | 15 | SPI | ||
| 2.66inch e-Paper (G) | red, yellow, black, white | 2 | 360×184 | 60.05 × 30.69 | 72.59 × 37.11 × 1.00 | 26 | SPI | ||
| 2.7inch e-Paper | black, white | 4 | 264×176 | 57.29 × 38.19 | 70.42 × 45.80 × 0.98 | 6 | √ | SPI | |
| 2.7inch e-Paper (B) | red, black, white | 2 | 264×176 | 57.29 × 38.19 | 70.42 × 45.80 × 0.98 | 15 | SPI | ||
| 2.9inch e-Paper | black, white | 4 | 296×128 | 66.89 × 29.05 | 79.00 × 36.70 × 1.05 | 3 | √ | SPI | |
| 2.9inch e-Paper (B) | red, black, white | 2 | 296×128 | 66.90 × 29.06 | 79.00 × 36.70 × 1.20 | 14 | √ | SPI | |
| 2.9inch e-Paper (C) | yellow, black, white | 2 | 296×128 | 66.89 × 29.05 | 79.00 × 36.70 × 1.18 | 15 | SPI | ||
| 2.9inch e-Paper (D) | black, white | 2 | 296×128 | 66.90 × 29.06 | 79.00 × 36.70 × 0.34 | 2 | √ | √ | SPI |
| 3inch e-Paper (G) | red, yellow, black, white | 2 | 400×168 | 70.4 × 29.568 | 86.4 × 39.2 × 0.85 | 12 | SPI | ||
| 3.52inch e-Paper | black, white | 2 | 360×240 | 74.51 × 49.67 | 84.70 × 54.41 × 1.18 | 1.5 | SPI | ||
| 3.52inch e-Paper (B) | red, black, white | 2 | 360×240 | 74.51 × 49.67 | 84.70 × 54.41 × 0.85 | 16 | SPI | ||
| 3.7inch e-Paper | black, white | 4 | 480×280 | 47.32 × 81.12 | 54.90 × 93.30 × 0.78 | 3 | √ | SPI | |
| 4inch e-Paper (E) | E6 full color | 2 | 600×400 | 84.6 × 56.4 | 99.00 × 66.00 × 0.85 | 19 | SPI | ||
| 4.01inch e-Paper (F) | 7-Color | 2 | 640×400 | 86.40 × 54.00 | 96.80 × 68.70 × 0.91 | 30 | SPI | ||
| 4.2inch e-Paper | black, white | 4 | 400×300 | 84.80 × 63.60 | 91.00 × 77.00 × 1.18 | 5 | √ | SPI | |
| 4.2inch e-Paper (B) | red, black, white | 2 | 400×300 | 84.80 × 63.60 | 91.00 × 77.00 × 1.05 | 15 | SPI | ||
| 4.26inch e-Paper | black, white | 4 | 800×480 | 92.8 × 55.68 | 129.33 × 62.37 × 0.93 | 4 | √ | SPI | |
| 4.37inch e-Paper (G) | red, yellow, black, white | 2 | 512×368 | 90.11 × 64.77 | 99.5 × 79.5 × 0.85 | 14 | SPI | ||
| 5.65inch e-Paper (F) | 7-Color | 2 | 600×448 | 114.9 × 85.8 | 125.4 × 99.5 × 0.91 | <35 | SPI | ||
| 5.79inch e-Paper | black, white | 4 | 792×272 | 139.00 × 47.74 | 150.92 × 56.94 × 1.00 | 3.5 | √ | SPI | |
| 5.79inch e-Paper (B) | red, black, white | 2 | 792×272 | 139.00 × 47.74 | 150.92 × 56.94 × 1.00 | 24 | SPI | ||
| 5.79inch e-Paper (G) | red, yellow, black, white | 2 | 792×272 | 139.00 × 47.74 | 150.92 × 56.94 × 1.00 | 21 | SPI | ||
| 5.83inch e-Paper | black, white | 2 | 648×480 | 119.232 × 88.320 | 125.40 × 99.50 × 1.18 | 5 | SPI | ||
| 5.83inch e-Paper (B) | red, black, white | 2 | 648×480 | 119.232 × 88.320 | 125.40 × 99.50 × 1.18 | 20 | SPI | ||
| 6inch HD e-Paper | black, white | 16 | 1448×1072 | 122.40 × 90.60 | 138.40 × 101.80 × 1.01 | <1 | √ | Parallel port | |
| 7.3inch e-Paper (E) | E6 full color | 2 | 800×480 | 160 × 96 | 170.2 × 111.2 × 0.91 | 12 | SPI | ||
| 7.3inch e-Paper (F) | 7-Color | 2 | 800×480 | 160 × 96 | 170.2 × 111.2 × 0.91 | 35 | SPI | ||
| 7.3inch e-Paper (G) | red, yellow, black, white | 2 | 800×480 | 160 × 96 | 170.2 × 111.2 × 0.91 | 16 | SPI | ||
| 7.5inch e-Paper | black, white | 4 | 800×480 | 163.20 × 97.92 | 170.20 × 111.20 × 1.18 | 4 | √ | SPI | |
| 7.5inch e-Paper (B) | red, black, white | 2 | 800×480 | 163.20 × 97.92 | 170.20 × 111.20 × 1.18 | 26 | √ | SPI | |
| 7.5inch e-Paper (G) | black, white | 2 | 800×480 | 163.20 × 97.92 | 177.20 × 118.20 × 2.00 | 5 | √ | SPI | |
| 7.5inch HD e-Paper (B) | red, black, white | 2 | 880×528 | 163.24 × 97.94 | 170.20 × 111.20 × 1.25 | 21 | SPI | ||
| 7.5inch e-Paper (C) | yellow, black, white | 2 | 640×384 | 163.20 × 97.92 | 170.20 × 111.20 × 1.18 | 16 | SPI | ||
| 7.8inch e-Paper | black, white | 16 | 1872×1404 | 158.18 × 118.64 | 173.80 × 127.60 × 0.78 | <1 | √ | Parallel port | |
| 9.7inch e-Paper | black, white | 16 | 1200×825 | 202.8 × 139.43 | 218.80 × 156.425 × 1.15 | <1 | √ | Parallel port | |
| 10.3inch e-Paper | black, white | 16 | 1872×1404 | 209.66 × 157.25 | 216.70 × 174.40 × 0.78 | <1 | √ | Parallel port | |
| 10.3inch e-Paper (D) | black, white | 16 | 1872×1404 | 209.66 × 157.25 | 227.70 × 165.80 × 0.647 | <1 | √ | √ | Parallel port |
| 10.3inch e-Paper (G) | black, white | 16 | 1872×1404 | 209.66 × 157.25 | 225.70 × 183.40 × 2.00 | <1 | √ | Parallel port | |
| 12.48inch e-Paper | black, white | 2 | 1304×984 | 252.98 × 190.90 | 261.50 × 211.00 × 0.30 | <8 | SPI | ||
| 12.48inch e-Paper (B) | red, black, white | 2 | 1304×984 | 252.98 × 190.90 | 261.40 × 211.00 × 1.20 | 37 | SPI | ||
| 13.3inch e-Paper | black, white | 16 | 1600×1200 | 270.40 × 202.80 | 285.80 × 213.65 × 0.78 | <1 | √ | Parallel port | |
| 13.3inch e-Paper (B) | red, black, white | 2 | 960×680 | 275.52 × 195.16 | 286.32 × 212.26 × 1.20 | 22 | √ | SPI | |
| 13.3inch e-Paper (E) | E6 full color | 2 | 1600×1200 | 270.40 × 202.80 | 284.70 × 208.80 × 0.850 | 19 | SPI | ||
| 13.3inch e-Paper (K) | black, white | 4 | 960×680 | 275.52 × 195.16 | 286.32 × 212.26 × 1.20 | 5 | √ | SPI |
Weight: 0.65 kg
Quick Overview
Actual Weight: 0.29 kg
Note: This is a raw display, for easy testing and comparing, please consider the one with driver board: 9.7inch e-Paper HAT
- 9.7inch e-Paper x1
