10.3inch e-Paper e-Ink Raw Display, 1872×1404, Black / White, 16 Grey Scales, Parallel Port, without PCB
5.65″ - 13.3″

10.3inch e-Paper e-Ink Raw Display, 1872×1404, Black / White, 16 Grey Scales, Parallel Port, without PCB

SKU:18436
Part No.:10.3inch e-Paper
Brand:Waveshare

$159.99
PriceQuantity
$157.9910+
$156.9950+
$156.59100+
Related Products:
Share:
Description

Details

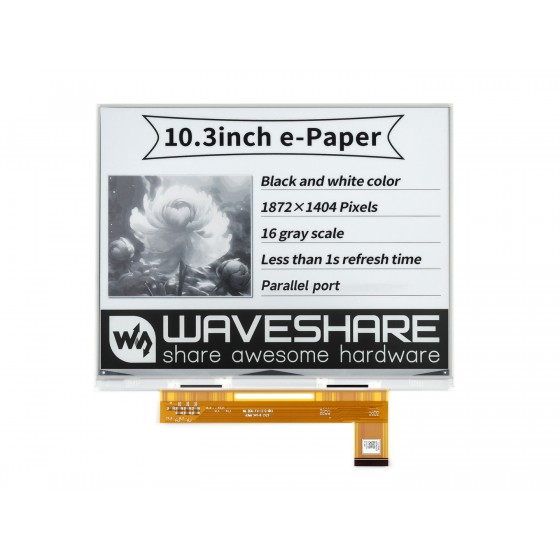

10.3inch e-Paper E-Ink Raw Display, 1872×1404 pixels, Black / White, 2-16 Grey Scales, Parallel Port, without PCB
10.3" e-Paper

partial refresh support, low power, wide viewing angle, paper-like effect

Ideal for e-reader, eink monitor, industrial instruments...

  • Size10.3"
  • Resolution1872×1404
  • Viewing Angle>170°
  • Display ColorBlack and White
  • Grey Scale2-16 (1-4 bit)
  • CommunicationParallel Port
  • Display PanelE-paper
  • ExperiencePaper-like
  • EnvironmentAmbient Light Required
  • Display TypePassively Reflective
  • RefreshingPartial Refresh Support
Features at a glance
  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Comes with development resources and manual (driver board circuit diagram, examples for Raspberry Pi/STM32)
Specifications
operating voltage 5V display color black, white
interface parallel port grey scale 2-16 (1-4 bit)
outline dimensions 216.70 × 174.40 × 0.78mm full refresh time <1s
display size 209.66 × 157.25mm refresh power 1.2W(typ.)
dot pitch 0.112 × 0.112mm standby current <0.01uA (almost none)
resolution 1872 × 1404 pixels viewing angle >170°

Advantages of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

Application examples

Suitable for price Tags, asset/equipment Tags, shelf labels, conference name tags...
