8inch 2K Capacitive Touch Display, Optical Bonding Toughened Glass Panel, 1536×2048, IPS, High Compatibility
LCD, LCD, 5″ - 21.5″

8inch 2K Capacitive Touch Display, Optical Bonding Toughened Glass Panel, 1536×2048, IPS, High Compatibility

$109.99
Power plug
USEUUK
Related Products:
Share:
Description

Details

8inch 2K Capacitive Touch Display, Optical Bonding Toughened Glass Panel, 1536×2048, IPS, High Compatibility
8″ 2K Touch Display

High Resolution | Multi-Point Touch | Full Color



  • Size8″
  • Resolution1536×2048
  • Display InterfaceHDMI
  • Display PanelIPS
  • Viewing Angle178°
  • Touch TypeCapacitive
  • Touch Points10-Point
  • Touch PortUSB Type-C
  • Touch PanelToughened Glass
  • Touch Panel TechOptical Bonding
  • SoundHi-Fi Speaker
  • Audio Output3.5mm Jack
  • EnclosureCNC Process Alloy
The display orientation is portrait by default, 1536×2048 resolution (H×V). Change the software config for landscape display.

Device & System Support

Raspberry Pi
Supports Raspberry Pi OS, 10-point touch, driver free
Supports Ubuntu / Kali, single point touch, driver free

Jetson Nano
Supports Ubuntu, single point touch, driver free

PC
Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free
  • For the moment, only the Raspberry Pi 4B and CM4 have adequate CPU performance to drive this 2K display completely.
  • Support more powerful future versions as long as its GPU performance is equivalent to or better than the Pi 4B.
Connection Examples

Working with Raspberry Pi 4B

Working with Compute Module 4

Working with Jetson Nano

Working with mini PC

for reference only, the above controller boards or host are not included.

IPS Display Panel

Excellent Display Performance With 178° Wide Viewing Angle


2K High Resolution

1536×2048 Pixels, clearer display


Capacitive 10-Point Touch
  1. up to 10-point touch, depending on the operating system
  2. up to 6H hardness toughened glass panel
  3. Optical Bonding, display well and dustproof

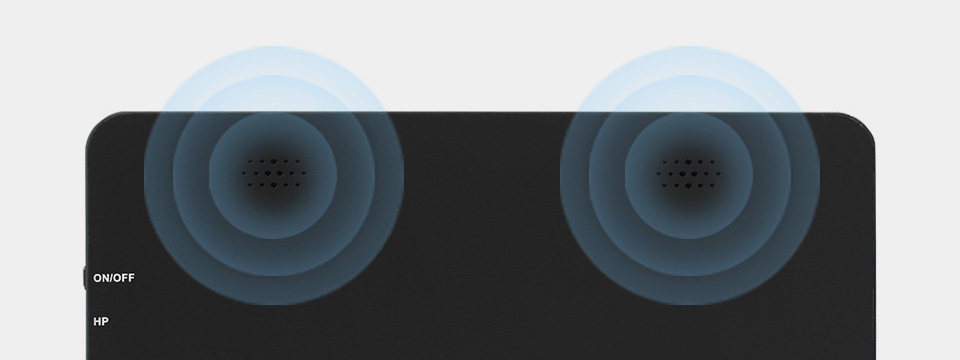

Audio Feature

Built-in ferrite Hi-Fi speaker, dual-track support


Interface Introduction

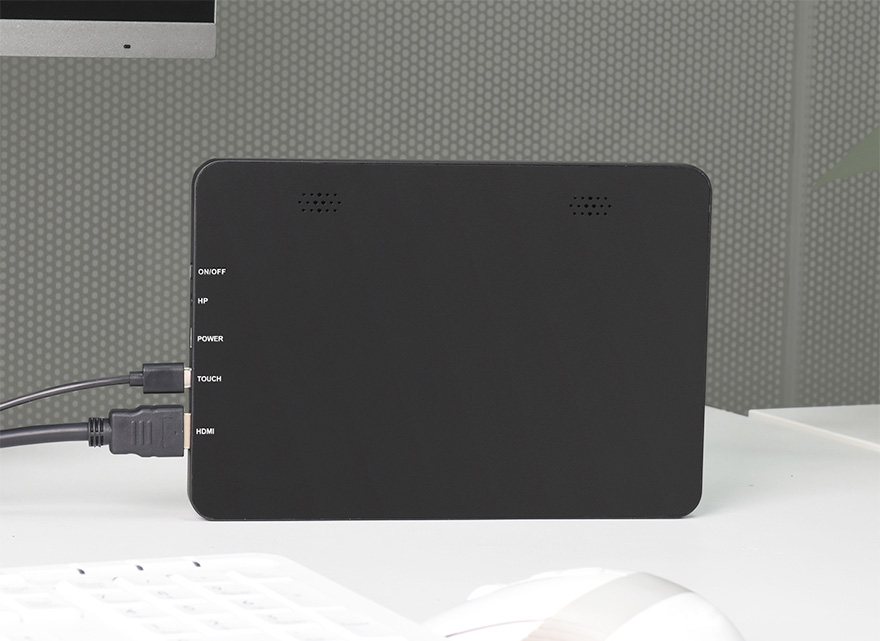

Product Show




Dimensions


Support touch screen customization

Support the following ways to customize the touch screen display in bulk order

Over a decade
Waveshare grows with display

* Waveshare has been focusing on display design for over 10 years.

Resources & Services
Wiki: www.waveshare.com/wiki/8inch_1536x2048_LCD
Product Certification

HDMI Certified

Selection Guide

PartNumberDisplayTouchAudioDevice Support
Resolu-tionDisplay PortDisplay PanelView AngleTouch TypeTouch PortToughened Glass PanelOptical BondingSpe-
aker		Signal OutputPiJETSON NANOPC
SPI DISPLAYS
PROS: low price.
CONS: low refresh rate & resolution, supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO (the SPI bus), poor compatibility with Raspberry Pi system.
2.8inch RPi LCD (A) 320×240 SPI TFT – Resistive SPI × × × × √ × ×
3.2inch RPi LCD (B) 320×240 SPI TFT – Resistive SPI × × × × √ × ×
3.5inch RPi LCD (A) 480×320 SPI TFT – Resistive SPI × × × × √ × ×
3.5inch RPi LCD (B) 480×320 SPI IPS 160° Resistive SPI × × × × √ × ×
3.5inch RPi LCD (C) 480×320 High-Speed SPI TFT – Resistive SPI × × × × √ × ×
4inch RPi LCD (A) 480×320 SPI TFT – Resistive SPI × × × × √ × ×
DPI DISPLAYS
PROS: low price, high refresh rate, multiple resolution support, better compatibility with Raspberry Pi system.
CONS: supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO.
2.8inch DPI LCD 480×640 DPI IPS 160° Capacitive I2C √ √ × × √ × ×
3.5inch DPI LCD 640×480 DPI IPS 170° Capacitive I2C √ × × × √ × ×
4inch DPI LCD (C) 720×720 DPI IPS 170° Capacitive I2C √ √ × × √ × ×
5inch DPI LCD 800×480 DPI IPS 160° – – × × × × √ × ×
7inch DPI LCD 1024×600 DPI IPS 170° – – × × × × √ × ×
DSI DISPLAYS
PROS: moderate price, high refresh rate, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system.
CONS: supports Raspberry Pi only.
2.8inch DSI LCD 480×640 DSI IPS 160° Capacitive I2C √ √ × × √ × ×
3.4inch DSI LCD (C) 800×800 DSI IPS 170° Capacitive I2C √ √ × × √ × ×
4inch DSI LCD 480×800 DSI IPS 170° Capacitive I2C √ √ × × √ × ×
4inch DSI LCD (C) 720×720 DSI IPS 170° Capacitive I2C √ √ × × √ × ×
4.3inch DSI LCD 800×480 DSI IPS 160° Capacitive I2C √ × × × √ × ×
4.3inch DSI LCD (with case) 800×480 DSI IPS 160° Capacitive I2C √ × × × √ × ×
4.3inch DSI QLED 800×480 DSI IPS(QLED) 160° Capacitive I2C √ × × × √ × ×
5inch DSI LCD 800×480 DSI TFT – Capacitive I2C √ × × × √ × ×
5inch DSI LCD (B) 800×480 DSI IPS 160° Capacitive I2C √ × × × √ × ×
5inch DSI LCD (C) 1024×600 DSI IPS 178° Capacitive I2C √ × × × √ × ×
5inch DSI LCD (D) 720×1280 DSI IPS 178° Capacitive I2C √ √ × × √ × ×
6.25inch DSI LCD 720×1560 DSI IPS 178° Capacitive I2C √ √ × × √ × ×
7inch DSI LCD 800×480 DSI TFT – Capacitive I2C √ × × × √ × ×
7inch DSI LCD (with case A) 800×480 DSI TFT – Capacitive I2C √ × × × √ × ×
7inch DSI LCD (with cam) 800×480 DSI TFT – Capacitive I2C √ × × × √ × ×
7inch DSI LCD (with cam and case) 800×480 DSI TFT – Capacitive I2C √ × × × √ × ×
7inch DSI LCD (B) 800×480 DSI IPS 170° Capacitive I2C √ × × × √ × ×
7inch DSI LCD (B) (with case A) 800×480 DSI IPS 170° Capacitive I2C √ × × × √ × ×
7inch DSI LCD (C) 1024×600 DSI IPS 170° Capacitive I2C √ × × × √ × ×
7inch DSI LCD (C) (with case A) 1024×600 DSI IPS 170° Capacitive I2C √ × × × √ × ×
7inch DSI LCD (E) 1280×800 DSI IPS 178° Capacitive I2C √ √ × × √ × ×
7.9inch DSI LCD 400×1280 DSI IPS 170° Capacitive I2C √ × × × √ × ×
8inch DSI LCD 800×480 DSI TFT – Capacitive I2C √ × × × √ × ×
8inch DSI LCD (with cam) 800×480 DSI TFT – Capacitive I2C √ × × × √ × ×
8inch DSI LCD (C) 1280×800 DSI IPS 178° Capacitive I2C √ √ × × √ × ×
8.8inch DSI LCD 480×1920 DSI IPS 178° Capacitive I2C √ √ × × √ × ×
10.1inch DSI LCD (C) 1280×800 DSI IPS 178° Capacitive I2C √ √ × × √ × ×
11.9inch DSI LCD 320×1480 DSI IPS 170° Capacitive I2C √ × × × √ × ×
13.3inch DSI LCD 1920×1080 DSI IPS 178° Capacitive I2C √ × × × √ × ×
HDMI / TYPE-C DISPLAYS
PROS: high refresh rate, multiple resolution support, multiple devices support, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system.
CONS: somewhat costly.
2.8inch HDMI LCD (H) 480×640 HDMI IPS 160° Capacitive USB-C / I2C √ √ × × √ √ √
3.2inch HDMI LCD (H) 480×800 HDMI IPS 160° × × × × × × √ √ Display ONLY
3.4inch 800x800 LCD 800x800 HDMI IPS 170° Capacitive Type-C √ √ × √ √ √ √
3.5inch HDMI LCD 480×320 HDMI IPS 160° Resistive SPI × × × √ √ × Display ONLY
3.5inch 480x800 LCD 480×800 HDMI IPS 170° Capacitive USB-C × × × × √ √ √
4inch 720x720 LCD 720x720 HDMI IPS 170° Capacitive Type-C √ √ × √ √ √ √
4inch HDMI LCD 480×800 HDMI IPS 170° Resistive SPI × × × × √ × Display ONLY
4inch HDMI LCD (C) 720×720 HDMI IPS 170° Capacitive USB-C / I2C √ √ × √ √ √ √
4inch HDMI LCD (H) 480×800 HDMI IPS 170° Resistive SPI × × × √ √ × Display ONLY
4.3inch HDMI LCD (B) 800×480 HDMI IPS 160° Capacitive USB × × × √ √ √ √
5DP-CAPLCD-H 1024×600 HDMI IPS 178° Capacitive Type-C √ × × √ √ √ √
5DP-CAPLCD-B 1024×600 HDMI IPS 178° Capacitive Type-C √ √ × √ √ √ √
5DP-CAPLCD-G 1024×600 HDMI IPS 178° Resistive Type-C √ × × √ √ √ √
5inch HDMI LCD 800×480 HDMI TFT – Resistive SPI × × × × √ × ×
5inch HDMI LCD (with bicolor case) 800×480 HDMI TFT – Resistive SPI × × × × √ × ×
5inch HDMI LCD (B) 800×480 HDMI TFT – Resistive USB × × × × √ × √
5inch HDMI LCD (B) (with bicolor case) 800×480 HDMI TFT – Resistive USB × × × × √ × √
5inch HDMI LCD (G) 800×480 HDMI/VGA TFT – Resistive USB × × × √ √ × √
5inch HDMI LCD (H) 800×480 HDMI/VGA TFT – Capacitive USB √ × × √ √ √ √
5inch HDMI LCD (H) V4 800×480 HDMI TFT – Capacitive USB √ × × × √ × √
5inch HDMI AMOLED 960×544 HDMI AMOLED 170° Capacitive USB √ √ × √ √ √ √
5inch 1080x1080 LCD 1080×1080 HDMI IPS 160° Capacitive Type-C √ √ √ √ √ √ √
5inch 720x1280 LCD 720×1280 HDMI IPS 178° Capacitive Type-C √ √ √ × √ √ √
5.5inch HDMI AMOLED 1080×1920 HDMI AMOLED 170° Capacitive USB √ √ × √ √ √ √
5.5inch HDMI AMOLED (with case A) 1080×1920 HDMI AMOLED 170° Capacitive USB √ √ × √ √ × ×
5.5inch 1440x2560 LCD 1440×2560 HDMI IPS 170° Capacitive USB √ √ × √ √ × √
5.5inch 1440x2560 LCD (with case A) 1440×2560 HDMI IPS 170° Capacitive USB √ √ × √ √ × ×
6.25inch 720x1560 LCD 720×1560 HDMI IPS 178° Capacitive Type-C √ √ √ × √ √ √
7EP-CAPLCD 1280×800 HDMI IPS 178° Capacitive USB √ √ √ √ √ √ √
7EP-CAPLCD Monitor 1280×800 HDMI/Type-C IPS 178° Capacitive USB √ √ √ √ √ √ √
7inch HDMI LCD 1024×600 HDMI IPS 170° Resistive SPI × × × × √ × Display ONLY
7inch HDMI LCD (B) 800×480 HDMI TFT – Capacitive USB × × × × √ × √
7inch HDMI LCD (B) (with bicolor case) 800×480 HDMI TFT – Capacitive USB × × × × √ × √
7inch HDMI LCD (C) 1024×600 HDMI IPS 170° Capacitive USB × × × × √ × √
7inch HDMI LCD (C) (with bicolor case) 1024×600 HDMI IPS 170° Capacitive USB × × × × √ × √
7inch HDMI LCD (H) 1024×600 HDMI/VGA IPS 170° Capacitive USB × × × √ √ √ √
7inch HDMI LCD (H) (with case) 1024×600 HDMI/VGA IPS 170° Capacitive USB √ × × √ √ √ √
7HP-CAPQLED 1024×600 HDMI IPS (QLED) 170° Capacitive USB √ × × √ √ √ √
7.9inch HDMI LCD 400×1280 HDMI IPS 170° Capacitive USB √ × × √ √ √ √
7.9inch Side Monitor 400×1280 HDMI IPS 170° × × √ × √ × √ √ √
7.9inch Touch Monitor 400×1280 HDMI IPS 170° Capacitive USB √ × √ × √ √ √
8DP-CAPLCD 1280×800 HDMI IPS 178° Capacitive USB √ √ × √ √ √ √
8HP-CAPLCD Monitor 1280×800 HDMI/Type-C IPS 178° Capacitive USB √ √ √ √ √ √ √
8inch 768x1024 LCD 768×1024 HDMI IPS 178° Capacitive Type-C √ × √ √ √ √ √
8inch 1536x2048 LCD 1536×2048 HDMI IPS 178° Capacitive Type-C √ √ √ √ √ √ √
8.8inch Side Monitor 480×1920 HDMI IPS 170° × × × × √ × √ √ Display ONLY
9HP-CAPQLED-B 1280×720 HDMI IPS (QLED) 178° Capacitive USB √ × × √ √ √ √
9.3inch 1600x600 LCD 1600×600 HDMI IPS 178° Capacitive Type-C √ √ √ √ √ √ √
9.7inch 768x1024 LCD 768×1024 HDMI IPS 178° Capacitive Type-C √ × √ √ √ √ √
10.1inch HDMI LCD 1024×600 HDMI IPS 170° Resistive SPI × × × × √ × Display ONLY
10.1inch HDMI LCD (B) (with case) 1280×800 HDMI IPS 170° Capacitive USB √ × × × √ × √
10.1inch HDMI LCD (E) 1024×600 HDMI IPS 170° Capacitive USB √ √ × √ √ √ √
10.1inch HDMI LCD (G) (with case) 1920×1200 HDMI IPS 160° Capacitive USB √ √ √ √ √ √ √
10.1inch HDMI LCD (H) (with case) 1024×600 HDMI/VGA TFT – Capacitive USB × × × × √ √ √
10.1inch HDMI LCD (F) (with case) 1024×600 HDMI/VGA IPS 170° Capacitive USB √ × √ × √ √ √
10.1EP-CAPLCD 1920×1200 HDMI IPS 178° Capacitive Type-C √ √ √ √ √ √ √
10.1DP-CAPLCD 1280×800 HDMI IPS 178° Capacitive USB √ √ × √ √ √ √
10.1HP-CAPQLED 1280×720 HDMI IPS (QLED) 170° Capacitive USB √ × × √ √ √ √
10.1HP-CAPLCD Monitor 1280×800 HDMI/Type-C IPS 178° Capacitive USB √ √ √ √ √ √ √
10.4HP-CAPQLED 1600×720 HDMI IPS(QLED) 178° Capacitive Type-C √ √ √ √ √ √ √
10.5inch HDMI AMOLED 2560×1600 HDMI AMOLED 160° Capacitive USB √ √ √ √ √ √ √
11.6inch 1768x828 LCD 1768×828 HDMI/Type-C IPS 178° Capacitive Type-C In-Cell × × √ √ √ √
11.6inch HDMI LCD (H) 1920×1080 HDMI IPS 178° Capacitive USB √ √ × √ √ √ √
11.6inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB √ √ √ √ √ √ √
11.9inch HDMI LCD 320×1480 HDMI IPS 170° Capacitive USB √ × × √ √ √ √
11.9inch Side Monitor 320×1480 HDMI IPS 170° × × √ × √ × √ √ √
11.9inch Touch Monitor 320×1480 HDMI IPS 170° Capacitive USB √ × √ × √ √ √
12.3inch 1920x720 LCD 1920×720 HDMI/Type-C IPS 178° Capacitive Type-C In-Cell × × √ √ √ √
12.3inch HDMI LCD 1920×720 HDMI IPS 178° Capacitive USB √ √ √ √ √ √ √
13.3inch HDMI LCD (H) 1920×1080 HDMI IPS 178° Capacitive USB √ × × √ √ √ √
13.3inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB √ × √ √ √ √ √
13.3inch HDMI LCD (H) (with case) V2 1920×1080 HDMI/VGA IPS 178° Capacitive USB √ × √ √ √ √ √
13.3inch QHD AMOLED 2560×1440 HDMI/Type-C AMOLED 178° Capacitive Type-C √ √ √ √ √ √ √
14inch 2160x1440 LCD 2160×1440 HDMI/Type-C/DP IPS 178° Capacitive Type-C √ √ × √ √ √ √
15.6inch FHD Monitor (C) 1920×1080 mini HDMI/Type-C IPS 178° Capacitive Type-C √ √ √ √ √ √ √
15.6inch Dual Monitor 1920×1080 HDMI/Type-C IPS 178° × × × × √ √ √ √ √
15.6inch HDMI LCD 1920×1080 HDMI IPS 178° Capacitive USB √ × × √ √ √ √
15.6inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB √ × √ √ √ √ √
15.6inch FHD Monitor 1920×1080 HDMI/Type-C IPS 178° Capacitive Type-C / USB √ × √ √ √ √ √
15.6HP-CAPQLED 1920×1080 HDMI IPS(QLED) 178° Capacitive USB √ √ × √ √ √ √
15.6inch QLED Monitor 1920×1080 HDMI IPS(QLED) 178° Capacitive Type-C √ √ √ √ √ √ √
18.5inch FHD LCD 1080×1920 HDMI/Type-C IPS 178° Capacitive Type-C √ √ × √ √ √ √
21.5inch FHD LCD 1080×1920 HDMI IPS 170° Capacitive Type-C √ √ × √ √ √ √
21.5inch FHD Monitor 1080×1920 HDMI IPS 170° Capacitive Type-C √ √ √ × √ √ √

Have a look :
RPi LCD Comparing

Quick Overview

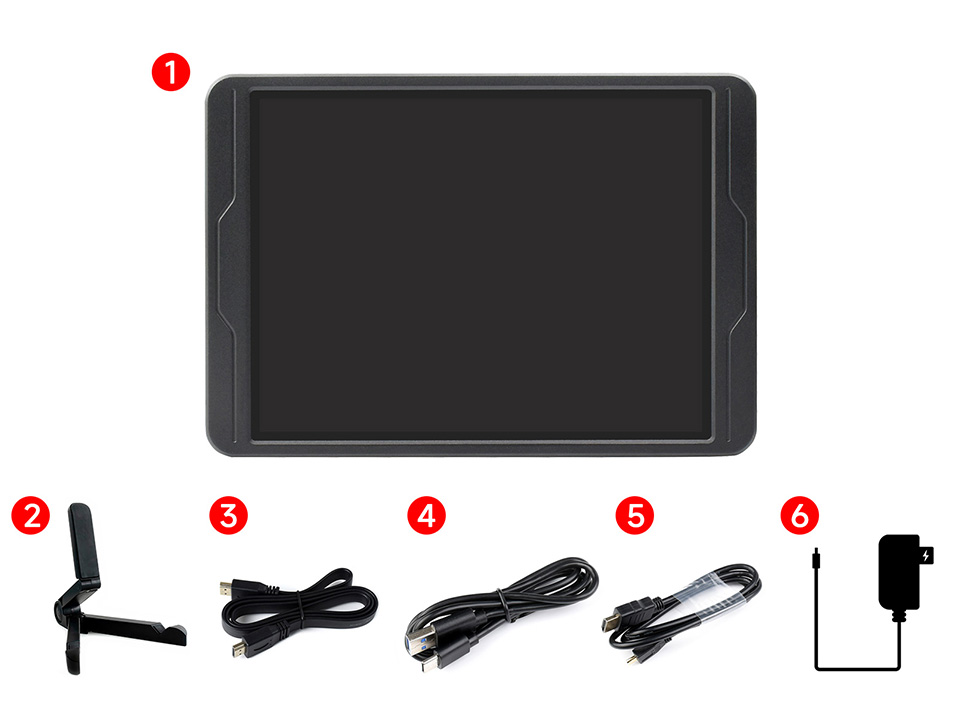

  1. 8inch 1536x2048 LCD ×1
  2. Triangular stand ×1
  3. HDMI flat cable ~1m ×1
  4. USB-A to USB-C cable ~1m ×1
  5. HDMI to Micro HDMI cable ~1m ×1
  6. OPTIONS 5V 3A Type-C Power supply ×1
