12.3inch Capacitive Touch Screen LCD, 1920×720, HDMI, IPS, Toughened Glass Panel
LCD, LCD, 5″ - 21.5″

12.3inch Capacitive Touch Screen LCD, 1920×720, HDMI, IPS, Toughened Glass Panel

$169.99

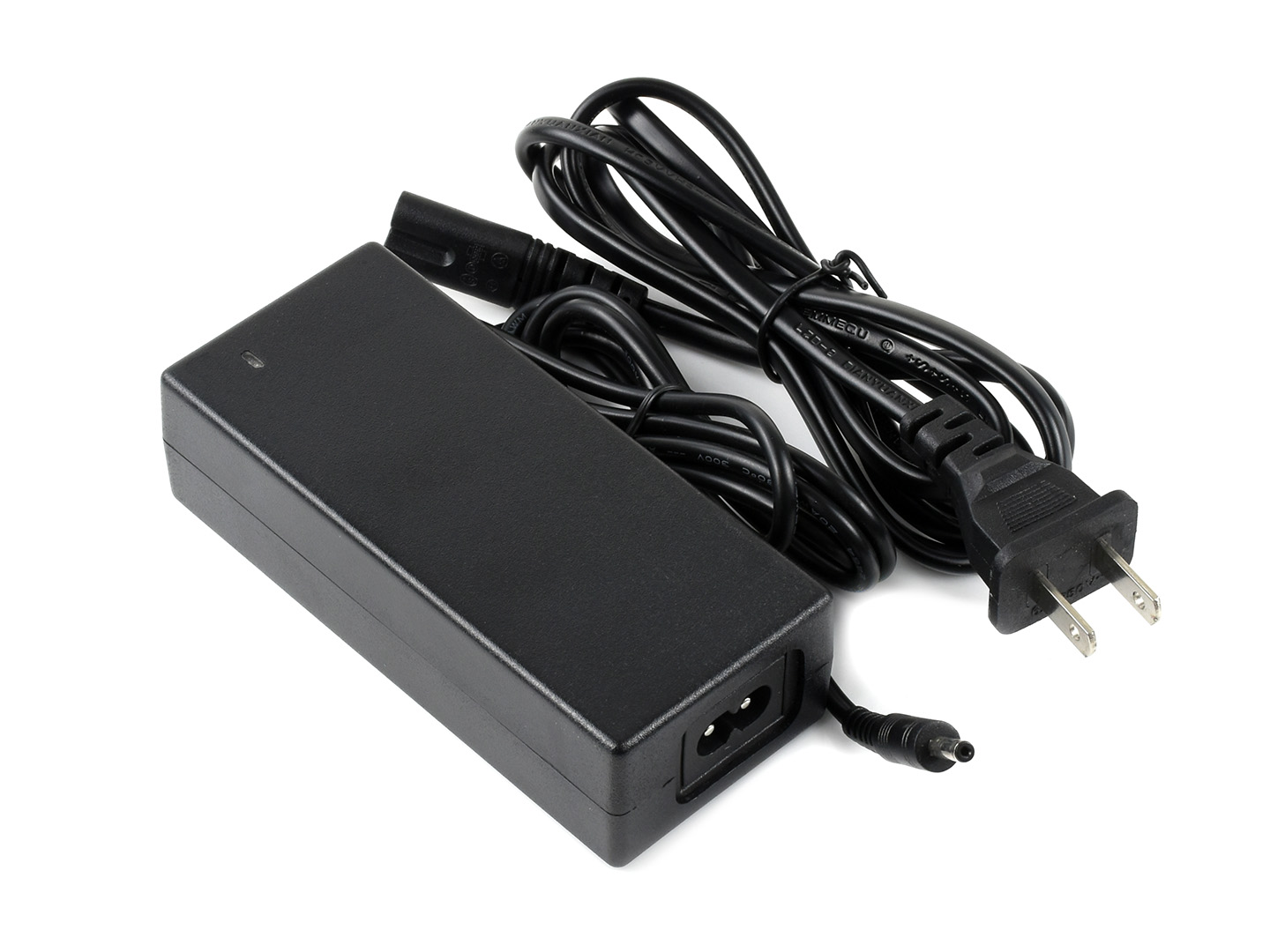

Power plug
EUUS
Related Products:
Share:

Details

12.3inch Capacitive Touch Screen LCD, 600 cd/m², 1920×720, HDMI, IPS, Toughened Glass Panel
12.3″ HDMI Touch Display
  • Size12.3″
  • Resolution1920×720
  • Display InterfaceHDMI
  • Display PanelIPS
  • Viewing Angle178°
  • Touch TypeCapacitive
  • Touch Points10-point
  • Touch PortUSB
  • Touch PanelToughened Glass
  • OSD MenuBrightness/Contrast
  • Audio Output13.5mm Jack
  • Audio Output24PIN Header
  • Brightness600 cd/m²
  • Touch Panel TechOptical Bonding
  • Temperature Range-20~70°C
Device & System Support

Raspberry Pi
Supports Raspberry Pi OS, 10-point touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free

Supports all versions of Raspberry Pi

Jetson Series
Supports Jetson Nano / TX2 / Xavier NX / Orin series boards
Supports Ubuntu, single point touch, driver free
PC
Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free
Connection Examples

Working with Raspberry Pi 5

Working with Raspberry Pi 4

Working with Raspberry Pi Pi 3B+

Working with AI Computer Jetson Nano

Working with mini PC

Working with Tinker Board 2

Display

IPS Panel

Touch Control

1) up to 10-point touch, depending on the operating system. 2) up to 6H hardness toughened glass panel. 3) optical bonding, display well and dustproof

Application examples
Design features
Appearance and Dimensions
Resources & Services
Wiki: www.waveshare.com/wiki/12.3inch_HDMI_LCD
Product Certification

HDMI Certified


Support touch screen customization

Support the following ways to customize the touch screen display in bulk order

Over a decade
Waveshare grows with display

* Waveshare has been focusing on display design for over 10 years.

Selection Guide

PartNumber Display Touch Audio Device Support
Resolu-tion Display Port Display Panel View Angle Touch Type Touch Port Toughened Glass Panel Optical Bonding Spe-
aker		 Signal Output Pi JETSON NANO PC
SPI DISPLAYS
PROS: low price.
CONS: low refresh rate & resolution, supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO (the SPI bus), poor compatibility with Raspberry Pi system.
2.8inch RPi LCD (A) 320×240 SPI TFT – Resistive SPI × × × × √ × ×
3.2inch RPi LCD (B) 320×240 SPI TFT – Resistive SPI × × × × √ × ×
3.5inch RPi LCD (A) 480×320 SPI TFT – Resistive SPI × × × × √ × ×
3.5inch RPi LCD (B) 480×320 SPI IPS 160° Resistive SPI × × × × √ × ×
3.5inch RPi LCD (C) 480×320 High-Speed SPI TFT – Resistive SPI × × × × √ × ×
4inch RPi LCD (A) 480×320 SPI TFT – Resistive SPI × × × × √ × ×
DPI DISPLAYS
PROS: low price, high refresh rate, multiple resolution support, better compatibility with Raspberry Pi system.
CONS: supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO.
2.8inch DPI LCD 480×640 DPI IPS 160° Capacitive I2C √ √ × × √ × ×
3.5inch DPI LCD 640×480 DPI IPS 170° Capacitive I2C √ × × × √ × ×
4inch DPI LCD (C) 720×720 DPI IPS 170° Capacitive I2C √ √ × × √ × ×
5inch DPI LCD 800×480 DPI IPS 160° – – × × × × √ × ×
7inch DPI LCD 1024×600 DPI IPS 170° – – × × × × √ × ×
DSI DISPLAYS
PROS: moderate price, high refresh rate, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system.
CONS: supports Raspberry Pi only.
2.8inch DSI LCD 480×640 DSI IPS 160° Capacitive I2C √ √ × × √ × ×
3.4inch DSI LCD (C) 800×800 DSI IPS 170° Capacitive I2C √ √ × × √ × ×
4inch DSI LCD 480×800 DSI IPS 170° Capacitive I2C √ √ × × √ × ×
4inch DSI LCD (C) 720×720 DSI IPS 170° Capacitive I2C √ √ × × √ × ×
4.3inch DSI LCD 800×480 DSI IPS 160° Capacitive I2C √ × × × √ × ×
4.3inch DSI LCD (with case) 800×480 DSI IPS 160° Capacitive I2C √ × × × √ × ×
4.3inch DSI QLED 800×480 DSI IPS(QLED) 160° Capacitive I2C √ × × × √ × ×
5inch DSI LCD 800×480 DSI TFT – Capacitive I2C √ × × × √ × ×
5inch DSI LCD (B) 800×480 DSI IPS 160° Capacitive I2C √ × × × √ × ×
5inch DSI LCD (C) 1024×600 DSI IPS 178° Capacitive I2C √ × × × √ × ×
5inch DSI LCD (D) 720×1280 DSI IPS 178° Capacitive I2C √ √ × × √ × ×
6.25inch DSI LCD 720×1560 DSI IPS 178° Capacitive I2C √ √ × × √ × ×
7inch DSI LCD 800×480 DSI TFT – Capacitive I2C √ × × × √ × ×
7inch DSI LCD (with case A) 800×480 DSI TFT – Capacitive I2C √ × × × √ × ×
7inch DSI LCD (with cam) 800×480 DSI TFT – Capacitive I2C √ × × × √ × ×
7inch DSI LCD (with cam and case) 800×480 DSI TFT – Capacitive I2C √ × × × √ × ×
7inch DSI LCD (B) 800×480 DSI IPS 170° Capacitive I2C √ × × × √ × ×
7inch DSI LCD (B) (with case A) 800×480 DSI IPS 170° Capacitive I2C √ × × × √ × ×
7inch DSI LCD (C) 1024×600 DSI IPS 170° Capacitive I2C √ × × × √ × ×
7inch DSI LCD (C) (with case A) 1024×600 DSI IPS 170° Capacitive I2C √ × × × √ × ×
7inch DSI LCD (E) 1280×800 DSI IPS 178° Capacitive I2C √ √ × × √ × ×
7-DSI-TOUCH-A 720×1280 DSI IPS 170° Capacitive I2C √ √ × × √ × ×
7.9inch DSI LCD 400×1280 DSI IPS 170° Capacitive I2C √ × × × √ × ×
8inch DSI LCD 800×480 DSI TFT – Capacitive I2C √ × × × √ × ×
8inch DSI LCD (with cam) 800×480 DSI TFT – Capacitive I2C √ × × × √ × ×
8inch DSI LCD (C) 1280×800 DSI IPS 178° Capacitive I2C √ √ × × √ × ×
8.8inch DSI LCD 480×1920 DSI IPS 178° Capacitive I2C √ √ × × √ × ×
10.1inch DSI LCD (C) 1280×800 DSI IPS 178° Capacitive I2C √ √ × × √ × ×
11.9inch DSI LCD 320×1480 DSI IPS 170° Capacitive I2C √ × × × √ × ×
13.3inch DSI LCD 1920×1080 DSI IPS 178° Capacitive I2C √ × × × √ × ×
HDMI / TYPE-C DISPLAYS
PROS: high refresh rate, multiple resolution support, multiple devices support, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system.
CONS: somewhat costly.
2.8inch HDMI LCD (H) 480×640 HDMI IPS 160° Capacitive USB-C / I2C √ √ × × √ √ √
3.2inch HDMI LCD (H) 480×800 HDMI IPS 160° × × × × × × √ √ Display ONLY
3.4inch 800x800 LCD 800x800 HDMI IPS 170° Capacitive Type-C √ √ × √ √ √ √
3.5inch HDMI LCD 480×320 HDMI IPS 160° Resistive SPI × × × √ √ × Display ONLY
3.5inch 480x800 LCD 480×800 HDMI IPS 170° Capacitive USB-C × × × × √ √ √
4inch 720x720 LCD 720x720 HDMI IPS 170° Capacitive Type-C √ √ × √ √ √ √
4inch HDMI LCD 480×800 HDMI IPS 170° Resistive SPI × × × × √ × Display ONLY
4inch HDMI LCD (C) 720×720 HDMI IPS 170° Capacitive USB-C / I2C √ √ × √ √ √ √
4inch HDMI LCD (H) 480×800 HDMI IPS 170° Resistive SPI × × × √ √ × Display ONLY
4.3inch HDMI LCD (B) 800×480 HDMI IPS 160° Capacitive USB × × × √ √ √ √
5DP-CAPLCD-H 1024×600 HDMI IPS 178° Capacitive Type-C √ × × √ √ √ √
5DP-CAPLCD-B 1024×600 HDMI IPS 178° Capacitive Type-C √ √ × √ √ √ √
5DP-CAPLCD-G 1024×600 HDMI IPS 178° Resistive Type-C √ × × √ √ √ √
5inch HDMI LCD 800×480 HDMI TFT – Resistive SPI × × × × √ × ×
5inch HDMI LCD (with bicolor case) 800×480 HDMI TFT – Resistive SPI × × × × √ × ×
5inch HDMI LCD (B) 800×480 HDMI TFT – Resistive USB × × × × √ × √
5inch HDMI LCD (B) (with bicolor case) 800×480 HDMI TFT – Resistive USB × × × × √ × √
5inch HDMI LCD (G) 800×480 HDMI/VGA TFT – Resistive USB × × × √ √ × √
5inch HDMI LCD (H) 800×480 HDMI/VGA TFT – Capacitive USB √ × × √ √ √ √
5inch HDMI LCD (H) V4 800×480 HDMI TFT – Capacitive USB √ × × × √ × √
5inch HDMI AMOLED 960×544 HDMI AMOLED 170° Capacitive USB √ √ × √ √ √ √
5inch 1080x1080 LCD 1080×1080 HDMI IPS 160° Capacitive Type-C √ √ √ √ √ √ √
5inch 720x1280 LCD 720×1280 HDMI IPS 178° Capacitive Type-C √ √ √ × √ √ √
5.5inch HDMI AMOLED 1080×1920 HDMI AMOLED 170° Capacitive USB √ √ × √ √ √ √
5.5inch HDMI AMOLED (with case A) 1080×1920 HDMI AMOLED 170° Capacitive USB √ √ × √ √ × ×
5.5inch 1440x2560 LCD 1440×2560 HDMI IPS 170° Capacitive USB √ √ × √ √ × √
5.5inch 1440x2560 LCD (with case A) 1440×2560 HDMI IPS 170° Capacitive USB √ √ × √ √ × ×
6.25inch 720x1560 LCD 720×1560 HDMI IPS 178° Capacitive Type-C √ √ √ × √ √ √
7EP-CAPLCD 1280×800 HDMI IPS 178° Capacitive USB √ √ √ √ √ √ √
7EP-CAPLCD Monitor 1280×800 HDMI/Type-C IPS 178° Capacitive USB √ √ √ √ √ √ √
7inch HDMI LCD 1024×600 HDMI IPS 170° Resistive SPI × × × × √ × Display ONLY
7inch HDMI LCD (B) 800×480 HDMI TFT – Capacitive USB × × × × √ × √
7inch HDMI LCD (B) (with bicolor case) 800×480 HDMI TFT – Capacitive USB × × × × √ × √
7inch HDMI LCD (C) 1024×600 HDMI IPS 170° Capacitive USB × × × × √ × √
7inch HDMI LCD (C) (with bicolor case) 1024×600 HDMI IPS 170° Capacitive USB × × × × √ × √
7inch HDMI LCD (H) 1024×600 HDMI/VGA IPS 170° Capacitive USB × × × √ √ √ √
7inch HDMI LCD (H) (with case) 1024×600 HDMI/VGA IPS 170° Capacitive USB √ × × √ √ √ √
7HP-CAPQLED 1024×600 HDMI IPS (QLED) 170° Capacitive USB √ × × √ √ √ √
7.9inch HDMI LCD 400×1280 HDMI IPS 170° Capacitive USB √ × × √ √ √ √
7.9inch Side Monitor 400×1280 HDMI IPS 170° × × √ × √ × √ √ √
7.9inch Touch Monitor 400×1280 HDMI IPS 170° Capacitive USB √ × √ × √ √ √
PI5-HMI-080D 1280×800 HDMI IPS 178° Capacitive Type-C √ √ × × √ × ×
8DP-CAPLCD 1280×800 HDMI IPS 178° Capacitive USB √ √ × √ √ √ √
8HP-CAPLCD Monitor 1280×800 HDMI/Type-C IPS 178° Capacitive USB √ √ √ √ √ √ √
8inch 768x1024 LCD 768×1024 HDMI IPS 178° Capacitive Type-C √ × √ √ √ √ √
8inch 1536x2048 LCD 1536×2048 HDMI IPS 178° Capacitive Type-C √ √ √ √ √ √ √
8.8inch Side Monitor 480×1920 HDMI IPS 170° × × × × √ × √ √ Display ONLY
9HP-CAPQLED-B 1280×720 HDMI IPS (QLED) 178° Capacitive USB √ × × √ √ √ √
9.3inch 1600x600 LCD 1600×600 HDMI IPS 178° Capacitive Type-C √ √ √ √ √ √ √
9.7inch 768x1024 LCD 768×1024 HDMI IPS 178° Capacitive Type-C √ × √ √ √ √ √
PI5-HMI-101D 1280×800 HDMI IPS 178° Capacitive Type-C √ √ × × √ × ×
10.1inch HDMI LCD 1024×600 HDMI IPS 170° Resistive SPI × × × × √ × Display ONLY
10.1inch HDMI LCD (B) (with case) 1280×800 HDMI IPS 170° Capacitive USB √ × × × √ × √
10.1inch HDMI LCD (E) 1024×600 HDMI IPS 170° Capacitive USB √ √ × √ √ √ √
10.1inch HDMI LCD (G) (with case) 1920×1200 HDMI IPS 160° Capacitive USB √ √ √ √ √ √ √
10.1inch HDMI LCD (H) (with case) 1024×600 HDMI/VGA TFT – Capacitive USB × × × × √ √ √
10.1inch HDMI LCD (F) (with case) 1024×600 HDMI/VGA IPS 170° Capacitive USB √ × √ × √ √ √
10.1EP-CAPLCD 1920×1200 HDMI IPS 178° Capacitive Type-C √ √ √ √ √ √ √
10.1DP-CAPLCD 1280×800 HDMI IPS 178° Capacitive USB √ √ × √ √ √ √
10.1HP-CAPQLED 1280×720 HDMI IPS (QLED) 170° Capacitive USB √ × × √ √ √ √
10.1HP-CAPLCD Monitor 1280×800 HDMI/Type-C IPS 178° Capacitive USB √ √ √ √ √ √ √
10.4HP-CAPQLED 1600×720 HDMI IPS(QLED) 178° Capacitive Type-C √ √ √ √ √ √ √
10.5inch HDMI AMOLED 2560×1600 HDMI AMOLED 160° Capacitive USB √ √ √ √ √ √ √
11.6inch 1768x828 LCD 1768×828 HDMI/Type-C IPS 178° Capacitive Type-C In-Cell × × √ √ √ √
11.6inch HDMI LCD (H) 1920×1080 HDMI IPS 178° Capacitive USB √ √ × √ √ √ √
11.6inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB √ √ √ √ √ √ √
11.9inch HDMI LCD 320×1480 HDMI IPS 170° Capacitive USB √ × × √ √ √ √
11.9inch Side Monitor 320×1480 HDMI IPS 170° × × √ × √ × √ √ √
11.9inch Touch Monitor 320×1480 HDMI IPS 170° Capacitive USB √ × √ × √ √ √
12.3inch 1920x720 LCD 1920×720 HDMI/Type-C IPS 178° Capacitive Type-C In-Cell × × √ √ √ √
12.3inch HDMI LCD 1920×720 HDMI IPS 178° Capacitive USB √ √ √ √ √ √ √
13.3inch HDMI LCD (H) 1920×1080 HDMI IPS 178° Capacitive USB √ × × √ √ √ √
13.3inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB √ × √ √ √ √ √
13.3inch HDMI LCD (H) (with case) V2 1920×1080 HDMI/VGA IPS 178° Capacitive USB √ × √ √ √ √ √
13.3inch QHD AMOLED 2560×1440 HDMI/Type-C AMOLED 178° Capacitive Type-C √ √ √ √ √ √ √
14inch 2160x1440 LCD 2160×1440 HDMI/Type-C/DP IPS 178° Capacitive Type-C √ √ × √ √ √ √
14″ Portable Monitor 1920×1200 HDMI/Type-C IPS 178° × × × × √ √ √ √ √
14inch Dual Monitor 1920×1080 HDMI/Type-C IPS 178° × × × × √ √ √ √ √
15.6″ Portable Monitor 1920×1080 HDMI/Type-C IPS 178° × × × × √ √ √ √ √
15.6inch FHD Monitor (C) 1920×1080 mini HDMI/Type-C IPS 178° Capacitive Type-C √ √ √ √ √ √ √
15.6inch Dual Monitor 1920×1080 HDMI/Type-C IPS 178° × × × × √ √ √ √ √
15.6inch HDMI LCD 1920×1080 HDMI IPS 178° Capacitive USB √ × × √ √ √ √
15.6inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB √ × √ √ √ √ √
15.6inch FHD Monitor 1920×1080 HDMI/Type-C IPS 178° Capacitive Type-C / USB √ × √ √ √ √ √
15.6HP-CAPQLED 1920×1080 HDMI IPS(QLED) 178° Capacitive USB √ √ × √ √ √ √
15.6inch QLED Monitor 1920×1080 HDMI IPS(QLED) 178° Capacitive Type-C √ √ √ √ √ √ √
18.5inch Dual Monitor 1920×1080 HDMI/Type-C IPS 178° × × × × √ √ √ √ √
18.5inch FHD LCD 1080×1920 HDMI/Type-C IPS 178° Capacitive Type-C √ √ × √ √ √ √
18.5″ Portable Monitor 1920×1080 HDMI/Type-C IPS 178° × × × × √ √ √ √ √
21.5inch FHD LCD 1080×1920 HDMI IPS 170° Capacitive Type-C √ √ × √ √ √ √
21.5inch FHD Monitor 1080×1920 HDMI IPS 170° Capacitive Type-C √ √ √ × √ √ √

Have a look :
RPi LCD Comparing

Quick Overview

  1. 12.3inch HDMI LCD x1
  2. HDMI cable x1
  3. USB-A to micro-B cable x1
  4. HDMI Adapter (B) x1
  5. USB Adapter (B) x1
  6. HDMI Adapter (C) x1
  7. USB Adapter (C) x1
  8. 4PIN wire ~9CM x1
  9. Button board x1
  10. 12V 3A power adapter x1
  11. Screws pack x1
1
2
3
4
5
6
7
8
9
10
11
