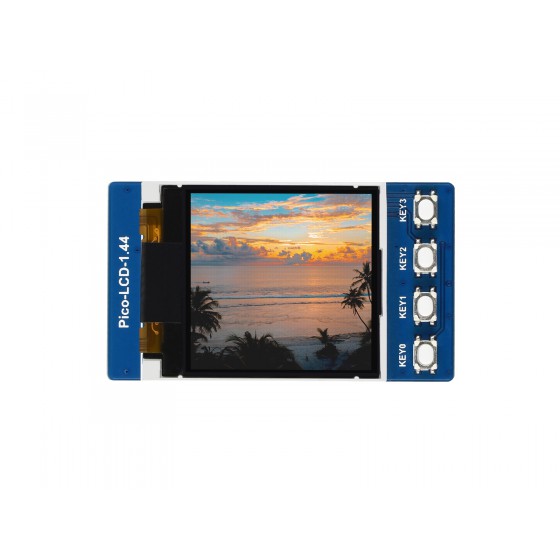

1.44inch LCD Display Module for Raspberry Pi Pico, 65K Colors, 128×128, SPI
Raspberry Pi Pico, LuckFox Pico / Core1106

1.44inch LCD Display Module for Raspberry Pi Pico, 65K Colors, 128×128, SPI

SKU:19576
Part No.:Pico-LCD-1.44
Brand:Waveshare

$9.49
PriceQuantity
1~9
$9.0910~49
$8.8950~99
$8.81100+
Related Products:
Share:

Details

1.44inch LCD Display Module for Raspberry Pi Pico, 65K RGB Colors, 128×128 pixels, SPI Interface
1.44" LCD Display Module for Pico

embedded ST7735S driver, using SPI bus

Comes with Raspberry Pi Pico C/C++ and MicroPython Demo

  • Size1.44"
  • Resolution128×128
  • Display Color65K RGB
  • InterfaceSPI
  • DriverST7735S
Features at a glance
  • 128×128 resolution, 65K RGB colors, clear and colorful displaying effect
  • SPI interface, requires minimal IO pins
  • 4x user buttons for easy interacting
  • Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
Operating voltage 3.15V ~ 5V Resolution 128×128 pixels
Communication Interface 4-wire SPI Display size 25.50 × 26.50 mm
Display Panel TFT Pixel size 0.20 × 0.20 mm
Driver ST7735S Dimensions 52.0 × 30.0 mm
Raspberry Pi Pico header compatibility

onboard female pin header for direct attaching to Raspberry Pi Pico
4x user buttons for easy interacting

Raspberry Pi Pico is NOT included.
Pinout definition
Outline dimensions
Resources & Services

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Selection guide
Part Number Type Display color Pixels Display size (mm) Bus Driver Dimensions (mm) Touch
Pico-LCD-0.96 IPS 65K 160×80 21.70×10.80 SPI ST7735S 52.00×25.00
Pico-LCD-1.14 IPS 65K 240×135 24.91×14.86 SPI ST7789 52.00×25.00
Pico-LCD-1.3 IPS 65K 240×240 23.40×23.40 SPI ST7789 52.00×26.50
Pico-LCD-1.44 TFT 65K 128×128 25.50×26.50 SPI ST7735S 52.00×26.50
Pico-LCD-1.8 TFT 65K 160×128 35.04×28.03 SPI ST7735S 52.00×34.50
Pico-LCD-2 IPS 65K 320×240 40.80×30.60 SPI ST7789VW 52.00×35.00
Pico-ResTouch-LCD-2.8 IPS 262K 320×240 57.60×43.20 SPI ST7789 70.20×50.20 √
Pico-ResTouch-LCD-3.5 IPS 65K 480×320 73.44×48.96 SPI ILI9488 86.00×57.20 √
PICO-DVI-7inch IPS 262K 1024×600 154.21×85.92 DVI - 164.70×100.00
PICO-DVI-10.1inch IPS 262K 1024×600 222.72×125.28 DVI - 232.72×136.28

Weight: 0.014 kg

Quick Overview

  1. Pico-LCD-1.44 x1
