- Description
Details

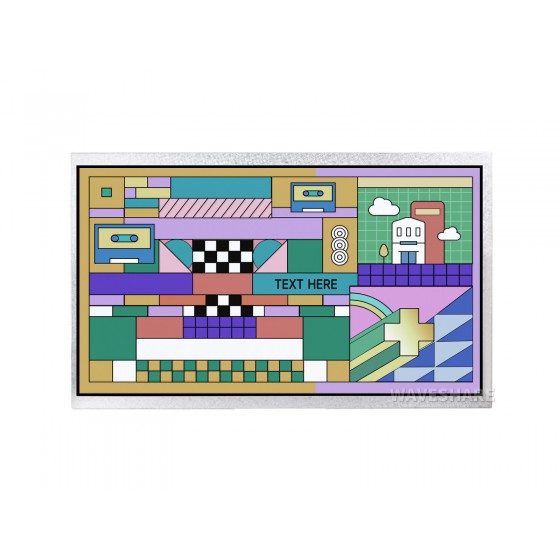

7/10.1 inch DVI Display Module for Raspberry Pi Pico, IPS panel, 1024×600 Pixel, DVI interface Communication
7/10.1 inch DVI Display Module for Pico
Comes with Raspberry Pi Pico C/C++ demo and resources
- Size
7/10.1" - Resolution
1024×600 - Display Panel
IPS - Viewing Angle
170° - Interface
DVI - OSD Menu
Brightness/Contrast
Features at a glance
- Adopts IPS panel, 1024×600 resolution*, with 170° viewing angle
- Adopts DVI interface for higher communication speed
- Based on the Raspberry Pi Pico with onboard 40PIN header
- Built in OSD menu for brightness/contrast adjustment
- Available in 7inch and 10.1inch display sizes
- Suitable for advertisement picture display and other application scenarios
- Comes with online development resources and manual (examples for Raspberry Pi Pico C/C++)
*Due to the memory limitation of RP2040, the picture resolution (Max) will be 400×240 if the color format is RGB565.
Version Options
7inch
10.1inch
Specifications
| Operating voltage | 5V |
|---|---|
| Resolution | 1024×600 pixels |
| Communication Interface | DVI |
| DISPLAY PANEL | IPS |
| Display size | 7inch: 154.21×85.92mm 10.1inch: 222.72×125.28mm |
| PIXEL SIZE | 7inch: 0.1506×0.1432mm 10.1inch: 0.2175×0.2088mm |
Raspberry Pi Pico Header Compatibility
Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico
Connect to Raspberry Pi Pico WH
Connect to RP2040-Plus
for reference only, the Pico and RP2040-Plus are NOT included
Pin definition
Interface Introduction
Product Show
Outline dimensions
Selection guide
| Part Number | Type | Display color | Pixels | Display size (mm) | Bus | Driver | Dimensions (mm) | Touch |
|---|---|---|---|---|---|---|---|---|
| Pico-LCD-0.96 | IPS | 65K | 160×80 | 21.70×10.80 | SPI | ST7735S | 52.00×25.00 | |
| Pico-LCD-1.14 | IPS | 65K | 240×135 | 24.91×14.86 | SPI | ST7789 | 52.00×25.00 | |
| Pico-LCD-1.3 | IPS | 65K | 240×240 | 23.40×23.40 | SPI | ST7789 | 52.00×26.50 | |
| Pico-LCD-1.44 | TFT | 65K | 128×128 | 25.50×26.50 | SPI | ST7735S | 52.00×26.50 | |
| Pico-LCD-1.8 | TFT | 65K | 160×128 | 35.04×28.03 | SPI | ST7735S | 52.00×34.50 | |
| Pico-LCD-2 | IPS | 65K | 320×240 | 40.80×30.60 | SPI | ST7789VW | 52.00×35.00 | |
| Pico-ResTouch-LCD-2.8 | IPS | 262K | 320×240 | 57.60×43.20 | SPI | ST7789 | 70.20×50.20 | √ |
| Pico-ResTouch-LCD-3.5 | IPS | 65K | 480×320 | 73.44×48.96 | SPI | ILI9488 | 86.00×57.20 | √ |
| PICO-DVI-7inch | IPS | 262K | 1024×600 | 154.21×85.92 | DVI | - | 164.70×100.00 | |
| PICO-DVI-10.1inch | IPS | 262K | 1024×600 | 222.72×125.28 | DVI | - | 232.72×136.28 |
Weight: 0.271 kg
Quick Overview
PICO-DVI-7inch
PICO-DVI-7inch x1
PICO-DVI-10.1inch
PICO-DVI-10.1inch x1
