IMX219 Camera Module For Raspberry Pi 5, 8MP, MIPI-CSI Interface, Options For 79.3° / 120° FOV, Comes With Pi5 CSI Flexible Cable 200mm
8MP Camera Module for Raspberry Pi 5
IMX219 sensor, MIPI-CSI Interface, Options for 79.3° / 120° FOV
Version Options
Pi5-IMX219-77
79.3° FOV
Pi5-IMX219-120
120° FOV
Specifications
| Model | Pi5-IMX219-77 | Pi5-IMX219-120 |
|---|---|---|
| PIXELS | 8MP | |
| Sensor | IMX219 | |
| resolution | 3280×2464 | |
| CMOS size | 1/4 inch | |
| Aperture (F) | 2.0 | |
| Focal length | 2.85mm | 1.79mm |
| Field of view | 79.3° | 120° |
| DISTORTION | <1% | <13.6% |
| Lens dimensions | 6.5×6.5mm | |
| Screw holes | 4 × screw holes, used for attachment, provides 3.3V power output | |
| Dimension | 25×24mm | |

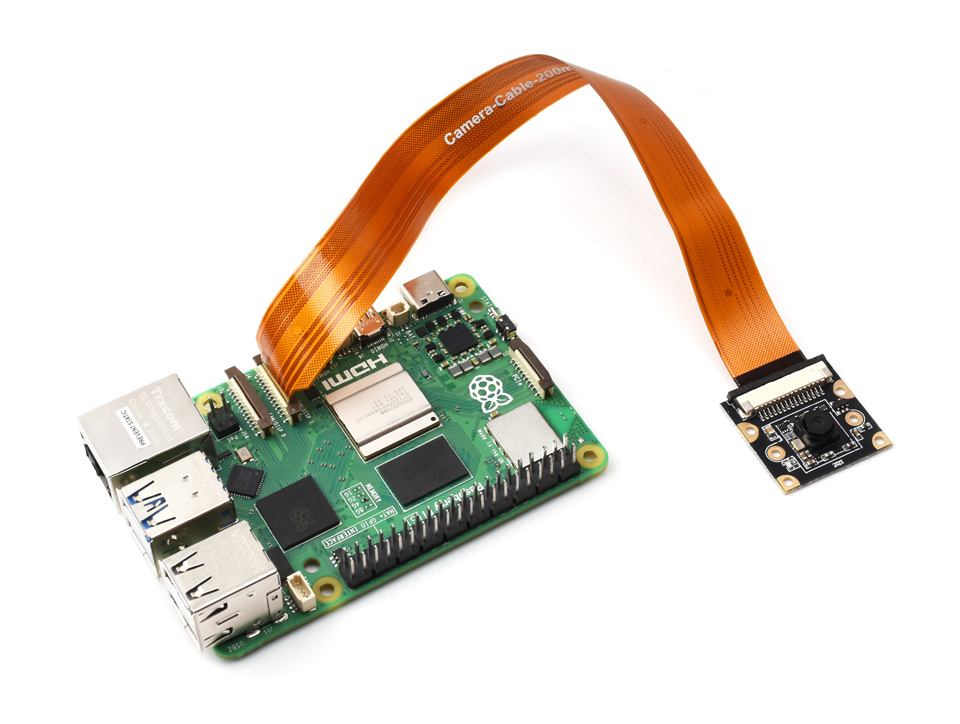

Working With Raspberry Pi 5
Comes with CSI flexible cable 200mm, easy to use with Raspberry Pi 5
for reference only, the Raspberry Pi 5 is NOT included

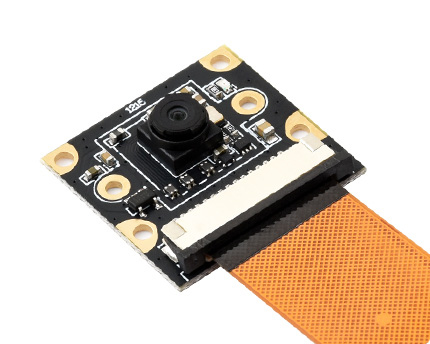

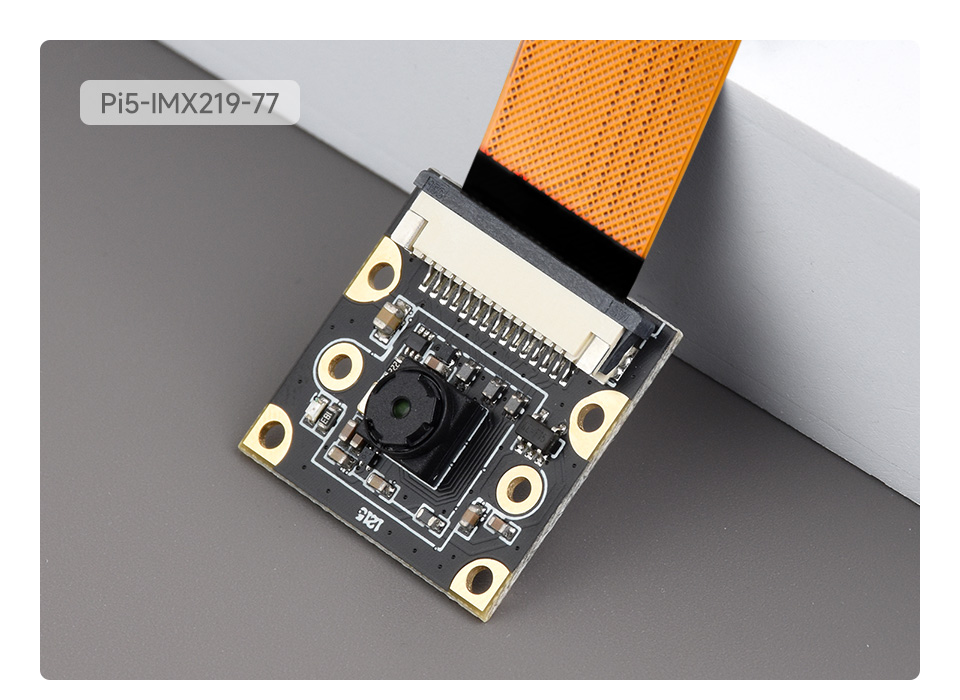

Product Show

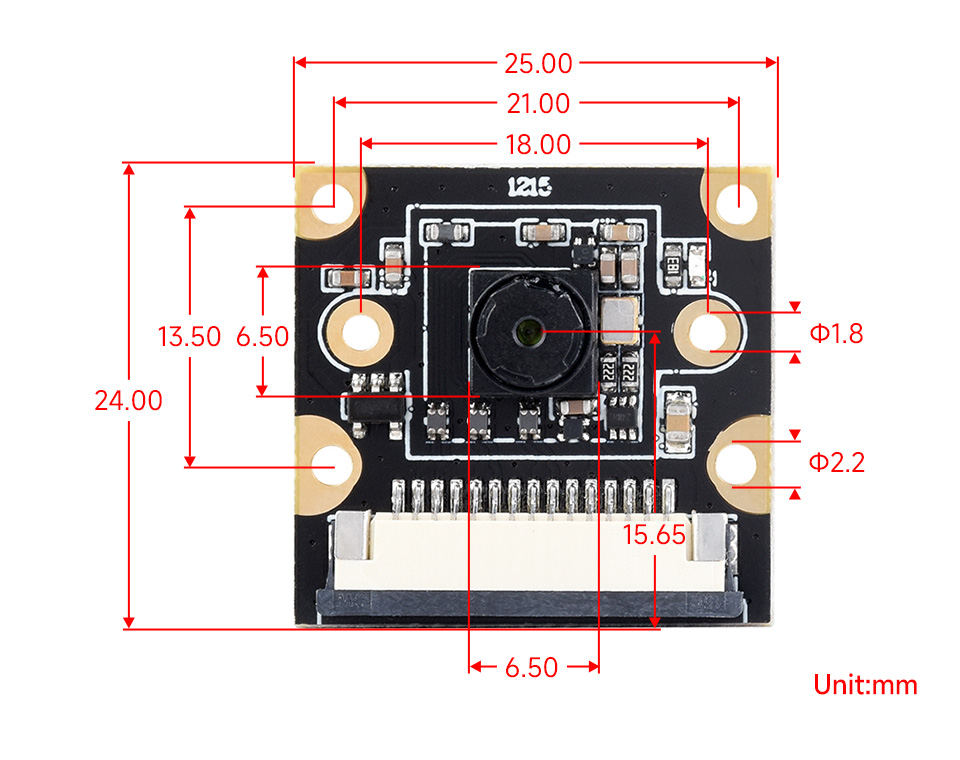

outline dimensions
Weight: 0.012 kg
Quick Overview
OPTIONS Pi5-IMX219 (with Pi5-Camera-Cable-200mm) x1
