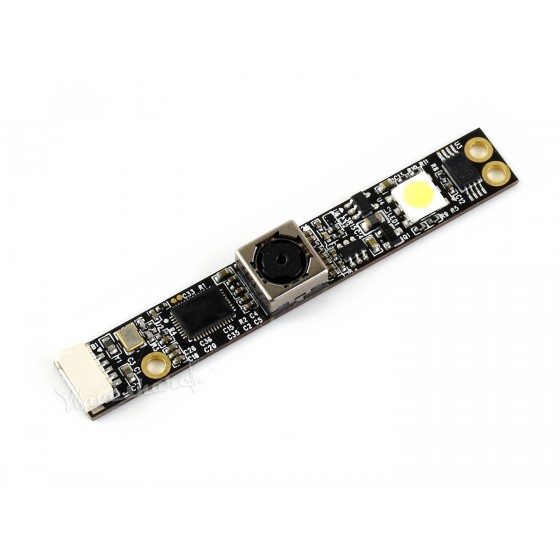

OV5648 5MP USB Camera (A), Small in Size

SKU:15301
Part No.:OV5648 5MP USB Camera (A)
Brand:Waveshare

$29.99 DISCONTINUED
PriceQuantity
1
$29.392
$29.093
$28.974+
Related Products:
Description

Details

Discontented. Please refer to OV5640 5MP USB Camera (B) for new design.
OV5648 5MP USB Camera, High Definition, Small in Size, Driver-Free

Features

  • 5 megapixel OV5648 sensor
  • 2592x1944 resolution
  • USB interface, UVC protocol, driver-free, plug-and-play
  • Small in size, easy to integrate into your project
  • Supports Raspberry Pi and Jetson Nano
  • DSP
    • Automatic white balance (AWB)
    • Automatic exposure (AEC)
    • Automatic gain control (AGC)
  • Camera specifications
    • CCD size: 1/4inch
    • Aperture (F): 2.8
    • Focal Length (EFL): 3.34mm
    • Field of View (Diagonal): 70°
  • Interface: USB2.0
  • Image formats: MJPEG, YUY2
  • Operating temperature: 0°C ~ 50°C
  • Dimension: 9mmx62mm
  • Supported OS: Windows, Linux

Dimensions

OV5648 5MP USB Camera (A) dimensions

Development Resources

Wiki : www.waveshare.com/wiki/OV5648_5MP_USB_Camera_(A)

Selection Guide

Part Number Pixels Sensor Best Resolution Dimension Field of View  Feature
OV2710 2MP USB Camera (A) 2MP OV2710 1920x1080 38x38mm 145° Low-light sensitivity
OV5693 5MP USB Camera (A) 5MP OV5693 2592x1944 18×40mm 135° Auto focus
OV5693 5MP USB Camera (B) 5MP OV5693 2592x1944 8.5×60.2mm 75° Small size, auto focus
OV5640 5MP USB Camera (B) 5MP OV5640 2592x1944 9×62mm 68° Small size, auto focus
OV5640 5MP USB Camera (C) Small size
IMX335 5MP USB Camera (A) 5MP IMX335 2592x1944 38×38mm 106.9° Manual focus, low-light sensitivity, wide dynamic range
IMX335 5MP USB Camera (B) 5MP IMX335 2592x1944 25×24mm 175° Fixed-focus, wide angle, low-light sensitivity, wide dynamic range
IMX179 8MP USB Camera (A) 8MP IMX179 3288x2512 38x38mm 145° HD, embedded digital mic
IMX179 8MP USB Camera (B) 8MP IMX179 3264×2448 9×62mm 75° HD, small size, auto focus
IMX258 13MP OIS USB Camera (A) 13MP IMX258 4208×3120 38×38mm 127° HD, OIS

Weight: 0.03 kg

Quick Overview

  • OV5648 5MP USB Camera (A) x1
  • USB to 5-pin cable x1
