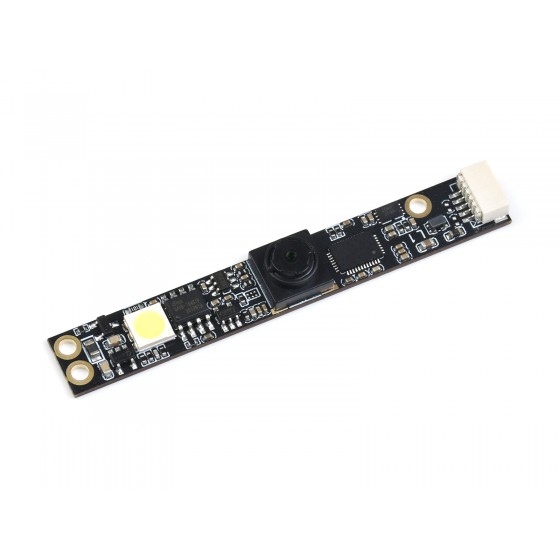

OV5640 5MP USB Camera, 1080P Video Recording, Available in AF/FF
5MP camera module
OV5640 sensor, USB port
Specifications
Pixels | 5MP | |
---|---|---|
Sensor | OV5640 | |
Interface | USB 2.0 | |
Camera | Sensor size | 1/4 inch |
Aperture (F) | 2.8 | |
Focal length (EFL) | 3.29 mm | |
Field of view (FOV) | 68° | |
Distortion | < 1% | |
Focusing | (B): AF Auto-Focus (C): FF Fixed-Focus |
|
Image | Format support | MJPG, YUV422 |
Static image resolution | 2592 × 1944 | |
Video recording | 15 FPS 2592 × 1944 30 FPS 1920 × 1080 30 FPS 1280 × 720 |
|
Operating voltage | 5V ± 5% | |
Camera size | 8.5 × 8.5 mm | |
Module size | 9 × 62 mm | |
Note | Select OV5640 5MP USB Camera (B) for Auto-focus, Select OV5640 5MP USB Camera (C) for Fixed-focus, Except for the focus mechanism, the two cameras are exactly the same. |
Connecting with USB cable
Outline dimensions
Resources & Services
Wiki: OV5640_5MP_USB_Camera
Selection Guide
Part Number | Pixels | Sensor | Best Resolution | Dimension | Field of View | Feature |
---|---|---|---|---|---|---|
OV2710 2MP USB Camera (A) | 2MP | OV2710 | 1920x1080 | 38x38mm | 145° | Low-light sensitivity |
OV5693 5MP USB Camera (A) | 5MP | OV5693 | 2592x1944 | 18×40mm | 135° | Auto focus |
OV5693 5MP USB Camera (B) | 5MP | OV5693 | 2592x1944 | 8.5×60.2mm | 75° | Small size, auto focus |
OV5640 5MP USB Camera (B) | 5MP | OV5640 | 2592x1944 | 9×62mm | 68° | Small size, auto focus |
OV5640 5MP USB Camera (C) | Small size | |||||
IMX335 5MP USB Camera (A) | 5MP | IMX335 | 2592x1944 | 38×38mm | 106.9° | Manual focus, low-light sensitivity, wide dynamic range |
IMX335 5MP USB Camera (B) | 5MP | IMX335 | 2592x1944 | 25×24mm | 175° | Fixed-focus, wide angle, low-light sensitivity, wide dynamic range |
IMX179 8MP USB Camera (A) | 8MP | IMX179 | 3288x2512 | 38x38mm | 145° | HD, embedded digital mic |
IMX179 8MP USB Camera (B) | 8MP | IMX179 | 3264×2448 | 9×62mm | 75° | HD, small size, auto focus |
IMX258 13MP OIS USB Camera (A) | 13MP | IMX258 | 4208×3120 | 38×38mm | 127° | HD, OIS |
Weight: 0.027 kg
Quick Overview
- OPTIONS OV5640 5MP USB Camera x1
