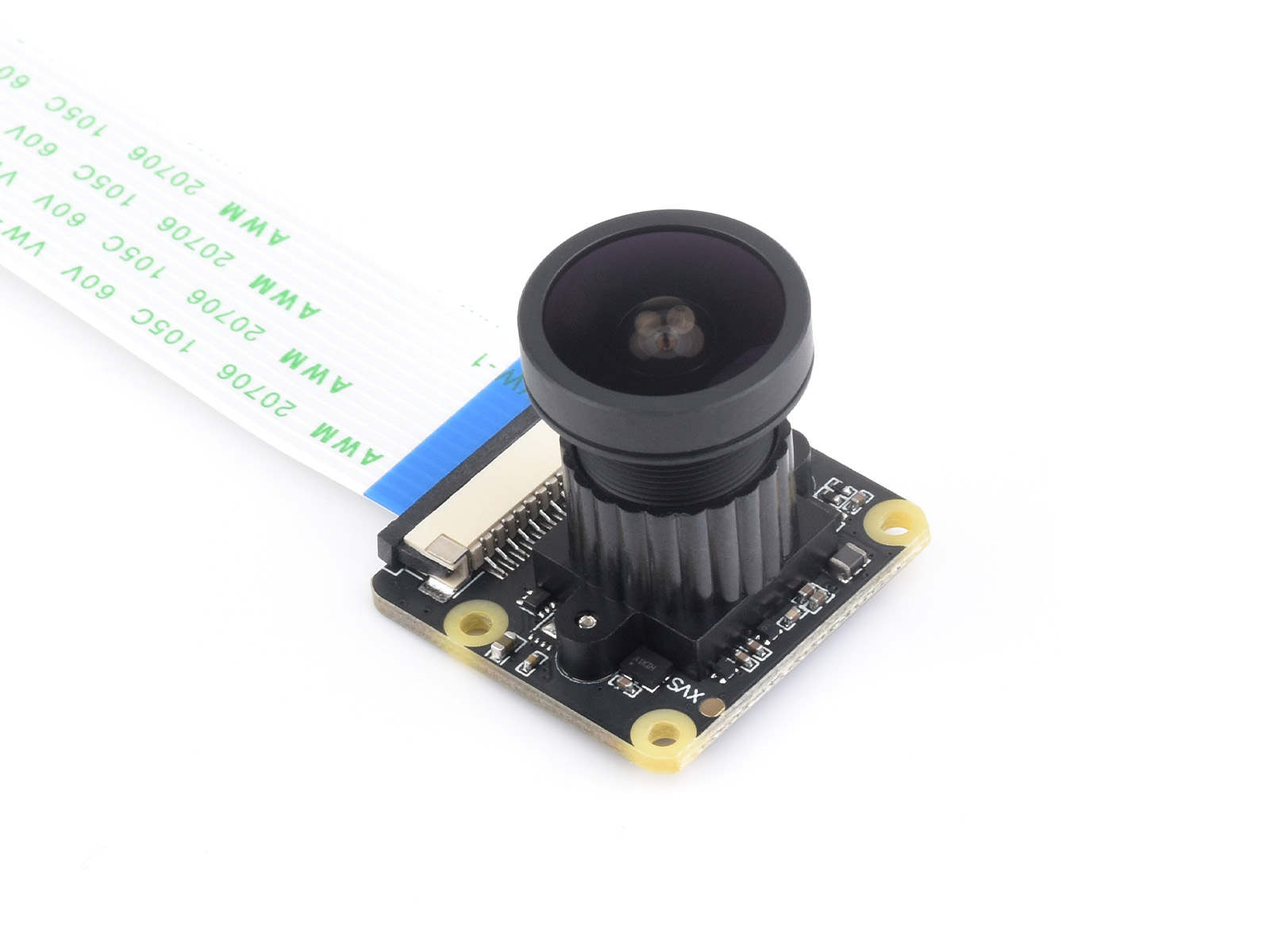

IMX477-160 12.3MP Camera, 160° FOV, Applicable for Raspberry Pi / Jetson Nano
12.3MP camera module
IMX477 sensor, 12.3MP, Applicable for Raspberry Pi / Jetson Nano Series Boards
Specifications
| Sensor | Model | IMX477 |
|---|---|---|
| Resolution | 12.3MP, 4056 × 3040 | |
| CMOS diagonal length | 7.9mm | |
| pixel size | 1.55µm (H) × 1.55µm (V) | |
| Camera | Aperture (F) | 2.2 |
| Focal length (BFL) | 2.75 | |
| Field of view (FOV) | 160°(D) 118°(H) 87°(V) | |
| Distortion | <16% | |
| Operating voltage | 3.3V | |
| Applications | suitable for AI applications like: facial recognition, road mark recognition, license plate number recognition, and so on. | |
Multiple Motherboards Support
Compatible With Raspberry Pi and Jetson Series Boards (Specific driver is required)
Extra FPC Cable Is Required For Raspberry Pi 5, CM3/3+/4, and Zero Series
Connecting with Raspberry Pi 4B
Connecting with Raspberry Pi 5
Connecting with CM4 IO Board
Connecting with Zero 2 W
Connecting with Jetson Nano Kit
Connecting with Jetson Orin Kit
* for reference only, Raspberry Pi 4B, Raspberry Pi 5, Compute Module 4 IO Board, Zero 2 W, Jetson Nano Kit, Jetson Orin Kit, black FPC and yellow FPC are NOT included.
Outline dimensions
Selection Guide
| Part Number | Pixels | Sensor | CMOS Size | IR-CUT Filter | Lens Support | FoV (°) | Aper-ture (F) | Focal Length (mm) | Dimen-sions (mm) | For use with |
|---|---|---|---|---|---|---|---|---|---|---|
| Raspberry Pi HQ Camera | 12.3MP | IMX477 | 7.9mm | integrated | C/CS | - | - | - | 38*38 | Raspberry Pi, CM3/3+/4 |
| IMX477 12.3MP Camera | - | - | - | 38*38 | Raspberry Pi, CM3/3+/4, Jetson series boards | |||||
| Raspberry Pi HQ Camera M12 | M12 | - | - | - | 38*38 | Raspberry Pi, CM3/3+/4 | ||||
| IMX477 IR-CUT Camera (A) | 90 | 2.0 | 3.95 | 38*38 | Raspberry Pi, CM3/3+/4, Jetson series boards | |||||
| IMX477-160 12.3MP Camera | 160 | 2.2 | 2.75 | 25*24 | Raspberry Pi, CM3/3+/4, Jetson series boards | |||||
| Raspberry Pi Global Shutter Camera | 1.6MP | IMX296 | 6.3mm | C/CS | - | - | - | 38*38 | Raspberry Pi, CM3/3+/4 |
Weight: 0.012 kg
Quick Overview
- if you need a longer cable, please consider: RPi Camera Cable 60cm
- For use with Pi5 or Jetson Orin base board, please consider: Pi5-Camera-Cable-200mm / 300mm / 500mm
- IMX477-160 12.3MP Camera (with FFC) x1
