High Resolution High Sensitivity IMX477 Sensor
Supports Raspberry Pi / Jetson Series Boards

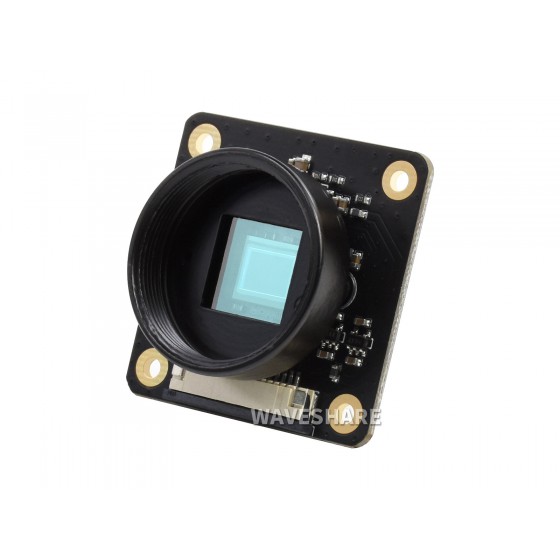

The IMX477 12.3MP Camera is a high quality camera module which adopts the IMX477R sensor, and requires a C- or CS-mount lens to work. It is compatible with Raspberry Pi Compute Module and NVIDIA Jetson Nano, offers higher resolution (12.3MP) and higher sensitivity (nearly 50% greater area per pixel for improved low-light performance) than IMX219 cameras.
The IMX477 12.3MP Camera is suitable for industrial and consumer applications like security camera, and other specialist optical devices which require higher level of visual fidelity.
| Sensor | IMX477R |
|---|---|
| 12.3MP, 4056 (H) × 3040 (V) | |
| 7.9mm CMOS diagonal size | |
| 1.55µm (H) × 1.55µm (V) pixel size | |
| Output | RAW12 / 10 / 8, COMP8 |
| Back focus | Adjustable |
| Lens Support | C-mount / CS-mount (C-CS adapter included) |
| IR cut filter | Integrated |
| Product |  6mm Wide Angle Lens |
 16mm Telephoto Lens |
 25mm Telephoto Lens |
 35mm Telephoto Lens |
 8-50mm Zoom Lens |
 100X Microscope Lens for Pi |
|---|---|---|---|---|---|---|
| Image format | 1/2" | 1" | 2/3" | 1" | 1/2.3" | 1/2" |
| Focal length | 6mm | 16mm | 25mm | 35mm | 8-50mm | - |
| Aperture | F1.2 | F1.4-16 | F1.4-16 | F1.7-16 | F1.4 | - |
| OPTICAL MAGNIFICATION | - | 0.12X~1.8X | ||||
| ZOOM RATIO | - | 15:01 | ||||
| Mount | CS-mount | C-mount | C/CS-mount | |||
| Angle of view | 63° | 1" 44.6° × 33.6° 2/3" 30.0° × 23.2° 1/1.8" 24.7° × 18.6° 1/2" 21.8° ×16.4° |
2/3" 20.2° × 15.1° 1/1.8" 16.5° × 12.4° 1/2" 14.5° × 10.5° |
1" 20.9° × 15.8° 2/3" 14.4° × 10.8° 1/2" 10.5° × 7.9° |
45°-5.35° | - |
| Back focus | 7.53mm | 17.53mm | - | |||
| Optical length | - | 67.53mm | - | |||
| Distortion | - | 1"（-0.7%） 1/2"（-0.5%） 1/3"（-0.15%） |
0.05% | 0.35% | - | < -0.1% |
| M.O.D. | 0.20m | 0.20m | 0.25m | 0.30m | 0.20m | 2.4mm |
| Dimensions | Φ30.00 × 34.00mm | Φ39.00 × 50.00mm | Φ34.00 × 34.00mm | Φ35.00 × 34.00mm | Φ40.00×68.30mm | Φ39.00×112.00mm |
| Operation | Manual aperture adjustment | Fixed aperture | ||||
| Weight | 53g | 133.7g | 82g | 78g | 148g | 202g |
Compared to 8MP of normal Raspberry Camera, this high quality camera offers up to 12.3MP, along with nearly 50% greater area per pixel, delivering better imaging effect
C-mount 16mm Telephoto Lens (C-CS adapter required)
CS-mount 6mm Wide Angle Lens (C-CS adapter should be removed)
* for reference only, please refer to the Package Content for detailed part list
Compatible With Raspberry Pi and Jetson Series Boards (Specific driver is required)
Extra FPC Cable Is Required For Raspberry Pi 5, CM3/3+/4, and Zero Series
Connecting with Raspberry Pi 4B
Connecting with Raspberry Pi 5
Connecting with CM4 IO Board
Connecting with Zero 2 W
Connecting with Jetson Nano Kit
Connecting with Jetson Orin Kit
| Part Number | Pixels | Sensor | CMOS Size | IR-CUT Filter | Lens Support | FoV (°) | Aper-ture (F) | Focal Length (mm) | Dimen-sions (mm) | For use with |
|---|---|---|---|---|---|---|---|---|---|---|
| Raspberry Pi HQ Camera | 12.3MP | IMX477 | 7.9mm | integrated | C/CS | - | - | - | 38*38 | Raspberry Pi, CM3/3+/4 |
| IMX477 12.3MP Camera | - | - | - | 38*38 | Raspberry Pi, CM3/3+/4, Jetson series boards | |||||
| Raspberry Pi HQ Camera M12 | M12 | - | - | - | 38*38 | Raspberry Pi, CM3/3+/4 | ||||
| IMX477-160 12.3MP Camera | 160 | 2.2 | 2.75 | 25*24 | Raspberry Pi, CM3/3+/4, Jetson series boards | |||||
| Raspberry Pi Global Shutter Camera | 1.6MP | IMX296 | 6.3mm | integrated | C/CS | - | - | - | 38*38 | Raspberry Pi, CM3/3+/4 |
Weight: 0.027 kg
Quick Overview
- if you need a longer cable, please consider: RPi Camera Cable 60cm
- For use with Pi5, please consider: Pi5-Camera-Cable-200mm / 300mm / 500mm
- IMX477 12.3MP Camera main unit
- C-CS adapter
- Dust cap
- FFC ribbon
