Details
This is an industrial grade 4G dongle, which features up to 150Mbps downlink rate and 50Mbps uplink rate, supports operating systems including Windows/Linux. By simply connecting it to laptop, PC, Raspberry Pi, drone, industrial computer, or other IoT host device, it is easy to use 4G network connection on the go.
- Supports 2G/3G/4G network connection, mainly applicable for China
- Driver provided, for operating systems including Windows/Linux
- Supports network protocols such as TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNS
- Onboard USB port, for directly connecting with ARM/X86 hosts or other industrial computer
- Onboard UART port with hardware flow control, for connecting with host boards like Arduino/STM32
- Nano SIM card slot, supports 1.8V / 3V nano SIM card
- 3x LED indicators, easy to monitor the working status
- Portable customized enclosure, mini size, nice looking
- Baudrate support: 300bps ~ 4Mbps (115200bps by default)
- Baudrate auto-negotiation: 9600bps ~ 115200bps
| Product | SIM7600CE-JT1S | SIM7600G-H | |||
|---|---|---|---|---|---|
| Band | |||||
| LTE Cat-4 / LTE Cat-1 | LTE-TDD: B38/B39/B40/B41 LTE-FDD: B1/B3/B8 |
LTE-TDD: B34/B38/B39/B40/B41 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/ B13/B18/B19/B20/B25/B26/B28/B66 |
|||
| 3G | UMTS/HSDPA/HSPA+: B1/B8 TD-SCDMA: B34/B39 CDMA: 1X/EVDO BC0 |
UMTS/HSDPA/HSPA+: B1/B2/B4/B5/B6/B8/B19 | |||
| 2G | GSM/GPRS/EDGE: 900/1800MHz | GSM/GPRS/EDGE: 850/900/1800/1900MHz | |||
| GNSS | N/A | GPS/Beidou/GLONASS/LBS | |||
| Applicable regions | China | Global | |||
| Data Rate | |||||
| LTE Cat-4 |
150Mbps(DL) / 50Mbps(UL) | ||||
| 3G (HSPA+) | 42Mbps(DL) / 5.76Mbps(UL) | ||||
| 2G (EDGE) | 236.8Kbps(DL) / 236.8Kbps(UL) | ||||
| 2G (GPRS) | 85.6Kbps(DL) / 85.6Kbps(UL) | ||||
| Software Features | |||||
| Operating system | Windows/Linux | ||||
| Network protocol | TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNS | ||||
| Dial-up protocol | NDIS/RNDIS/PPP | ||||
| SMS | Supports MT, MO, CB, Text, PDU | ||||
| Hardware Description | |||||
| Communication interface | USB / UART | ||||
| UART baud rate | 300bps ~ 4Mbps (115200bps by default) | ||||
| Indicator | NET：network indicator | ||||
| STA：status indicator | |||||
| PWR：power indicator | |||||
| SIM card support | Nano SIM card (1.8V / 3V) | ||||
| Antenna connector | LTE | ||||
| Power supply | 5V | ||||
| Logic level | 3.3V | ||||
| Outline dimensions | 89.20 × 45.26 × 14.62mm | ||||
| Module models can be customized in batches (such as: SIM7600CE-T / E-H / A-H, etc.), please contact the Waveshare team if you need. | |||||
working with laptop / Raspberry Pi / industrial computer...
up to 150Mbps downlink and 50Mbps uplink*
* stands for idealized data rate, the actual data rate may fluctuate greatly, depending on factors like network coverage, traffic congestion, base station condition, etc.
supports Windows/Linux
Just plug it into USB port, go through some driver installation and simple configuration, the high speed 4G network connection would be ready to use
supports USB/UART communication interfaces
supports TCP/UDP/FTP/FTPS/HTTP/HTTPS communication protocols
Integrates SIM7600CE-JT1S module, industrial grade design, stable connection, more durable
flexible structure antenna design, allows multidimensional rotation for better connection
onboard nano SIM card slot with sliding cover, easy to use
easy to check the operating status, convenient for programming/debugging
| UART pinouts | |
|---|---|
| 5V | 5V DC input |
| GND | power ground |
| TXD | data transmitting |
| RXD | data receiving |
| CTS | hardware flow control, clear to send, NC if not used |
| RTS | hardware flow control, request to send, NC if not used |
Weight: 0.133 kg
Quick Overview
- SIM7600CE-JT1S 4G DONGLE x1
- LTE Antenna x1
- USB extension cable x1

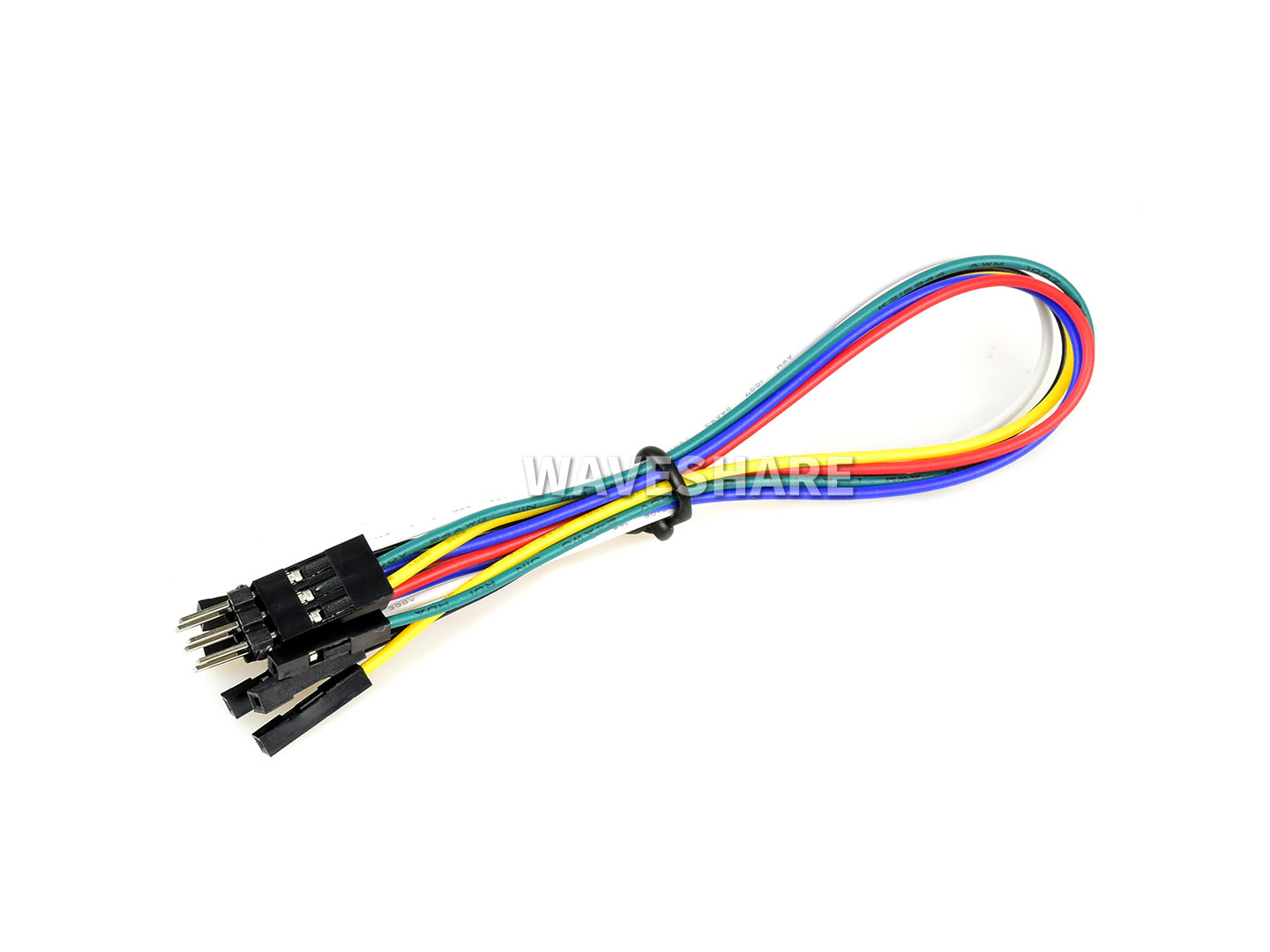

- 6PIN jumper wire x1
- Screws tool kit x1
