Overview

Since the Raspberry Pi Foundation released the Compute Module 3, you may have been watching it for some time, don't know how to get started. Now it's time to get moving. We prepare this development kit for you to evaluate the Compute Module 3 quickly, reducing your development cycle.

The key parts in this Compute Module 3 development kit includes:

• Compute Module 3: Raspberry Pi 3 industrial version, the Pi in a flexible form factor, with 4GB eMMC Flash
• Compute Module IO Board Plus: Extend kinds of interfaces from CM3, such as USB, HDMI, just like the regular Pi, to help evaluating

CM3/CM3L Features

• BCM2837
  • 64-bit 1.2GHz quad-core ARM Cortex-A53 processor
• 1GB RAM
• 4GB eMMC Flash (for CM3 only, not for CM3L)
• 200PIN SODIMM connector (35U hard gold plating I/O pins)
  • 48 x GPIO
  • 2 x I2C
  • 2 x SPI
  • 2 x UART
  • 2 x SD/SDIO (1x SD pin on CM3 has been used for 4GB eMMC Flash)
  • 1 x HDMI 1.3a
  • 1 x USB2 HOST/OTG
  • 1 x DPI (parallel RGB display)
  • 1 x NAND(SMI)
  • 1 x 4-lane CSI Camera Interface (up to 1Gbps per lane)
  • 1 x 2-lane CSI Camera Interface (up to 1Gbps per lane)
  • 1 x 4-lane DSI Display Interface (up to 1Gbps per lane)
  • 1 x 2-lane DSI Display Interface (up to 1Gbps per lane)
• Compared to CM1, the CM3/CM3L supports more OS, like Windows 10 (the free IOT-specific version from Microsoft)

Compute Module IO Board Plus Features

• Compatible with the Compute Module IO Board V3 from the Raspberry Pi Foundation
• Raspberry Pi GPIO header, for connecting sorts of Raspberry Pi HATs
• Arduino connectivity, also supports Arduino shields
• 1-WIRE interface, for connecting single-bus devices like DS18B20
• 4x keys, 4x LEDs, 1x Buzzer, for I/O testing
• Onboard USB HUB, allows connecting more USB devices
• IR receiver, IR remote control is available
• Onboard USB TO UART, for serial debugging
• Sensor interface
• 10-bit ADC, 38KSPS, 11-ch (6-ch for Arduino interface, 5-ch for sensors)
• 16-bit DAC, 2-ch
• Onboard RTC, one of the most common and useful functions

What's on the Compute Module IO Board Plus

1. Compute Module interface: for connecting Compute Module (CM4S / CM3 / CM3L / CM3+ / CM3+L)
2. Compute Module GPIO header: breakout all the Compute Module pins
3. Raspberry Pi GPIO header: for connecting Raspberry Pi HATs
4. CSI interface: camera ports, for connecting Raspberry Pi Camera
5. DSI interface: display ports, for connecting Raspberry Pi LCD
6. HDMI port
7. USB ports: for connecting USB devices
8. USB SLAVE interface: allows you to burn system image in to Compute Module
9. USB TO UART interface: for serial debugging
10. Arduino header: for connecting Arduino shields
11. AD/DA input/output screw terminals
12. 1-WIRE interface: for connecting single-bus devices like DS18B20
13. Sensor interface
14. Power port: 5V 2.5A
15. FE1.1S: USB HUB chip
16. 12MHz crystal
17. CP2102: USB TO UART converter
18. Micro SD card slot: insert a Micro SD card with pre-burnt system, to start up Compute Module 4S/3/3+ Lite variant
19. TLC1543: AD converter
20. DAC8552: 16-bit DAC, 2-ch
21. DS3231: high-precision RTC chip, I2C interface
22. RTC battery holder: supports CR1220 batteries
23. Voltage regulator: 3.3V / 2.5V / 1.8V
24. LFN0038K: IR receiver
25. Buzzer
26. Power indicator
27. ACT indicator: indicating the Micro SD card status
28. User LEDs
29. User Keys
30. BOOT selection
    • EN: enable the PC to access SD card/eMMC through USB SLAVE
    • DIS: the Compute Module will boot from SD card/eMMC
31. VGx power selection: config the I/O level
32. USB HUB enable jumper: HUB enable and USB SLAVE power selection
33. ADC/DAC configuration: config the power supply and reference voltage of ADC/DAC
34. Peripheral configuration: config the control pins of UART, user keys, user LEDs, 1-WIRE interface, IR receiver, and buzzer
35. Arduino AD selection
    • connect 1 and 2: Arduino A0-A5 as digital control pin
    • connect 2 and 3: Arduino A0-A5 as AD input

Selection Guide

Compute Module

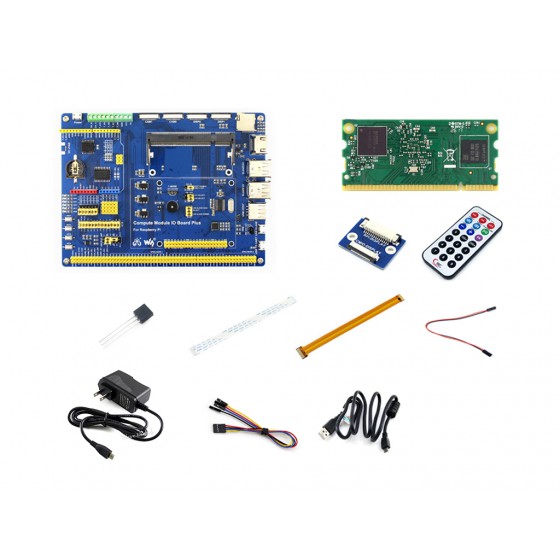

1. Compute Module 3 x1

1

Accessory Pack

1. Compute Module IO Board Plus x1
2. DS18B20 x1
3. IR remote controller x1
4. LCD adapter x1
5. 22PIN FFC x1
6. RPi Zero V1.3 Camera Cable 15cm x1
7. Power adapter US standard 5V/3A micro x1
8. USB type A plug to micro B plug cable 120cm x2
9. Jumper Wire 4-pin to separated pins x2
10. Jumper Wire 2-pin 2.54-pitch 200mm x2

1

2

3

4

5

6

7

8

9

10
