- Description
Details

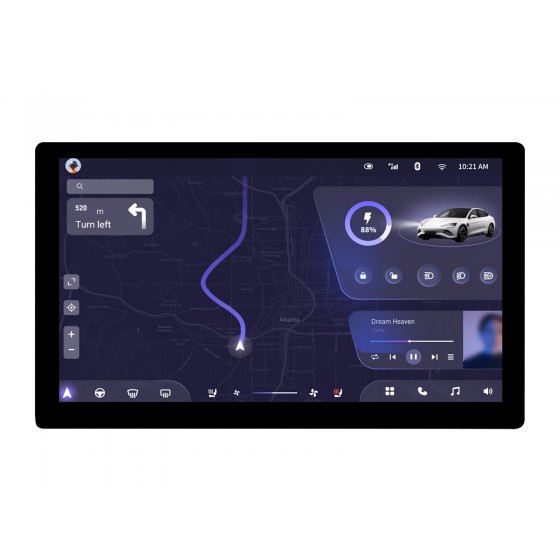

Integrated Structure | Thin and Light Screen Design
- Size
7″ - Resolution
1024×600 - Display Panel
IPS/QLED - Viewing Angle
170° - Touch Type
Capacitive(optional) - Touch Points
5-Points(optional) - Consumption
Low Power - Certification 1
RoHS2.0 - Certification 2
CE
Support Windows / Linux / Android main board which has HDMI signal and USB touch signal
All versions of Raspberry Pi
Jetson Series Boards
Windows PC
Provide secondary development resources to facilitate integrated design
Boost simple development for embedding engineering applications quickly
Different with the conventional connection method, integrate 40PIN multi-function interface for one-cable communication. Integrate the driver circuit into an FPC cable, the thinnest only needs 3mm thickness space
Wider color gamut
color gamut of this QLED display is up to: NTSC 78%, sRGB 92%
* This function is only available on the QLED version
More pure chroma
chroma of QLED increases 58.3%, makes the color more pure, more vivid
* This function is only available on the QLED version
Longer lifetime
due to its inorganic characteristic, the color life of QLED could be up to 60000 hours without color degradation
* This function is only available on the QLED version
Gently touch, and see what you get, enjoy multi-point UI interaction via Flexible operation. Adapting touch function with USB signal, support 5-point touch
* This function is only available on the Touch Display version
For the first use, it is recommended to use development adapter for connection
New energy, electronic sentinel, human-machine interface, smart home
IoT, Industrial applications, consumer electronics
| PART NUMBER | Resolution | Display Interface | Display Panel | Touch Interface | Display size(mm) | Product size(mm) | Note |
|---|---|---|---|---|---|---|---|
| 70H-1024600-IPS-A | 1024×600 | HDMI | IPS | - | 154.21×85.92 | 164.00×97.00 | - |
| 70H-1024600-IPS-B | With development accessories | ||||||
| 70H-1024600-IPS-CT-A | USB | 173.00×103.00 | - | ||||
| 70H-1024600-IPS-CT-B | With development accessories | ||||||
| 70H-1024600-QLED-A | QLED | - | 164.00×97.00 | - | |||
| 70H-1024600-QLED-B | With development accessories | ||||||
| 70H-1024600-QLED-CT-A | USB | 173.00×103.00 | - | ||||
| 70H-1024600-QLED-CT-B | With development accessories |
Support the following ways to customize the touch screen display in bulk order
Waveshare grows with display
* Waveshare has been focusing on display design for over 10 years.
Weight: 0.153 kg
Quick Overview
70H-1024600 IPS/QLED Display
- OPTIONS IPS/QLED Display x1
- FPC cable (~ 15cm) x1
- OPTIONS Development Accessories
70H-1024600 IPS/QLED Touch Display
- OPTIONS IPS/QLED Touch Display x1
- FPC cable (~ 15cm) x1
- OPTIONS Development Accessories
