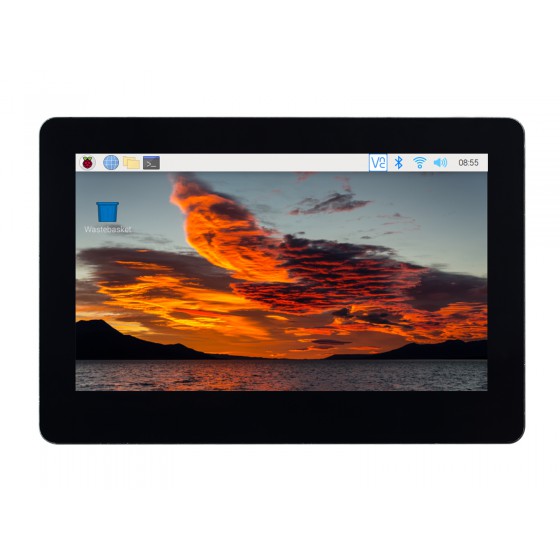

4.3inch DSI Display, 800 × 480, IPS/QLED Panel, Thin and Light Design, Touch Function Optional

SKU:24400
Part No.:43H-800480-IPS-CT-B
Brand:Waveshare

$29.99 Qty:

PriceQuantity
$28.9910+
$28.4950+
$28.29100+

Version Options

IPS Display (No Touch)IPS Touch Display QLED Display (No Touch)QLED Touch Display IPS Wide-bezel Touch Display

Related Products:

15.6inch QLED Quantum Dot Display, 1920×1080, Optical Bonding Toughened Glass Panel, 100%sRGB, Metal Case, Thin and Light Design

15.6inch QLED Display, 1920 × 1080, Optical Bonding IPS Toughened Glass panel, 100% sRGB Touch Screen

10.4inch QLED Quantum Dot Display, Capacitive Touch, High Brightness, 1600×720, Optical Bonding Toughened Glass Panel, HDMI Interface

10.1inch QLED Quantum Dot Display, Capacitive Touch, 1280×720, G+G Toughened Glass Panel, Various Systems Support

9inch QLED Quantum Dot Display, 1280×720, Toughened Glass Panel, HDMI Interface, Wide Color Gamut

7inch QLED Quantum Dot Display, Capacitive Touch, 1024×600, G+G Toughened Glass Panel, Various Systems Support

4.3inch QLED Display, DSI Interface, 800 × 480, Integrated Structure, Toughened Glass Panel

Description
Package Content

Details

4.3inch DSI Display, 800 × 480, IPS/QLED Panel, Thin and Light Design, Touch Function Optional

4.3″ DSI Dispaly/Touch Display

Integrated Structure | Thin and Light Screen Design

Size4.3″
Resolution800×480
Display InterfaceDSI
Display PanelIPS/QLED
Viewing Angle160°
Touch TypeCapacitive (optional)
Touch Points5-Point (optional)
Touch InterfaceI2C (optional)
Touch PanelToughened Glass
(optional)
ConsumptionLow Power

Certification 1RoHS2.0
Certification 2CE

Version Options

Device & System Support

Raspberry Pi

Supports Raspberry Pi OS, 5-point touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free

Supports Pi 4B/3B+/3A+/3B/2B/B+/A+, CM3/3+/4*

* some CM3/3+/4 base boards require extra adapter cable

Integrated Structure Design

DSI one-cable communication for embedding engineering applications quickly
Provide secondary development resources to help simple development

Working with Raspberry Pi 4B via DSI interface

Working with Raspberry Pi 3B+ via DSI interface

for reference only, the Raspberry Pi boards are not included.

Thinner and more space saving

Integrate the driver circuit into an FPC, only needs 5mm thickness space

IPS Display Panel

Excellent Display Performance With 160° Wide Viewing Angle

QLED Quantum Dot Technology

Wider color gamut

color gamut of this QLED display is up to: sRGB 90%, NTSC 78%

* This function is only available on the QLED version

More pure chroma

chroma of QLED increases 58.3%, makes the color more pure, more vivid

* This function is only available on the QLED version

Longer lifetime

due to its inorganic characteristic, the color life of QLED could be up to 60000 hours without color degradation

* This function is only available on the QLED version

5-Point Capacitive Touch

Gently touch, and see what you get, enjoy multi-point UI interaction via Flexible operation. Adapting touch function with I2C signal, support 5-point touch

* This function is only available on the Touch Display version, the actual touch points depends on the operating system

Adjustable Brightness Via Software

Product show

Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/43H-800480-IPS

DSI Thin & Light Display Selection

PART NUMBER	Resolution	Display Interface	Display Panel	Touch Interface	Touch Panel	Display size(mm)	Product size(mm)
43H-800480-IPS	800×480	DSI	IPS	-	-	95.04×53.86	105.42×67.07
43H-800480-IPS-CT				I2C	G+G	95.04×53.86	106.10×67.80
43H-800480-IPS-CT-B				I2C	G+G	95.04×53.86	112.40×75.10
43H-800480-QLED			QLED	-	-	95.04×53.86	105.42×67.07
43H-800480-QLED-CT			QLED	I2C	G+G	95.04×53.86	106.10×67.80
50H-800480-IPS			IPS	-	-	108.00×64.80	120.70×75.80
50H-800480-IPS-CT			IPS	I2C	G+G	108.00×64.80	127.70×87.45
