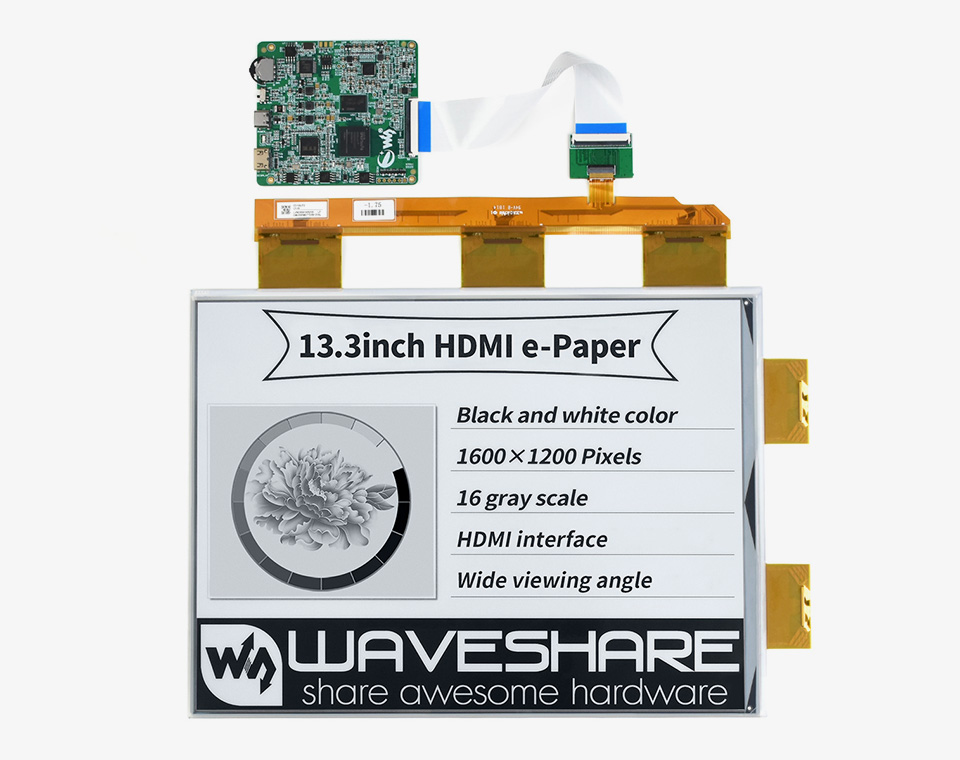

- Description
Details
Paper-like experience, care for your eyes
- Size
13.3″ - Resolution
1600×1200(150DPI) - Display Port
HDMI - Display Panel
E-paper - Viewing Angle
>170° - Display Color
Black and White - Grey Scale
2-16 (1-4bit) - Experience
Paper-like - Environment
Ambient Light Required - Display Type
Passively Reflective - Display Advantage
Eye Care, No Blue Light - Display Adjustment
Mode/Contrast - Device Support
Pi/PC

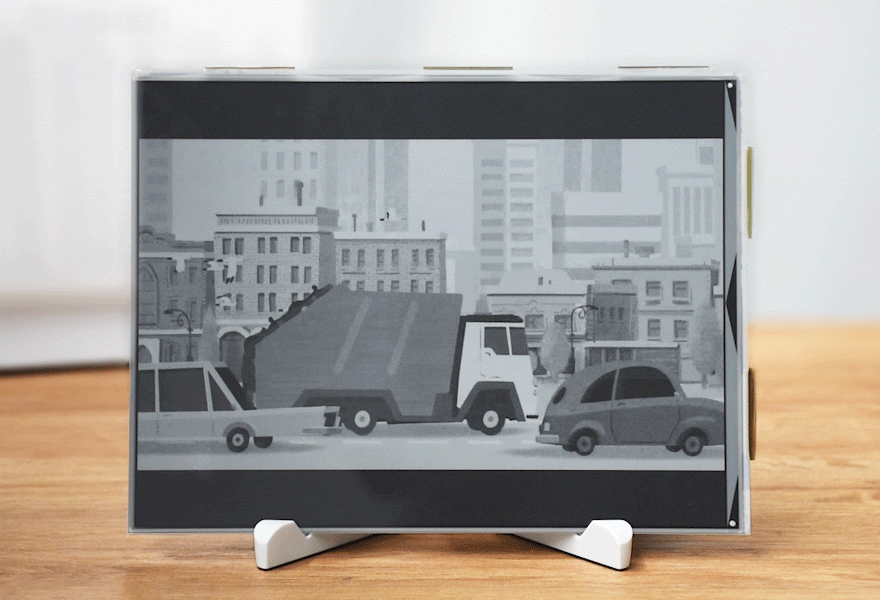

- Limited by display principle, E-paper monitor has lower refresh rate (about 15Hz on mode A2), it only suits office/study applications such as coding, document editing, spreadsheet making, webpage browsing, etc.
- For scenes where high refresh rate is required, say, entertainment or gaming, please choose other normal LCD monitors.
- E-paper monitor reflects ambient light for displaying, without emitting light actively, producing no blue light. It is an ideal choice for people who have to use computer for quite a long time, and are troubled by dry eyes or eyestrain.
- VGA is not available (there may be flickering or distortion caused by the VGA analog signal)
- If your computer has no HDMI port, please feel free to contact us with a picture of the computer connector panel, so that we can recommend a proper adapter.
Supports all versions of Raspberry Pi

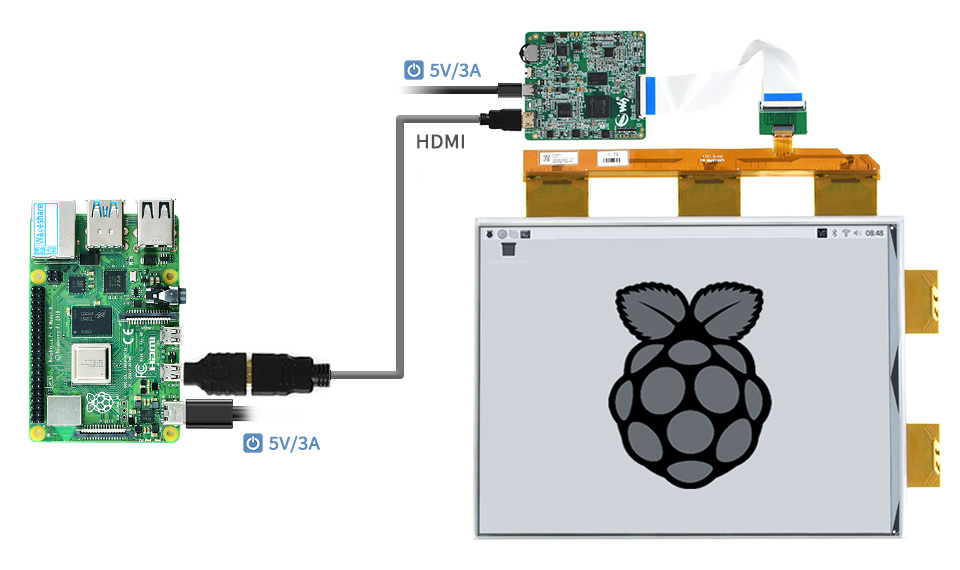

Working with Raspberry Pi (take Pi 4 as example)
Working with Computer
E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

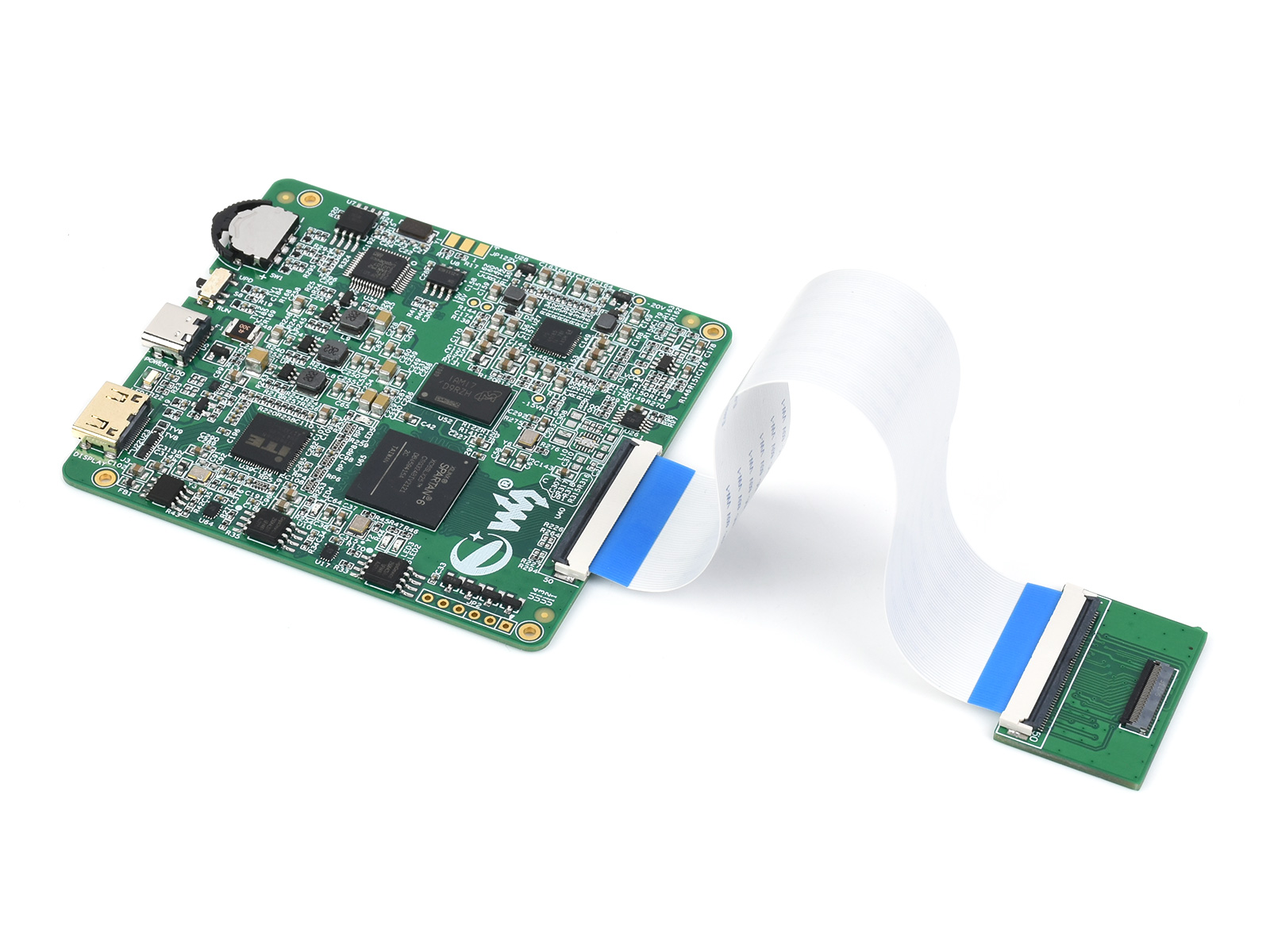

Refresh technology based on FPGA, quick response, low latency
Three available modes: GC16, A2, and A2+, selected via Mode button
Supports up to 10 contrast options, and 5 refresh rate options
Combined with different mode, it is possible to tune your best own effect
For better experience, it is recommended to use rate of 5 for video, and 1-3 for documents.
| Partnumber | Colors | Grayscale | Pixels | DPI | Dimensions (mm) | Features |
|---|---|---|---|---|---|---|
| 7.8inch HDMI e-Paper | black/white | 16 | 1872×1404 | 300 | 158.184×118.638 | - |
| 9.7inch HDMI e-Paper | black/white | 16 | 1200×825 | 150 | 202.8×139.425 | - |
| 10.3inch HDMI e-Paper | black/white | 16 | 1872×1404 | 227 | 209.66×157.25 | - |
| EINK-DISP-103 | black/white | 16 | 1872×1404 | 227 | 238.0×187.0×8.9 | with case |
| 13.3inch HDMI e-Paper | black/white | 16 | 1600×1200 | 150 | 270.4×202.8 | - |
Quick Overview
- 13.3inch e-Paper x1
- Driver board + FPC + adapter board x1
- HDMI cable x1
- HDMI to micro HDMI adapter x1
- OPTIONS 5V 3A power adapter x1
