TVOC (Total Volatile Organic Compounds) Gas Sensor, High Sensitivity, Low Power Consumption, Long Lifespan, Compact Size

SKU:30712
Part No.:TVOC Sensor
Brand:Waveshare

$7.99
PriceQuantity
1
$7.592
$7.393
$7.314+

Details

TVOC (Total Volatile Organic Compounds) Gas Sensor, High Sensitivity, Low Power Consumption, Long Lifespan, Compact Size
TVOC Gas Sensor

Total Volatile Organic Compounds Sensor

for easy integration into air treatment devices and air quality monitors

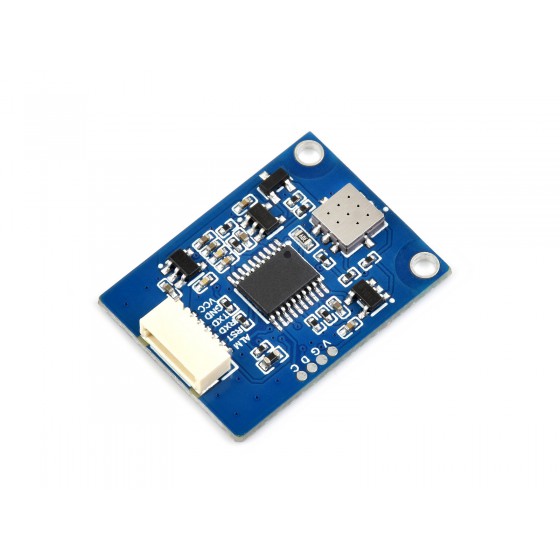

TVOC (Total Volatile Organic Compounds) Gas Sensor, front view
Features at a glance

The TVOC Sensor is an efficient tool for air quality assessment, specifically designed for precise measurement of TVOC (Total Volatile Organic Compounds) gas concentration in the environment. Features excellent adaptability and expandability, and can be customized according to the specific needs of users.

  • Capable of detecting TVOC (Total Volatile Organic Compounds), CO₂ (Carbon Dioxide), and CH₂O (Formaldehyde) concentrations in the environment
  • Supports UART communication
  • High sensitivity, low power consumption, long lifespan, compact size
  • Comes with online development resources and manual (examples for Raspberry Pi / Raspberry Pi Pico / Arduino / ESP32)

Specifications
Operating voltage 5V Logic level 3.3V
Communication interface UART Baud rate 115200bps
Response time < 20s Switch-on time < 120s
Detection range 0.1ppm~100ppm Refresh rate 1Hz
Dimensions 27 × 20 × 4.3 (mm) Mounting hole size 2.0mm
Operating current ≤60mA Operating temperature -20℃~50℃
Operating humidity ≤96%RH Lifespan 5 years

Application Scenarios

Environmental Monitoring

Smart Home Appliances

Smart Industry

Automotive Electronics


UART control interface

supports host boards with UART interface such as Raspberry Pi / Raspberry Pi Pico / Arduino / ESP32...

TVOC (Total Volatile Organic Compounds) Gas Sensor, adopts UART control interface
VCC 5V power input
GND Ground
TXD UART TX pin
RXD UART RX pin
RST Reset pin (low active)
ALM* Alarm pin

* When the TVOC concentration exceeds 2ppm, the ALM pin will become low level.


Hardware connection

Connecting with Raspberry Pi

TVOC (Total Volatile Organic Compounds) Gas Sensor, connecting with Raspberry Pi

Application Example
TVOC (Total Volatile Organic Compounds) Gas Sensor, application example

* for reference only, please refer to the Package Content for detailed part list.


Outline Dimensions
TVOC (Total Volatile Organic Compounds) Gas Sensor, outline dimensions
Resources & Services

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Weight: 0.004 kg

Quick Overview

  1. TVOC Sensor x1
  2. SH1.0 6PIN cable x1
1TVOC Sensor
