TLC1543 ADC Board

SKU:9821
Part No.:TLC1543 ADC Board
Brand:Waveshare

$7.69 DISCONTINUED
PriceQuantity
$7.192+
$6.793+
$6.694+
Description

Details

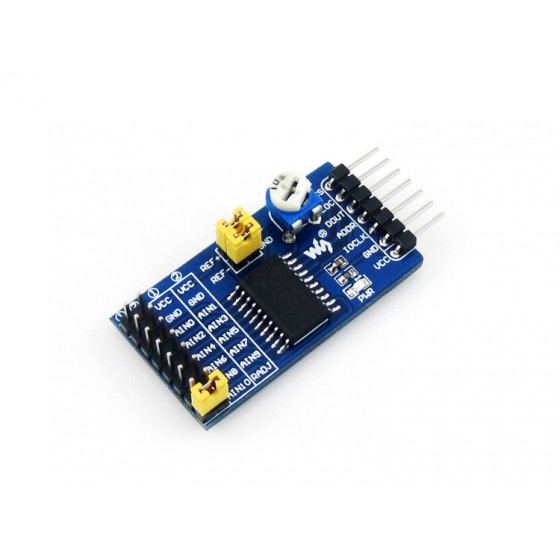

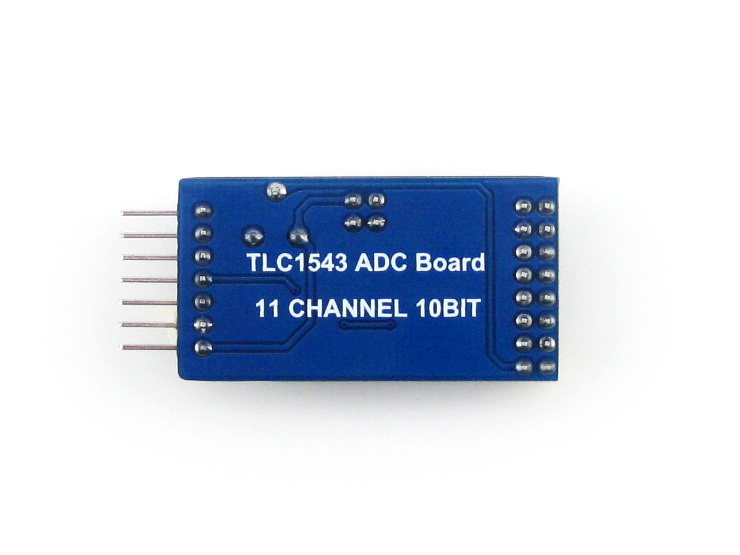

10 Bit ADC Board with Serial Control

Features

  • Onboard switched-capacitor successive-approximation analog-to-digital converter TLC1543
    • resolution : 10Bit
    • analog input : 11ch (AIN0 ~ AIN10)
    • Samples Per Second (SPS) : 38K
    • Serial port
  • Reference voltage pins (REF+, REF-) allow user to select a proper reference voltage
  • Only 3 IOs are required to use this module, suit for systems that don't have sufficient IOs but need multi analog inputs ADC
  • Operating voltage : 3.3V - 5.0V
  • Dimension : 43mm × 23mm

Photos


Downloads

Development resources: demo codes, schematic, datasheets, etc.
Wiki: www.waveshare.com/wiki/TLC1543_ADC_Board

Weight: 0.006 kg

Quick Overview

  1. TLC1543 ADC Board x 1
