Details
80×62 Pixels IR Array
Compact Size | Plug And Play | Aluminum Alloy Case
This is a smartphone IR thermal imaging camera with Aluminum Alloy case that adopts the hybrid technology of microbolometer and thermopile pixel, features 80x62 array pixels. It will detect the IR distribution of objects in the field of view, turn the data into the surface temperature of the objects by calculation, and then generate thermal images. Onboard Type-C port for directly connecting to the smartphone devices, easy to use, plug and play.

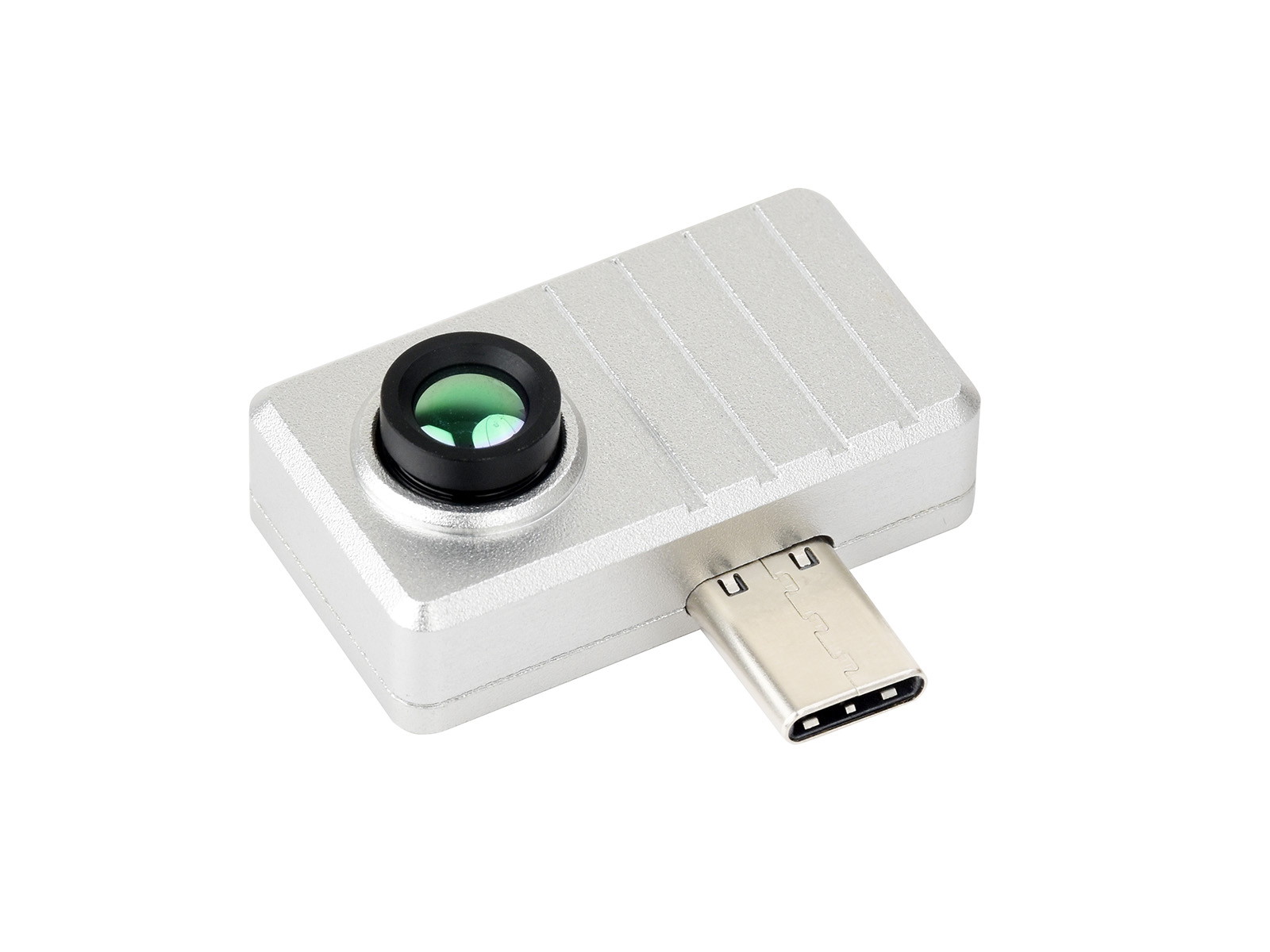

Thermal-45 USB Camera (B)

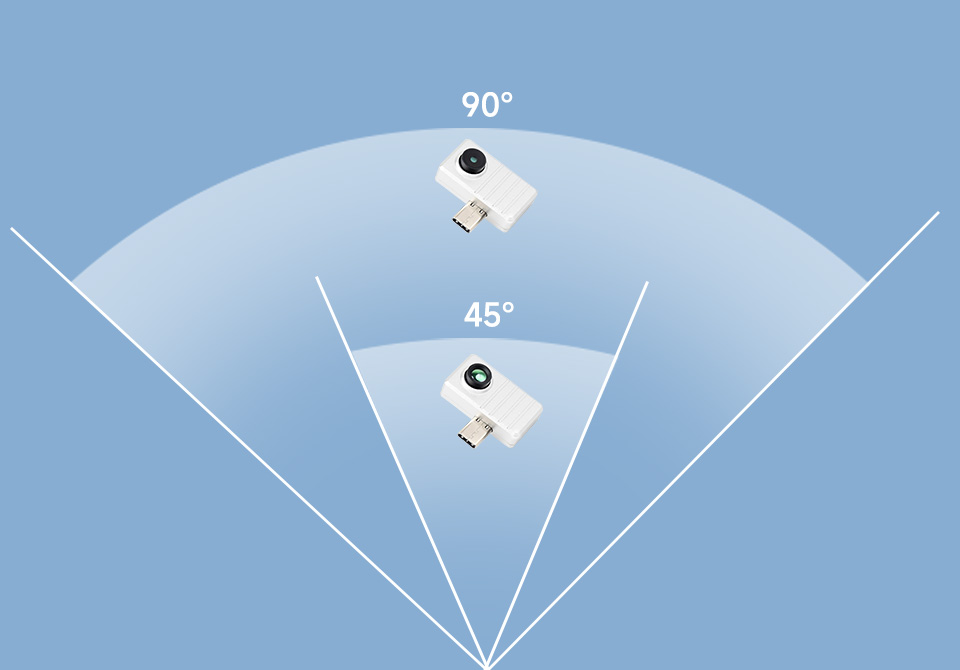

Basic version: 45° FOV

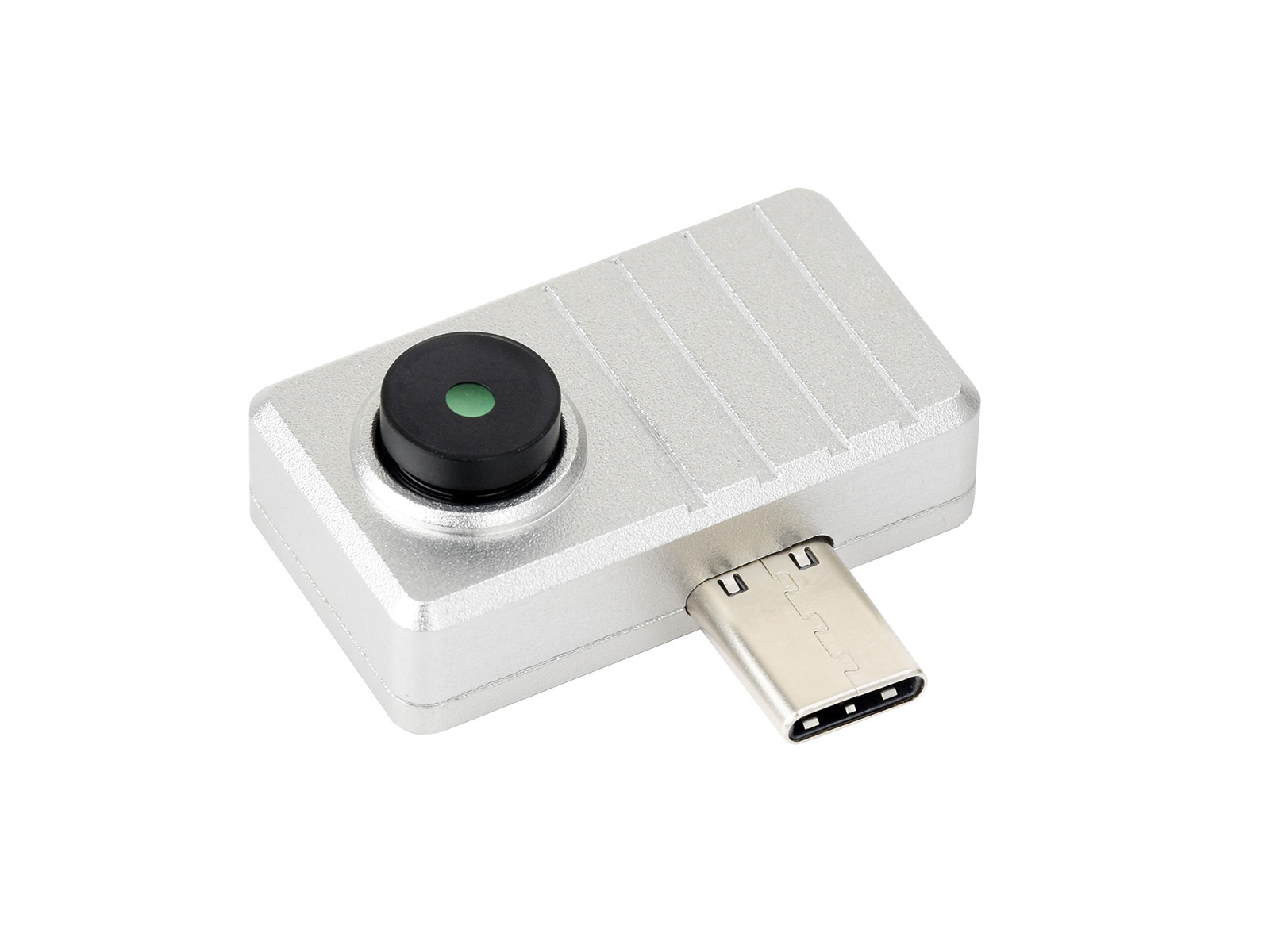

Thermal-90 USB Camera (B)
Wide angle version: 90° FOV
provides smartphone and PC apps
* for reference only, please refer to the Package Content for the detailed part list.
Meet the needs of different scenarios
Supports High frame rate output for smooth temperature recording
The APP provides a variety of image color palettes, supports multiple functions such as high-temperature warning, photo taking, and video recording, etc.

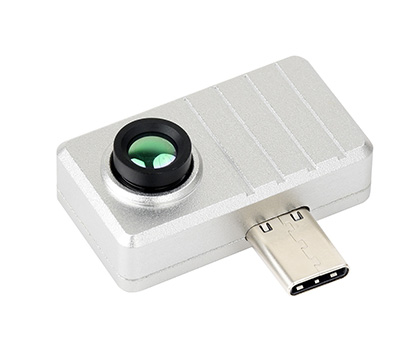

Adopts Aluminum alloy case with dull-polish surface, exquisite design, practical and nice looking
| Thermal Camera HAT | Thermal USB Camera | Thermal-90 Camera HAT | Thermal-90 USB Camera | Thermal-45 Camera HAT (B) | Thermal-45 USB Camera (B) | Thermal-90 Camera HAT (B) | Thermal-90 USB Camera (B) | |
|---|---|---|---|---|---|---|---|---|
| Pixel array | 80×62 | |||||||
| Absolute accuracy | ±2℃ (ambient temp. 10 ~ 70℃) | ±1.5℃ (ambient temp. 10 ~ 70℃) | ||||||
| Target temp. range | -20~400℃ | -40~400℃ | ||||||
| Field of view (FOV) | 45° × 45° | 90° × 68° | 45° × 36° | 90° × 67° | ||||
| Refresh rate | 25FPS | |||||||
| Operating temperature | -20 ~ 85℃ | -40 ~ 85℃ | ||||||
| Current | 61mA | 20mA | ||||||
Quick Overview
Thermal-45 USB Camera (B)
Thermal-45 USB Camera (B) x1
Thermal-90 USB Camera (B)
Thermal-90 USB Camera (B) x1
