Test & Burn-in Sockets Selection Guide
QFP
| Part Number | Related Package | Applicable IC Dimensions (mm) | Socket | ||||
|---|---|---|---|---|---|---|---|
| Pin Count | Pitch | Body Size | Tip-to-Tip | Type | Manufacturer | ||
| IC51-0324-1498 | QFP | 32 | 0.8 | 7 × 7 | 9 × 9 | Clamshell | Yamaichi |
| FPQ-32-0.8-01 | QFP | 32 | 0.8 | 7 × 7 | 9 × 9 | Clamshell | Enplas |
| OTQ-32-0.8-02 | QFP | 32 | 0.8 | 7 × 7 | 9 × 9 | Open Top | Enplas |
| IC234-0444-037 N | QFP | 44 | 0.8 | 10 × 10 | 12 × 12 | Open Top | Yamaichi |
| FPQ-44-0.8-19 | QFP | 44 | 0.8 | 10 × 10 | 12 × 12 | Clamshell | Enplas |
| FPQ-44-0.8-17 | QFP | 44 | 0.8 | 10 × 10 | 12.4 × 12.4 | Clamshell | Enplas |
| FPQ-44-0.8-16A | QFP | 44 | 0.8 | 10 × 10 | 13.2 × 13.2 | Clamshell | Enplas |
| IC51-0444-467 | QFP | 44 | 0.8 | 10 × 10 | 13.9 × 13.9 | Clamshell | Yamaichi |
| IC51-0484-806 | QFP | 48 | 0.5 | 7 × 7 | 9 × 9 | Clamshell | Yamaichi |
| FPQ-48-0.5-06 | QFP | 48 | 0.5 | 7 × 7 | 9 × 9 | Clamshell | Enplas |
| FPQ-52-0.65-04 | QFP | 52 | 0.65 | 10 × 10 | 12 × 12 | Clamshell | Enplas |
| OTQ-64-0.4-01 | QFP | 64 | 0.4 | 7 × 7 | 9 × 9 | Open Top | Enplas |
| IC51-0644-807 | QFP | 64 | 0.5 | 10 × 10 | 12 × 12 | Clamshell | Yamaichi |
| IC51-0644-807-6 | QFP | 64 | 0.5 | 10 × 10 | 12 × 12 | Clamshell | Yamaichi |
| OTQ-64-0.5-01 | QFP | 64 | 0.5 | 10 × 10 | 12 × 12 | Open Top | Enplas |
| FPQ-64-0.5-06 | QFP | 64 | 0.5 | 10 × 10 | 12 × 12 | Clamshell | Enplas |
| OTQ-64-0.5-05 | QFP | 64 | 0.5 | 10.5 × 10.5 | 12 × 12 | Open Top | Enplas |
| FPQ-64-0.8-13 | QFP | 64 | 0.8 | 14 × 14 | 17.2 × 17.2 | Clamshell | Enplas |
| OTQ-64-0.8-01 | QFP | 64 | 0.8 | 14 × 14 | 17.2 × 17.2 | Open Top | Enplas |
| IC51-0644-692 | QFP | 64 | 0.8 | 14 × 14 | 17.2 × 17.2 | Clamshell | Yamaichi |
| IC51-0644-824-3 | QFP | 64 | 0.8 | 14 × 14 | 16.2 × 16.2 | Clamshell | Yamaichi |
| IC51-0644-824 | QFP | 64 | 0.8 | 14 × 14 | 16 × 16 | Clamshell | Yamaichi |
| IC51-0644-824-4 | QFP | 64 | 0.8 | 14 × 14 | 16 × 16 | Clamshell | Yamaichi |
| IC51-0644-824-5 | QFP | 64 | 0.8 | 14 × 14 | 16 × 16 | Clamshell | Yamaichi |
| FPQ-80-0.4-01 | QFP | 80 | 0.4 | 10 × 10 | 12 × 12 | Clamshell | Enplas |
| IC51-0804-808-14 | QFP | 80 | 0.5 | 12 × 12 | 14 × 14 | Clamshell | Yamaichi |
| OTQ-80-0.5-02 | QFP | 80 | 0.5 | 12 × 12 | 14 × 14 | Open Top | Enplas |
| IC51-0804-795 | QFP | 80 | 0.65 | 14 × 14 | 16 × 16 | Clamshell | Yamaichi |
| IC51-0804-956-2 | QFP | 80 | 0.65 | 14 × 14 | 17.2 × 17.2 | Clamshell | Yamaichi |
| IC51-1004-1919-2 | QFP | 100 | 0.4 | 12 × 12 | 14 × 14 | Clamshell | Yamaichi |
| IC51-1004-809 | QFP | 100 | 0.5 | 14 × 14 | 16 × 16 | Clamshell | Yamaichi |
| IC51-1004-809-23 | QFP | 100 | 0.5 | 14 × 14 | 16 × 16 | Clamshell | Yamaichi |
| IC201-1004-008 | QFP | 100 | 0.5 | 14 × 14 | 16 × 16 | Open Top | Yamaichi |
| OTQ-100-0.5-09 | QFP | 100 | 0.5 | 14 × 14 | 16 × 16 | Open Top | Enplas |
| IC51-1004-814-6 | QFP | 100 | 0.65 | 14 × 20 | - | Clamshell | Yamaichi |
| FPQ-128-0.5-03A | QFP | 128 | 0.5 | 20 × 14 | 23.2 × 17.2 | Clamshell | Enplas |
| IC201-1444-026 | QFP | 144 | 0.5 | 20 × 20 | 22 × 22 | Open Top | Yamaichi |
| IC51-1444-1354-7 | QFP | 144 | 0.5 | 20 × 20 | 22 × 22 | Clamshell | Yamaichi |
| FPQ-160-0.65-10 | QFP | 160 | 0.65 | 28 × 28 | 31.2 × 31.2 | Clamshell | Enplas |
| IC51-1764-1505-5 | QFP | 176 | 0.5 | 24 × 24 | 26 × 26 | Clamshell | Yamaichi |
| IC51-2084-1052-11 | QFP | 208 | 0.5 | 28 × 28 | - | Clamshell | Yamaichi |

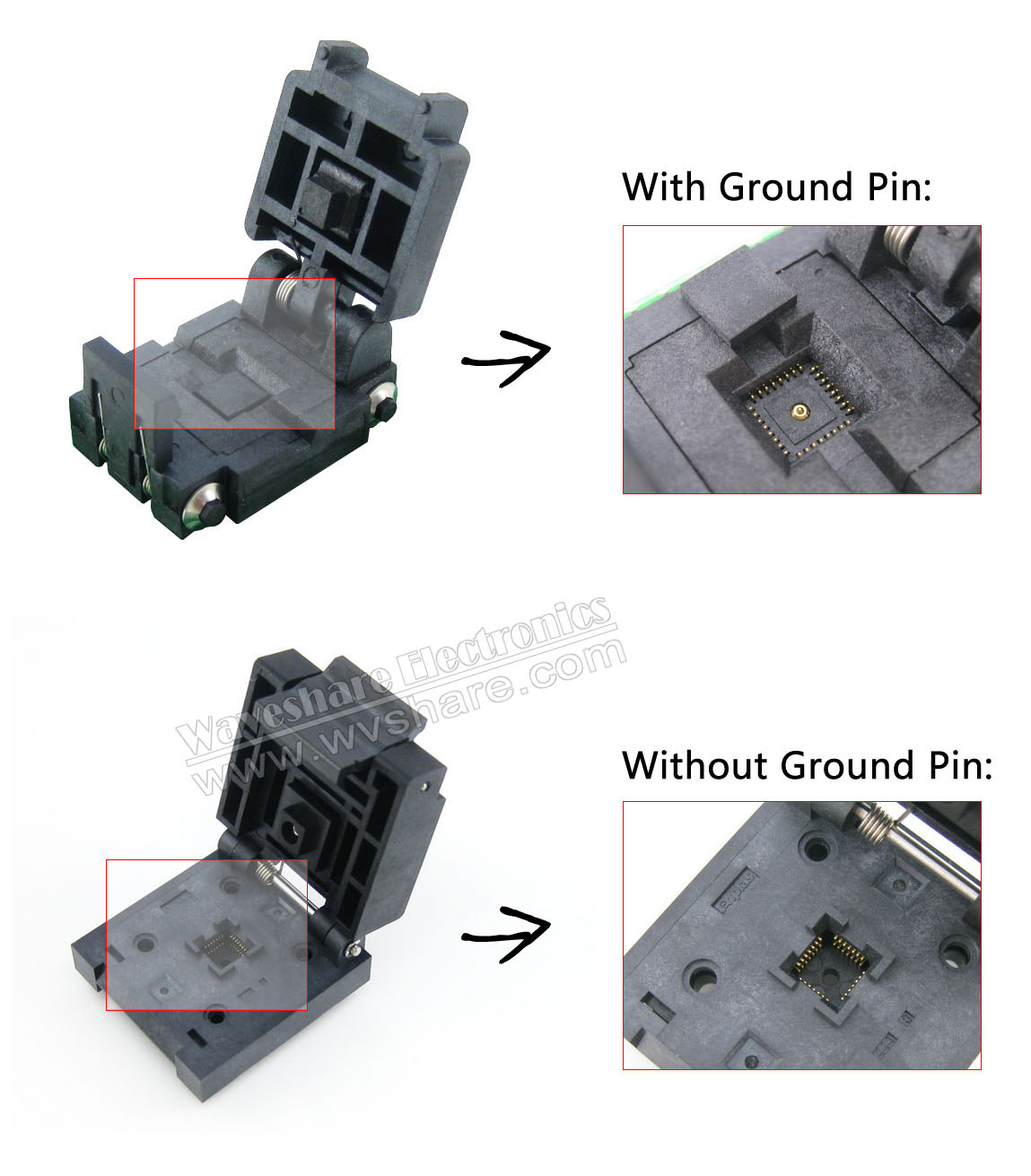

QFN / MLF
| Part Number | Related Package | Applicable IC Dimensions (mm) | Socket | ||||
|---|---|---|---|---|---|---|---|
| Pin Count | Pitch | Body Size | Ground Pin | Type | Manufacturer | ||
| 08QN50T43020 | QFN / MLF | 8(4×2 Side) | 0.5 | 3 × 2 | Yes | Clamshell | Plastronics |
| QFN-8(24)B-0.5-02 | QFN / MLF | 8 | 0.5 | 3 × 3 | None | Clamshell | Enplas |
| QFN-8(16)B-0.65-02 | QFN / MLF | 8 | 0.65 | 3 × 3 | None | Clamshell | Enplas |
| 08QN65T33030 | QFN / MLF | 8(4×2 Side) | 0.65 | 3 × 3 | Yes | Clamshell | Plastronics |
| 08QN12T16050 | QFN / MLF | 8(4×2 Side) | 1.27 | 5.1 × 6.1 | Yes | Clamshell | Plastronics |
| 08TN13A18060 | QFN / MLF | 8(4×2 Side) | 1.3 | 8 × 6 | None | Clamshell | Plastronics |
| QFN-10(20)BT-0.5-02 | QFN / MLF | 10(5×2 Side) | 0.5 | 3 × 3 | Yes | Clamshell | Enplas |
| 16LQ50S23030 | QFN / MLF | 16 | 0.5 | 3 × 3 | Yes | Open Top | Plastronics |
| 16QN50S23030 | QFN / MLF | 16 | 0.5 | 3 × 3 | Yes | Clamshell | Plastronics |
| 16QN50K23030 | QFN / MLF | 16 | 0.5 | 3 × 3 | Yes | Clamshell | Plastronics |
| QFN-16(24)B-0.5-02 | QFN / MLF | 16 | 0.5 | 3 × 3 | None | Clamshell | Enplas |
| 16QN50T14035 | QFN / MLF | 16 | 0.5 | 4 × 3.5 | Yes | Clamshell | Plastronics |
| 16QN65K14040 | QFN / MLF | 16 | 0.65 | 4 × 4 | Yes | Clamshell | Plastronics |
| QFN-16BT-0.65-01 | QFN / MLF | 16 | 0.65 | 4 × 4 | Yes | Clamshell | Enplas |
| 20QN40T13030 | QFN / MLF | 20 | 0.4 | 3 × 3 | Yes | Clamshell | Plastronics |
| 20LQ50S14040 | QFN / MLF | 20 | 0.5 | 4 × 4 | Yes | Open Top | Plastronics |
| QFN-20B-0.5-01 | QFN / MLF | 20 | 0.5 | 4 × 4 | None | Clamshell | Enplas |
| QFN-20BT-0.5-01 | QFN / MLF | 20 | 0.5 | 4 × 4 | Yes | Clamshell | Enplas |
| 24QN50S14040 | QFN / MLF | 24 | 0.5 | 4 × 4 | Yes | Clamshell | Plastronics |
| 24QN50K14040 | QFN / MLF | 24 | 0.5 | 4 × 4 | Yes | Clamshell | Plastronics |
| QFN-24B-0.5-01 | QFN / MLF | 24 | 0.5 | 4 × 4 | None | Clamshell | Enplas |
| QFN-24BT-0.5-01 | QFN / MLF | 24 | 0.5 | 4 × 4 | Yes | Clamshell | Enplas |
| 28QN50S15050 | QFN / MLF | 28 | 0.5 | 5 × 5 | Yes | Clamshell | Plastronics |
| 28QN50K15050 | QFN / MLF | 28 | 0.5 | 5 × 5 | Yes | Clamshell | Plastronics |
| QFN-28(36)B-0.5-02 | QFN / MLF | 28 | 0.5 | 5 × 5 | None | Clamshell | Enplas |
| QFN-28(36)BT-0.5-02 | QFN / MLF | 28 | 0.5 | 5 × 5 | Yes | Clamshell | Enplas |
| 28QN65T16060 | QFN / MLF | 28 | 0.65 | 6 × 6 | Yes | Clamshell | Plastronics |
| QFN-28B-0.65-01 | QFN / MLF | 28 | 0.65 | 6 × 6 | None | Clamshell | Enplas |
| 32QN40TS24040 | QFN / MLF | 32 | 0.4 | 4 × 4 | Yes | Clamshell | Plastronics |
| IC550-0324-007-G | QFN / MLF | 32 | 0.5 | 5 × 5 | Yes | Clamshell | Yamaichi |
| QFN-32(40)B-0.5-02 | QFN / MLF | 32 | 0.5 | 5 × 5 | None | Clamshell | Enplas |
| QFN-32(40)BT-0.5-02 | QFN / MLF | 32 | 0.5 | 5 × 5 | Yes | Clamshell | Enplas |
| 32QN50S15050 | QFN / MLF | 32 | 0.5 | 5 × 5 | Yes | Clamshell | Plastronics |
| 32LQ50S15050 | QFN / MLF | 32 | 0.5 | 5 × 5 | Yes | Open Top | Plastronics |
| QFN-32(40)B-0.65-02 | QFN / MLF | 32 | 0.65 | 7 × 7 | None | Clamshell | Enplas |
| 32QN65S17070 | QFN / MLF | 32 | 0.65 | 7 × 7 | Yes | Clamshell | Plastronics |
| 40QN40S15050 | QFN / MLF | 40 | 0.4 | 5 × 5 | Yes | Clamshell | Plastronics |
| 40QN40K15050 | QFN / MLF | 40 | 0.4 | 5 × 5 | Yes | Clamshell | Plastronics |
| 40QN50S16060 | QFN / MLF | 40 | 0.5 | 6 × 6 | Yes | Clamshell | Plastronics |
| 40QN50K16060 | QFN / MLF | 40 | 0.5 | 6 × 6 | Yes | Clamshell | Plastronics |
| QFN-40B-0.5-01 | QFN / MLF | 40 | 0.5 | 6 × 6 | None | Clamshell | Enplas |
| QFN-40BT-0.5-01 | QFN / MLF | 40 | 0.5 | 6 × 6 | Yes | Clamshell | Enplas |
| QFN-48(52)BT-0.4-01 | QFN / MLF | 48 | 0.4 | 6 × 6 | Yes | Clamshell | Enplas |
| 48QN50S17070 | QFN / MLF | 48 | 0.5 | 7 × 7 | Yes | Clamshell | Plastronics |
| 48QN50K17070 | QFN / MLF | 48 | 0.5 | 7 × 7 | Yes | Clamshell | Plastronics |
| QFN-48(56)B-0.5-01 | QFN / MLF | 48 | 0.5 | 7 × 7 | None | Clamshell | Enplas |
| QFN-48(56)BT-0.5-01 | QFN / MLF | 48 | 0.5 | 7 × 7 | Yes | Clamshell | Enplas |
| QFN-56BT-0.5-01 | QFN / MLF | 56 | 0.5 | 8 × 8 | Yes | Clamshell | Enplas |
| QFN-64B-0.5-01 | QFN / MLF | 64 | 0.5 | 9 × 9 | None | Clamshell | Enplas |
| QFN-64BT-0.5-01 | QFN / MLF | 64 | 0.5 | 9 × 9 | Yes | Clamshell | Enplas |
| QFN-68BT-0.5-01 | QFN / MLF | 68 | 0.5 | 10 × 10 | Yes | Clamshell | Enplas |

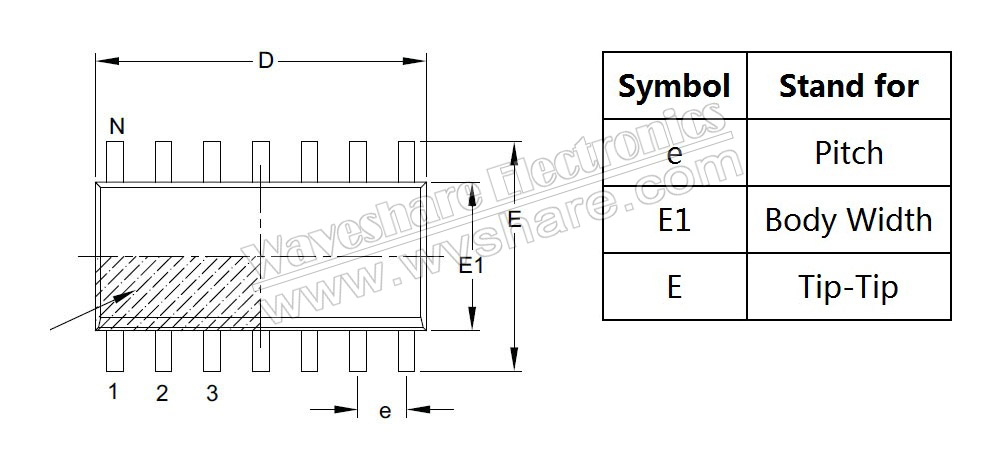

SOP
| Part Number | Related Package | Applicable IC Dimensions (mm) | Socket | ||||
|---|---|---|---|---|---|---|---|
| Pin Count | Pitch | Body Width | Tip-Tip | Type | Manufacturer | ||
| OTS-8(16)-1.27-03 | SOP | 8 | 1.27 | 3.9±0.1 | 6.0±0.2 | Open Top | Enplas |
| OTS-8(20)-1.27-01 | SOP | 8 | 1.27 | 5.4 | 7.9 | Open Top | Enplas |
| OTS-16(20M)-1.27-01 | SOP | 8 × 2 | 1.27 | 5.4 | 7.9 | Open Top | Enplas |
| OTS-14(16)-1.27-03 | SOP | 14 | 1.27 | 3.9±0.1 | 6.0±0.2 | Open Top | Enplas |
| OTS-16-1.27-03 | SOP | 16 | 1.27 | 3.9±0.1 | 6.0±0.2 | Open Top | Enplas |
| FP-16-1.27-05 | SOP | 16 | 1.27 | 3.9 | 6.9 | Clamshell | Enplas |
| IC51-0162-1035 | SOP | 16 | 1.27 | 4.0 | 6.0 | Clamshell | Yamaichi |
| IC51-0162-271-1 | SOP | 16 | 1.27 | 5.5 | - | Clamshell | Yamaichi |
| IC51-0162-271-3 | SOP | 16 | 1.27 | 4.5 | - | Clamshell | Yamaichi |
| OTS-16(20)-1.27-01 | SOP | 16 | 1.27 | 5.4 | 7.9 | Open Top | Enplas |
| OTS-16-1.27-04 | SOP | 16 | 1.27 | 7.5 | 10.4 | Open Top | Enplas |
| OTS-16(28)-1.27-04 | SOP | 16 | 1.27 | 7.5 | 10.4 | Open Top | Enplas |
| FP-20-1.27-06 | SOP | 20 | 1.27 | 5.3 | 7.8 | Clamshell | Enplas |
| OTS-20-1.27-01 | SOP | 20 | 1.27 | 5.4 | 7.9 | Open Top | Enplas |
| OTS-20(28)-1.27-04 | SOP | 20 | 1.27 | 7.5±0.2 | 10.4±0.2 | Open Top | Enplas |
| FP-20(28H)-1.27-07 | SOP | 20 | 1.27 | 7.9 | 10.5 | Clamshell | Enplas |
| OTS-24(28)-1.27-04 | SOP | 24 | 1.27 | 7.5±0.2 | 10.4±0.2 | Open Top | Enplas |
| OTS-28-1.27-04 | SOP | 28 | 1.27 | 7.5±0.2 | 10.4±0.2 | Open Top | Enplas |
| IC51-0282-334-1 | SOP | 28 | 1.27 | 7.5 | 10.3 | Clamshell | Yamaichi |
| FP-28-1.27-07 | SOP | 28 | 1.27 | 7.9 | 10.4 | Clamshell | Enplas |
| OTS-28-1.27-01A | SOP | 28 | 1.27 | 8.6±0.1 | 11.8±0.2 | Open Top | Enplas |
| OTS-28-1.27-23 | SOP | 28 | 1.27 | 8.7 | 11.9±0.1 | Open Top | Enplas |
| OTS-32-1.27-05 | SOP | 32 | 1.27 | MAX9.53 | 12±0.1 | Open Top | Enplas |
| OTS-32-1.27-16 | SOP | 32 | 1.27 | 11.25 | 14.12±0.1 | Open Top | Enplas |
| OTS-44-1.27-03 | SOP | 44 | 1.27 | 13.3±0.1 | 16.0±0.1 | Open Top | Enplas |
SSOP / TSSOP
| Part Number | Related Package | Applicable IC Dimensions (mm) | Socket | ||||
|---|---|---|---|---|---|---|---|
| Pin Count | Pitch | Body Width | Tip-Tip | Type | Manufacturer | ||
| 656-1082211 | (T)SSOP | 8 | 0.65 | 3 | 4.9 | Open Top | Wells |
| OTS-8(24)-0.65-01 | (T)SSOP | 8 | 0.65 | 4.4±0.05 | 6.4±0.05 | Open Top | Enplas |
| OTS-8(28)-0.65-01 | (T)SSOP | 8 | 0.65 | 4.4±0.05 | 6.4±0.05 | Open Top | Enplas |
| OTS-8×2(34)-0.65-01 | (T)SSOP | 8 × 2 | 0.65 | 5.3±0.05 | 7.8±0.2 | Open Top | Enplas |
| 656-0102211 | (T)SSOP | 10 | 0.5 | 3 | 4.88 | Open Top | Wells |
| OTS-14(28)-0.65-01 | (T)SSOP | 14 | 0.65 | 4.4±0.05 | 6.4±0.05 | Open Top | Enplas |
| OTS-14(34)-0.65-01 | (T)SSOP | 14 | 0.65 | 5.3±0.05 | 7.8±0.2 | Open Top | Enplas |
| FP-16-0.65-01A | (T)SSOP | 16 | 0.65 | 4.4 | 6.4 | Clamshell | Enplas |
| OTS-16(24)-0.65-01 | (T)SSOP | 16 | 0.65 | 4.4±0.05 | 6.4±0.05 | Open Top | Enplas |
| OTS-16(28)-0.65-01 | (T)SSOP | 16 | 0.65 | 4.4±0.05 | 6.4±0.05 | Open Top | Enplas |
| OTS-16(34)-0.65-01 | (T)SSOP | 16 | 0.65 | 5.3±0.05 | 7.8±0.2 | Open Top | Enplas |
| FP-20-0.65-01A | (T)SSOP | 20 | 0.65 | 4.4 | 6.4 | Clamshell | Enplas |
| OTS-20(24)-0.65-01 | (T)SSOP | 20 | 0.65 | 4.4±0.05 | 6.4±0.05 | Open Top | Enplas |
| OTS-20(28)-0.65-01 | (T)SSOP | 20 | 0.65 | 4.4±0.05 | 6.4±0.05 | Open Top | Enplas |
| OTS-20(34)-0.65-01 | (T)SSOP | 20 | 0.65 | 5.3±0.05 | 7.8±0.2 | Open Top | Enplas |
| OTS-24-0.65-01 | (T)SSOP | 24 | 0.65 | 4.4±0.05 | 6.4±0.05 | Open Top | Enplas |
| FP-24-0.65-01A | (T)SSOP | 24 | 0.65 | 5.6 | 7.6 | Clamshell | Enplas |
| OTS-28-0.635-02 | (T)SSOP | 28 | 0.635 | 3.94±0.05 | 6±0.05 | Open Top | Enplas |
| OTS-28-0.65-01 | (T)SSOP | 28 | 0.65 | 4.4±0.05 | 6.4±0.05 | Open Top | Enplas |
| OTS-28(34)-0.65-01 | (T)SSOP | 28 | 0.65 | 5.3±0.05 | 7.8±0.2 | Open Top | Enplas |
| OTS-28(44)-0.65-02 | (T)SSOP | 28 | 0.65 | 6.1±0.05 | 8.1±0.05 | Open Top | Enplas |
| OTS-30-0.65-01 | (T)SSOP | 30 | 0.65 | 6.1±0.05 | 8.1±0.1 | Open Top | Enplas |
| OTS-34-0.65-01 | (T)SSOP | 34 | 0.65 | 5.3±0.05 | 7.8±0.2 | Open Top | Enplas |
| OTS-48(64)-0.5-02 | (T)SSOP | 48 | 0.5 | 6.1±0.15 | 8.1±0.1 | Open Top | Enplas |
| IC51-0562-1387 | (T)SSOP | 56 | 0.635 | 7.0 | 10.3 | Clamshell | Yamaichi |
| OTS-64-0.5-01 | (T)SSOP | 64 | 0.5 | 6.1±0.15 | 8.1±0.1 | Open Top | Enplas |
TSOP
| Part Number | Related Package | Applicable IC Dimensions (mm) | Socket | ||||
|---|---|---|---|---|---|---|---|
| Pin Count | Pitch | Body Width | Tip-Tip | Type | Manufacturer | ||
| OTS-28-0.55-03 | TSOP | 28 | 0.55 | 11.8 | 13.4 | Open Top | Enplas |
| OTS-32-0.5-01 | TSOP | 32 | 0.5 | 12.4 | 14 | Open Top | Enplas |
| OTS-32-0.5-08 | TSOP | 32 | 0.5 | 18.4 | 20 | Open Top | Enplas |
| OTS-40-0.5-01 | TSOP | 40 | 0.5 | 18.4 | 20 | Open Top | Enplas |
| OTS-48-0.5-01 | TSOP | 48 | 0.5 | 18.4 | 20 | Open Top | Enplas |
| OTS-48-0.5-12 | TSOP | 48 | 0.5 | 18.4 | 20 | Open Top | Enplas |
| OTS-48-0.5-014 | TSOP | 48 | 0.5 | 18.4 | 20 | Open Top | Enplas |
| 648-0482211-A01 | TSOP | 48 | 0.5 | 18.4 | 20 | Open Top | Wells |
| 648-0482211SA01H | TSOP | 48 | 0.5 | 18.4 | 20 | Open Top | Wells |
| IC354-0482-031P | TSOP | 48 | 0.5 | 18.4 | 20 | Open Top | Yamaichi |
| OTS-52-0.4-01 | TSOP | 52 | 0.4 | 8.9 | 10.5 | Open Top | Enplas |
| 674C1542211-A11 | TSOP | 54 | 0.8 | 10.16 | 11.76 | Open Top | Wells |
| OTS-56-0.5-01 | TSOP | 56 | 0.5 | 18.4 | 20 | Open Top | Enplas |
| OTS-56-0.5-003 | TSOP | 56 | 0.5 | 18.4 | 20 | Open Top | Enplas |
| 648-0562211-A01 | TSOP | 56 | 0.5 | 18.4 | 20 | Open Top | Wells |
MSOP
| Part Number | Related Package | Applicable IC Dimensions (mm) | Socket | ||||
|---|---|---|---|---|---|---|---|
| Pin Count | Pitch | Body Width | Tip-Tip | Type | Manufacturer | ||
| 656-1082211 | MSOP | 8 | 0.65 | 3 | 4.9 | Open Top | Wells |
| 656-0102211 | MSOP | 10 | 0.5 | 3 | 4.88 | Open Top | Wells |
SOT
| Part Number | Related Package | Applicable IC Dimensions (mm) | Socket | ||||
|---|---|---|---|---|---|---|---|
| Pin Count | Pitch | Body Width | Tip-Tip | Type | Manufacturer | ||
| 499-P44-00 | SOT-23 | 6 | 0.95 | 1.3-1.8 | 2.2-3.2 | Clamshell | Wells |
| 499-P44-10 (REV.B) | SOT-23 | 6 | 0.95 | 1.3-1.8 | 2.2-3.2 | Clamshell | Wells |
| 499-P44-20 (REV.A) | SOT-23 | 6 | 0.95 | 1.3-1.8 | 2.2-3.2 | Clamshell | Wells |
PLCC
| Part Number | Related Package | Applicable IC Dimensions (mm) | Socket | |||
|---|---|---|---|---|---|---|
| Pin Count | Pitch | Inserting Direction of IC | Type | Manufacturer | ||
| IC120-0204-205 | PLCC | 20 | 1.27 | Dead-bug | Open Top | Yamaichi |
| PLCC-28-1.27-30 | PLCC | 28 | 1.27 | Dead-bug | Open Top | Enplas |
| IC120-0284-008 | PLCC | 28 | 1.27 | Dead-bug | Open Top | Yamaichi |
| IC120-0284-308 | PLCC | 28 | 1.27 | Live-bug | Open Top | Yamaichi |
| PLCC-32-1.27-30 | PLCC | 32 | 1.27 | Dead-bug | Open Top | Enplas |
| IC120-0324-009 | PLCC | 32 | 1.27 | Dead-bug | Open Top | Yamaichi |
| IC120-0324-309 | PLCC | 32 | 1.27 | Live-bug | Open Top | Yamaichi |
| IC51-0324-453 | PLCC | 32 | 1.27 | Live-bug | Clamshell | Yamaichi |
| IC120-0444-306 | PLCC | 44 | 1.27 | Live-bug | Open Top | Yamaichi |
| IC51-0444-400 | PLCC | 44 | 1.27 | Live-bug | Clamshell | Yamaichi |
| IC51-0524-411-1 | PLCC | 52 | 1.27 | Live-bug | Clamshell | Yamaichi |
| IC120-0684-304 | PLCC | 68 | 1.27 | Live-bug | Open Top | Yamaichi |
DIP
| Part Number | Applicable IC Dimensions (mm) | Manufacturer | ||
|---|---|---|---|---|
| Package | Pitch | Width | ||
| DIP 20 Pin ZIF Socket (Green) | DIP20 | 2.54 | - | OEM |
| DIP 24 Pin ZIF Socket (ARIES Black) | DIP24 | 2.54 | - | ARIES |
| DIP 28 Pin ZIF Socket (Green) | DIP28 | 2.54 | - | OEM |
| DIP 32 Pin ZIF Socket (ARIES Black) | DIP32 | 2.54 | - | ARIES |
| DIP 32 Pin ZIF Socket (Green) | DIP32 | 2.54 | - | OEM |
| DIP 40 Pin ZIF Socket (ARIES Black) | DIP40 | 2.54 | - | ARIES |
| DIP 40 Pin ZIF Socket (Black) | DIP40 | 2.54 | - | OEM |
| DIP 40 Pin ZIF Socket (Green) | DIP40 | 2.54 | - | OEM |
