T26+ ADP, AVR Programmer Adapter

T26+ ADP, AVR Programmer Adapter

SKU:2981
Part No.:T26+ ADP
Brand:Enplas

$25.99 DISCONTINUED
PriceQuantity
1
$24.992
$23.993
$22.994+
Share:
Description

Details

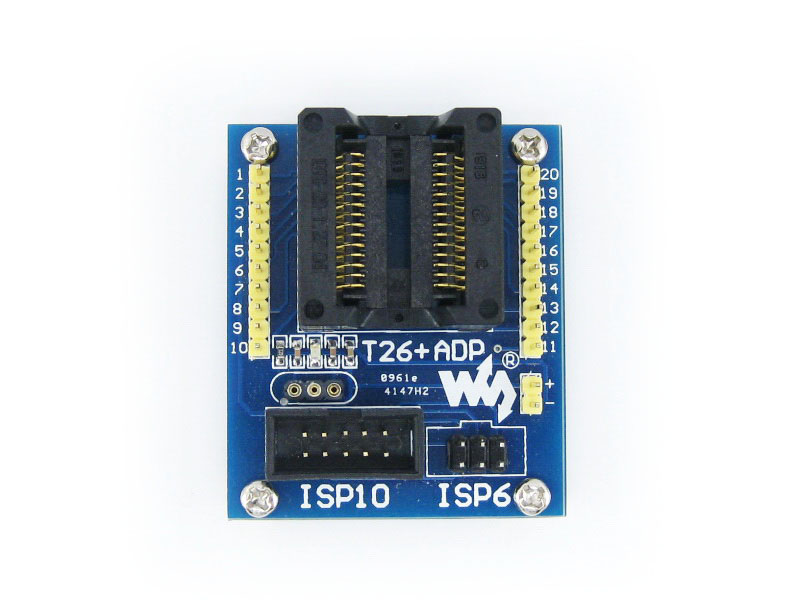

Enplas IC Test & Burn-in Socket with a simple board, especially for AVR SOIC20(300 mil) package

Features

  • 10-pin/6-pin ISP Port for programming or testing
  • External crystal can be connected via on board socket
  • All the MCU pins are accessible on expansion connectors

Supported Devices

ATtiny26 SOIC20(300 mil) package and other pinout compatible devices of the sort

  • ATtiny26/ATtiny261/ATtiny461/ATtiny861

Photos



Outline and Dimensions

Unit: mm
Part Number Pitch Pins A B C D E x F
OTS-28-1.27-04 1.27 20 10.4±0.2 7.5±0.2 9.2±0.2 - 25.4 x 27



ISP Port Header Pinout

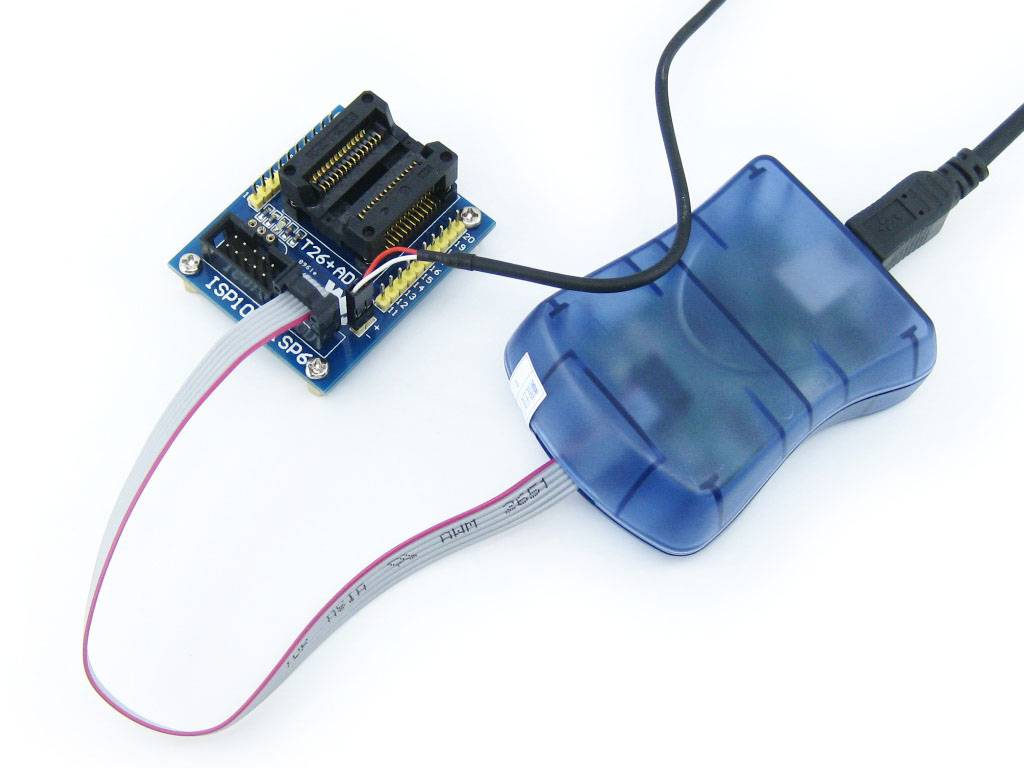

The T26+ ADP houses ISP headers for connecting a programmer. The header pinouts are shown in the figures below.



pinouts for 10-pin ISP Connector
Figure 1. 10-pin ISP header pinout		 pinouts for 6-pin ISP Connector
Figure 2. 6-pin ISP header pinout


Downloads

Development resources:schematic, etc.
Wiki: www.waveshare.com/wiki/T26+_ADP

Weight: 0.037 kg

Quick Overview

  1. T26+ ADP
  2. USB Cable for sourcing power (2-pin connector)
