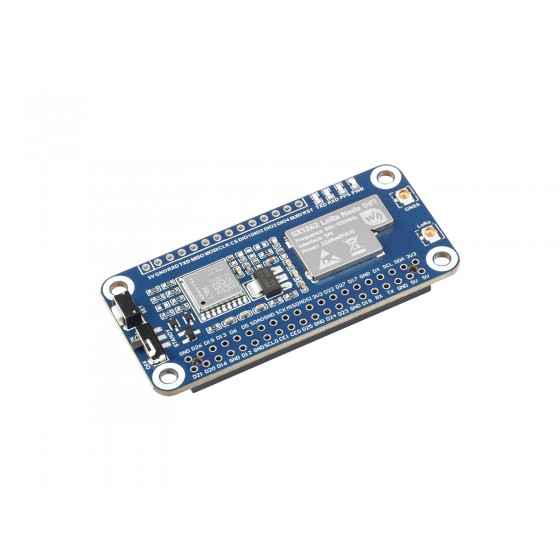

SX1262 RF Chip LoRa Module, Suitable For Sub-GHz Band Network
![](/img/devkit/accBoard/SX1262-868-915M-LoRaWAN-HAT/SX1262-868-915M-LoRaWAN-HAT-details-1.jpg)
This series of products are LoRa modules using the new generation of SX1262 RF chip, with the features of long communication distance and strong anti-interference ability. Suitable for Sub-GHz frequency band network, and is available in LF (410~510MHz) or HF (850~930MHz) frequency band versions. Combined with a LoRa gateway, it can be connected to servers such as TTN to build a LoRaWAN network. In addition to the basic LoRaWAN version, it also provides optional GNSS positioning function with GPS/BD support.
Common features:
- Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi series boards
- The new generation SX1262 has higher power efficiency and longer transmission distance than the SX1278
- Suitable for Sub-GHz band, combined with the gateway, can be quickly connected to a cloud server such as TTN to build a LoRaWAN network
GNSS version features:
- Onboard L76K module with GPS/BD support, provides accurate clock and location info for node module
- Onboard button cell holder, supports ML1220 rechargeable cell, for preserving ephemeris information and hot starts
- Onboard 4 LED indicators for module operating status
- Comes with online development resources and manual (example in C)
LoRaWAN basic version
![](/img/devkit/accBoard/SX1262-868-915M-LoRaWAN-HAT/SX1262-868-915M-LoRaWAN-HAT-details-3-1.jpg)
SX1262 433/470M LoRaWAN HAT
Suitable for LF band, comes with a magnetic CB antenna and an IPEX adapter cable
![](/img/devkit/accBoard/SX1262-868-915M-LoRaWAN-HAT/SX1262-868-915M-LoRaWAN-HAT-details-3-2.jpg)
SX1262 868/915M LoRaWAN HAT
Suitable for HF band, comes with a magnetic CB antenna and an IPEX adapter cable
LoRaWAN/GNSS version
![](/img/devkit/accBoard/SX1262-868-915M-LoRaWAN-HAT/SX1262-868-915M-LoRaWAN-HAT-details-5-1.jpg)
SX1262 433/470M LoRaWAN/GNSS HAT
Suitable for LF band, comes with a magnetic CB antenna, a GPS antenna and IPEX adapter cables (2PCS)
![](/img/devkit/accBoard/SX1262-868-915M-LoRaWAN-HAT/SX1262-868-915M-LoRaWAN-HAT-details-5-2.jpg)
SX1262 868/915M LoRaWAN/GNSS HAT
Suitable for HF band, comes with a magnetic CB antenna, a GPS antenna and IPEX adapter cables (2PCS)
* Please select the frequency version according to the local radio management regulations
LoRa parameters | |
---|---|
RF Chip | SX1262 |
Frequency Band | LF: 410 ~ 510MHz HF: 850 ~ 930MHz |
modulation | LoRa / (G)FSK |
Data rate | LoRa: 0.018 ~ 62.5Kbps (G)FSK: 0.6 ~ 300Kbps |
EMIT POWER | [email protected] |
spreading factor | SF7 ~ SF12 |
Operating voltage | 3.3V |
Module current consumption | emitting current: 107mA@22dBm receiving current: 5.3mA@125KHz |
communication bus | SPI |
Operating temperature | 0 ~ 50℃ |
INTERFACE | 40PIN GPIO header |
GNSS parameters | |
GNSS module | L76K |
GNSS type | GPS/GLONASS/BDS/QZSS |
L1 BAND RECEIVER (CHANNELS) | 32 Tracking ch/72 Acquisition ch |
A-GNSS | support |
Receiving sensitivity (ACQUISITION, RE-ACQUISITION, TRACKING) |
-148dBm, -160dBm, -162dBm |
TTFF (TIME TO FIRST FIX) cold starts |
30s, Autonomous 5.5s, With AGNSS |
POSITION ACCURACY | 2.0m CEP |
Speed accuracy | 0.1m/s |
Acceleration accuracy (Max) | 0.1m/s² |
UART rate | Range: 4800~115200bps Default: 9600bps |
GNSS data update rate | Max: 5Hz Default: 1Hz |
![](/img/devkit/accBoard/SX1262-868-915M-LoRaWAN-HAT/SX1262-868-915M-LoRaWAN-HAT-details-inter.jpg)
![](/img/devkit/accBoard/SX1262-868-915M-LoRaWAN-HAT/SX1262-868-915M-LoRaWAN-HAT-details-intro.jpg)
- SX1262
LoRa module - L76K
GNSS module - Power chip
5V to 3.3V LDO - GPS STANDY mode ON/OFF
OFF: turn off STANDY and GPS works normally
ON: turn on STANDY, GPS stops outputting NMEA - SET button
Press to wake up the GNSS module in sleep mode
- GNSS module IPEX 1 connector
L76K antenna connector - LoRa module IPEX 1 connector
LoRa antenna connector - Status Indicator
PWR: power indicator
RXD/TXD: UART RX/TX indicator
PPS: GPS status indicator - Raspberry Pi 40PIN GPIO header
for connecting with Raspberry Pi series boards - LoRa module and GNSS module pin header
Industrial control, intelligent home, and data acquisition...
![](/img/devkit/accBoard/SX1262-868-915M-LoRaWAN-HAT/SX1262-868-915M-LoRaWAN-HAT-details-7.jpg)
![](/img/devkit/accBoard/SX1262-868-915M-LoRaWAN-HAT/SX1262-868-915M-LoRaWAN-HAT-details-9.jpg)
![](/img/devkit/accBoard/SX1262-868-915M-LoRaWAN-HAT/SX1262-868-915M-LoRaWAN-HAT-details-11.jpg)
![](/img/devkit/accBoard/SX1262-868-915M-LoRaWAN-HAT/SX1262-868-915M-LoRaWAN-HAT-details-size.jpg)
Weight: 0.138 kg
Quick Overview
SX1262 433/470M LoRaWAN HAT
- SX1262 433/470M LoRaWAN HAT x1
- 433/470M Magnetic CB antenna x1
- IPEX to SMA adapter cable ~17cm x1
- Screws pack x1
- 2×20PIN female pinheader x1
SX1262 868/915M LoRaWAN HAT
- SX1262 868/915M LoRaWAN HAT x1
- 868/915M Magnetic CB antenna x1
- IPEX to SMA adapter cable ~17cm x1
- Screws pack x1
- 2×20PIN female pinheader x1
SX1262 433/470M LoRaWAN/GNSS HAT
- SX1262 433/470M LoRaWAN/GNSS HAT x1
- 433/470M Magnetic CB antenna x1
- GPS antenna x1
- IPEX to SMA adapter cable ~17cm x2
- Screws pack x1
- 2×20PIN female pinheader x1
SX1262 868/915M LoRaWAN/GNSS HAT
- SX1262 868/915M LoRaWAN/GNSS HAT x1
- 868/915M Magnetic CB antenna x1
- GPS antenna x1
- IPEX to SMA adapter cable ~17cm x2
- Screws pack x1
- 2×20PIN female pinheader x1
