Details

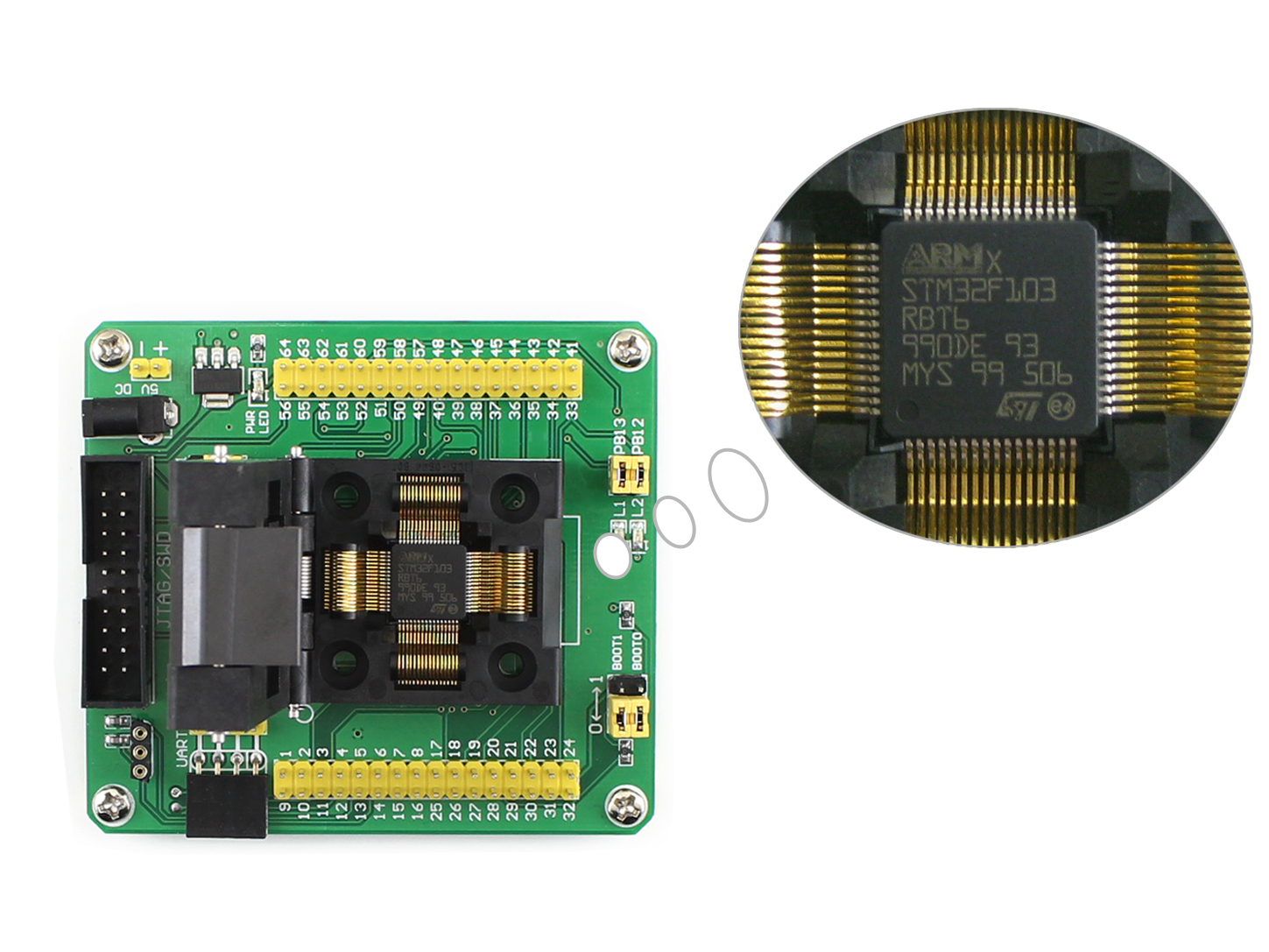

Yamaichi IC Test & Burn-in Socket with a simple board, specifically designed for STM32 microcontroller in QFP64(0.5mm pitch) package
Features
- 20-pin JTAG/SWD port and/or 4-pin USART1 interface for programming/testing
- External crystal can be connected via on board socket for system clock
- Onboard 32.768K crystal oscillator
- Two LED indicators for testing, which are connected to the I/O pins via jumpers
- All the MCU pins are accessible on expansion connectors
- pin header pitch: 2.54mm(100mil)
Supported Devices
STM32 microcontroller in QFP64(0.5mm pitch) package with compatible pinouts:
- STM32L1xxR series (STM32L151R8, STM32L152RB, etc.)
- STM32F0xxR series (STM32F051RC, STM32F051RB, etc.)
- STM32F1xxR series (STM32F103RC, STM32F100RB, etc.)
- STM32F2xxR series (STM32F207RC, STM32F215RB, etc.)
- STM32F3xxR series (STM32F303R8, STM32F373RB, etc.)
- STM32F4xxR series (STM32F407RC, STM32F415RB, etc.)
Config the onboard "Device selection jumpers" according to the device to be programmed.
Outline and Dimensions
Unit: mm
| Part Number | Pitch | Pins | Applicable IC Dimensions (REF.) | Outside Dimensions (REF.) | |||
|---|---|---|---|---|---|---|---|
| A x B | C x D | E | F | G x H | |||
| IC51-0644-807 | 0.5 | 64 | 10.0 x 10.0 | 12.0 x 12.0 | 11.3 | - | 32.0 x 35.0 |
 |
|||||||
Photos

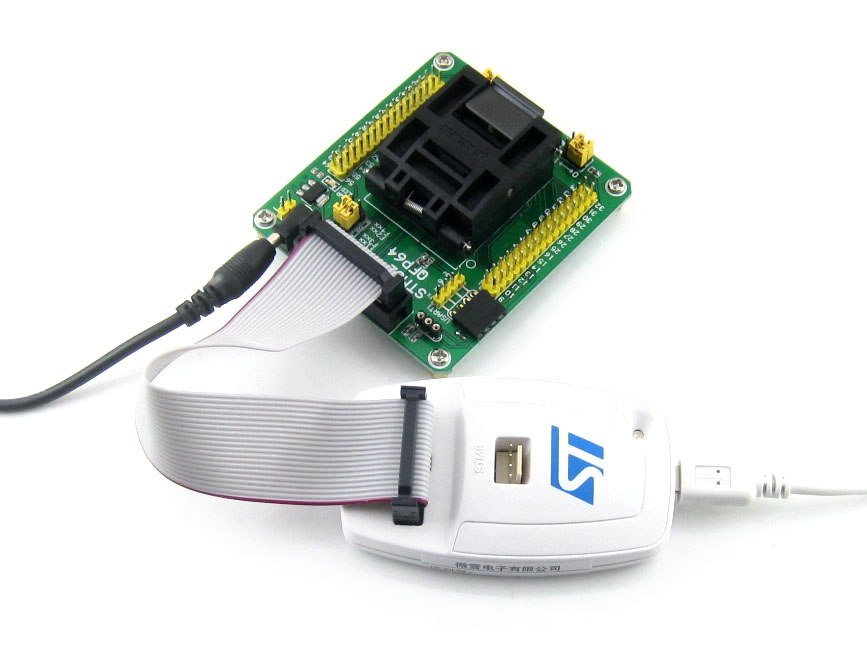

- JTAG/SWD port
- for programming/debugging/testing
- compatible with ST-LINK / J-LINK / ULINK2 / STX-RLINK
- USART1 port
- supports ISP and/or serial port debugging
- LED indicators
- for quick testing
- Pin headers connected to MCU pins
- clearly labeled with onboard marks
- easy for testing and further expansion
- Boot mode configuration
- configuring the BOOT0 and BOOT1 via jumpers
- 3.3V onboard regulator
- AMS1117-3.3
- 5V power input
- DC jack or 2-pin header
- External crystal socket
- insert crystal to the holes on two sides, leave alone the middle hole
- Power indicator
- Device selection jumpers
- short the upper headers for STM32F1xx / STM32L1xx / STM32F05x / STM32F3xx
- short the lower headers for STM32F2xx / STM32F4xx
- LED jumpers
- short the jumpers to connect LEDs to MCU I/O pins for testing
- open the jumpers to disconnect
- 32.768K crystal (on bottom side)
- for internal RTC with calibration
JTAG/SWD Connector Layout
The STM32-QFP64 houses JTAG/SWD headers for connecting a programmer. The connector layout is shown in the figure 1 below.
Figure 1. JTAG/SWD connector layout
Boot Mode Configuration
Depending on the used pin configuration, the Flash memory, system memory or SRAM is selected as the boot space, as shown in Table 1 below.
Downloads
Development resources:schematic, etc.
Wiki:
www.waveshare.com/wiki/STM32-QFP64
Weight: 0.09 kg
Quick Overview
- STM32-QFP64 × 1
- USB power cable × 1
