STM32-QFP144, Programmer Adapter

SKU:3469
Part No.:STM32-QFP144
Brand:Yamaichi

$110.99
PriceQuantity
$108.992+
$106.993+
$104.994+
Description

Details

Yamaichi IC Test & Burn-in Socket with a simple board, specifically designed for STM32 microcontroller in QFP144(0.5mm pitch) package

Features

  • 20-pin JTAG/SWD port and/or 4-pin USART1 interface for programming/testing
  • External crystal can be connected via on board socket for system clock
  • Onboard 32.768K crystal oscillator
  • Two LED indicators for testing, which are connected to the I/O pins via jumpers
  • All the MCU pins are accessible on expansion connectors
    • pin header pitch: 2.54mm(100mil)

Supported Devices

STM32 microcontroller in QFP144(0.5mm pitch) package with compatible pinouts:

  • STM32F10xZ series (STM32F103ZE, STM32F100ZC, etc.)
  • STM32L1xxZ series (STM32L151ZC, STM32L151ZD, etc.)
  • STM32F2xxZ series (STM32F207ZG, STM32F215ZG, etc.)
  • STM32F4xxZ series (STM32F407ZG, STM32F415ZG, etc.)

Config the onboard "Device selection jumpers" according to the device to be programmed.

Outline and Dimensions

Unit: mm
Part NumberPitchPinsApplicable IC Dimensions (REF.)Outside Dimensions (REF.)
A x BC x DEFG x H
IC51-1444-1354-7 0.5 144 20 × 20 22 × 22 21.3 - 43 × 47

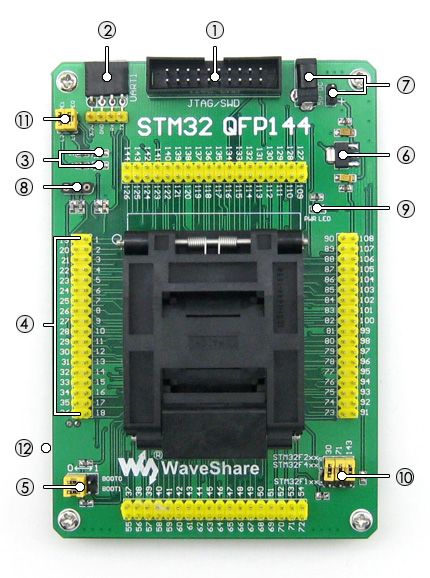

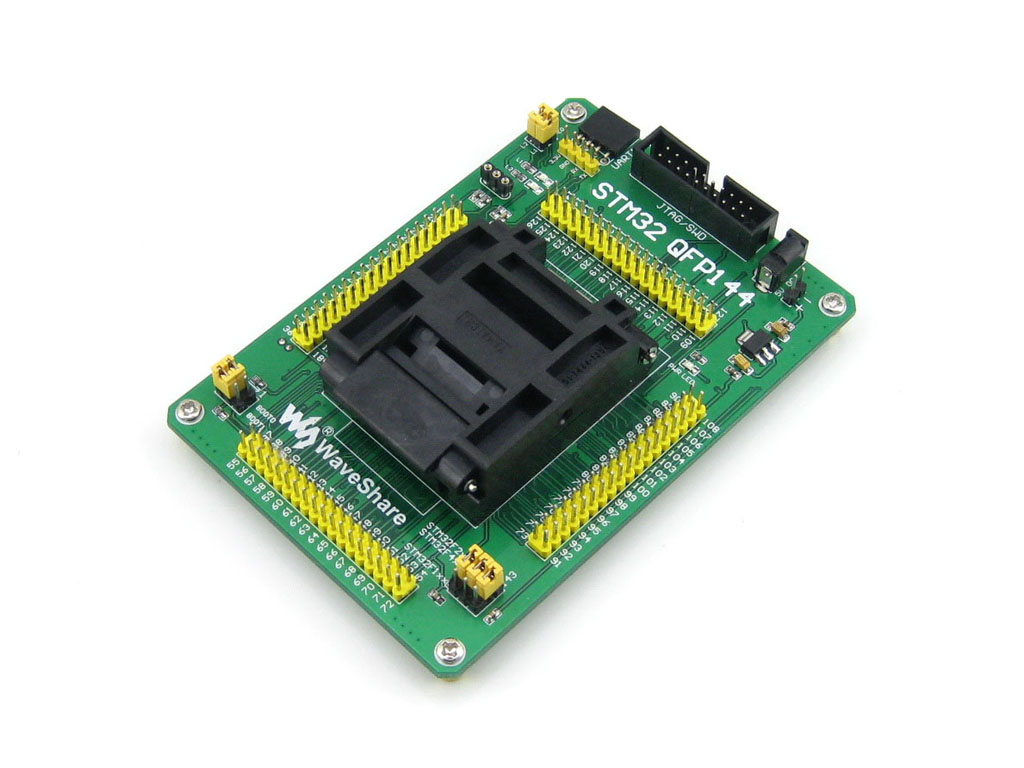

Photos

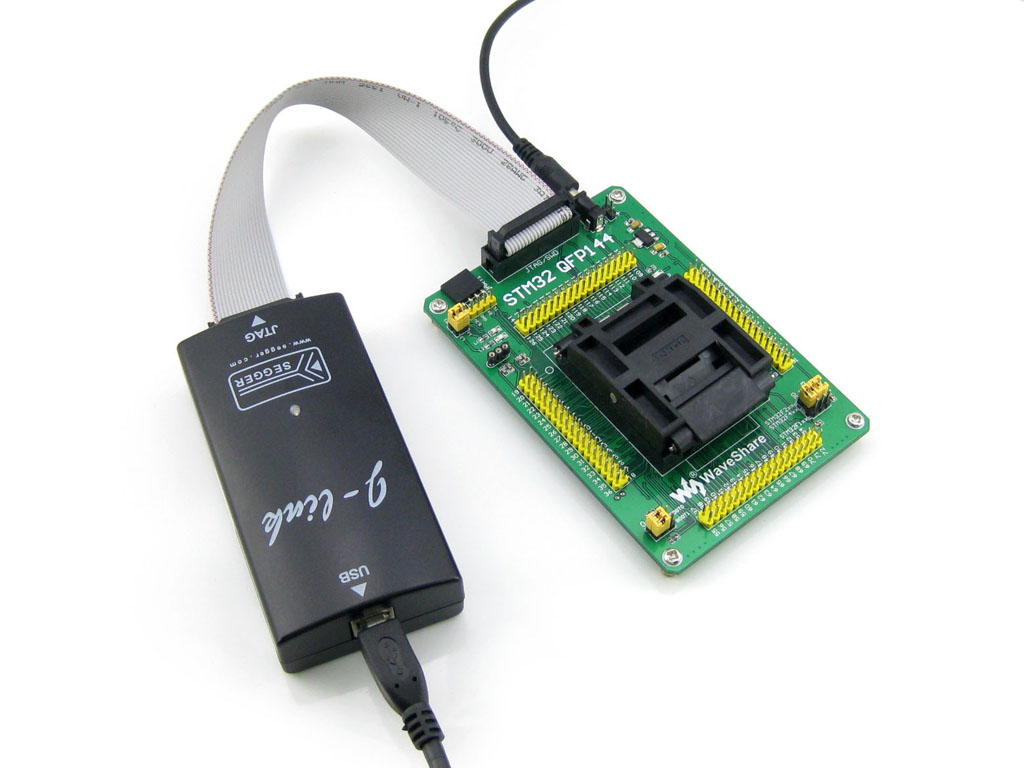

  1. JTAG/SWD port
    • for programming/debugging/testing
    • compatible with ST-LINK / J-LINK / ULINK2 / STX-RLINK

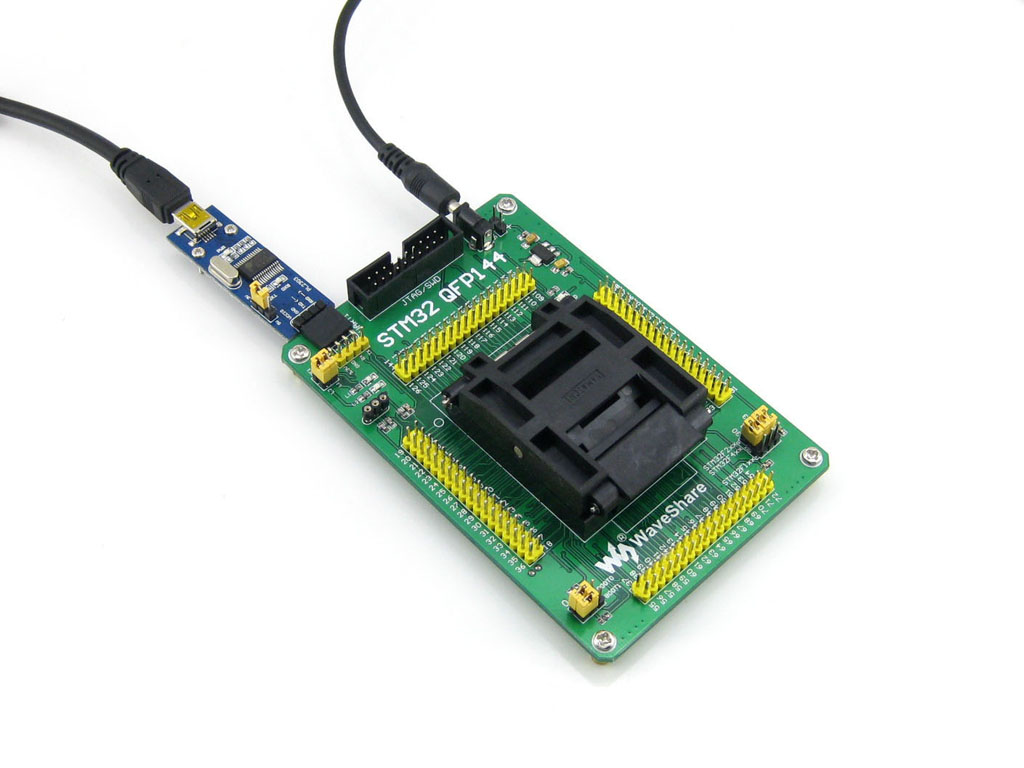

  2. USART1 port
    • supports ISP and/or serial port debugging
  3. LED indicators
    • for quick testing
  4. Pin headers connected to MCU pins
    • clearly labeled with onboard marks
    • easy for testing and further expansion
  5. Boot mode configuration
    • configuring the BOOT0 and BOOT1 via jumpers
  6. 3.3V onboard regulator
    • AMS1117-3.3
  7. 5V power input
    • DC jack or 2-pin header
  8. External crystal socket
    • insert crystal to the holes on two sides, leave alone the middle hole
  9. Power indicator
  10. Device selection jumpers
    • short the upper headers for STM32F2xx / STM32F4xx
    • short the lower headers for STM32F1xx / STM32L1xx
  11. LED jumpers
    • short the jumpers to connect LEDs to MCU I/O pins for testing
    • open the jumpers to disconnect

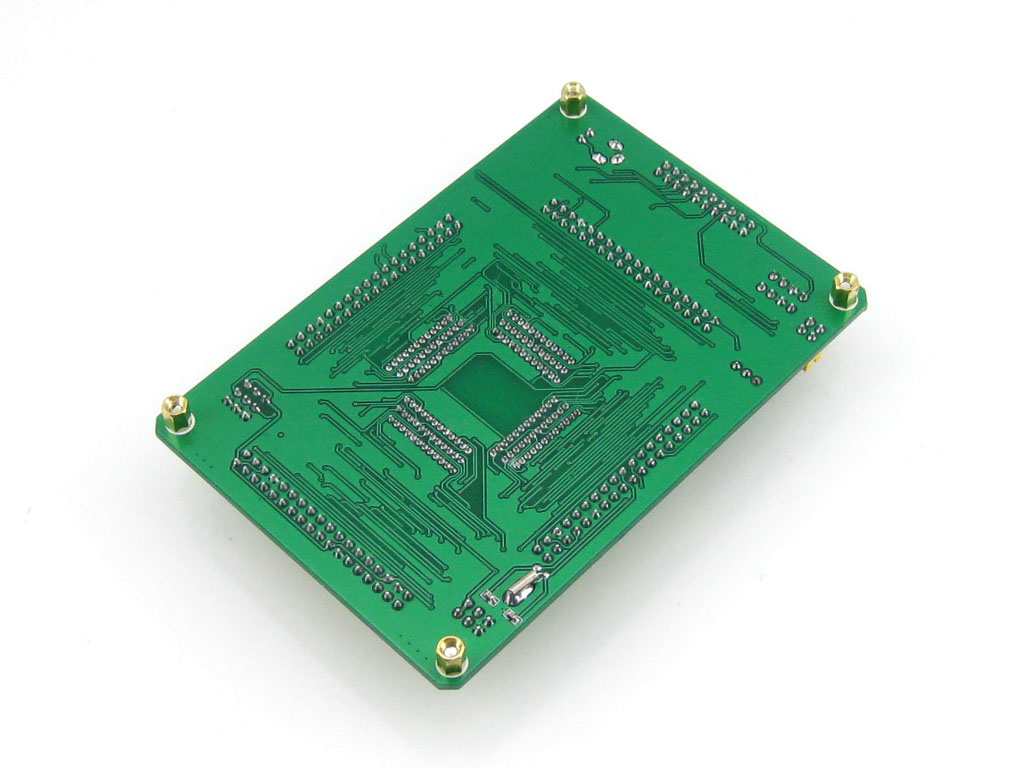

  12. 32.768K crystal (on bottom side)
    • for internal RTC with calibration



JTAG/SWD Connector Layout

The STM32-QFP144 houses JTAG/SWD headers for connecting a programmer. The connector layout is shown in the figure 1 below.

JTAG/SWD connector layout

Figure 1. JTAG/SWD connector layout

Boot Mode Configuration

Depending on the used pin configuration, the Flash memory, system memory or SRAM is selected as the boot space, as shown in Table 1 below.

STM32 boot mode configuration



Downloads

Development resources:schematic, etc.
Wiki: www.waveshare.com/wiki/STM32-QFP144

Weight: 0.128 kg

Quick Overview

  1. STM32-QFP144 × 1
  2. USB power cable × 1
