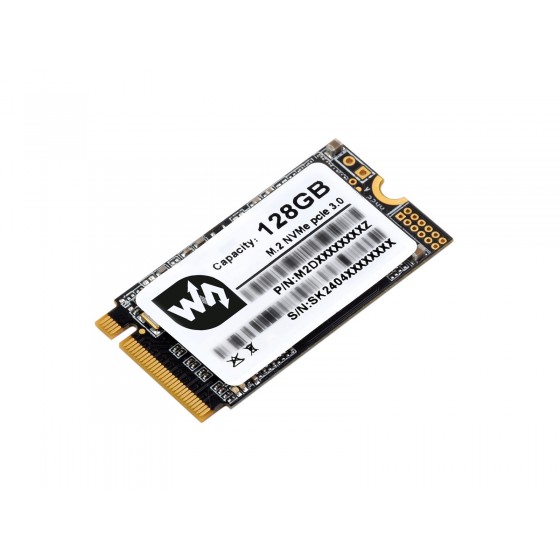

SK M2 NVME 2242 128GB / 256GB High-speed Solid State Drive, High-quality 3D TLC Flash Memory, High-speed Reading/Writing, More Reliable & Durable
SK M2 NVME Solid State Drive
NVMe Protocol M.2 Interface, High-speed Reading/Writing
Features at a glance
- PCIe Gen3 x4 interface
- Supports static and dynamic wear leveling and bad block management
- Supports queue depth of 64K
- Supports 2KB LDPC ECC engine and RAID
- Supports SMART and TRIM commands
Version Options
SK-NVME 2242 128G SSD-M.2
128GB Version
SK-NVME 2242 256G SSD-M.2
256GB Version
3D TLC High-quality Flash Memory
offers faster IO transfer speed with high density to further release more reading and writing performance, and providing better reliability and durability
Faster Reading/Writing
* The data above comes from Waveshare testing, for reference only. The actual speed may vary depending on the configuration, and system platform of your computer.
Specifications
| Interface | M.2 NVMe PCIe 3.0 |
|---|---|
| Dimensions | 22×42×3.5 mm |
| NAND Flash Memory | 3D TLC Flash |
| Operating Temperature | 0°C - 70°C |
| Device support | Laptops / PCs / All-in-one hosts, etc. |
| Certificate | CE, RoHS, FCC, REACH |
| System support | Windows, Raspberry Pi OS, CentOS, Ubuntu, Linux |
Quick Overview
SK-NVME 2242 128G SSD-M.2
SK-NVME 2242 128G SSD-M.2 x1
SK-NVME 2242 256G SSD-M.2
SK-NVME 2242 256G SSD-M.2 x1
