Prohibited by the module manufacturer SIMCOM, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.
SIM7600NA-H 4G HAT For Raspberry Pi, LTE Cat-4 4G Support, GNSS Positioning, for North America
SIM7600NA-H 4G HAT for Raspberry Pi
enabling LTE Cat-4 4G communication & GNSS positioning
Features at a glance
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
- Supports dial-up, telephone call, SMS, TCP, UDP, DTMF, HTTP, FTP, etc.
- Supports GPS, BeiDou, Glonass, GALILEO, QZSS, LBS base station positioning
- Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
- Onboard CP2102 USB to UART converter, for serial debugging
- Breakout UART control pins, to connect with host boards like Arduino/STM32
- SIM card slot, supports 1.8V/3V SIM card
- Onboard audio jack and audio decoder for making telephone call
- 2x LED indicators, easy to monitor the operating status
- Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via resistor pad
- Baudrate: 300bps ~ 4Mbps (default: 115200bps)
- Autobauding baudrate: 9600bps ~ 115200bps
- Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
- Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT
- Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Specifications
| Frequency band | |
|---|---|
| LTE Cat-4 | LTE-FDD: B2/B4/B5/B12/B13/B14/B25/B26/B66/B71 |
| LTE-TDD: B41 | |
| GNSS | |
| Receiver type | 16-channel |
| C/A Code | |
| Sensitivity | -159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BeiDou) |
| Cold starts: -148 dBm | |
| Time-To-First-Fix (open air) | Cold starts: <35s |
| Hot starts: <1s | |
| SMS and Audio | |
| SMS | Supported types: MT, MO, CB, Text, PDU |
| Storage: USIM card and ME (default) | |
| Audio feature | Supports echo cancellation |
| Supports noise reduction | |
| Other | |
| Power supply | 5V |
| Operating voltage | 5V / 3.3V (configured via jumper) |
| Operating temperature | -30°C ~ 80°C |
| Storage temperature | -45°C ~ 90°C |
| Dimensions | 56mm × 65mm |

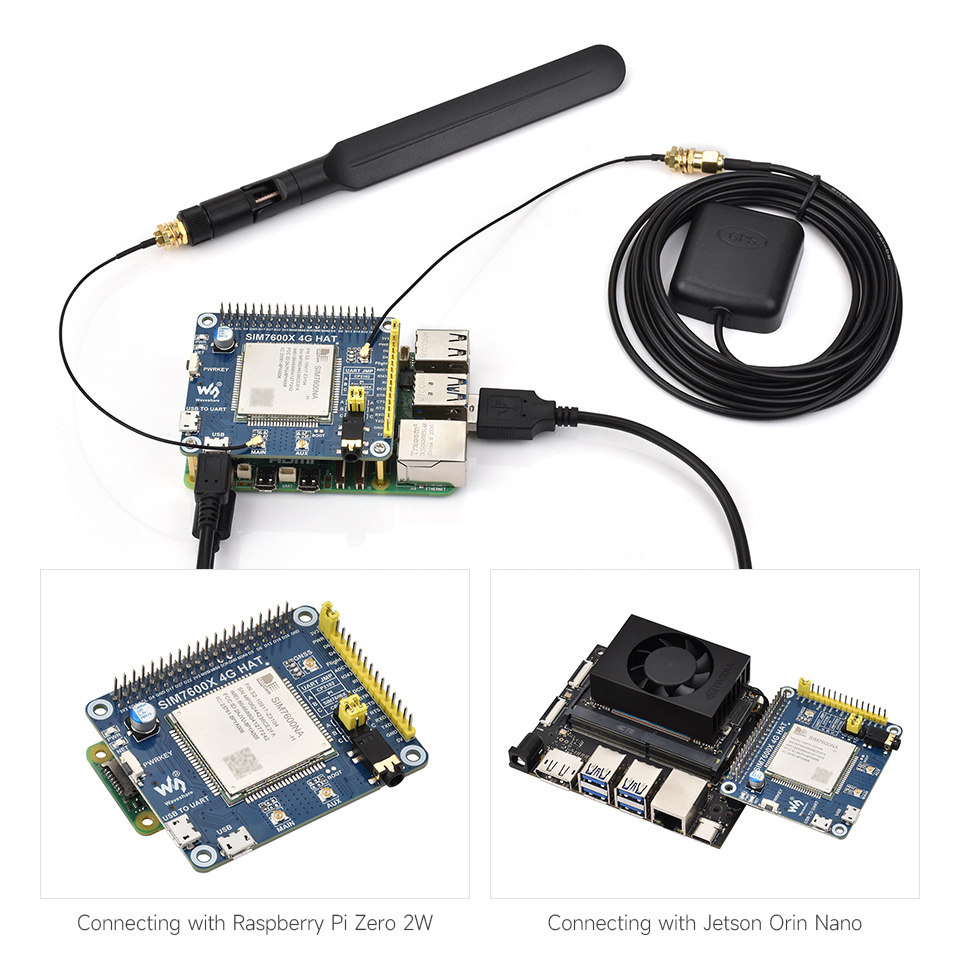

Standard Raspberry Pi 40PIN GPIO
Compatible with Raspberry Pi series boards, Jetson Nano
* for reference only, the above controller boards are NOT included.
Frequency band support
supports 4G frequency band for North America,
including United States, Canada...
Dial-up on Windows/Linux
LTE Cat-4: up to 50Mbps (uplink) / up to 150Mbps (downlink) *
* stands for idealized data rate, the actual data rate depends on factors like network coverage, traffic congestion, base station condition, etc.

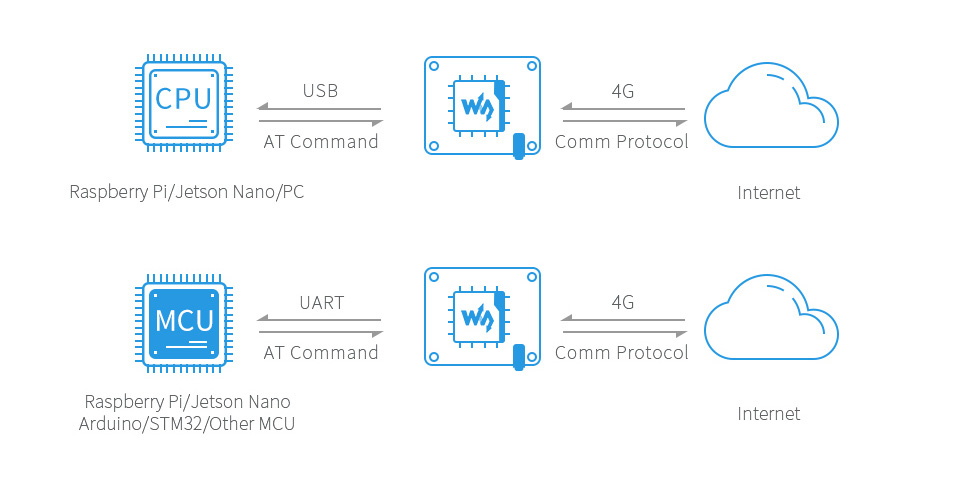

Cloud Communication
Supports communication protocols including TCP/UDP/FTP/FTPS/HTTP/HTTPS
GNSS positioning
Supports GPS, BeiDou, Glonass, GALILEO, QZSS, LBS base station positioning

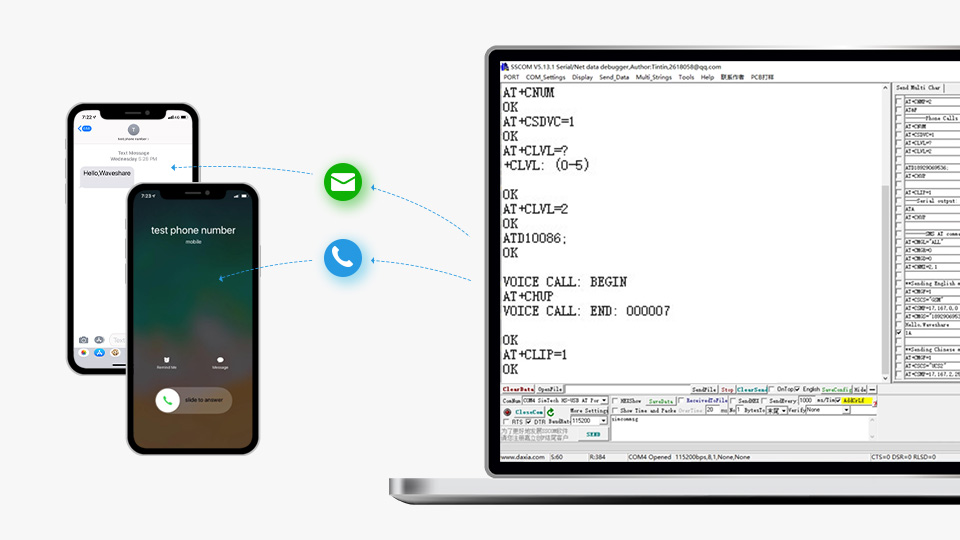

telephone call & SMS Support
Making telephone call or sending SMS by AT commands, with onboard audio jack
What's on board
- SIM7600NA-H
- CP2102 USB to UART converter
- NAU8810 audio decoder
- TXS0108EPWR voltage translator
translates 3.3V/5V into 1.8V - MP2128DT power chip
- SPX29302 power chip
- Raspberry Pi GPIO header
- SIM7600 control interface
for connecting with host boards like Arduino/STM32 - SIM card slot
supports 1.8V/3V SIM card - 3.5mm earphone/mic jack
for making telephone call or other voice operations - USB interface
for testing AT Commands, getting GPS positioning data, etc. - USB to UART interface
for serial debugging, or login to Raspberry Pi - MAIN antenna connector
- AUX antenna connector
- GNSS antenna connector
- Module Power ON/OFF
- Network status indicator
- Power indicator
- Operating voltage selection
configured via 0Ω resistor pad
VCCIO - 3.3V: set operating voltage as 3.3V
VCCIO - 5V: set operating voltage as 5V - UART selection jumper
A: access Raspberry Pi via USB to UART
B: control the SIM7600 by Raspberry Pi
C: control the SIM7600 via USB to UART - PWR configuration jumper
PWR - 3V3: auto startup on power-up (default)
PWR - D6: startup/shutdown by the Raspberry Pi D6 pin
Flight mode configuration jumper
NC by default, no flight mode control pin
Flight - D4: flight mode is controlled by the Raspberry Pi D4 pin - USB connector solder pads
- BOOT forced programming solder pads

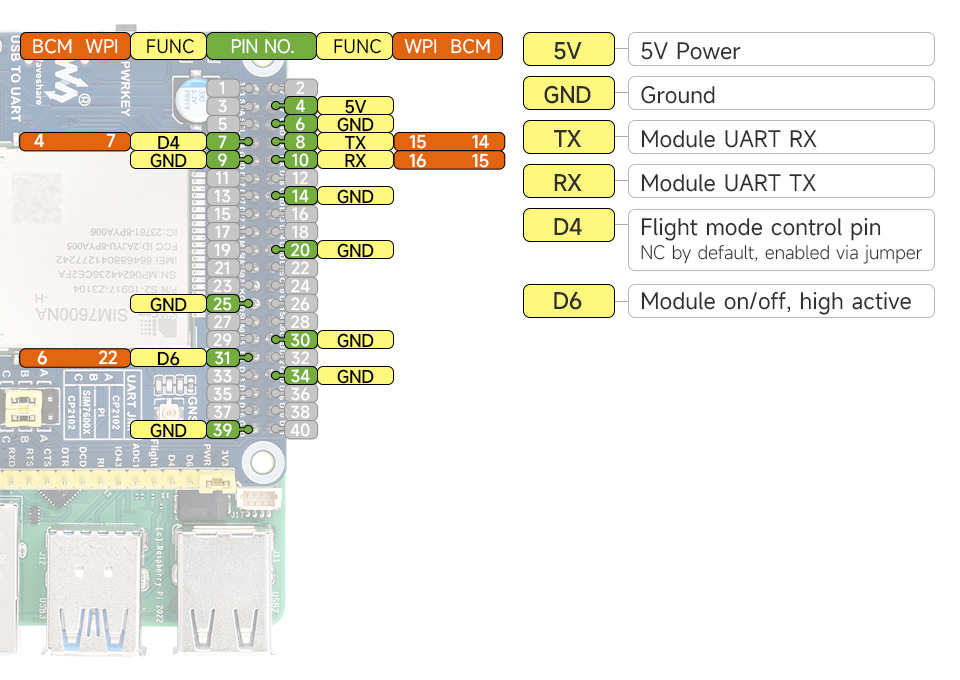

Pinout definition

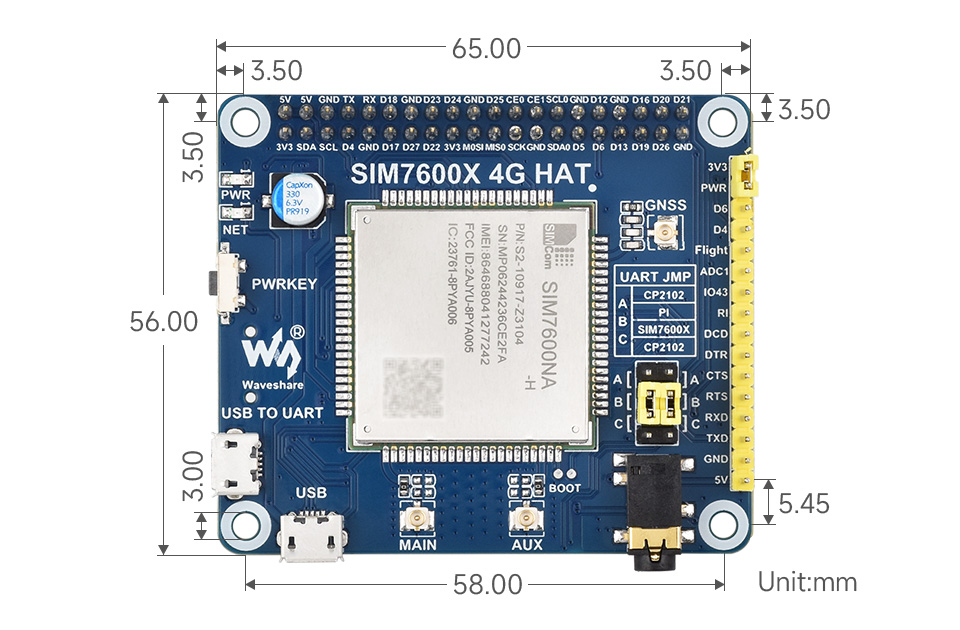

Outline Dimensions
Resources & Services
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
Selection Guide
| SIM7600CE-JT1S | SIM7600CE-T | SIM7600E | SIM7600E-H | SIM7600A-H | SIM7600NA-H | SIM7600G-H | |
|---|---|---|---|---|---|---|---|
| Applicable regions | China | Europe/Southeast Asia/West Asia/Africa/China/South Korea | North America (AT&T) | North America | Global | ||
| Band | |||||||
| LTE Cat-4 |
LTE-FDD B1/B3/B5/B8 LTE-TDD B38/B39/B40/B41 |
LTE-FDD B1/B3/B5/B7/B8/B20 LTE-TDD B38/B40/B41 |
LTE-FDD B2/B4/B12 |
LTE-FDD B2/B4/B5/B12/B13 /B14/B25/B26/B66/B71 LTE-TDD B41 |
LTE-FDD B1/B2/B3/B4/B5/B7 /B8/B12/B13/B18/B19 /B20/B25/B26/B28/B66 LTE-TDD B34/B38 /B39/B40/B41 |
||
| 3G | UMTS/HSDPA/HSPA+ B1/B8 TD-SCDMA B34/B39 CDMA 1X/EVDO BC0 |
UMTS/HSPA+ B1/B5/B8 |
UMTS/HSPA+ B2/B5 |
N/A | UMTS/HSDPA/HSPA+ B1/B2/B4/B5/B6/B8/B19 |
||
| 2G | GSM/GPRS/EDGE 900/1800 MHz |
N/A | GSM/GPRS/EDGE 850/900/1800/1900MHz |
||||
| GNSS | N/A | GPS/Beidou/GLONASS/GALILEO/QZSS | |||||
| Data Rate | |||||||
| LTE Cat-4 |
150Mbps(DL)/50Mbps(UL) | N/A | 150Mbps(DL)/50Mbps(UL) | ||||
| LTE Cat-1 |
N/A | 10Mbps(DL) /5Mbps(UL) |
N/A | ||||
| 3G (HSPA+) | 42Mbps(DL)/5.76Mbps(UL) | N/A | 42Mbps(DL)/5.76Mbps(UL) | ||||
| 2G (EDGE) | 236.8Kbps(DL/UL) | N/A | 236.8Kbps(DL/UL) | ||||
| 2G (GPRS) | 85.6Kbps(DL/UL) | N/A | 85.6Kbps(DL/UL) | ||||
| Software Features | |||||||
| Network protocol | TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNS | ||||||
| Dial-up protocol | PPP/NDIS/RNDIS | ||||||
| USB driver | Windows XP/7/8/10, Linux (driver free for Raspbian) | ||||||
| Hardware Interfaces | |||||||
| SIM card slot | Compatible with 1.8V and 3V SIM card | ||||||
| UART | Supports AT commands through UART, compatible with 3.3V/5V operating voltage | ||||||
| USB port | Supports AT commands testing, network communication, firmware upgrading, etc. | ||||||
| USB to UART | Supports serial debugging, or login to Raspberry Pi | ||||||
| Audio jack | Supports audio actions like making telephoto call | ||||||
| TF card slot | Yes, for storing data like files, messages, etc. | N/A | Yes | ||||
| Antenna connector | LTE main antenna | LTE main antenna + LTE diversity antenna + GNSS antenna | |||||
| Applications | |||||||
| Examples | Healthcare, smart payment, Internet talk, environmental monitoring, energy monitoring, fleet management, smart industry, intelligent agriculture, etc. | ||||||
Weight: 0.19 kg
Quick Overview
- SIM7600NA-H 4G HAT x1
- SMA Antenna x1

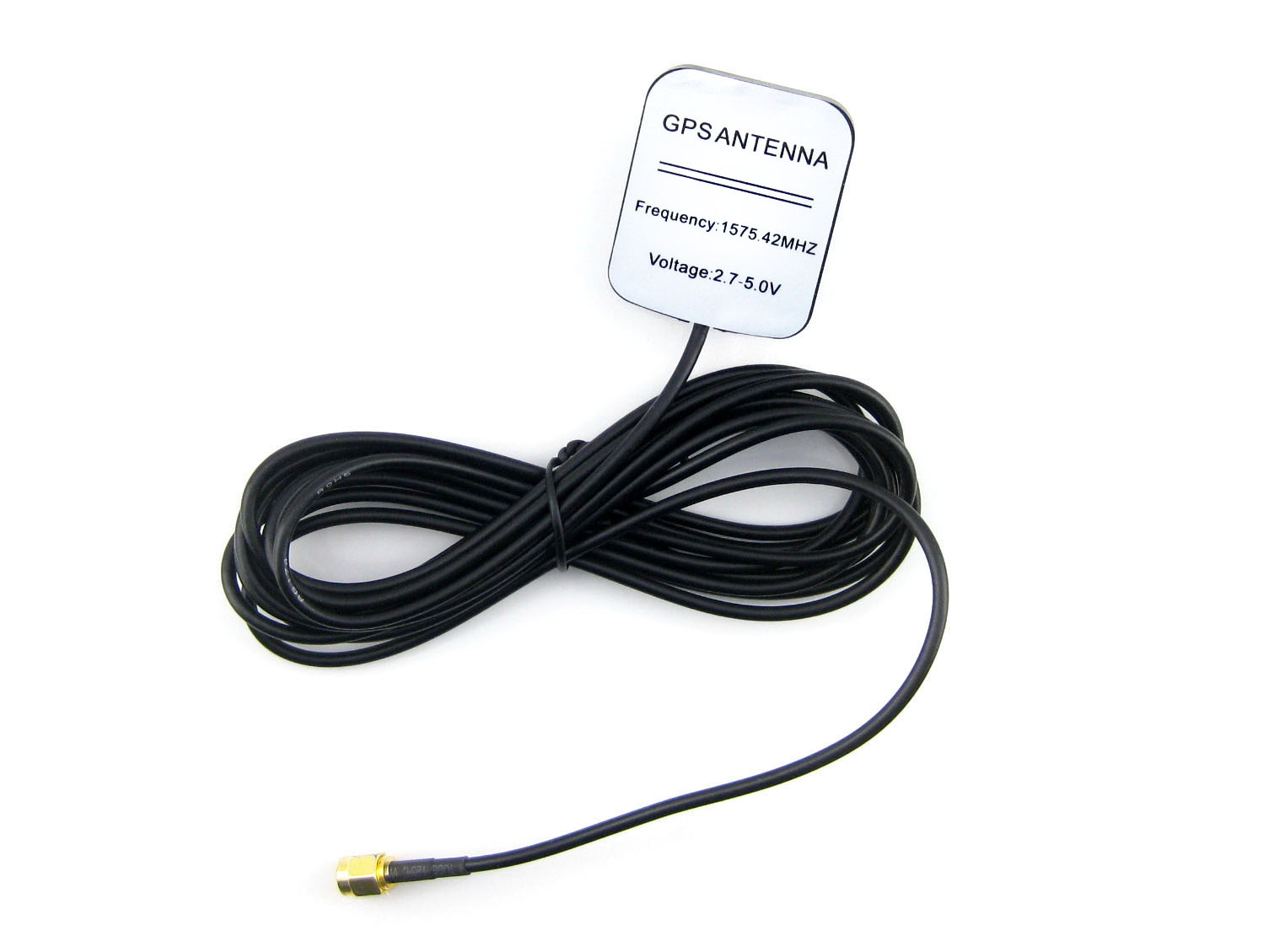

- GPS External Antenna (A) x1
- USB type A plug to micro plug cable x2
- RPi screws pack (2pcs) x1
