- Description
Details
This is an industrial grade 4G dongle, which features up to 150Mbps downlink rate and 50Mbps uplink rate, supports operating systems including Windows/Linux. By simply connecting it to laptop, PC, Raspberry Pi, drone, industrial computer, or other IoT host device, it is easy to use 4G network connection on the go.
- Supports 4G network connection, mainly applicable for North America
- Driver provided, for operating systems including Windows/Linux
- Supports network protocols such as TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNS
- Onboard USB port, for directly connecting with ARM/X86 hosts or other industrial computer
- Onboard UART port with hardware flow control, for connecting with host boards like Arduino/STM32
- Onboard GNSS connector, supports GPS, Beidou, Glonass, LBS base station positioning (additional GNSS antenna is required but NOT included)
- Onboard AUX connector, together with embedded customized FPC AUX antenna, better communication performance
- Nano SIM card slot, supports 1.8V / 3V nano SIM card
- 3x LED indicators, easy to monitor the working status
- Portable customized enclosure, mini size, nice looking
- Baudrate support: 300bps ~ 4Mbps (115200bps by default)
- Baudrate auto-negotiation: 9600bps ~ 115200bps
| SIM7600CE-CNSE | SIM7600G-H | SIM7600E-H | SIM7600A-H | SIM7600NA-H | |
|---|---|---|---|---|---|
| Applicable regions* | China | Global | Europe / the Middle East / Africa / South Korea / Thailand | North America (AT&T) | North America |
| Band | |||||
| LTE Cat-4 / LTE Cat-1 | LTE-TDD: B38/B39/B40/B41 LTE-FDD: B1/B3/B8 |
LTE-TDD: B34/B38/B39/B40/B41 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/ B13/B18/B19/B20/B25/B26/B28/B66 |
LTE-TDD: B38/B40/B41 LTE-FDD: B1/B3/B5/B7/B8/B20 |
LTE-FDD: B2/B4/B12 | LTE-TDD: B41 LTE-FDD: B2/B4/B5/B12/B13/ B14/B25/B26/B66/B71 |
| 3G | UMTS/HSDPA/HSPA+: B1/B8 TD-SCDMA: B34/B39 |
UMTS/HSDPA/HSPA+: B1/B2/B4/B5/B6/B8/B19 | UMTS/HSPA+: B1/B5/B8 | UMTS/HSPA+: B2/B5 | |
| 2G | GSM/GPRS/EDGE: 900/1800MHz | GSM/GPRS/EDGE: 850/900/1800/1900MHz | GSM/GPRS/EDGE: 900/1800 MHz | ||
| GNSS | N/A | GPS/Beidou/GLONASS/GALILEO/QZSS | |||
| Data Rate | |||||
| LTE Cat-4 | 150Mbps(DL) / 50Mbps(UL) | ||||
| 3G (HSPA+) | 42Mbps(DL) / 5.76Mbps(UL) | ||||
| 2G (EDGE) | 236.8Kbps(DL) / 236.8Kbps(UL) | ||||
| 2G (GPRS) | 85.6Kbps(DL) / 85.6Kbps(UL) | ||||
| Software Features | |||||
| Operating system | Windows/Linux | ||||
| Network protocol | TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNS | ||||
| Dial-up protocol | NDIS/RNDIS/PPP | ||||
| SMS | Supports MT, MO, CB, Text, PDU | ||||
| Hardware Description | |||||
| Communication interface | USB / UART | ||||
| UART baud rate | 300bps ~ 4Mbps (115200bps by default) | ||||
| Indicator | NET：network indicator | ||||
| STA：status indicator | |||||
| PWR：power indicator | |||||
| SIM card support | Nano SIM card (1.8V / 3V) | ||||
| Antenna connector | LTE | MAIN LTE, GNSS | MAIN LTE, AUX LTE, GNSS | ||
| Power supply | 5V | ||||
| Logic level | 3.3V | ||||
| Outline dimensions | 89.20 × 45.26 × 14.62mm | ||||
supports 4G frequency band for North America,
including United States, Canada...

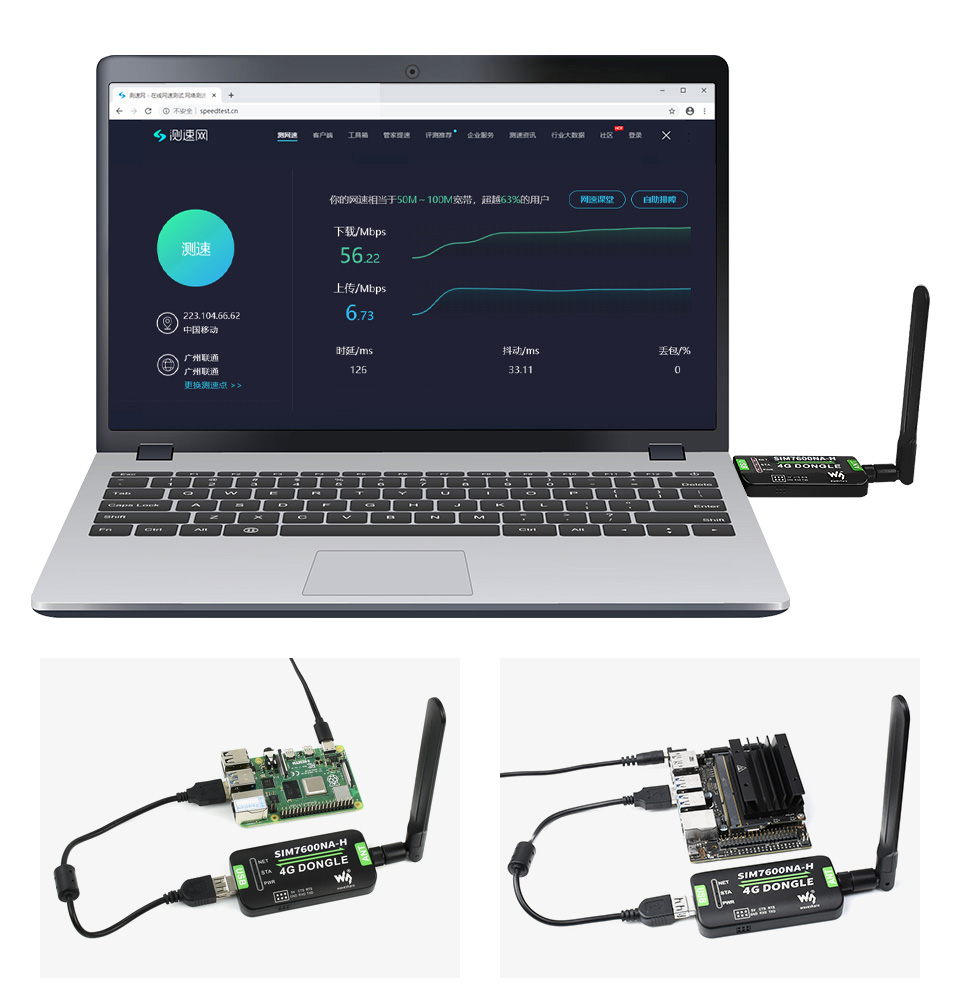

working with laptop / Raspberry Pi / industrial computer...
up to 150Mbps downlink and 50Mbps uplink*
* stands for idealized data rate, the actual data rate may fluctuate greatly, depending on factors like network coverage, traffic congestion, base station condition, etc.
supports Windows/Linux
Just plug it into USB port, go through some driver installation and simple configuration, the high speed 4G network connection would be ready to use
supports USB/UART communication interfaces
supports TCP/UDP/FTP/FTPS/HTTP/HTTPS communication protocols
Supports GPS / Beidou / GLONASS / GALILEO / QZSS positioning
embedded customized FPC AUX antenna, better communication via dual antennas
Integrates SIM7600NA-H module, industrial grade design, stable connection, more durable
flexible structure antenna design, allows multidimensional rotation for better connection

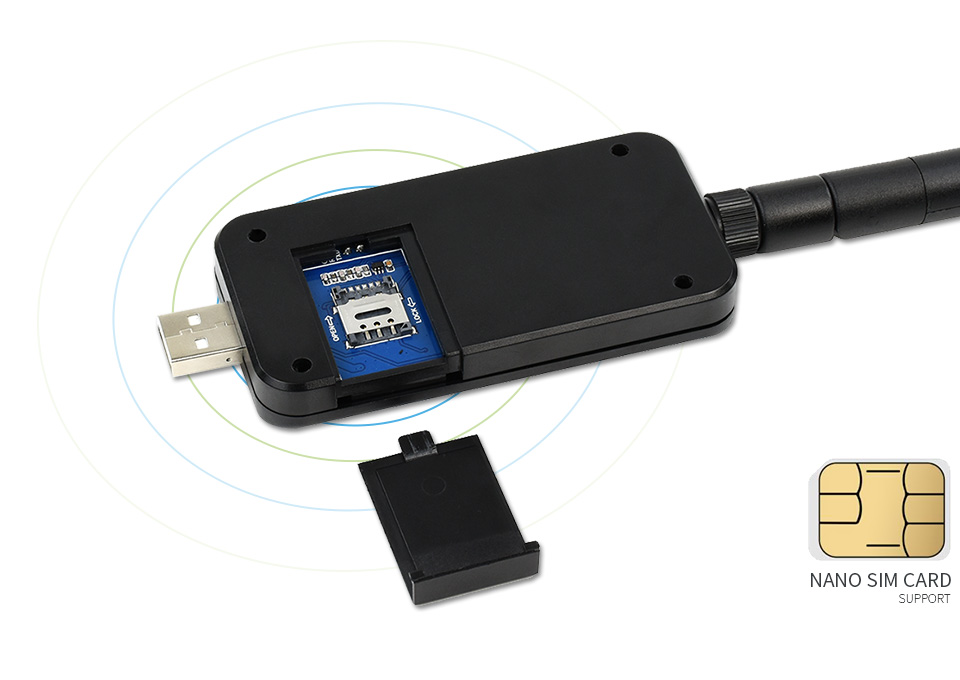

onboard nano SIM card slot with sliding cover, easy to use

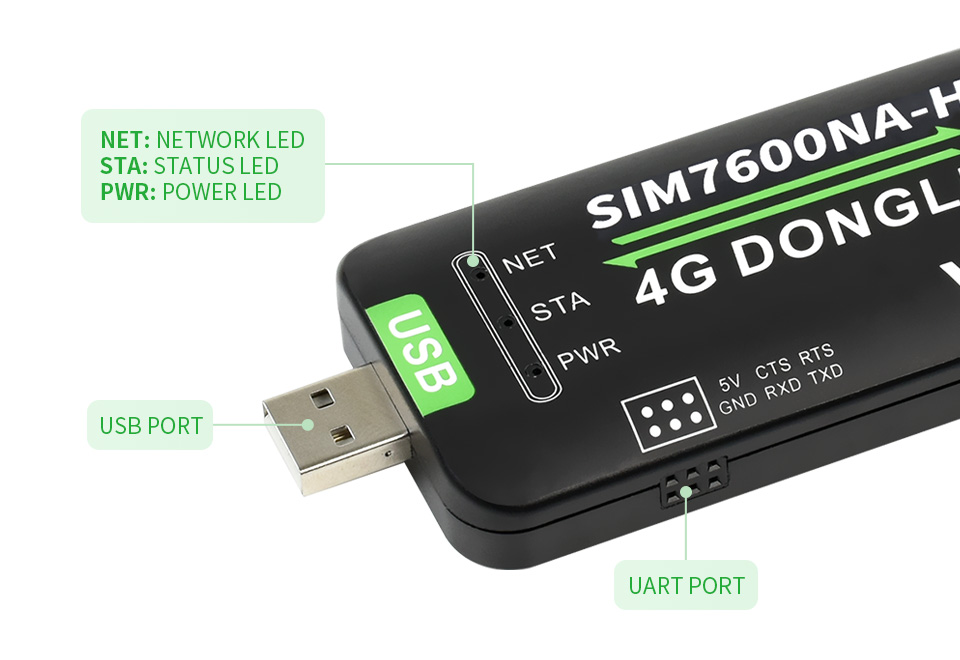

easy to check the operating status, convenient for programming/debugging
| UART pinouts | |
|---|---|
| 5V | 5V DC input |
| GND | power ground |
| TXD | data transmitting |
| RXD | data receiving |
| CTS | hardware flow control, clear to send, NC if not used |
| RTS | hardware flow control, request to send, NC if not used |
for bulk purchase, customizing service is available for hardware revising
or other communication modules like: SIM7600CE-T/SA-H/V-H/JC-H...
Weight: 0.095 kg
Quick Overview
- SIM7600NA-H 4G DONGLE x1
- LTE Antenna x1
- USB extension cable x1
- 6PIN jumper wire x1
- Screws tool kit x1
