Prohibited by the module manufacturer SIMCOM, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.

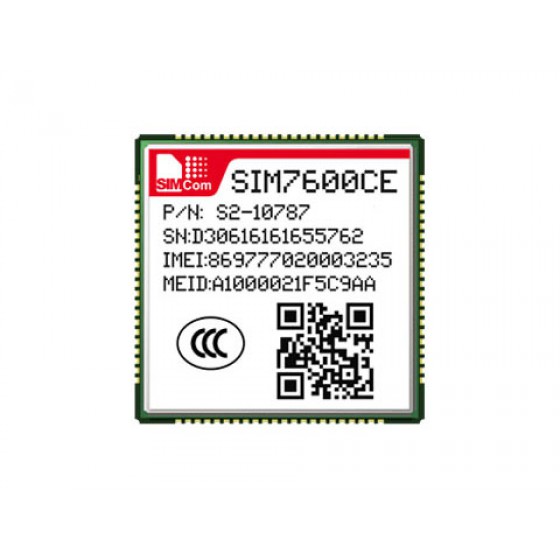

SIM7600CE SIMCom original 4G LTE Cat-4 module, with GNSS support (optional), LTE-TDD/LTE-FDD/HSPA+/TD-SCDMA/EVDO and GSM/GPRS/EDGE frequency band
SIM7600CE
LTE Cat-4 module
The SIM7600CE series adopts LCC package, supports LTE-TDD/LTE-FDD/HSPA+/TD-SCDMA/EVDO and GSM/GPRS/EDGE frequency bands, supports LTE CAT4 (downlink rate up to 150Mbps). It features stable performance, small form factor, and cost effective, allows low power SMS and data transmission.
The dimensions of SIM7600CE is only 30*30*2.9mm, which make it an ideal choice for sorts of compact designed products, meeting customer's various requirements.
Product Advantages
- LCC form factor with abundant interfaces
- Supports LTE-TDD/LTE-FDD/HSPA+/TD-SCDMA/EVDO and GSM/GPRS/EDGE frequency band
- Optional GNSS support: ONLY the SIM7600CE-T
- AT commands support
Selection Guide
| Series | SIM7600CE | SIM7600X | SIM7600X-H | ||||
|---|---|---|---|---|---|---|---|
| Module | SIM7600CE-CNSE | SIM7600CE-T | SIM7600E | SIM7600E-H | SIM7600A-H | SIM7600G-H | |
| Applicable regions | China | Europe/Southeast Asia/West Asia/Africa/China/South Korea | North America | Global | |||
| Frequency Band | |||||||
| LTE Cat-4 /LTE Cat-1 |
LTE-TDD B38/B39/B40/B41 LTE-FDD B1/B3/B8 |
LTE-FDD B1/B3/B5/B7/B8/B20 LTE-TDD B38/B40/B41 |
LTE-FDD B2/B4/B12 |
LTE-TDD B34/B38 /B39/B40/B41 LTE-FDD B1/B2/B3/B4/B5/B7 /B8/B12/B13/B18/B19 /B20/B25/B26/B28/B66 |
|||
| 3G | UMTS/HSDPA/HSPA+ B1/B8 TD-SCDMA B34/B39 |
UMTS/HSPA+ B1/B5/B8 |
UMTS/HSPA+ B2/B5 |
UMTS/HSDPA/HSPA+ B1/B2/B4/B5/B6/B8/B19 |
|||
| 2G | GSM/GPRS/EDGE 900/1800 MHz |
N/A | GSM/GPRS/EDGE 850/900/1800/1900MHz |
||||
| GNSS | N/A | GPS/Beidou/GLONASS | |||||
| Data Transfer | |||||||
| LTE Cat-4 | 150Mbps(DL)/50Mbps(UL) | N/A | 150Mbps(DL)/50Mbps(UL) | ||||
| LTE Cat-1 | N/A | 10Mbps(DL) /5Mbps(UL) |
N/A | ||||
| 3G (HSPA+) | 42Mbps(DL)/5.76Mbps(UL) | ||||||
| 2G (EDGE) | 236.8Kbps(DL)/236.8Kbps(UL) | N/A | 236.8Kbps(DL)/236.8Kbps(UL) | ||||
| 2G (GPRS) | 85.6Kbps(DL)/85.6Kbps(UL) | N/A | 85.6Kbps(DL)/85.6Kbps(UL) | ||||
| Software Features | |||||||
| Operating system | Windows/Linux/Android | ||||||
| Protocol | TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNS | ||||||
| Dial-up | NDIS/RNDIS/PPP | ||||||
| SMS | Supports MT, MO, CB, Text, PDU | ||||||
| Control | Controlled by AT commands through USB/UART | ||||||
| Firmware upgrade | USB | ||||||
| Hardware Specifications | |||||||
| Interfaces | USB, UART, PCM, ADC, GPIO, SD Card, SPI, I2C | ||||||
| UART baudrate | 300bps ~ 4Mbps (115200bps by default) | ||||||
| SIM card | 1.8V / 3V | ||||||
| Antenna interface | LTE main antenna | LTE main antenna + LTE diversity antenna + GNSS antenna | |||||
| Power supply | 3.4V ~ 4.2V, typ 3.8V | ||||||
| Dimensions | 30 × 30 × 2.9 mm | ||||||
| Operating temp. | -40℃ ~ +85℃ | ||||||
| Applications | |||||||
| Examples | Healthcare, smart payment, Internet talk, environmental monitoring, energy monitoring, fleet management, smart industry, intelligent agriculture, etc. | ||||||
Quick Overview
This is an SMT module, we also provide the ready-made expansion board for easy evaluation: SIM7600CE 4G HAT, SIM7600CE-CNSE 4G DONGLE
- OPTIONS SIM7600CE x1
