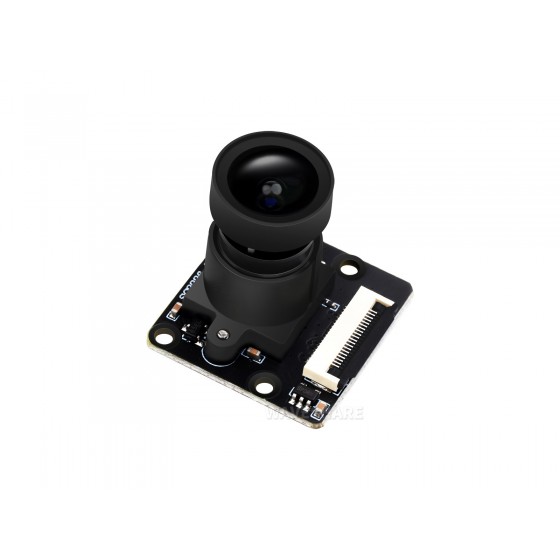

SC3336 3MP Camera Module (B), With High Sensitivity, High SNR, and Low Light Performance, Compatible With LuckFox Pico Series Boards
Specifications
| Sensor | SC3336 | CMOS size | 1/2.8″ |
| Camera type | Color | Pixel | 3MP (2304×1296) |
| Shutter | Rolling shutter | Aperture | F2.0 |
| Distortion | <33% | FOV | 98.3° |
| Focal length | 3.95mm | Focusing | Manual focus |
Wide field of view
Onboard 98.3° wide angle lens, provides a wider picture range and viewing angle
High SNR and Low Light Performances
Connect to LuckFox Pico
Product Show
outline dimensions
Weight: 0.012 kg
Quick Overview
SC3336 3MP Camera (B) (with FFC cable) x1
