- Description
Details
Raspberry Pi Model B+ Development Kits, Expansion Board DVK512, Various Accessories and Modules
Overview
The Raspberry Pi Model B+ incorporates a number of enhancements and new features. Improved power consumption, increased connectivity and greater IO are among the improvements to this powerful, small and lightweight ARM based computer.

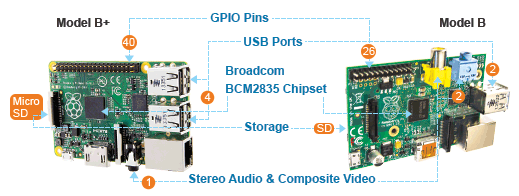

What's New
- More GPIO. The GPIO header has grown to 40 pins, while retaining the same pinout for the first 26 pins as the Model B.
- More USB. We now have 4 USB 2.0 ports, compared to 2 on the Model B, and better hotplug and overcurrent behaviour.
- Micro SD. The old friction-fit SD card socket has been replaced with a much nicer push-push micro SD version.
- Lower power consumption. By replacing linear regulators with switching ones we’ve reduced power consumption by between 0.5W and 1W.
- Better audio. The audio circuit incorporates a dedicated low-noise power supply.
- Neater form factor. We’ve aligned the USB connectors with the board edge, moved composite video onto the 3.5mm jack, and added four squarely-placed mounting holes.
Features
- Broadcom BCM2835 700MHz ARM1176JZFS processor with FPU and Videocore 4 GPU
- GPU provides Open GL ES 2.0, hardware-accelerated OpenVG, and 1080p30 H.264 high-profile decode
- GPU is capable of 1Gpixel/s, 1.5Gtexel/s or 24 GFLOPs of general purpose compute and features a bunch of texture filtering and DMA infrastructure
- 512MB RAM
- Boots from Micro SD card, supports Linux distros such as Fedora, Debian and ArchLinux
- 10/100 wired Ethernet
- HDMI output
- USB 2.0 interface x 4
- 4-pole 3.5mm stereo audio jack with composite video output
- Micro SD card slot
- Powered by 5v micro USB
- Camera connector
- 40-pin 2.54mm expansion pinheader
- Dimensions: 85mm x 56mm x 17mm

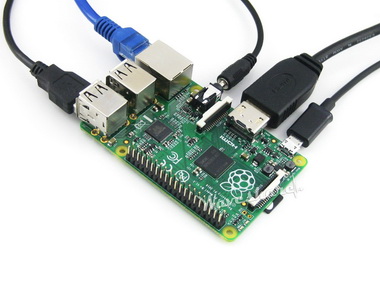

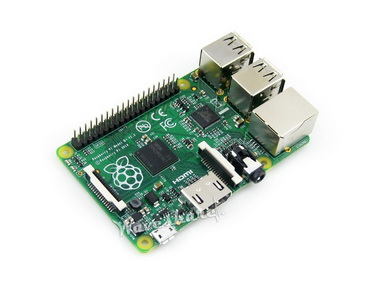

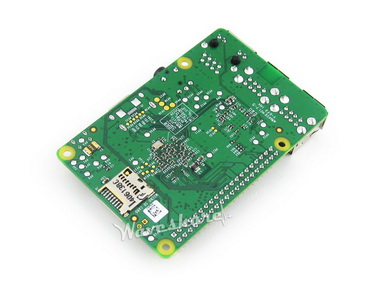

Photos
What's on the DVK512
- Pinheaders for connecting with the RPi
- UART interface: easily connects to UART modules such as RS232, RS485, USB TO UART, etc.
- 8I/Os interface: easily connects to modules controlled by I/Os, such as 8 Push Buttons, Logic Level Converter, Mix Board, etc.
- SPI interface: easily connects to SPI modules such as AT45DBXX Dataflash, L3G4200D Board, etc.
- I2C interface: easily connects to I2C modules such as PCF8574 Expansion Board, PCF8563 RTC Board, LSM303DLHC Board, etc.
- Character LCD interface: for connecting character LCDs like LCD1602
- USB connector: USB TO UART, supported by onboard converter CP2102
- Power indicator
- User LEDs
- User Keys
- Potentiometer: for LCD1602 contrast adjustment
- RTC battery holder
- PCF8563: onboard RTC chip
- 32.768K crystal: RTC crystal
- CP2102: onboard USB TO UART chip, for debugging
- CP2102 jumper
- RTC jumper
- User LEDs jumper
- User Keys jumper
For jumpers above:
- short the jumper to connect to I/Os used in example code
- open the jumper to connect to other custom pins via jumper wires
DVK512 Photos
DVK512 RPi expansion board
DVK512 RPi expansion board back view
DVK512 RPi expansion board
Connecting with LCD1602
Connecting with RPi A+
Connecting with RPi A+ and accessory boards
Connecting with RPi B+
Connecting with RPi B+ and accessory boards
Development Resources
The User Guide CD includes development resources listed as follow:
- User manual
- Schematic (PDF)
- Examples in C (Linux API source code)
- Development documentations (Raspbian configuration, C library installation)
- Raspbian (the configured system image for RPi)
Examples in C:
- LED (I/Os)
- Logic Level Converter (I/Os)
- JOYSTICK (I/Os)
- Key (I/Os)
- BUZZER (PWM)
- DS18B20 (1-WIRE)
- IRM (I/Os)
- LCD1602 (I/Os)
- PCF8563 (RTC)
- PCF8591 (AD/DA)
- LSM303DLHC (I2C)
- L3G4200D (SPI)
- CP2102 (UART)
- GPS (UART)
Download:www.waveshare.com/RPi_B+_Package_B
Optional Items
You may also need :
- Micro SD Card : 8G
The following items can also be used with this product, drivers provided :
- Touch screen LCD: 3.2inch RPi LCD
- 4-in-1 multi-functional accessory board: Mix Board
- 8ch TTL bus transceiver: Logic Level Converter
Raspberry Pi Model B+ Selection Guide
| Package Contents | Products | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Item | Description | Acce. A | Package A | Acce. B | Package B | Acce. C | Package C | Acce. D | Package D |
| RPi B+ | Raspberry Pi Model B+ | √ | √ | √ | √ | ||||
| DVK512 | Expansion Board, provides expansion interfaces and onboard components | √ | √ | √ | √ | ||||
| 3.5inch RPi LCD (A) | 3.2inch touch screen LCD | √ | √ | ||||||
| RPi Camera (C) | Raspberry Pi camera | √ | √ | ||||||
| PCF8591 AD DA Board | 8-bit AD/DA module | √ | √ | √ | √ | ||||
| L3G4200D Board | Angular rate sensor | √ | √ | √ | √ | ||||
| LSM303DLHC Board | e-compass | √ | √ | √ | √ | ||||
| Mix Board | Buzzer, Joystick, Infrared Receiver, Temperature Sensor | √ | √ | ||||||
| Logic Level Converter | 8ch Logic Level Bus Transceiver | √ | √ | ||||||
| USB WIFI 150M RTL8188CUS | USB WIFI | √ | √ | ||||||
| Micro SD Card 8GB | 8GB Miro SD Card, class 10 | √ | √ | ||||||
| USB Camera 0307 | USB camera | √ | √ | ||||||
| Mini Wireless Keyboard | Mini wireless keyboard with touchpad | √ | √ | ||||||
| HDMI to VGA Convertor | For working with VGA monitors | √ | √ | ||||||
| 5V 2A Power Adapter | Required while heavy-loaded | √ | √ | ||||||
| ARPI600 | Raspberry Pi to Arduino | √ | √ | ||||||
| Sensors Pack | Various sensors in one pack | √ | √ | ||||||
Weight: 0.251 kg
Quick Overview

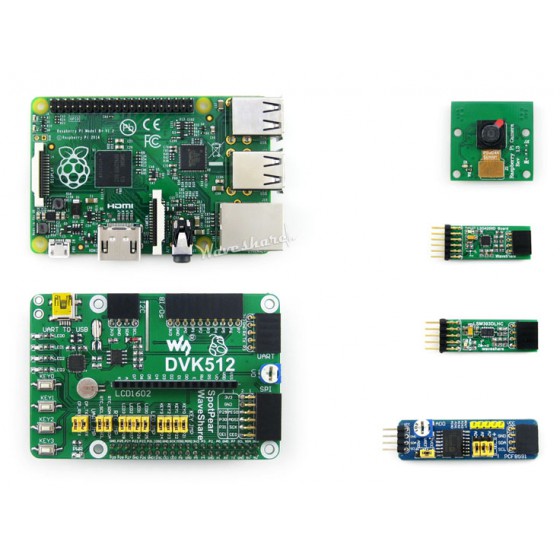

Package Contains
- Raspberry Pi Model B+ x 1
- DVK512 x 1
- PCF8591 AD DA Board x 1
- L3G4200D Board x 1
- LSM303DLHC Board x 1

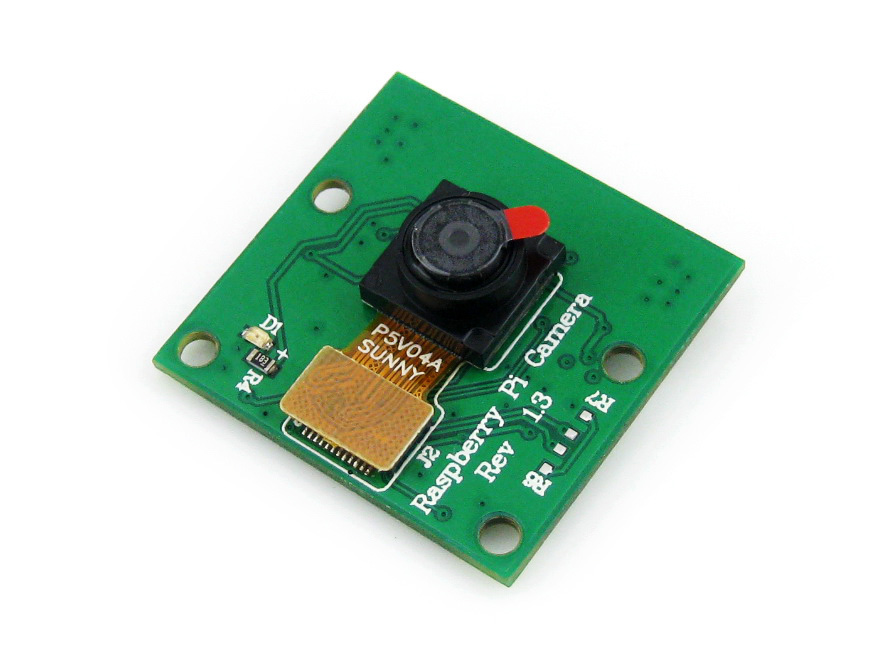

- RPi Camera (C) x 1
- USB Type A Plug to Micro B Plug Cable x 1
- USB type A plug to mini-B plug cable x 1
- 4-pin 2-pin wires pack x 1
- RPi screws pack (2pcs) x 1

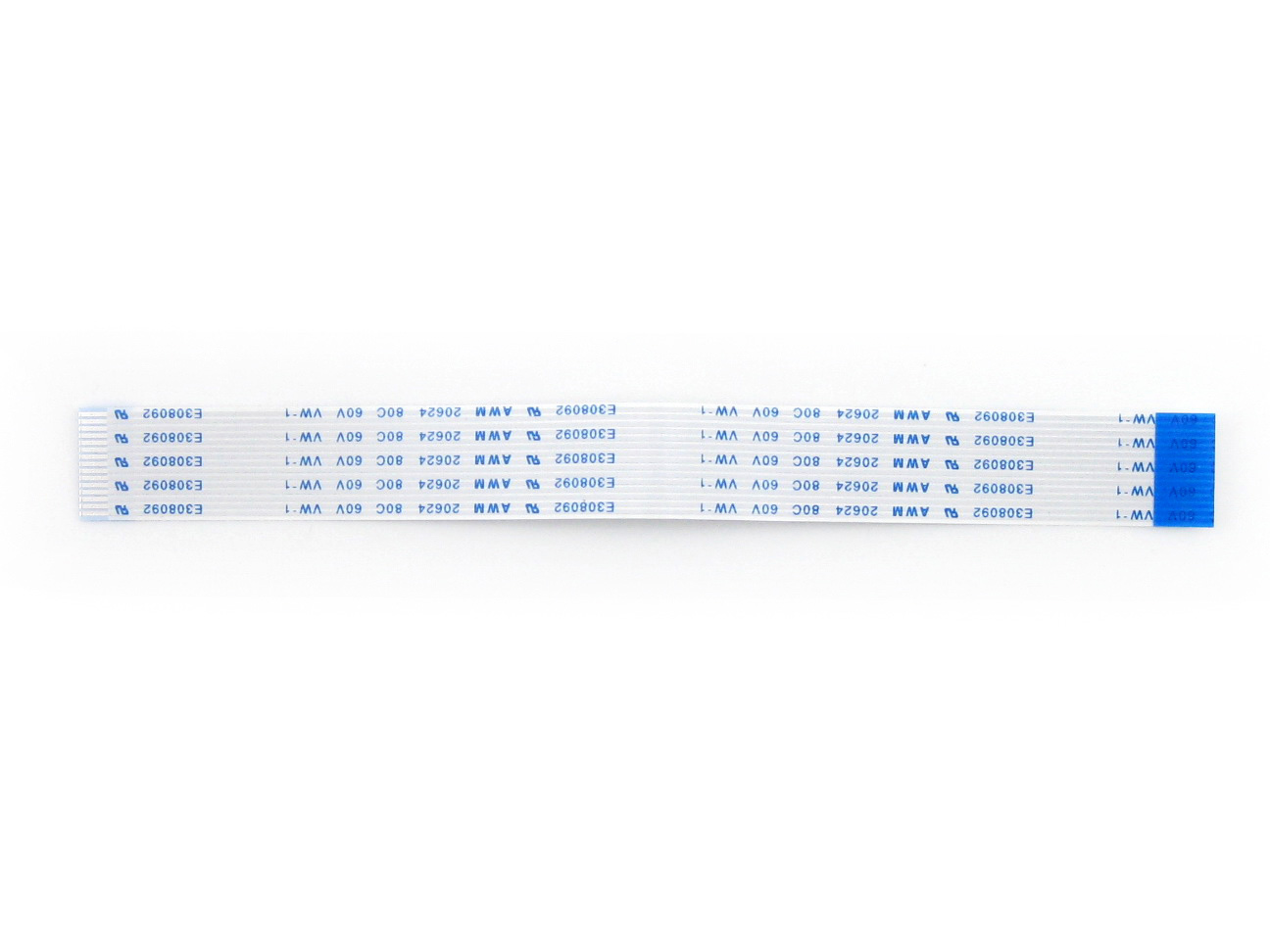

- 15-pin FFC × 1
- User guide CD x 1
