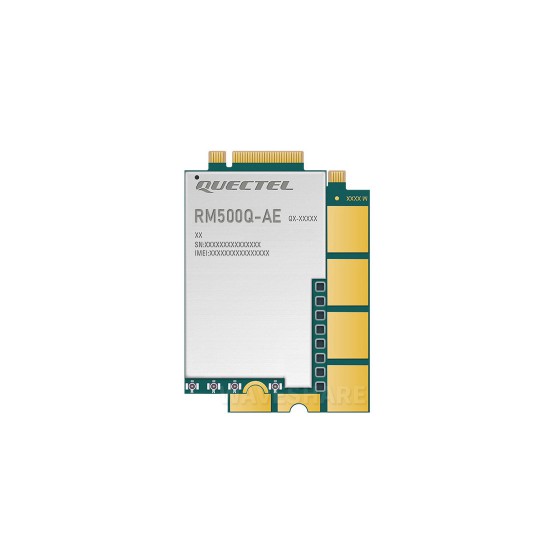

Quectel RM50x Series 5G Sub-6 GHz Module, M.2 Form Factor

SKU:23214
Part No.:RM500Q-AE
Brand:QUECTEL

$329.99 DISCONTINUED

PriceQuantity
$328.792+
$328.193+
$327.954+

5G Module

RM500U-CNV RM500Q-GL RM500Q-AE RM502Q-AE

Related Products:

Quectel RM520N-GL IoT 5G Global Band Module, 5G Sub-6G Module, M.2 Form Factor With 3GPP 5G Release 16 Specification

Quectel RM530N-GL IoT 5G Global Band Module, 5G Sub-6G & mmWave Module, M.2 Form Factor With 3GPP 5G Release 16 Specification

Description
Package Content

Details

It is recommended to purchase the alternative solution: RM520N-GL, which supports more frequency bands and is more cost-effective, please refer to the module specification table for parameter differences.

Quectel RM50x Series 5G Sub-6 GHz Module, M.2 Form Factor

RM50x Series 5G Module

5G Sub-6 GHz Module Designed for IoT/eMBB Applications

Industrial-grade modules for industrial and commercial applications

RM500U-CNV

RM500Q-GL

RM500Q-AE

RM502Q-AE

Features At A Glance

Designed for IoT/eMBB Applications, support 5G/4G/3G
Full coverage of multi network standards including 5G and LTE-A
Support NSA and SA modes
Integrated multi-constellation GNSS receiver to meet the requirement for fast and accurate positioning in different environments
Support multi functions: DFOTA and VoLTE.etc

M.2 Form Factor

RM50x series adopts the 3GPP Release 15 technology and supports 5G standalone (SA) and non-standalone (NSA) modes. Designed in an M.2 form factor, RM50x series modules are compatible with Quectel LTE-A Cat 6 module EM06, Cat 12 modules EM12-G/EM120R-GL/EM121R-GL, and Cat 16 module EM160R-GL, which facilitate the migration from LTE-A to 5G.

Worldwide Mainstream Carriers Coverage

The RM50x series nearly covers all the mainstream carriers worldwide. Integrated GNSS receiver (supports GPS, GLONASS, BDS and Galileo) greatly simplifies the product design and makes positioning capabilities quicker and more accurate. (RM500U-CNV does not support GNSS.)

Built-in rich network protocols

Integrates multiple industry-standard interfaces and supports multiple drivers and software functions (such as Windows7, 8, 8.1, 10, USB/PCIe drivers under Linux, Android.etc), which greatly expands its application in IoT and eMBB fields including Industrial Routers, Home Gateways, Set Top Box, industrial laptops, consumer laptops, Industrial PDAs, Rugged Industrial Tablet PCs, Cameras and Surveillance and Digital Signage.

Specifications

5G Sub-6		RM500U-CNV	RM500Q-GL	RM500Q-AE	RM502Q-AE	RM520N-GL	RM530N-GL

5G Standard		3GPP R15				3GPP R16
5G		Sub-6 GHz					Sub-6 GHz & mmWave
Region / Provider		China, EMEA, Asia-Pacific	Global (except US)	Global (except China)		Global
Operating temperature		-30 °C ~ +75 °C
Extension temperature		-40 °C ~ +85 °C
Dimensions		30.0 × 52.0 × 2.3mm
Weight		8.9 (g)	8.7 (g)				8.9 (g)
Power supply		3.3~4.4 V, typical 3.7 V	3.135~4.4 V, typical 3.7 V
Power consumption		78 μA @ shutdown 5.1 mA @ hibernate 57mA @ USB 2.0, idle 71mA @ USB 3.0, idle	70 μA @ shutdown 4.0 mA @ hibernate 32 mA @ USB 2.0, idle 54 mA @ USB 3.0, idle	80 μA @ shutdown 4.2 mA @ hibernate 39 mA @ USB 2.0, idle 54.5 mA @ USB 3.0, idle		195 μA @ shutdown 4.7 mA @ hibernate 41 mA @ USB 2.0, idle 60 mA @ USB 3.0, idle	173 μA @ shutdown 5.1 mA @ hibernate 51 mA @ USB 2.0, idle 69 mA @ USB 3.0, idle
Frequency band
5G	5G NR	-					n257, n258, n260, n261
	5G NR NSA	n41, n78, n79	n41, n77, n78, n79	n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79		n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
	5G NR SA	n1, n2, n3, n5, n8, n28, n41, n77, n78, n79	n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79			n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
LTE	LTE-FDD	B1, B3, B5, B8	B1, B2, B3, B4, B5, B7, B8, B12(B17), B13, B14, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71
	LTE-TDD	B34, B38, B39, B40, B41	B34, B38, B39, B40, B41, B42, B43, B48
	LAA	-	B46
UMTS	WCDMA	B1, B5, B8	B1, B2, B3, B4, B5, B6, B8, B19			B1, B2, B4, B5, B8, B19
GNSS		-	GPS / GLONASS / BeiDou (Compass) / Galileo / QZSS (only supported by RM520N-GL and RM530N-GL)
Data rate
5G mmWave		-					downlink 4 Gbps; uplink 1.4 Gbps
5G SA Sub-6		downlink 2 Gbps; uplink 1 Gbps	downlink 2.1 Gbps; uplink 900 Mbps	downlink 2.1 Gbps; uplink 450 Mbps	downlink 4.2 Gbps; uplink 450 Mbps	downlink 2.4 Gbps; uplink 900 Mbps
5G NSA Sub-6		downlink 2.2 Gbps; uplink 575 Mbps	downlink 2.5 Gbps; uplink 600/650 Mbps	downlink 2.5 Gbps; uplink 650 Mbps	downlink 5 Gbps; uplink 650 Mbps	downlink 3.4 Gbps; uplink 550 Mbps
LTE		downlink 600 Mbps; uplink 150 Mbps	downlink 1.0 Gbps; uplink 200 Mbps	downlink 1.0 Gbps; uplink 200 Mbps	downlink 2 Gbps; uplink 200 Mbps	downlink 1.6 Gbps; uplink 200 Mbps
UMTS		downlink 42.2 Mbps; uplink 11 Mbps	downlink 42 Mbps; uplink 5.76 Mbps

Application Scenarios

Industrial Routers, home gateways, set top boxes, industrial laptops, consumer laptops, industrial PDAs, Rugged Industrial Tablet PCs, and digital signage...
